Equipped With

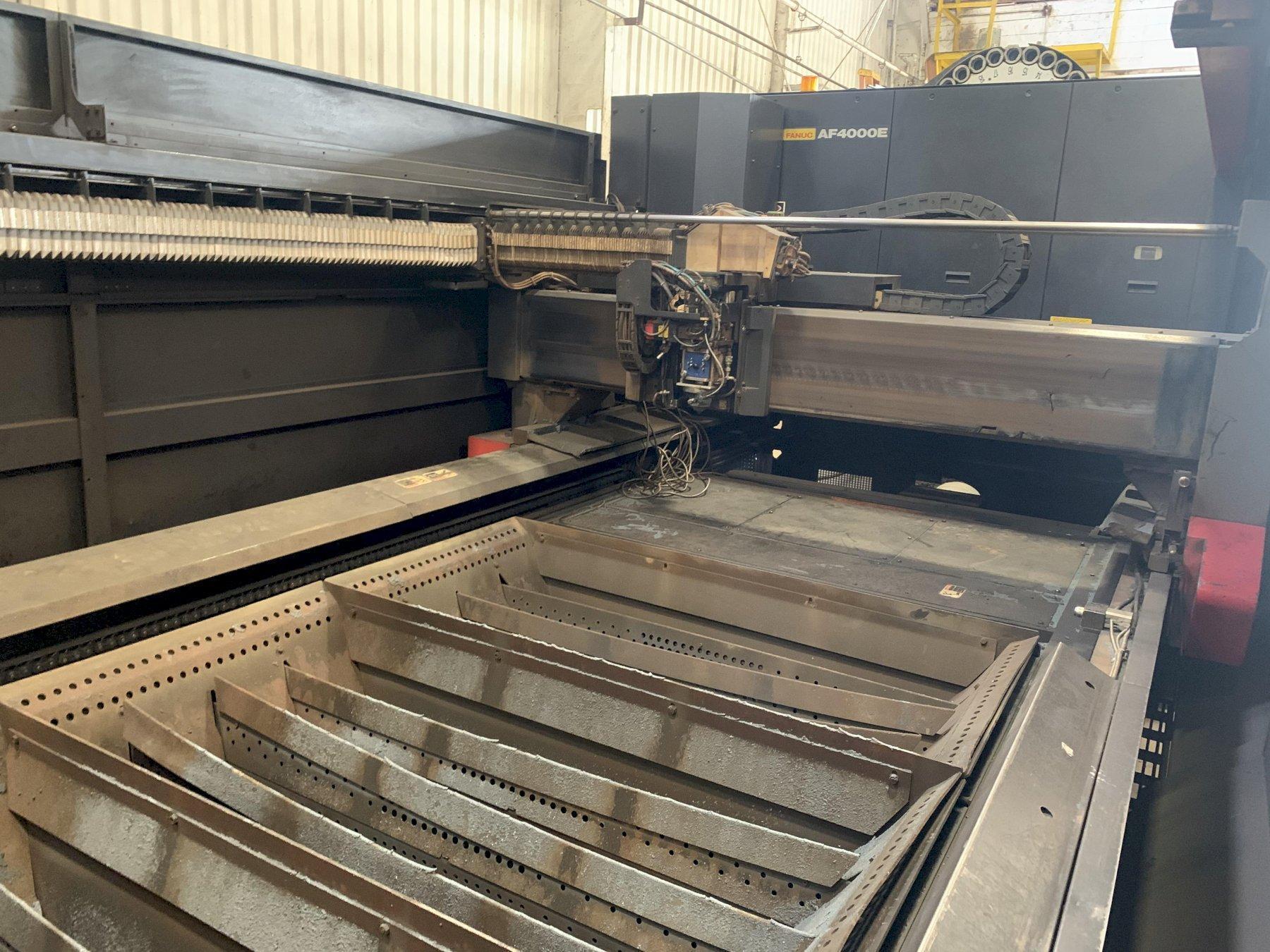

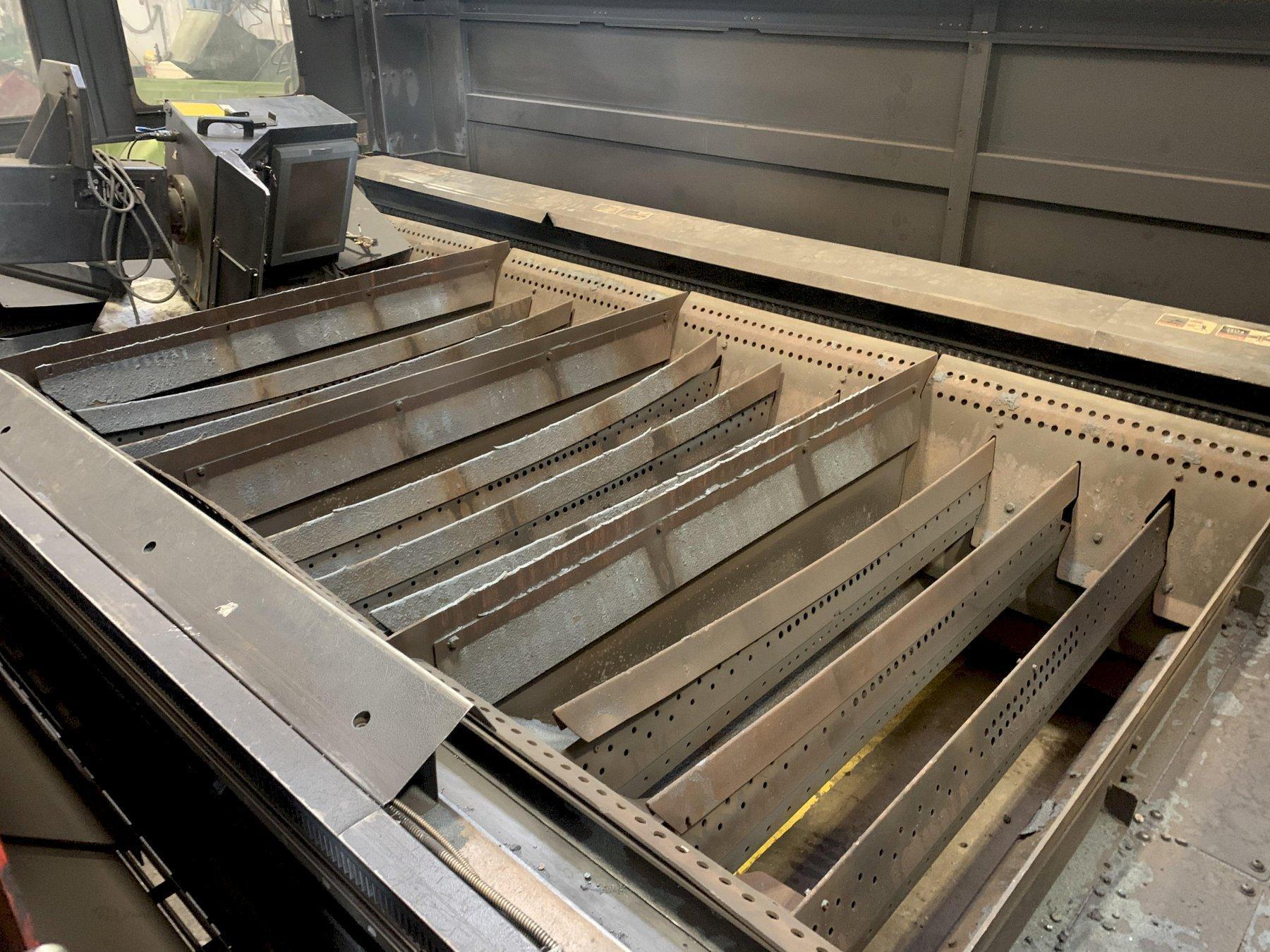

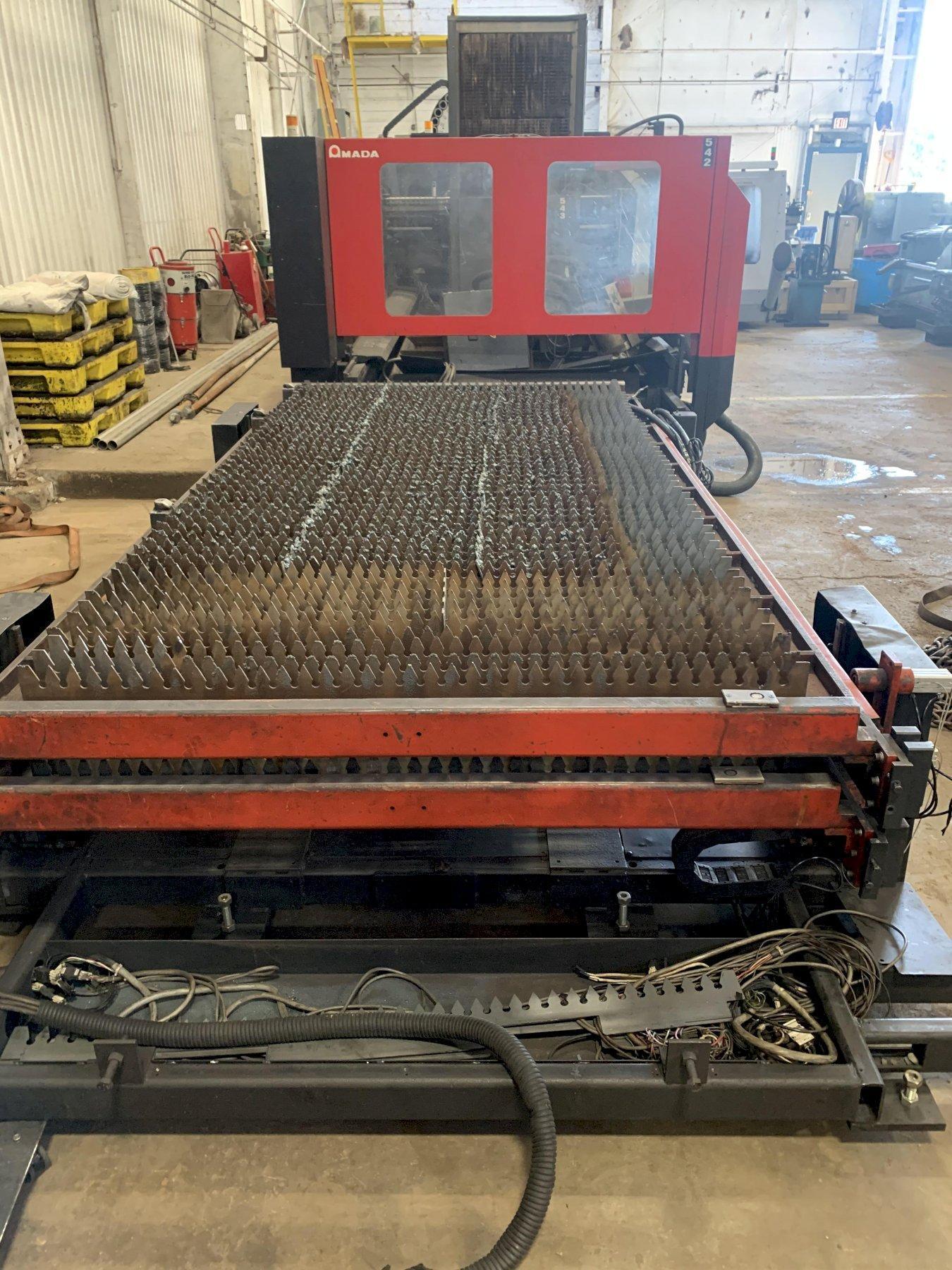

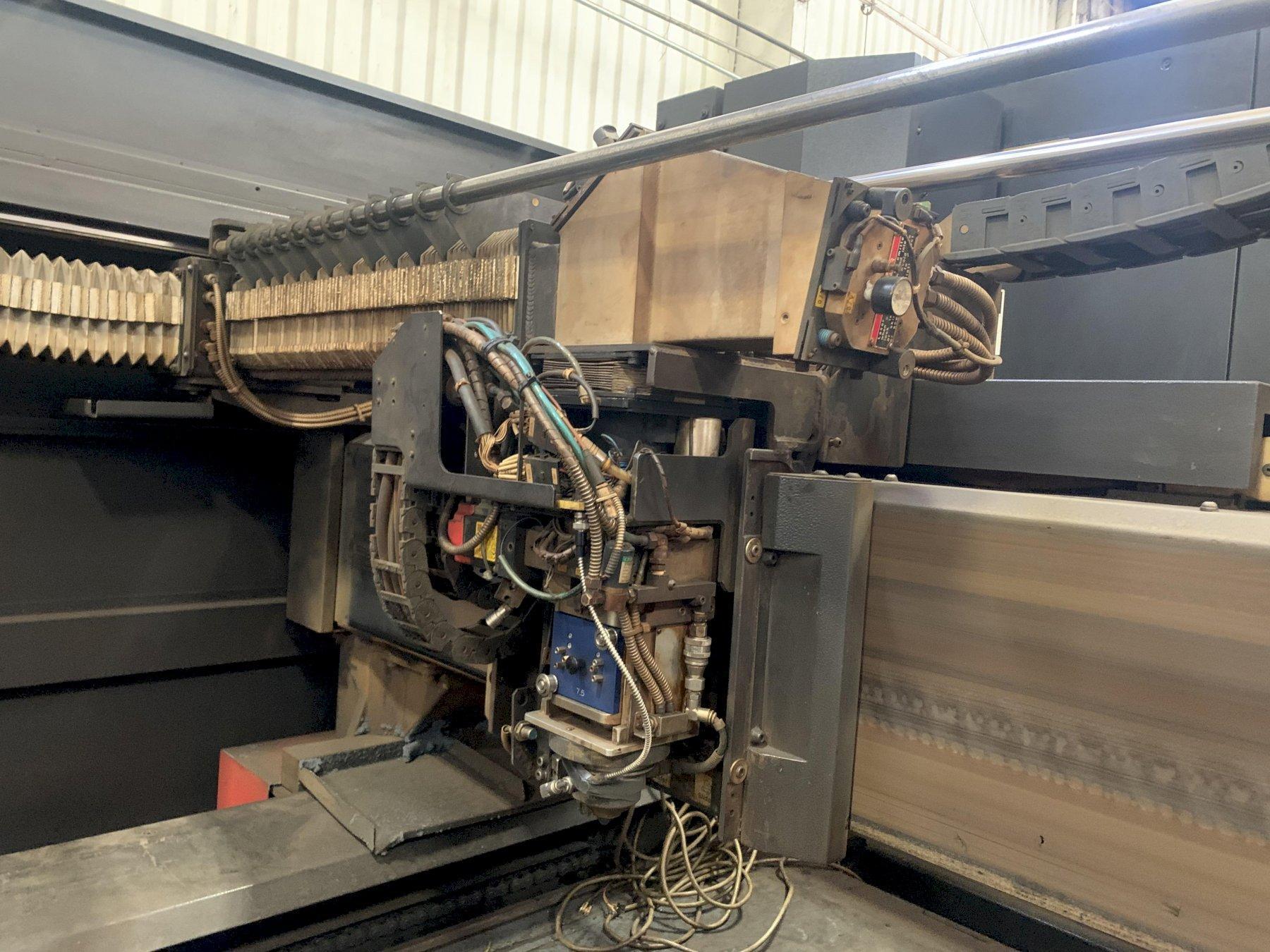

4000 WATT X 60" X 120" AMADA MODEL #FO3015NT LASER CUTTING CELL W/ SHUTTLE TABLE

NEW 2004

SPECIFICATIONS:

RATED POWER ................. 4000 WATTS
MAX CUTTING SIZE ............ 5' X 10' (61” X 122.8”)
SHEET CONFIGURATION ......... SHUTTLE PALLET
X-AXIS TRAVEL ............... 122.8”
Y-AXIS TRAVEL ............... 61”
Z-AXIS TRAVEL ............... 7.87”
MAX RAPID TRAVERSE .......... 3150IPM
MAX MATERIAL WEIGHT ......... 1875 Lbs

MATERIAL CAPACITIES:
MILD STEEL .................. 3/4”
STAINLESS STEEL ............. 1/2”
ALUMINUM .................... 1/4”
WEIGHT ...................... 26,400 Lbs
FOOTPRINT ................... 385” X 107”

FANUC C4000-AF4000E REASONATOR:
MODEL ....................... Fanuc A04B-0815-B301,
