Equipped With

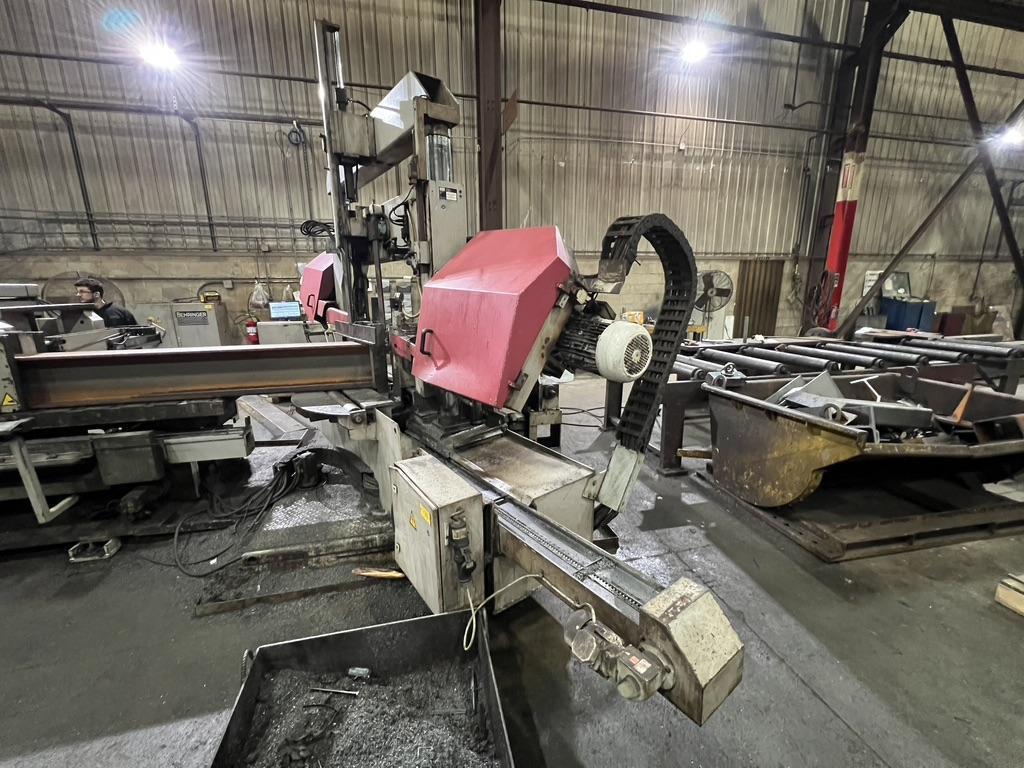

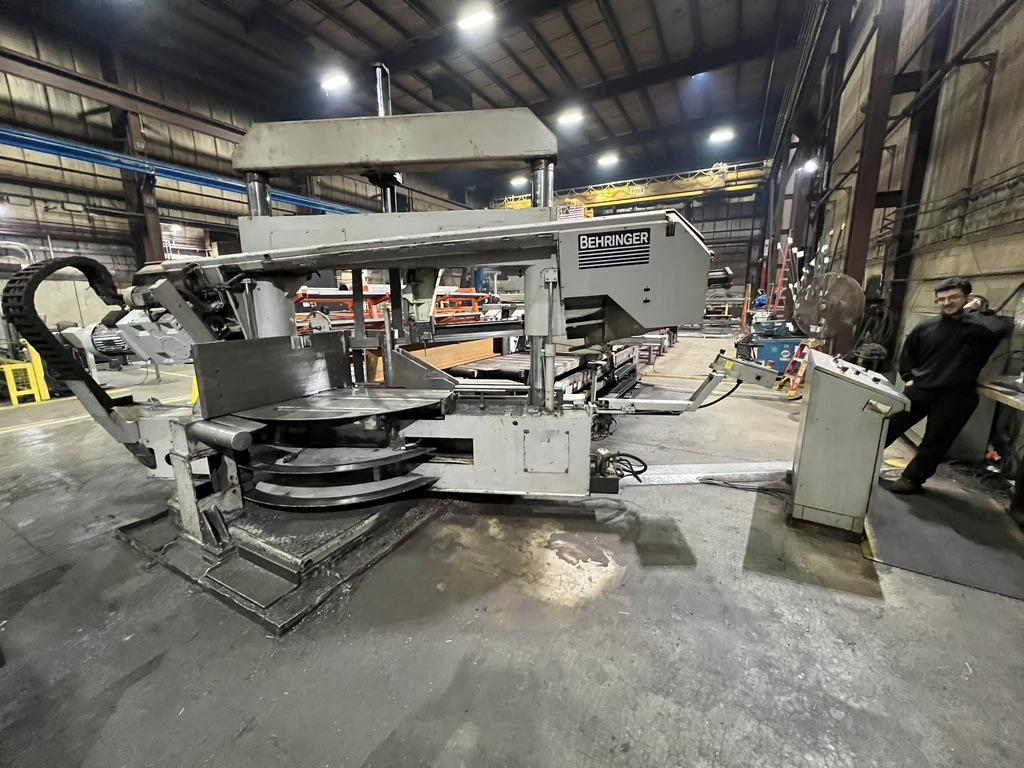

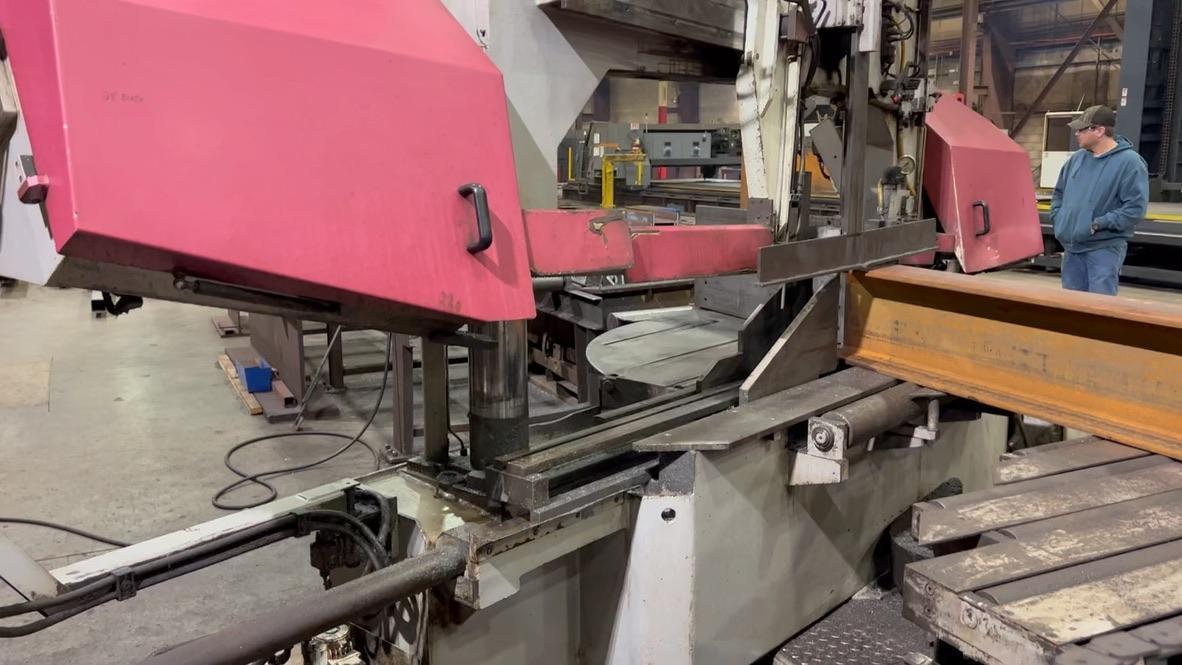

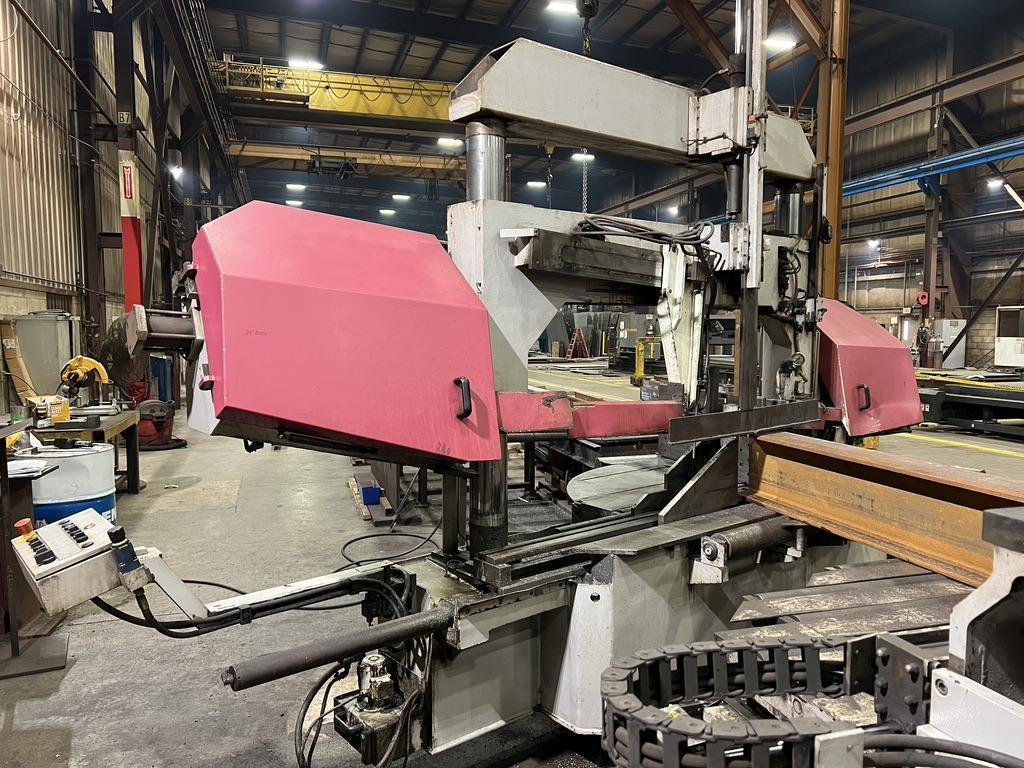

43" x 20.8" BEHRINGER MODEL HBP530-1104GA FULLY AUTOMATIC AND DOUBLE MITERING DUAL POST BAND SAW

NEW 2005

SPECIFICATIONS:
MAXIMUM ROUND CAPACITY @ 90°/45°. . . .  20.8" / 20.1"
MAXIMUM RECTANGULAR CAPACITY @ 90°. . .  20.8" (43.3" Optional)
MAXIMUM RECTANGULAR CAPACITY @ 45°. . .  27.5" X 19.6"
MITER RANGE R/L . . . . . . . . . . . .  45 (60 Optional)
BLADE DRIVE MOTOR . . . . . . . . . . .  10 HP
BLADE SPEED RANGE . . . . . . . . . . .  55 - 360 SFM
SAW BLADE WIDTH . . . . . . . . . . . .  2"
BLADE COOLING SYSTEM  . . . . . . . . .  FLOOD COOLANT
MACHINE WEIGHT . . . . . . . . . . . . . 19,360 LBS
SAW FRAME GUIDANCE . . . . . . . . . . . DUAL ROUND COLUMN
BLADE DOWN-FEED SYSTEM . . . . . . . . . HYDRAULIC
FEED GRIPPER STROKE. . . . . . . . . . . 118"

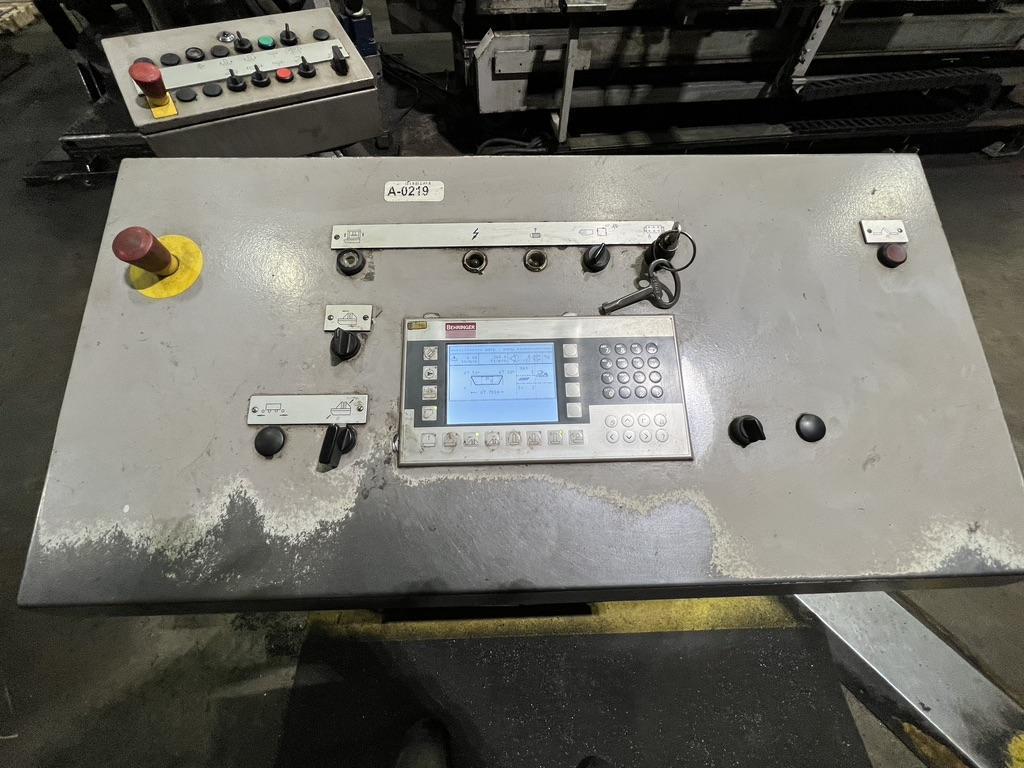

MACHINE CONTROL. . . . . . . . . . . . . BT-20 LCD
JOB STORAGE. . . . . . . . . . . . . . . 40 JOBS
VOLTAGE. . . . . . . . . . . . . . . . . 480 VOLTS

EQUIPPED WITH:
DUAL VISE PROGRAMMABLE AUTOMATIC FEED
MITERING BOTH LEFT AND RIGHT
AUTO BLADE TENSIONING
BLADE SENSING
MANUALS
SPARE PARTS
