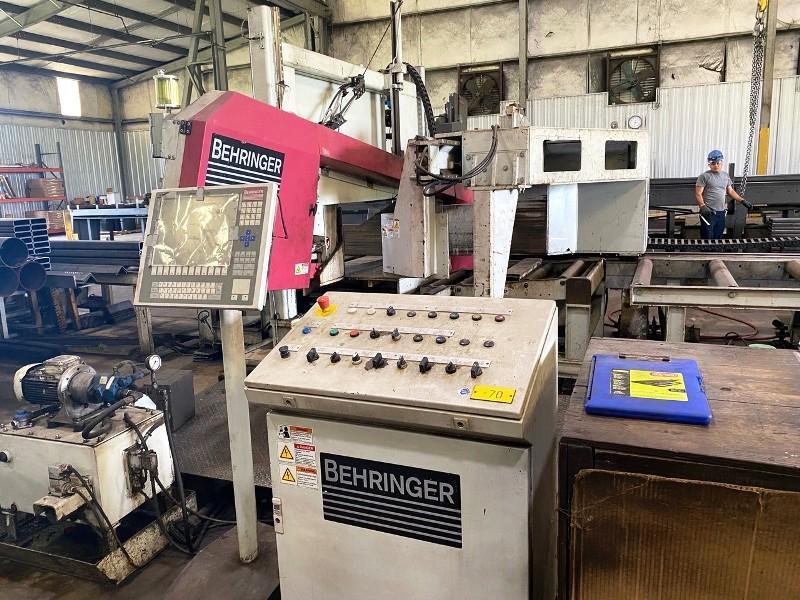

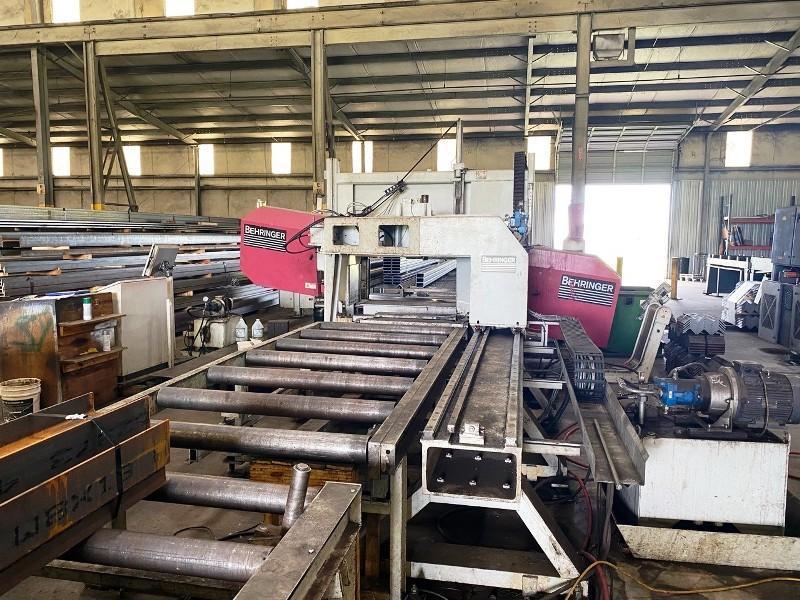

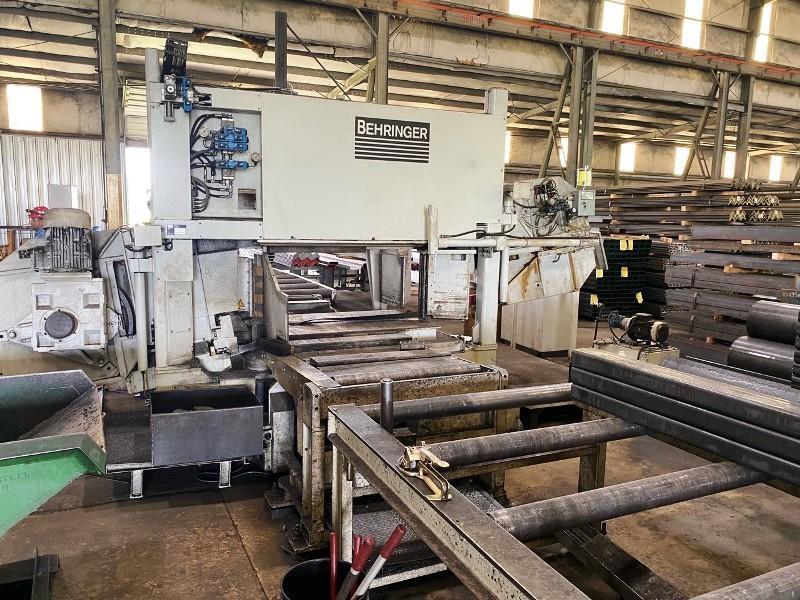

47.2" X 20" BEHRINGER MODEL HBP510-1208GA DUAL COLUMN HORIZONTAL BAND SAW
Year
2013
Stock #
17952
Condition
Very Good
Keep Scrolling To Learn More
Specifications
Equipped With
47.2" X 20" BEHRINGER MODEL HBP510-1208GA DUAL COLUMN HORIZONTAL BAND SAW
New 2013
Motor Driven with 10 H.P. (7.5KW), 3-Cycle, 60 Phase, 460 Volt, 14 Amps, AC Motor and Controls
EQUIPPED WITH:
Dual column
Guillotine style
Mitering capabilites
Automatic cross transfer system
Automatic push feed system
Touch screen control

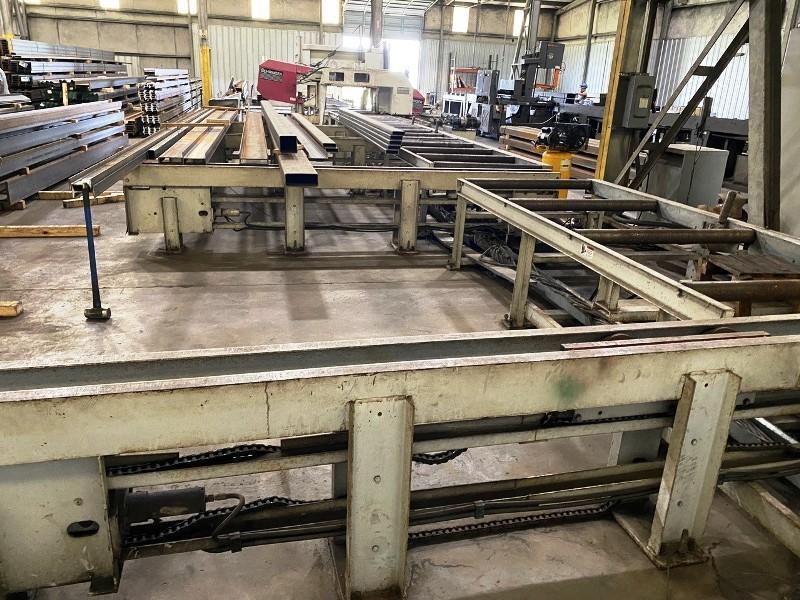

Approximately 80' of entry & exit conveyor
SPECIFICATIONS:
SPECIFICATIONS:
Capacity, 90° round 20" (510 mm)
Capacity, 90° square 20" x 20" (510 mm x 510 mm)
Capacity, 90° flat 47.2" x 20" (1200 mm x 510 mm)
Capacity, 45° round (miter left & right) 20" (510 mm)
Capacity, 45° square (miter left & right) 20" x 20" (510 mm x 510 mm)
Capacity, 45° flat (miter left & right) 31.9" x 20" (810 mm x 510 mm)
Capacity 30° round (miter left) 20" (510 mm)
Capacity 30° square (miter left) 20" x 20" (510 mm x 510 mm)
Capacity, 30° flat (miter left) 20" x 20" (510 mm x 510 mm)
Feed length single stroke 118.1" (3000 mm)
Feed rate range 0-8.9 ipm
Blade Speed Range 56-394 sfm
