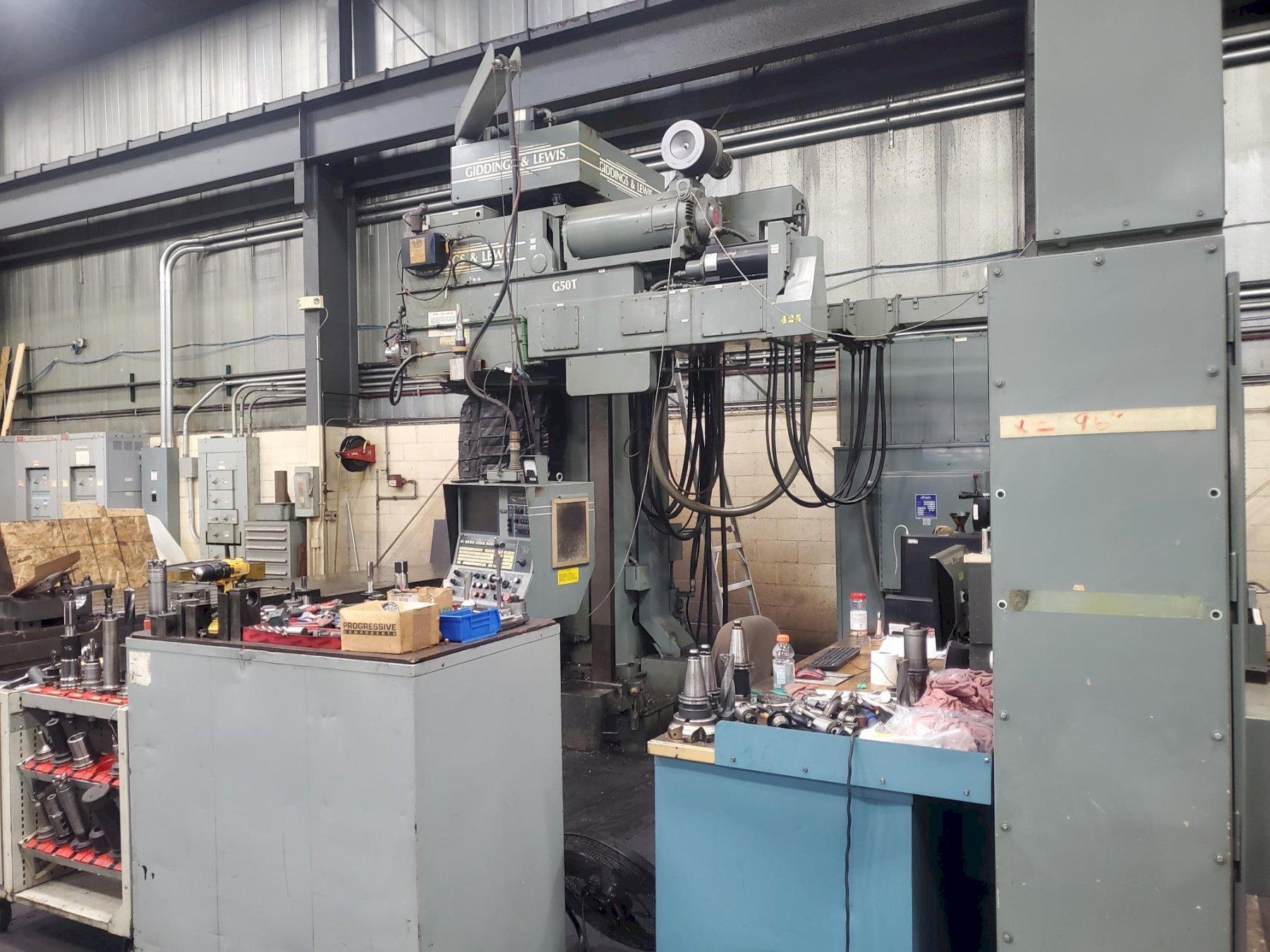

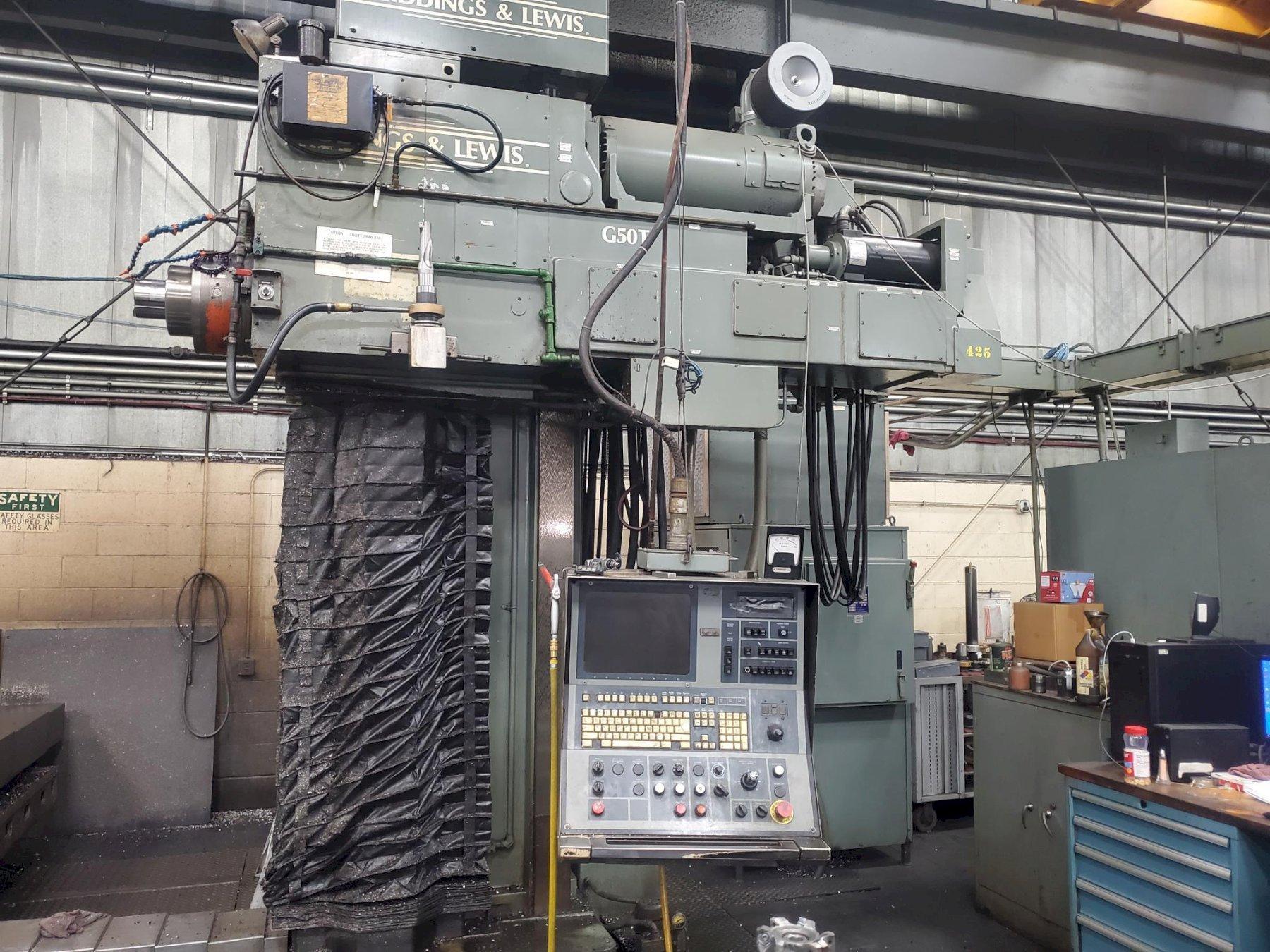

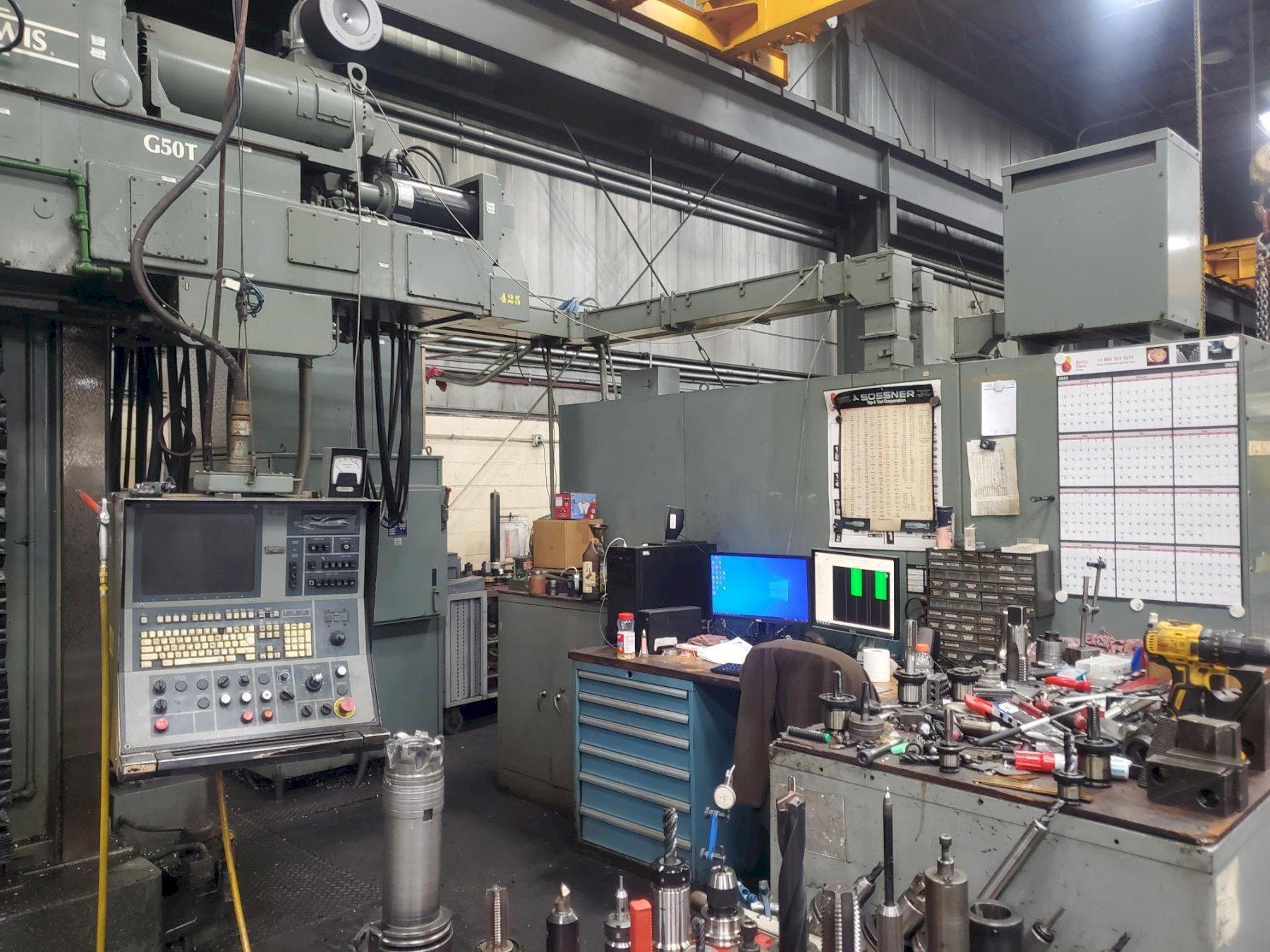

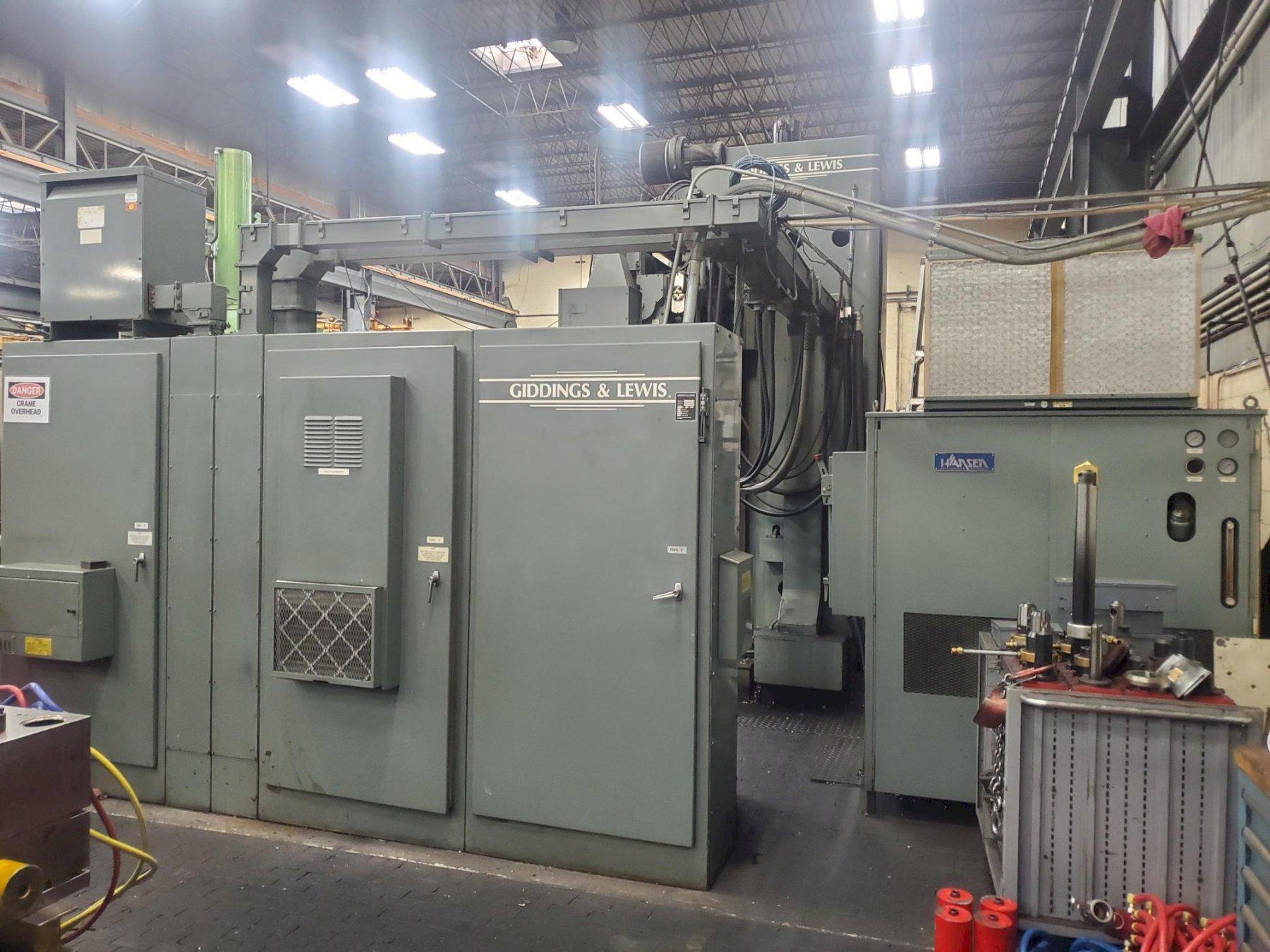

5" GIDDINGS & LEWIS G-50T HORIZONTAL TABLE TYPE CNC BORING MILL
Year
1993
Stock #
19518
Condition
Very Good
Keep Scrolling To Learn More
Specifications
Equipped With
5" GIDDINGS & LEWIS G-50T HORIZONTAL TABLE TYPE CNC BORING MILL
New 1993
Motor Driven with 40 HP, 3-Phase, 60 Cycle, AC Spindle Drive Motor
EQUIPPED WITH: Numeripath 8000B CNC Controls, Power Drawbar
SPECIFICATIONS:
| Spindle Diameter | 5" |
| Taper in Spindle | 50 |
| Table Size | 98" x 60" |
| Travels | |
| X - Axis | 96" |
| Y - Axis (Vertical) | 64" |
| Z - Axis (Spindle) | 32" |
| W - Axis Spindle Taper |
84" CAT 50 |
| Spindle Speeds | 3,000 RPM |
| Table Load Capacity | 50,000 Lbs. |
