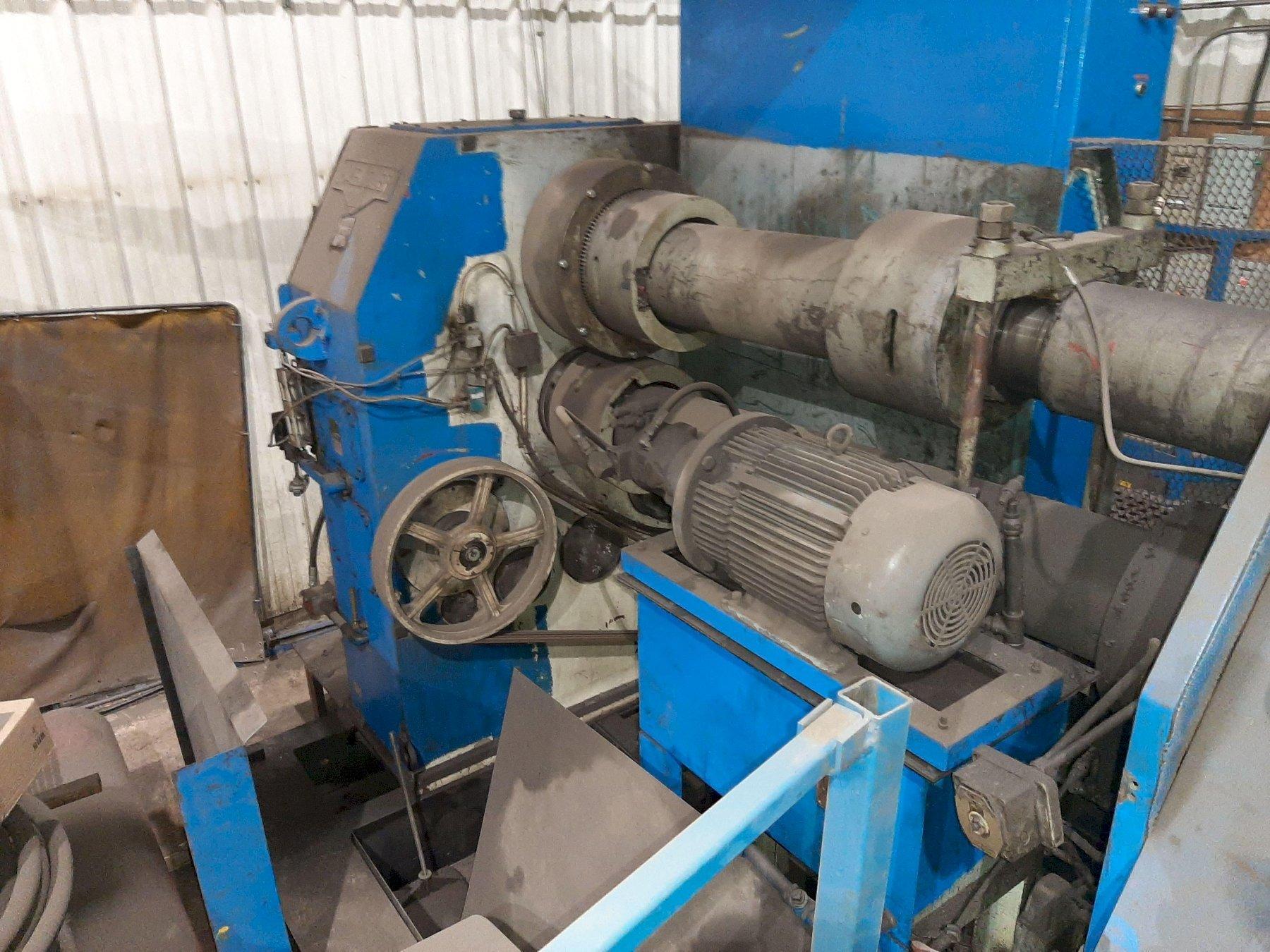

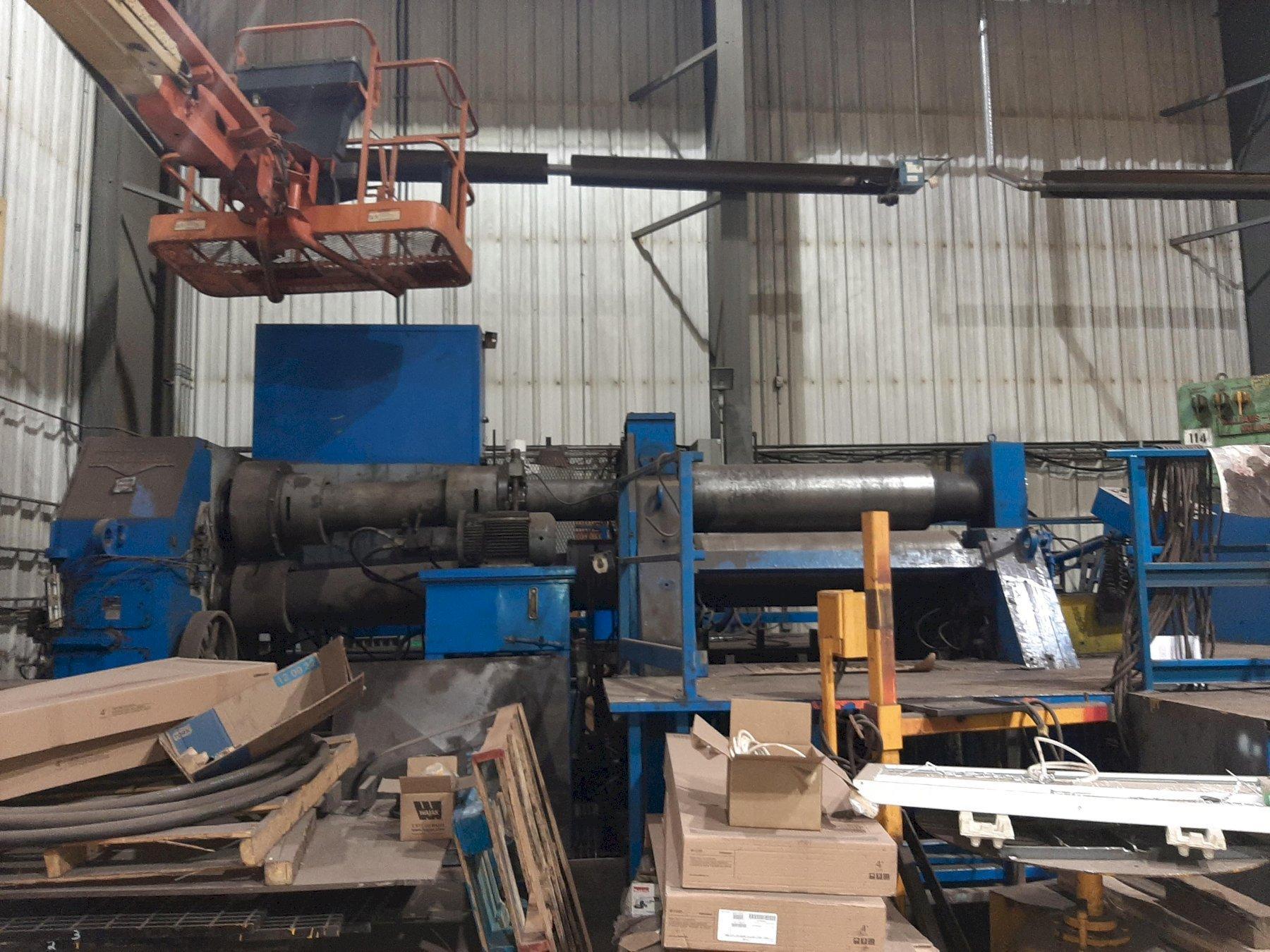

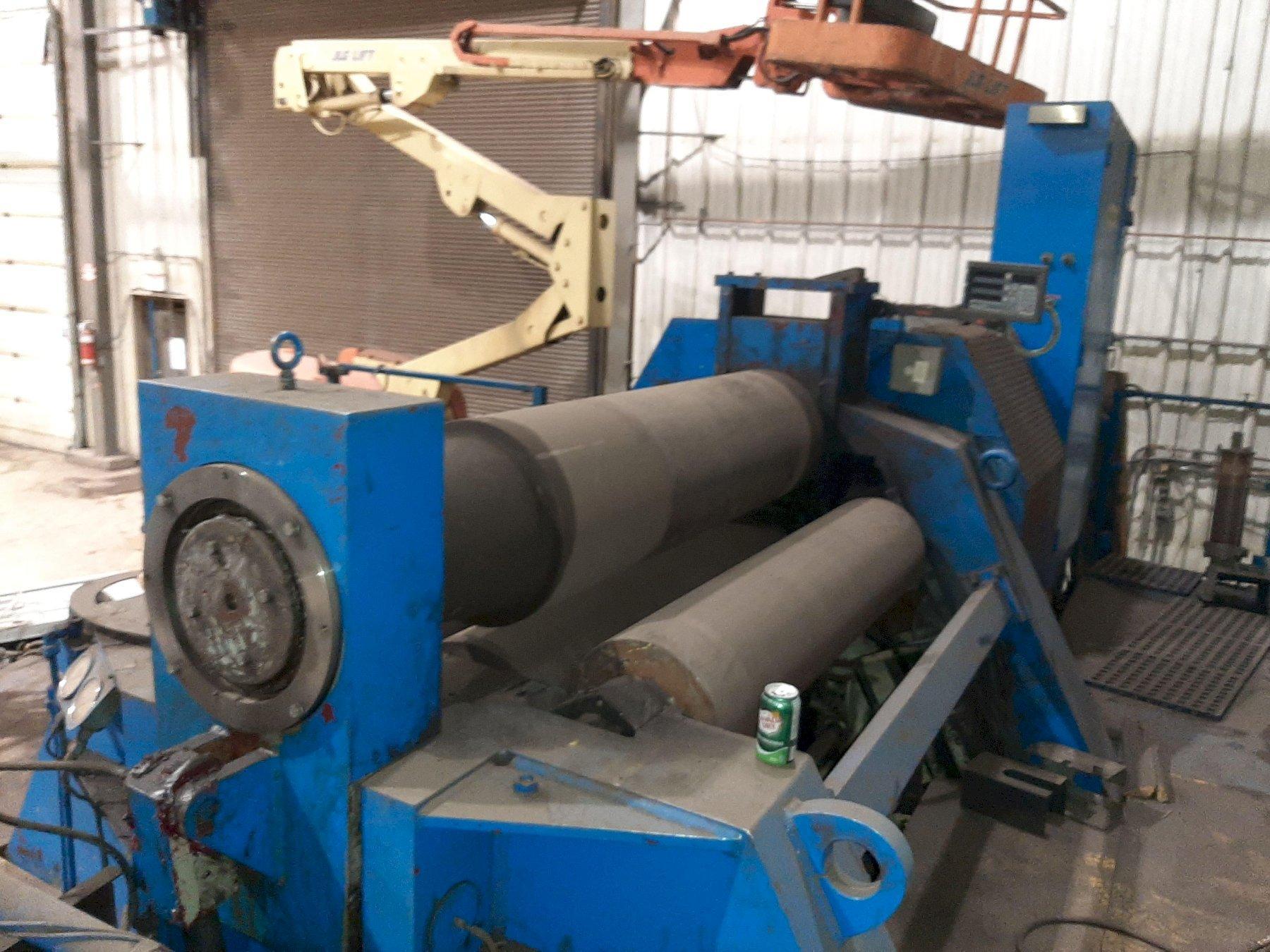

5' X 2" HAUSLER 3 ROLL HYDRAULIC PLATE ROLL

New: 1972

Specifications:
Hyd/Mech:  Hydraulic
Material Bending Width:  60 in
Bending Thickness:  2 in
Prebend Thickness:  1-3/4 in
Upper and Lower Roll Diameter:  17.72 in
Bending Roll Diameter:  13.78 in
Electrical:  460V AC
Main Drive:  60 HP
Hydraulic Pump:  20 HP
Hinge and Upper Roll Tilt:  Hydraulically Operated
Lower Roll Movement:  Hydraulically Operated
Adjusting Movement:  Hydraulically Operated

Machine Dimensions:
Width:  108 in
Length:  228 in
Height:  112 in
Weight:  65,000 lbs

Equipped With:
Cone Bending Attachment
Guide Shoe Connection Roller
Optical Indicator
One-Man Operation
Automatic Plate Alignment
Definite Internal and External Drive
Plate Edge Setting with Shortest Flat
Accurate Rolling Tolerance

Notes:
Designed for bending 3/4 in 514 material.
