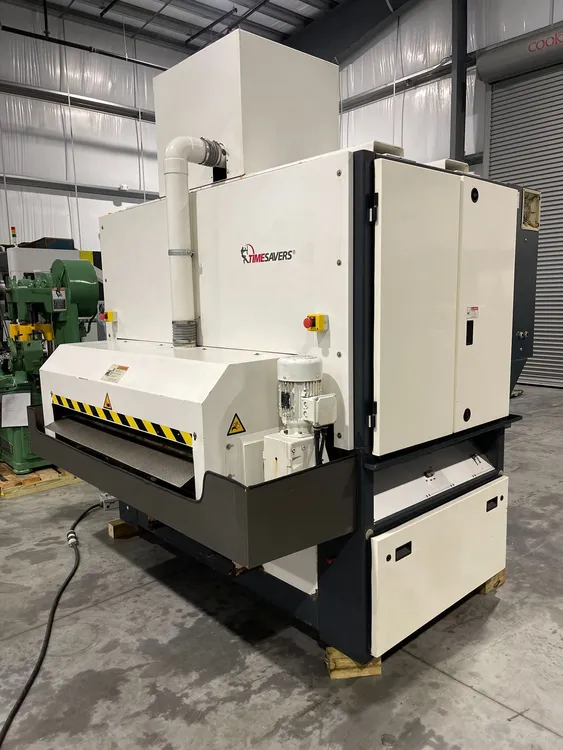

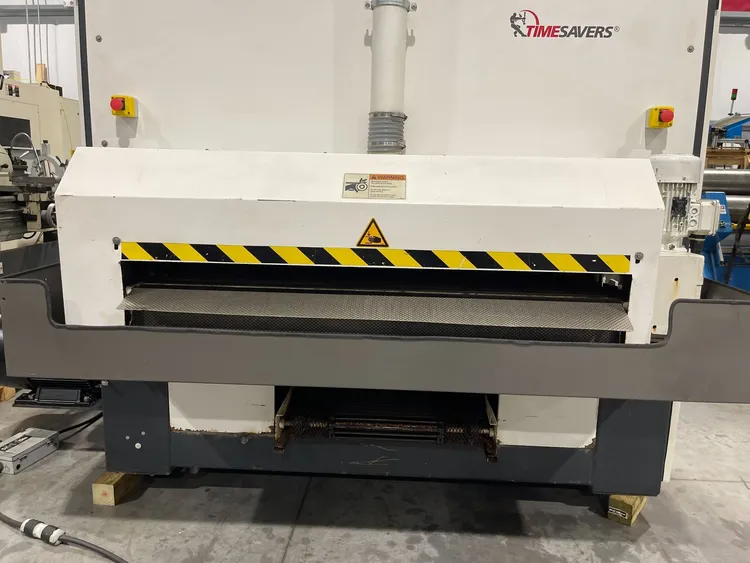

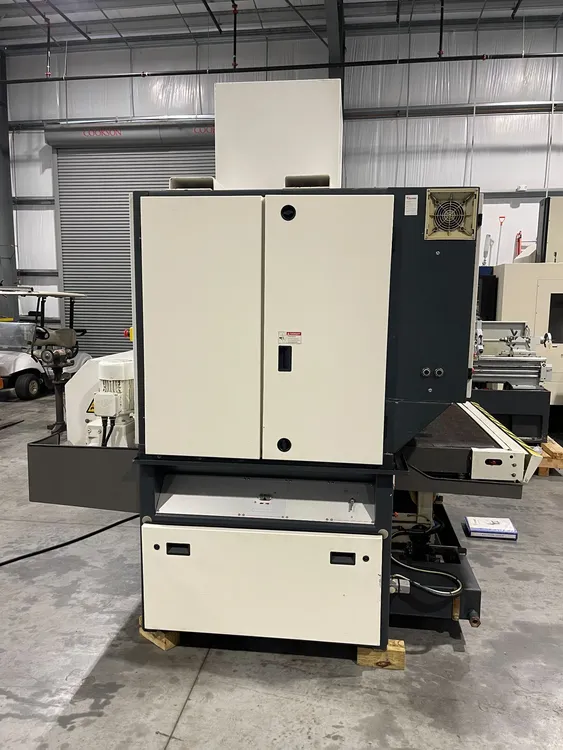

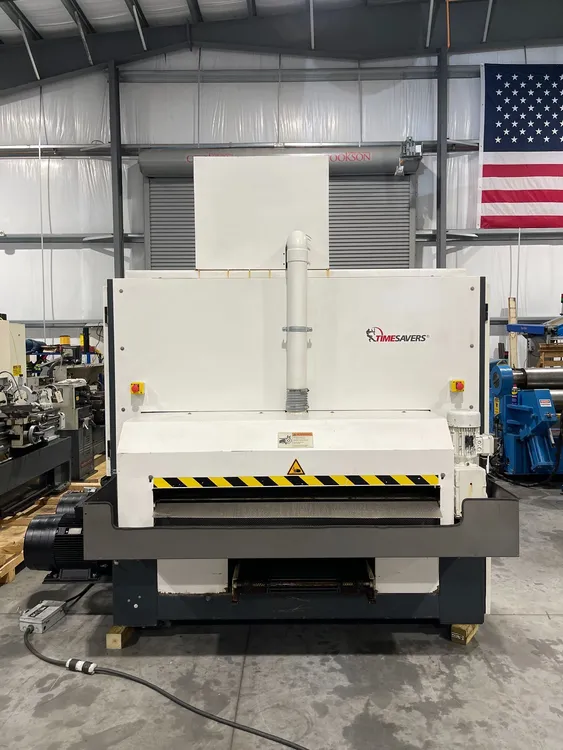

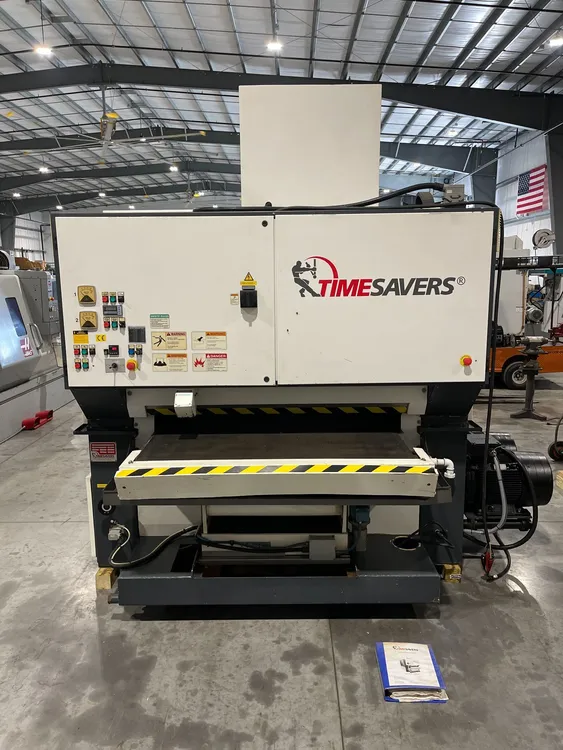

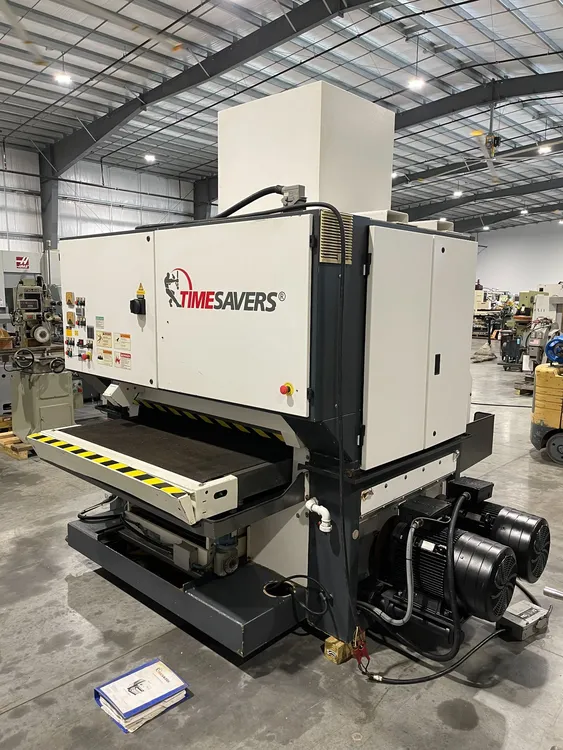

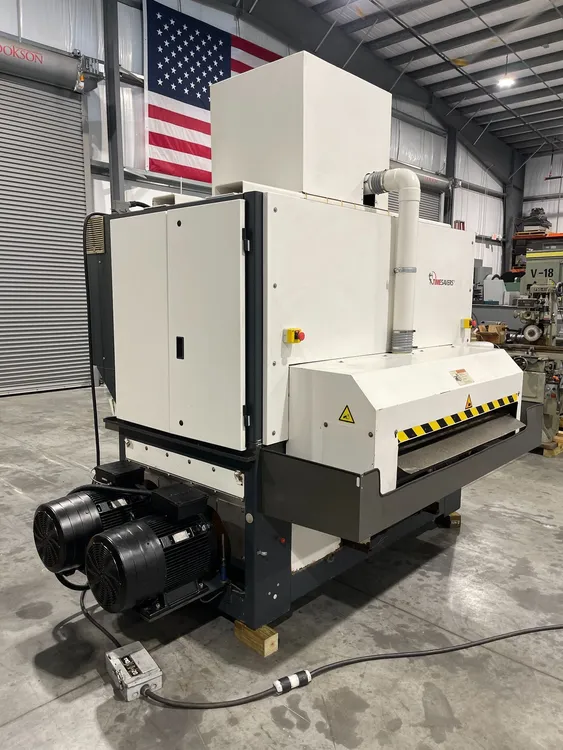

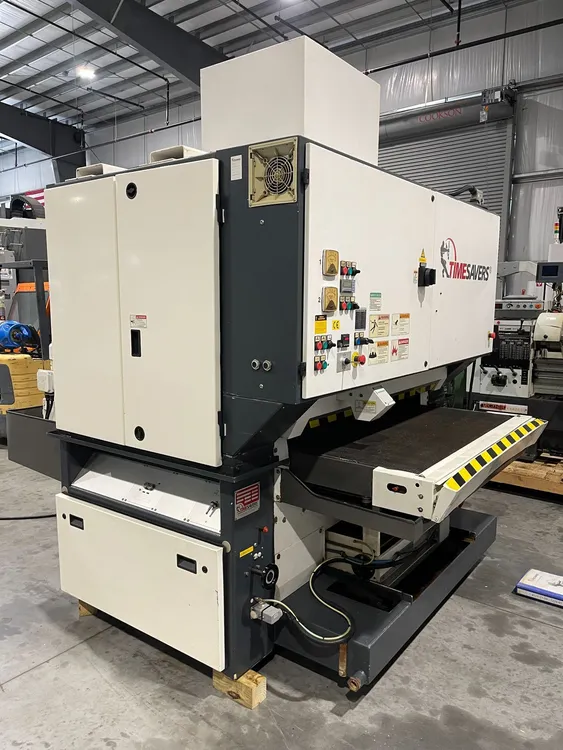

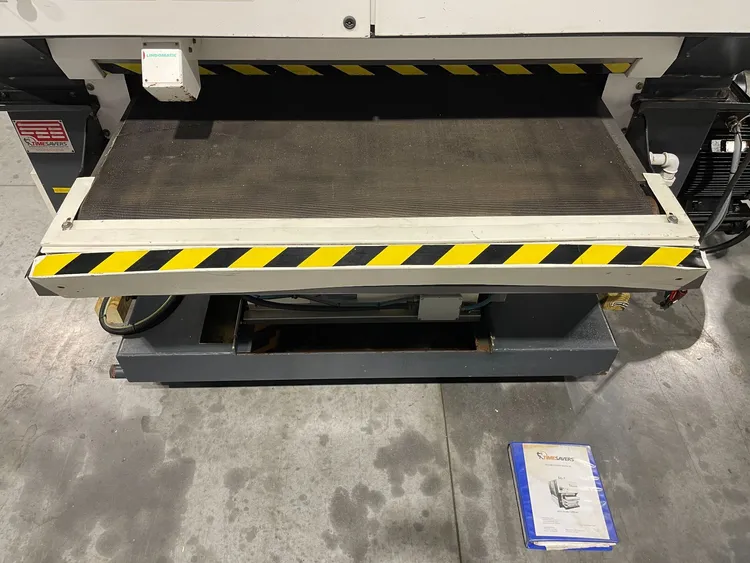

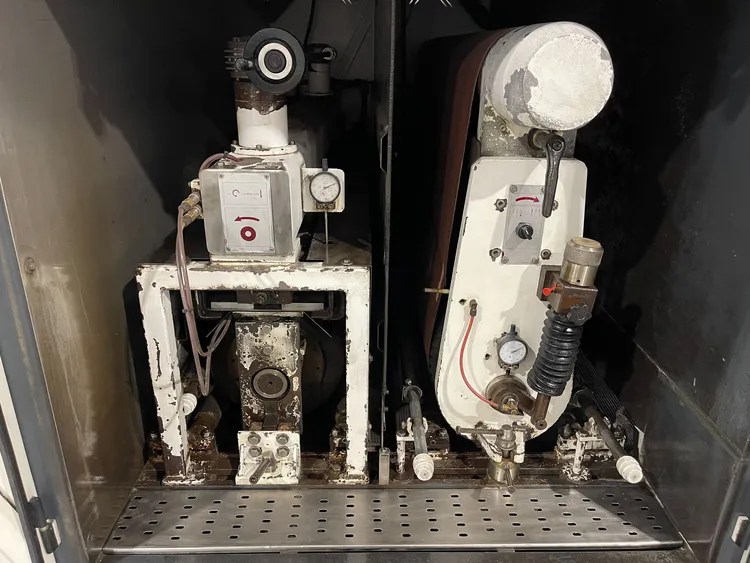

52" TIMESAVER 4121-25-04 DUAL HEAD METAL WET BELT SANDER

New 2007

SPECIFICATIONS:
Conveyor belt width-                                       52”
Belt size-                                                         52” x 75”
Conveyor belt speed-                                      13 – 65 F.P.M.
Bed opening range-                                        0 - 6”
Passline height-                                              32” – 38” Variable

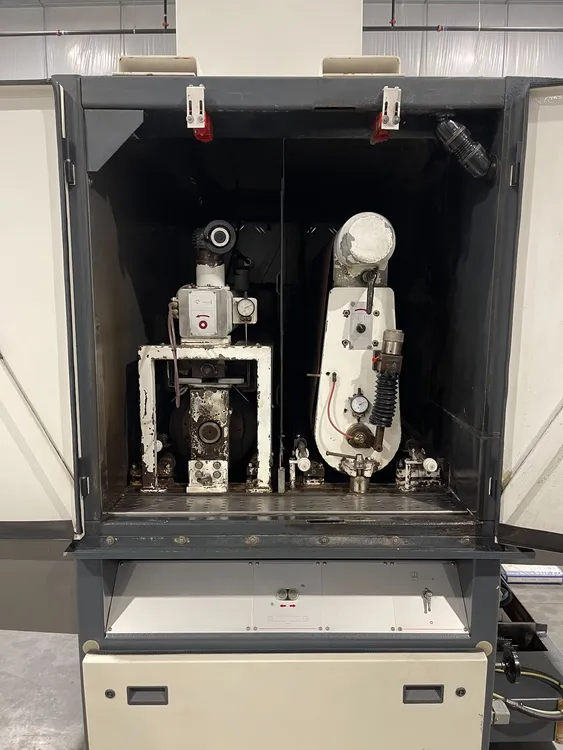

Drum diameter-                                               11”
Brush size-                                                      52” x 8” diameter

EQUIPPED WITH:

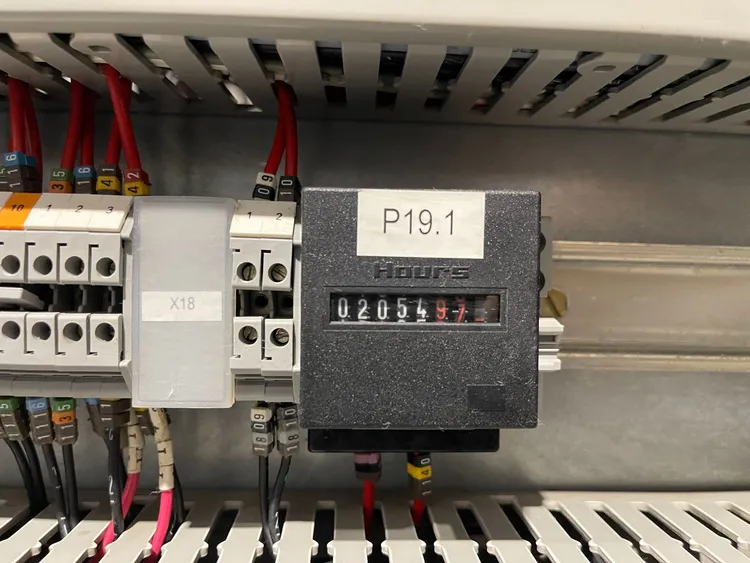

Machine hours- 2,054
Dual infeed & Outfeed holddown rolls

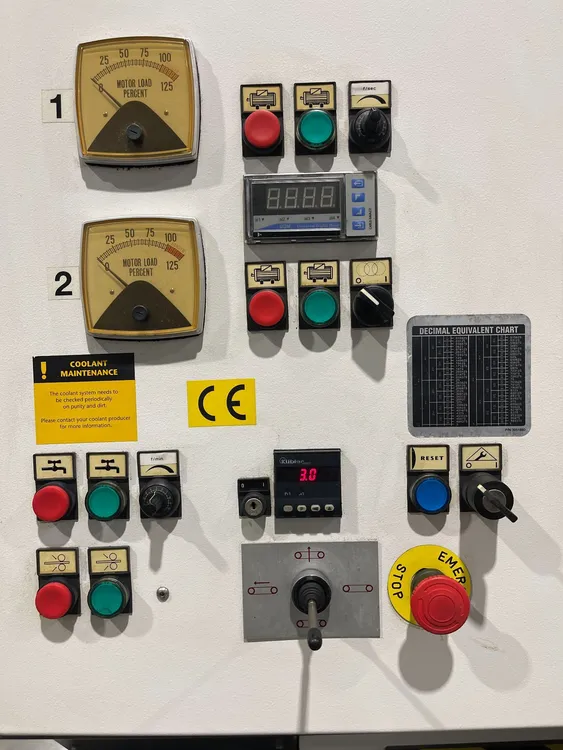

Digital thickness readout
Disc brakes on main motor
Four bed jack design
Motorized lift
Air knife dryer

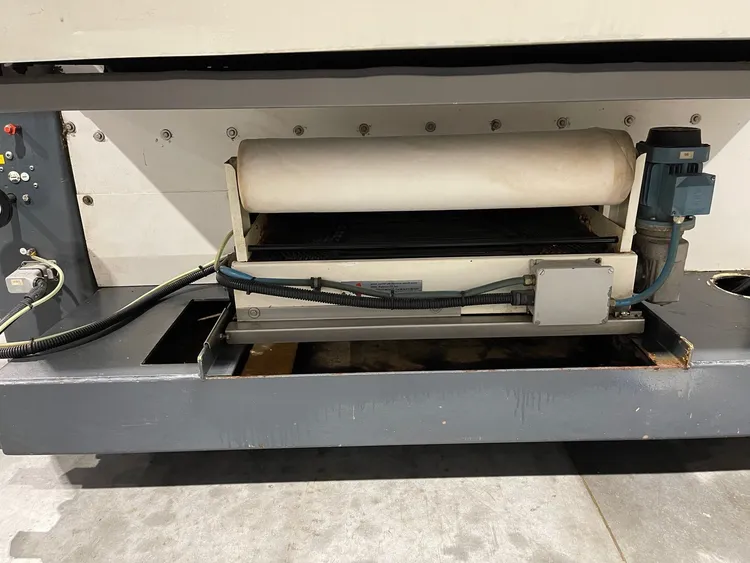

Coolant system conveyor & Paper filtration

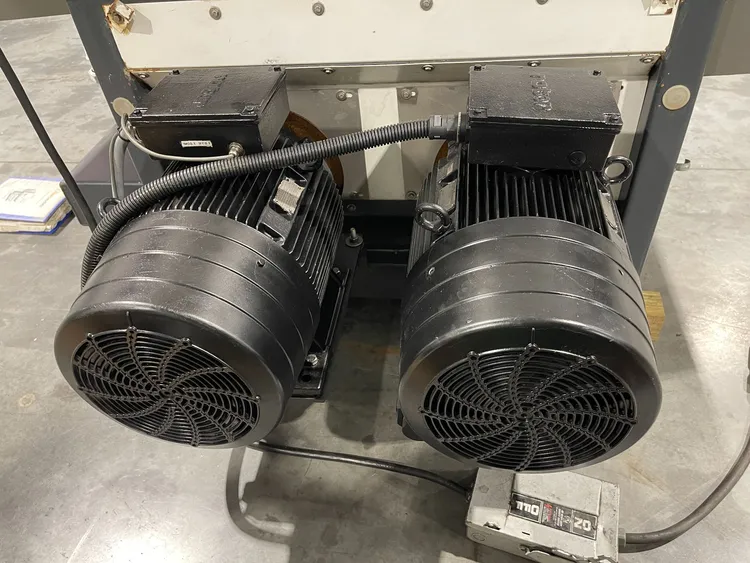

30 H.P. Drum head motor
30 H.P. Brush head Motor
5.5 H.P. Air knife blower
3.5 H.P. Conveyor motor

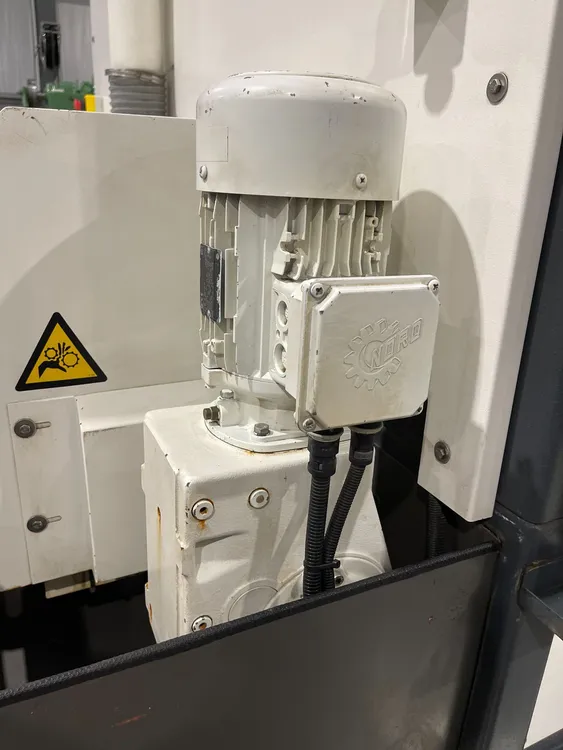

1. H.P. Elevation motor

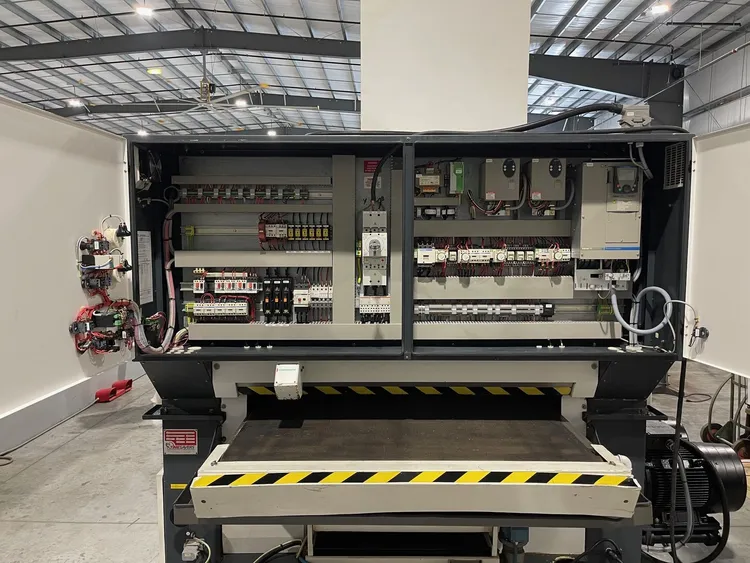

Machine is wired for 460 volt / 3 phase / 60 H.Z.
Machine weight- 12,000 Lbs.
Machine dimensions- 90” L x 95” W x 110” H
