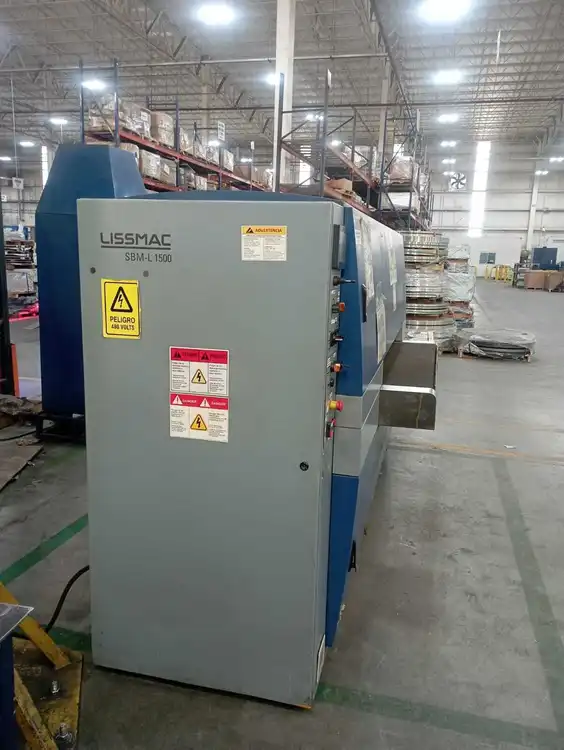

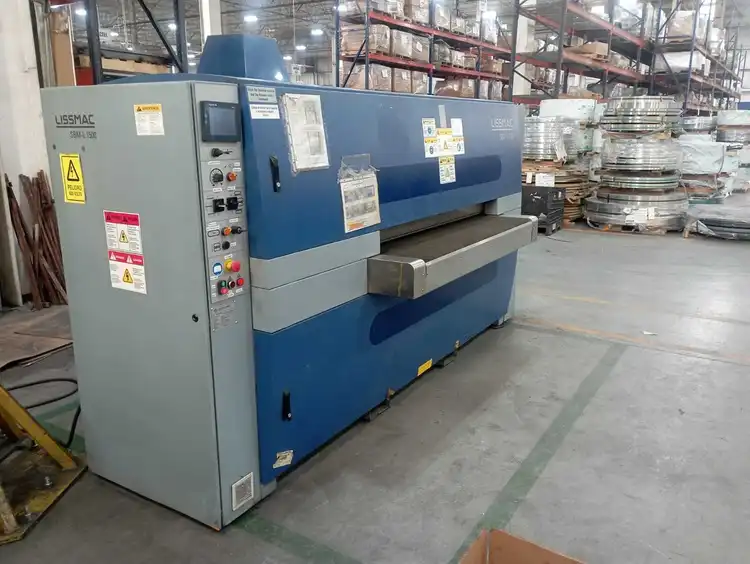

60" LISSMAC SBM-L 1500 G1S2-60 DEBURRING MACHINE
Year
2018
Stock #
19978
Condition
Not specified
Keep Scrolling To Learn More
Specifications
Equipped With
60" LISSMAC SBM-L 1500 G1S2-60 DEBURRING MACHINE
New 2018

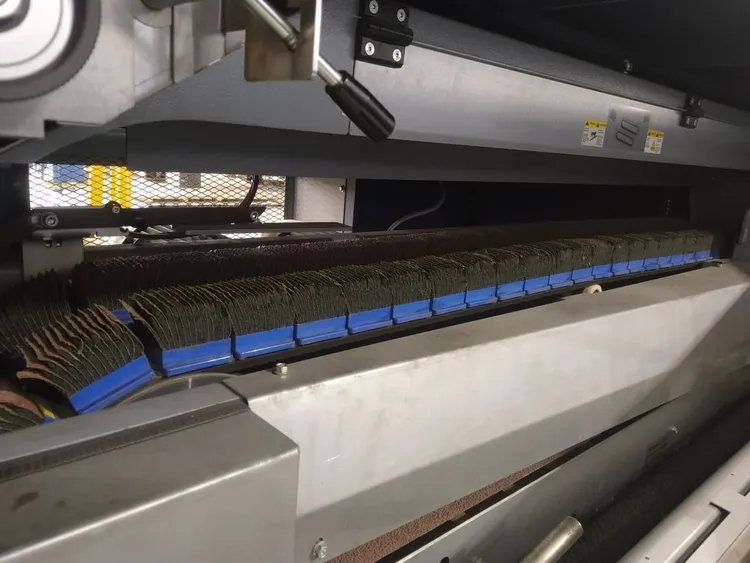

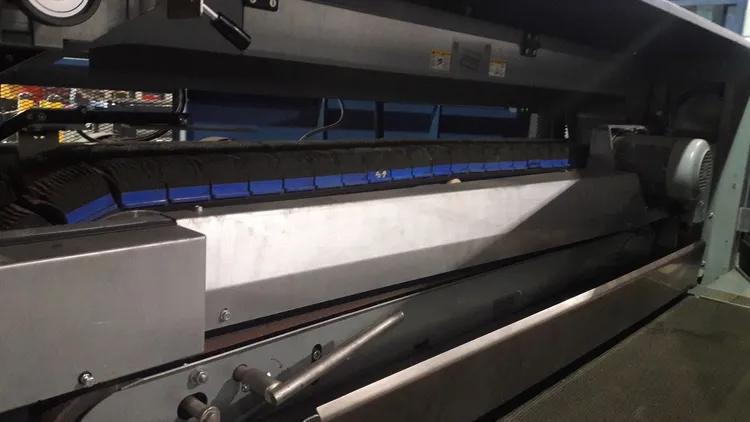

60" Capacity, Wet Type Dust Collector, The SBM-L G1S2 grinding and deburring machines were developed for deburring on both sides and edge rounding of workpieces in one operation. The LISSMAC machines are used for deburring sheet metal and processing sheet metal parts, laser parts and stamped parts. The L series is equipped with three units each on the top and bottom. The processing of stainless steel, steel, aluminum or non-ferrous metal workpieces can be done either on the upper side, the lower side or on both sides.
Two-sided sheet metal processing and edge rounding in one operation gives time savings of up to 60%. It is also possible to easily connect automation solutions or to integrate them into production lines. The machine concept ensures ergonomic operation and a pleasant working environment without pollution, dust and noise.EQUIPPED WITH
C5-2500 Net Dust Collector
Explosion Proof Motor for Dust Collector
Compliant Package for Dust Collector
Duct Work for Dust Collector
SPECIFICATIONS
working width max.1000 / 1500 mm / 2000 mm
workable material thickness0.5-50 mm (0.02-1.97 inch)
load300 kg/rm
voltage480 V / 60 Hz
network structure3~ PEN / 3~ PE+N
total current consumption43.8 A / 40.8 A / 40.8 A
total power20.4 kW / 20.4 kW / 20.4 kW
insulation classIP 42
infinitely variable feed speed0-4 m/min. (0-13 ft/min)
adjustment of material thicknesselectric

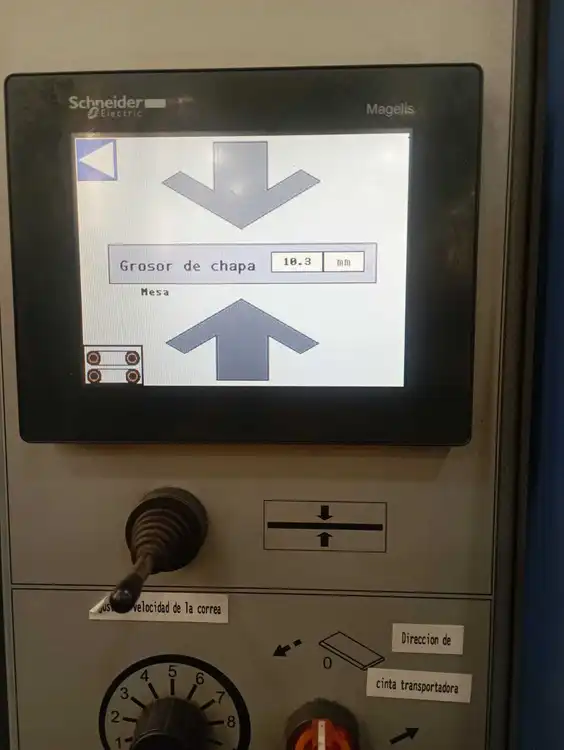

adjustment of toolselectric
weight approx.2500 / 2800 kg
(5512 / 6173 lbs)
dimensions (W/D/H ) approx.2800/1500/1800 mm
(110/59/71 inch)
3300/1500/1800 mm)
(130/59/71 inch)
