Equipped With

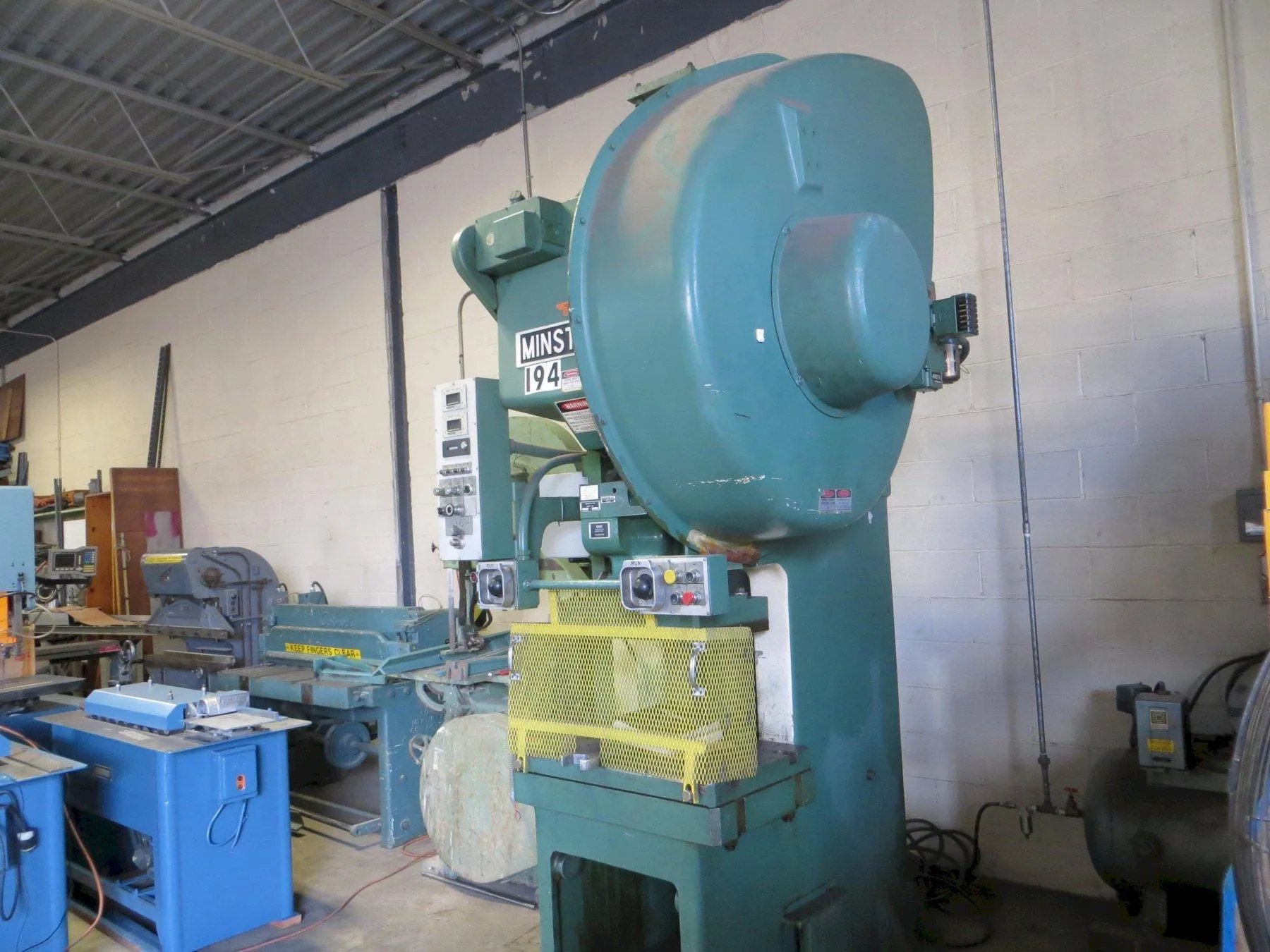

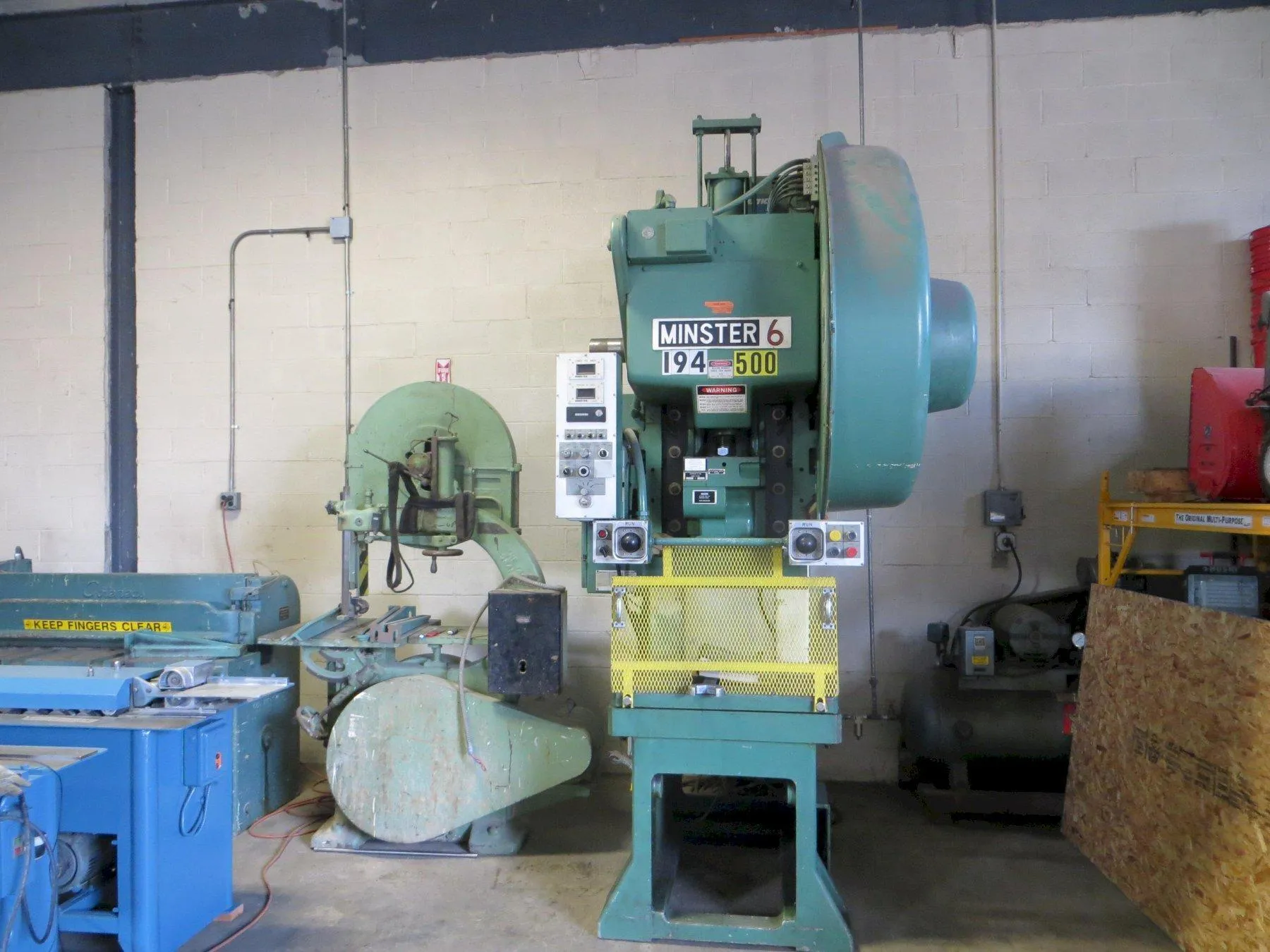

60 TON MINSTER MODEL 6SS-FB GAP FRAME PRESS
New 1991

Capacity ............................................. 60 Ton

Stroke ................................................. 4 in.

Speed ................................................. 90 - 180 SPM Variable

Shut Height ..................................... 16 in.
Slide Adjustment ........................... 2.75 in

Bed Area ........................................... 32" LR x 21" FB

Bolster Thickness .......................... 2.5 in.

Slide Area ........................................ 21" LR x 14" FB

Opening in Bed ............................ 18" LR x 14" FB
Throat Depth ................................. 11 in.
Width of Opening in Back ........ 15 in.

Shank hole diameter ................... 2 in.

Electrics: 480 Volt, 3 Phase

Approx. Dimensions: 66" x 70" x 128" (l x w x h)

Approx. Weight: 13,000 lbs.

Equipped with:

Air Clutch & Brake

Variable Speed Drive

Air Counter Balance

Inch / Single / Continuous

Digital SPM  Indicator

Press Mounted Dual Palm Buttons w/ E-Stop & Top Stop

Recirculating Lubrication System

Ram Equipped for Knock-Out

Drill & Tap Pattern in Bolster

Stroke Counter
