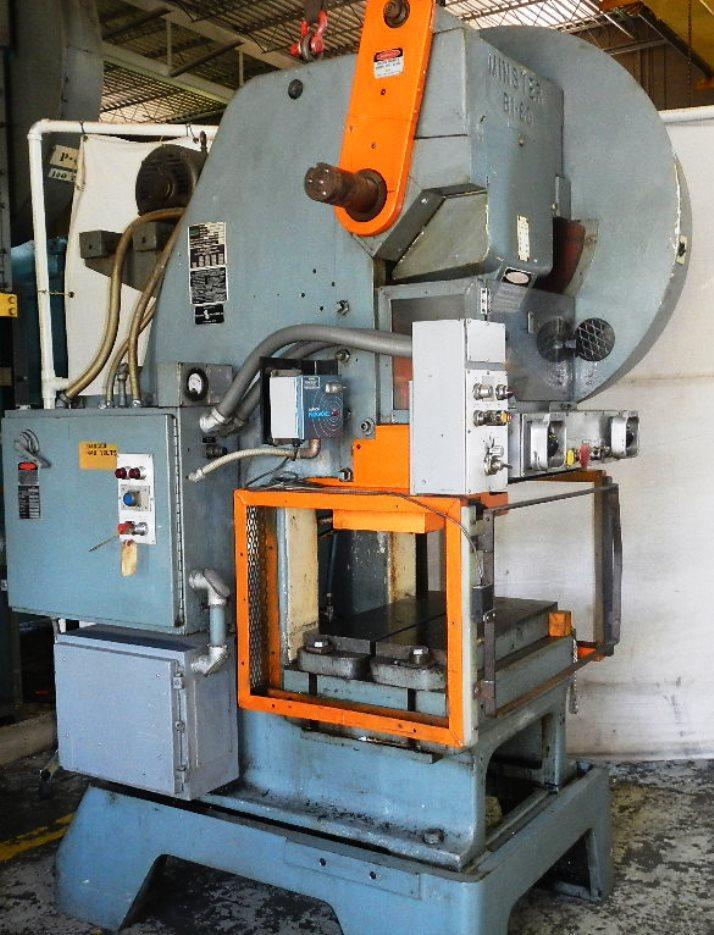

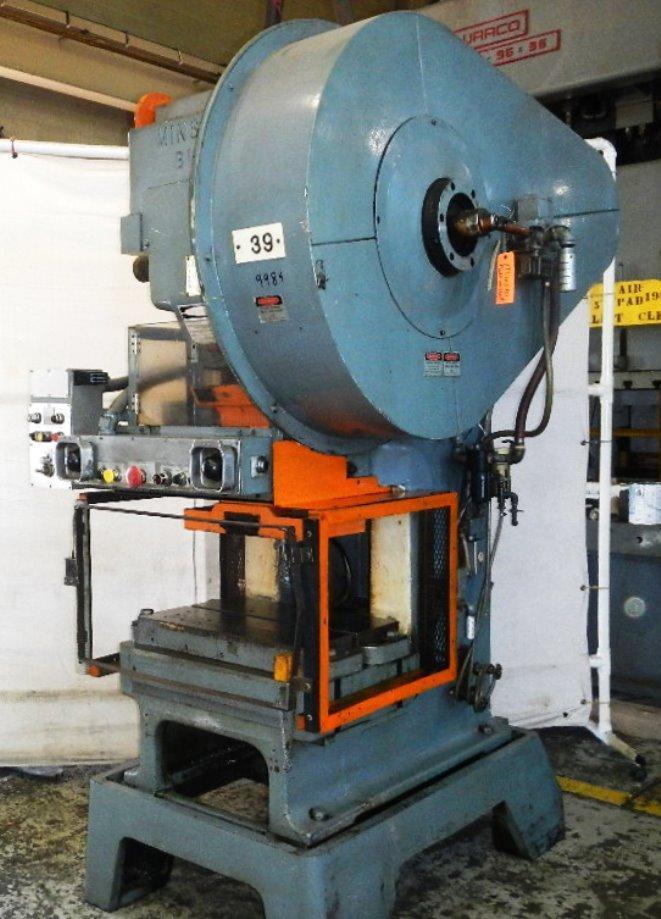

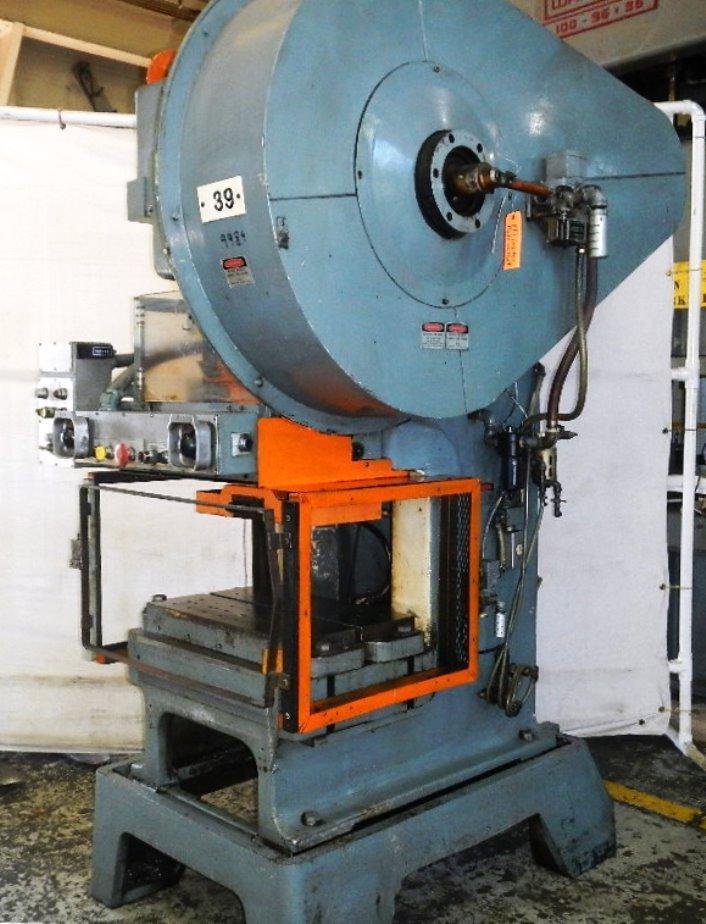

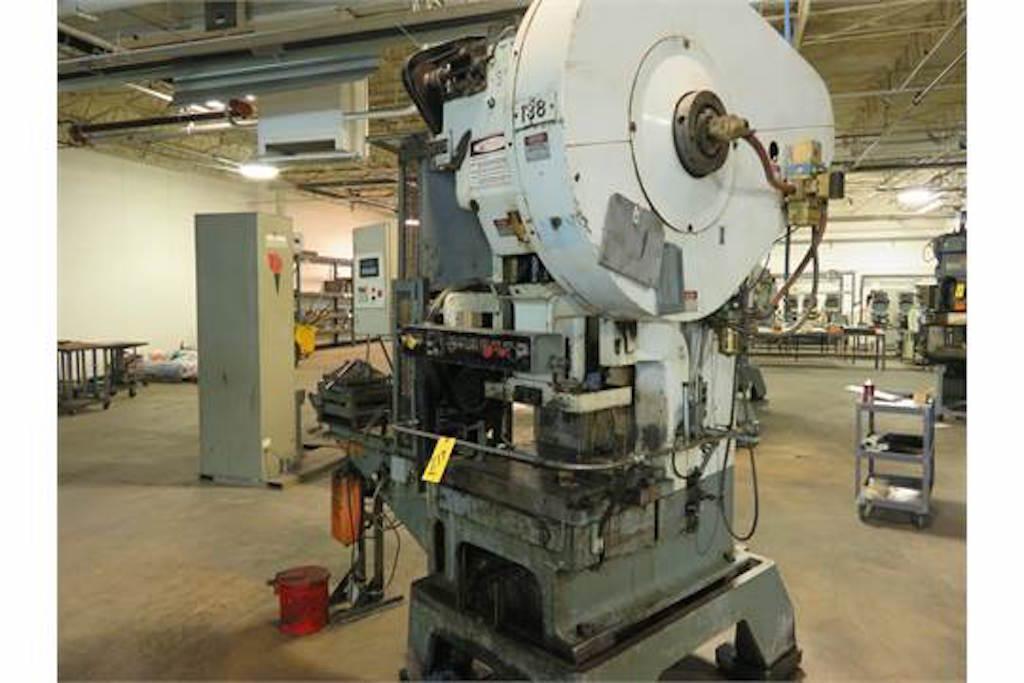

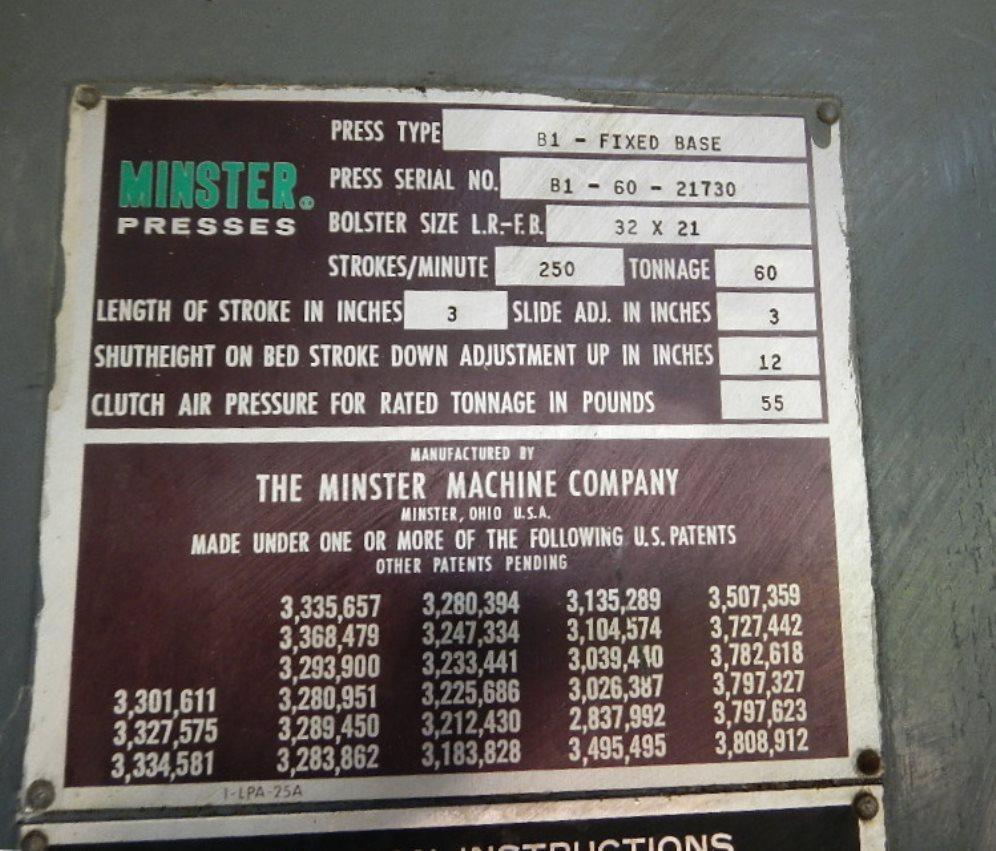

60 TON MINSTER MODEL B1-60 GAP PRESS

New 1976

Air clutch & brake
Rated Capacity 60 ton
Stroke 3"
Strokes per min 125-250 SPM (variable)
Shut height 12"
Ram adjustment 3"
Bed size 32" LR x 21" FB
Bolster 32" x 18" x 3.5" thick
Ram area 20" LR x 11 1/2" FB
Motor 10 HP 220/440V
Dimensions 58" LR x 70" FB x 104" high
Weight 12,000 lbs.

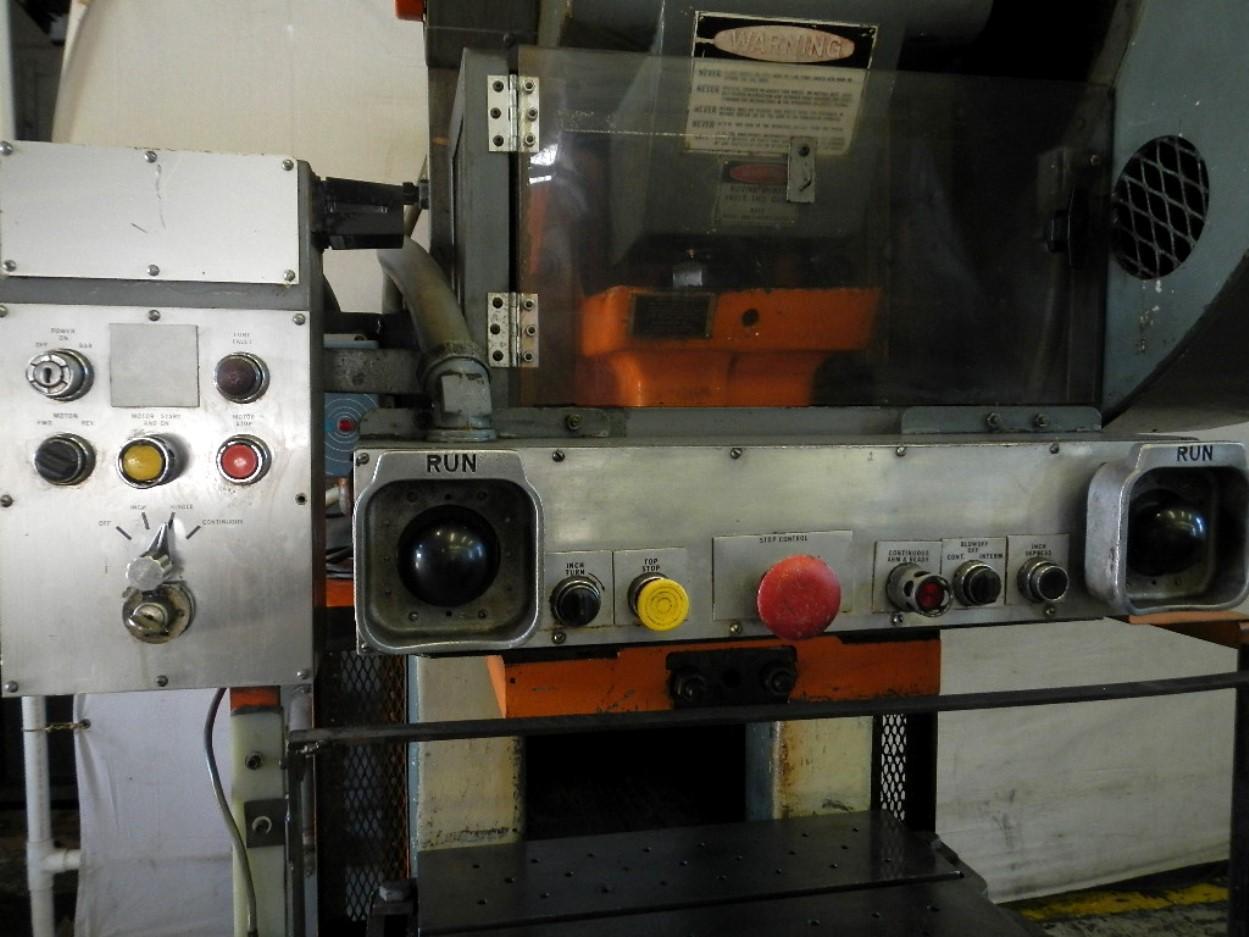

Machine is equipped with air clutch/brake, recirculating lube, variable speed drive, inch/single/continuous operation, spm meter, lube fault warning light, press mounted dual palm buttons, flanged ram, Gordon Proxagard.
