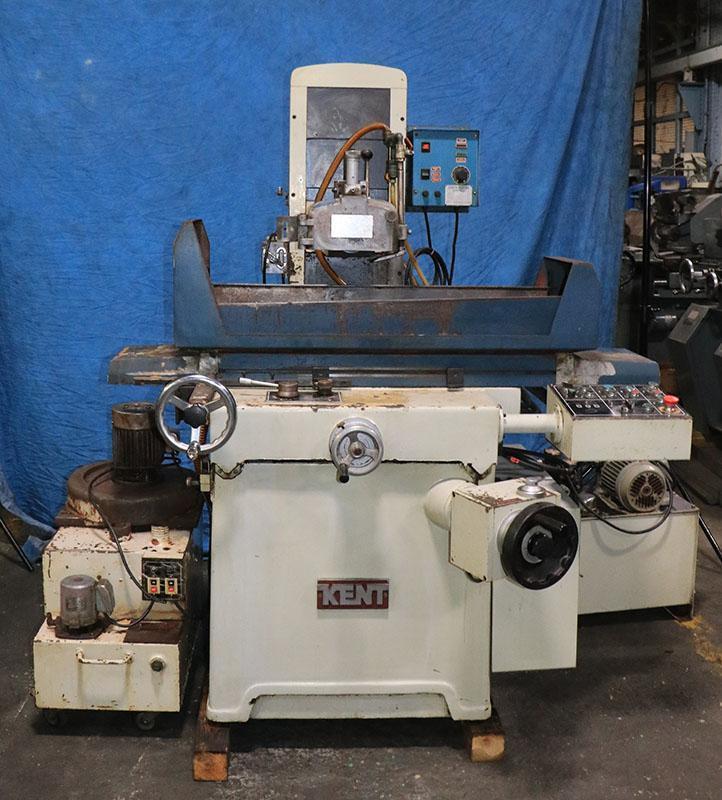

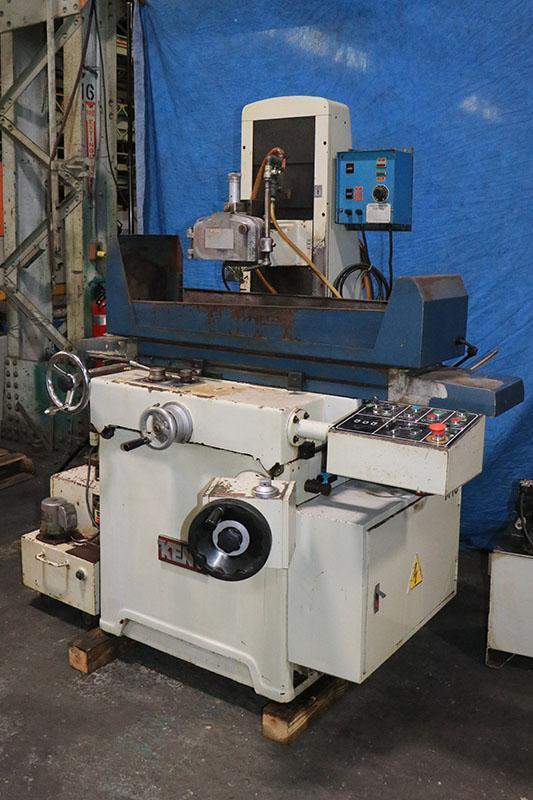

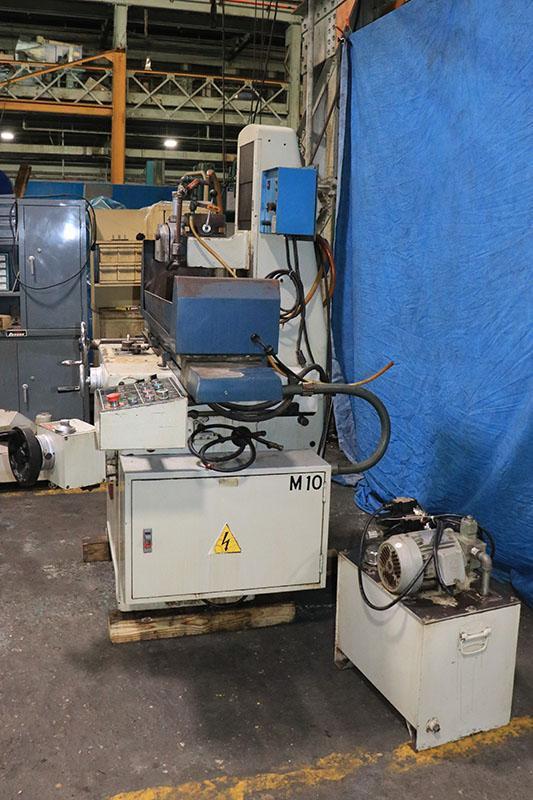

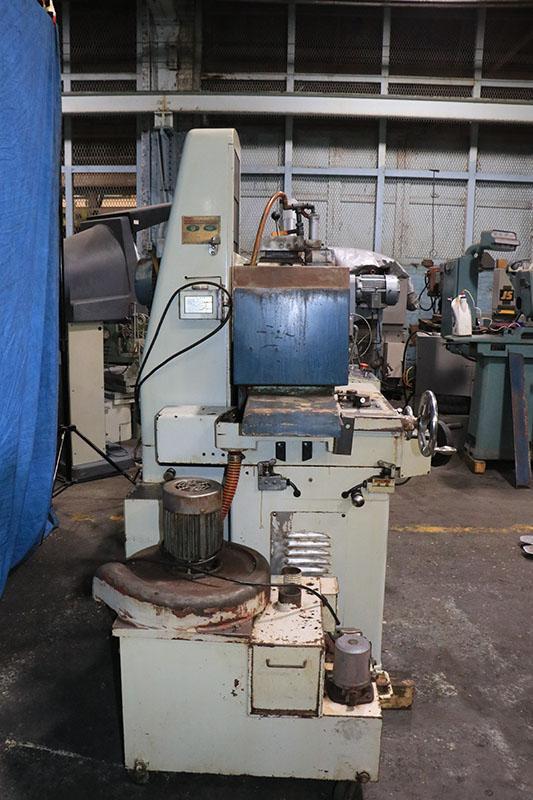

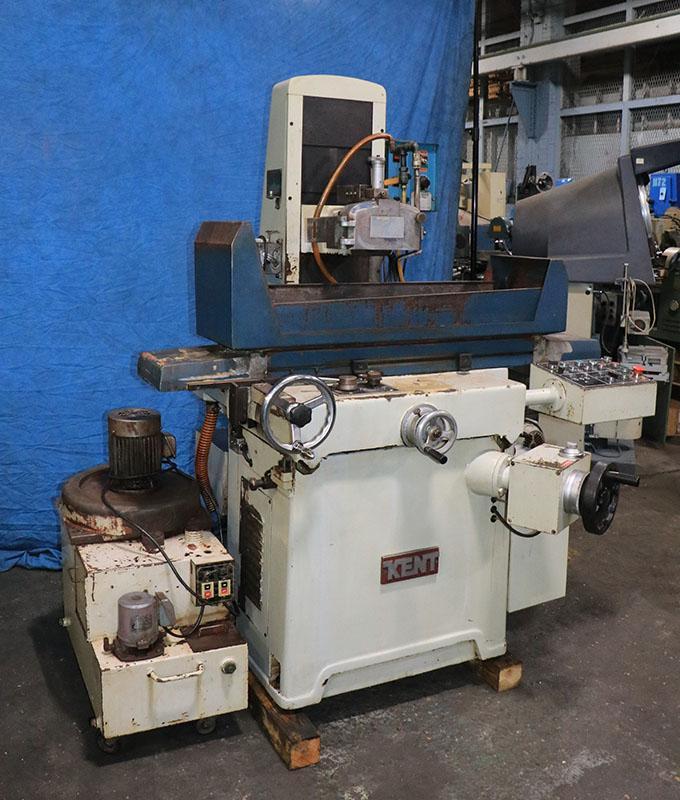

8" X 18" KENT MODEL KGS-250-AHD HYDRAULIC SURFACE GRINDER  W/AUTOMATIC INCREMENTAL DOWNFEED

NEW 1994


SPECIFICATIONS:

MAX. SURFACE GROUND ................ 10" X 20"

DIST. SPINDLE CENTER TO TABLE ...... 16"

VARIABLE TABLE SPEED, HYDRAULIC .... 16' TO 67' FPM

AUTOMATIC CROSSFEED INCREMENT ...... 0.04" TO 0.3"

CROSSFEED HANDWHEEL PER GRAD. ...... 0.001"

  PER REVOLUTION ................... 0.2"

  1 GRAD. .......................... 0.001"

  VERNIER SCALE .................... 0.0001"

AUTO INCREMENTAL DOWNFEED .......... 0.001" TO .0001"

VERTICAL RAPID POSITIONING RATE .... 35" IPM

VERTICAL DOWNFEED ON HANDWHEEL,

 1 REV. ............................ 0.1"

 1 GRAD. ........................... 0.0005"

 VERNIER SCALE ..................... 0.00005"

SPINDLE MOTOR ...................... 1.5 H.P.

STANDARD GRINDING WHEEL ............ 8"D X 1/2" X 1- 1/4"

 APPROX. WEIGHT ..................... 2,860 LBS

FLOOR SPACE REQUIRED ............... 71" X 55"W X 70"H

EQUIPPED WITH:

AUTOMATIC INCREMENTAL DOWNFEED (VARIABLE 10 STEPS)

POWER RAPID WHEELHEAD POSITIONING

HYDRAULIC TABLE TRAVERSE

POWER CROSSFEED

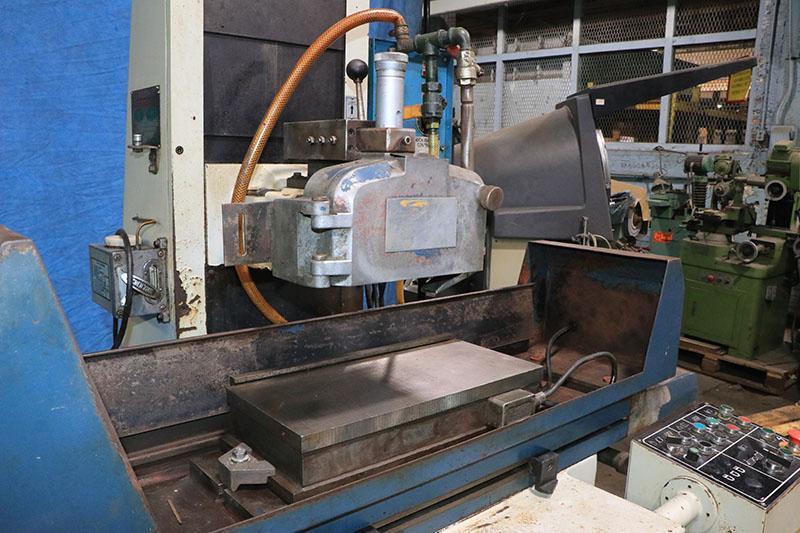

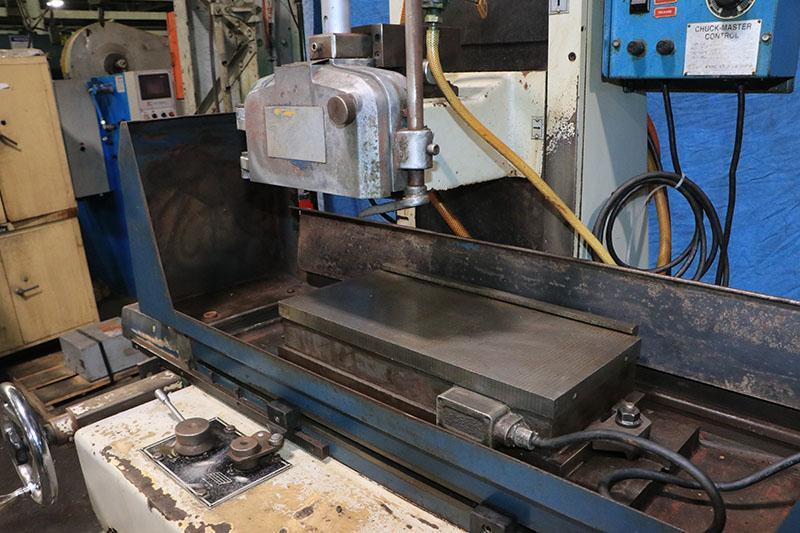

8" X 18" FINE-POLE ELECTRO-MAGNETIC CHUCK

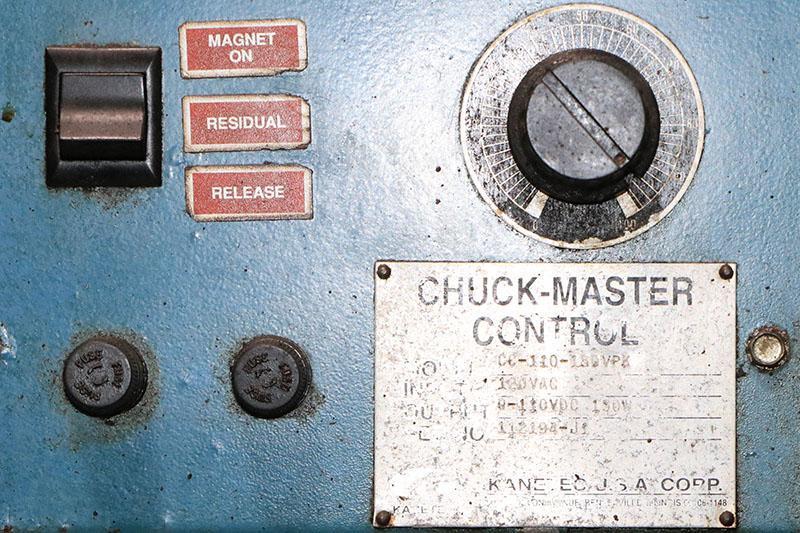

"KANETEC" VARIABLE HOLD NEUTROFIER CONTROL

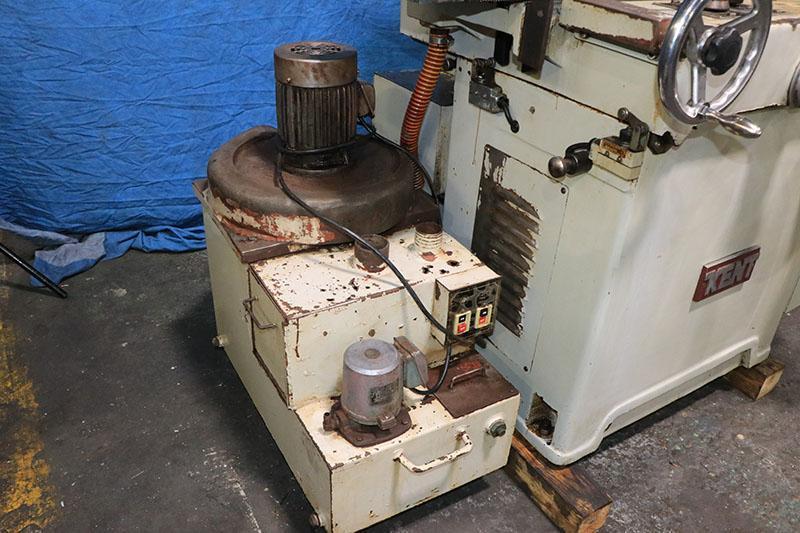

DUST COLLECTOR & COOLANT SYSTEM

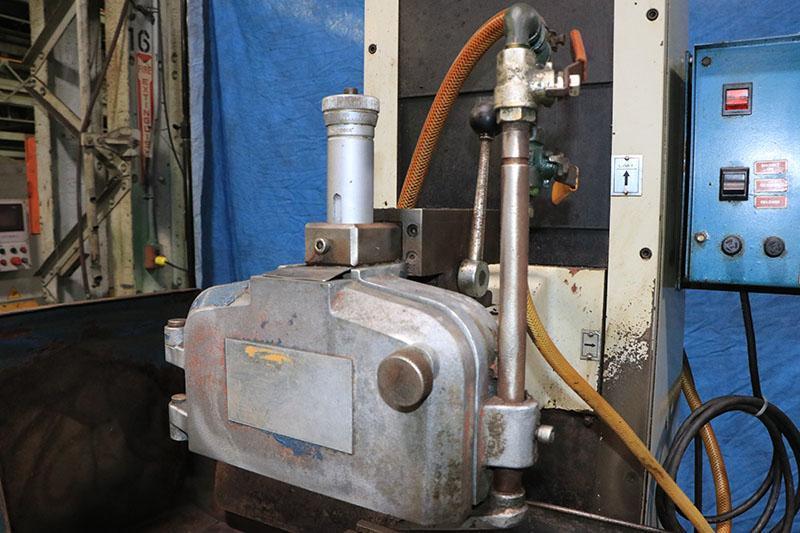

OVER-THE-WHEEL DRESSER

MEEHANITE CASTING

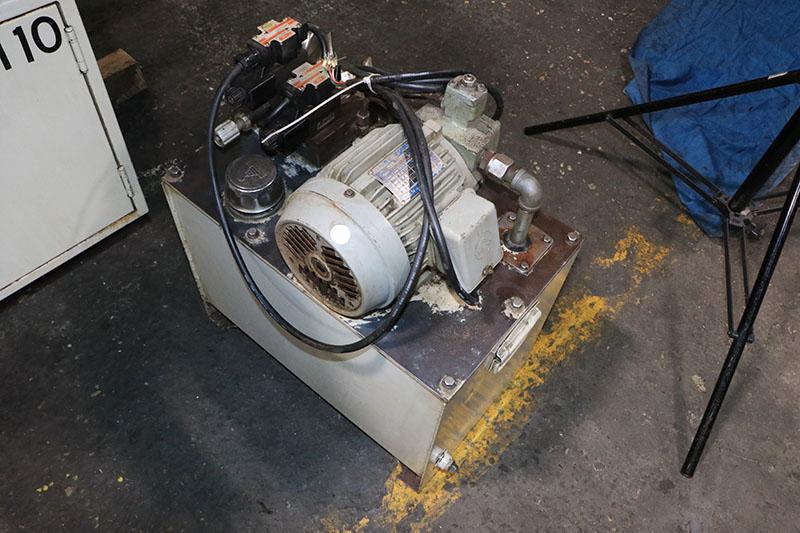

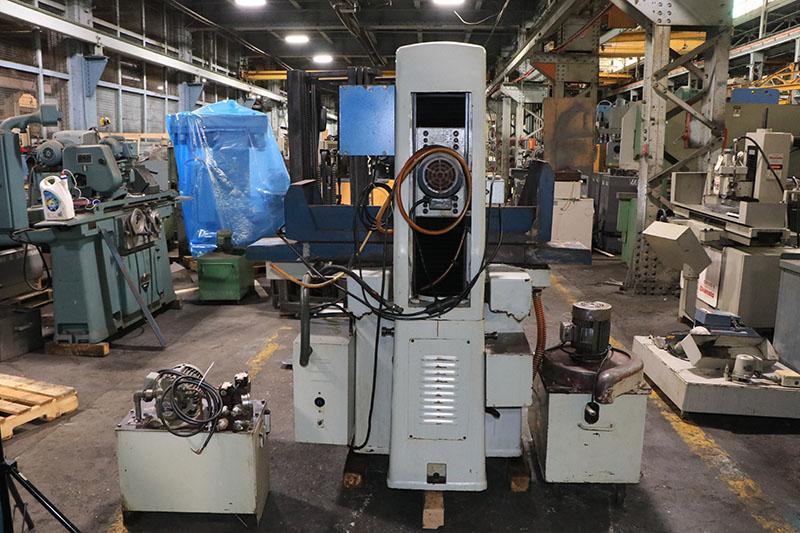

EXTERNAL HYDRAULIC SYSTEM

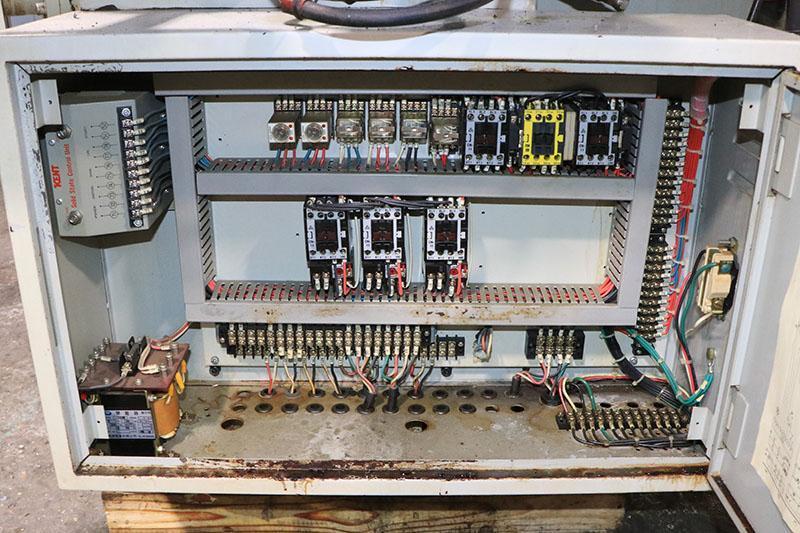

MACHINE IS PRESENTLY WIRED FOR 3/60/220 VOLTS
