Equipped With

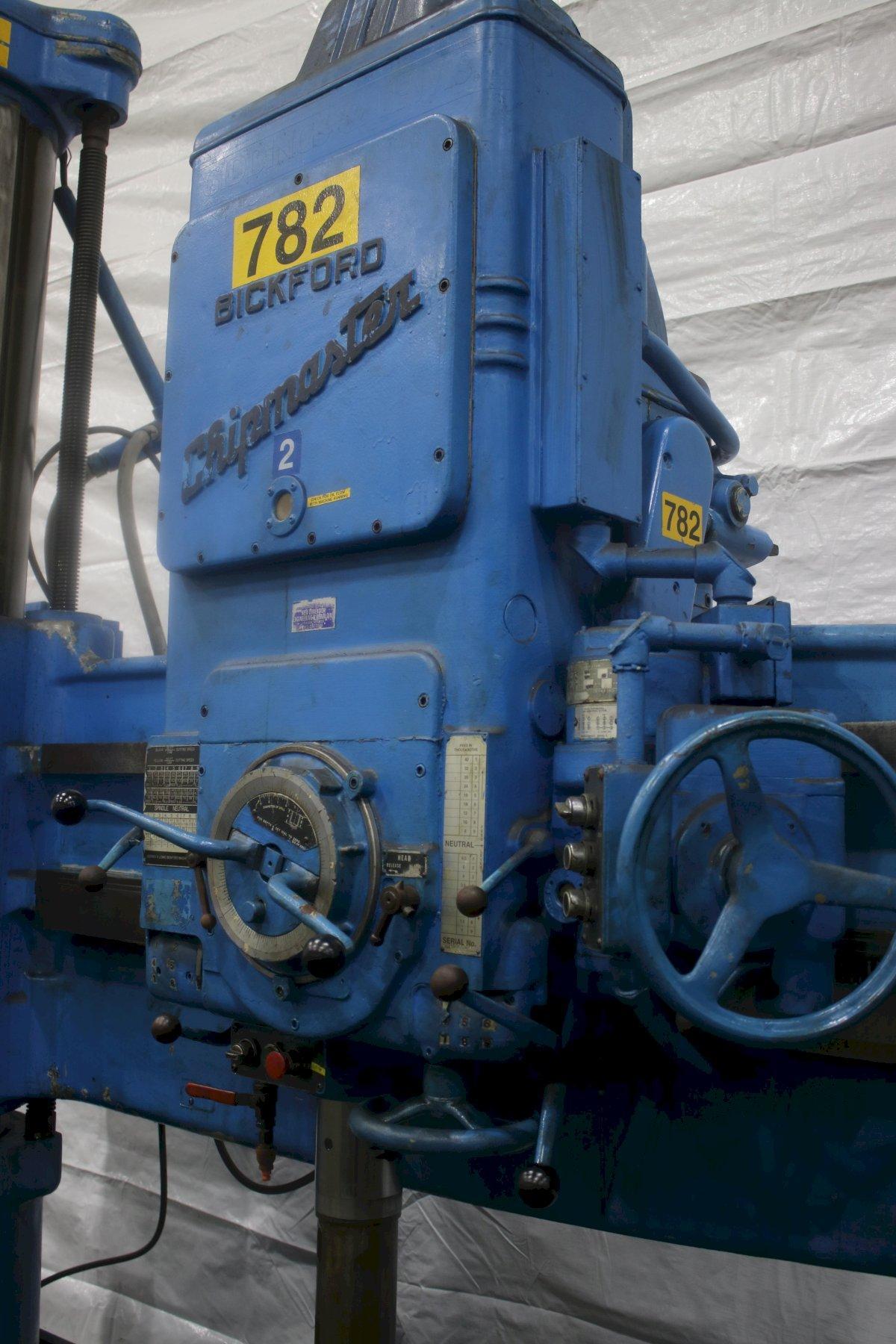

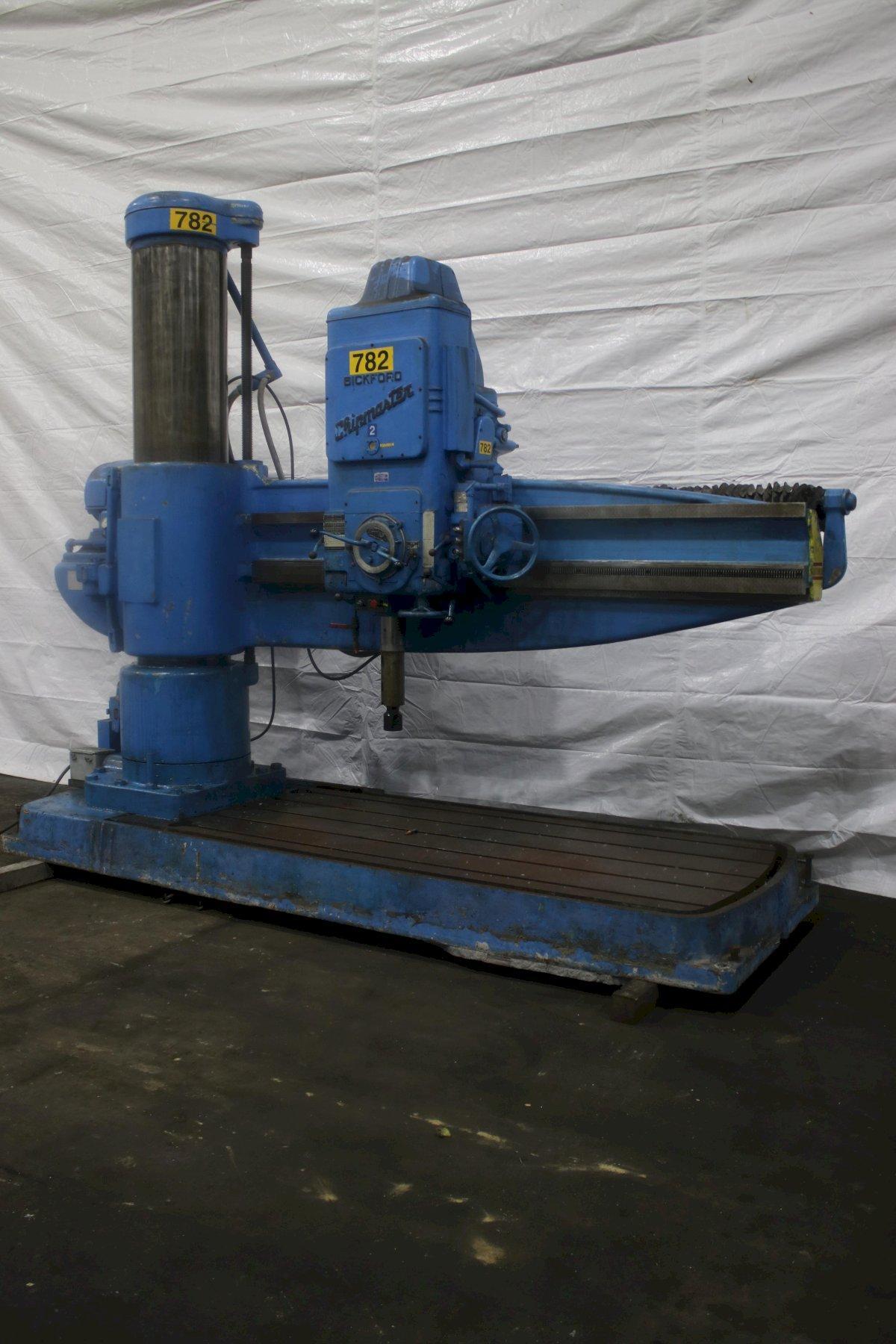

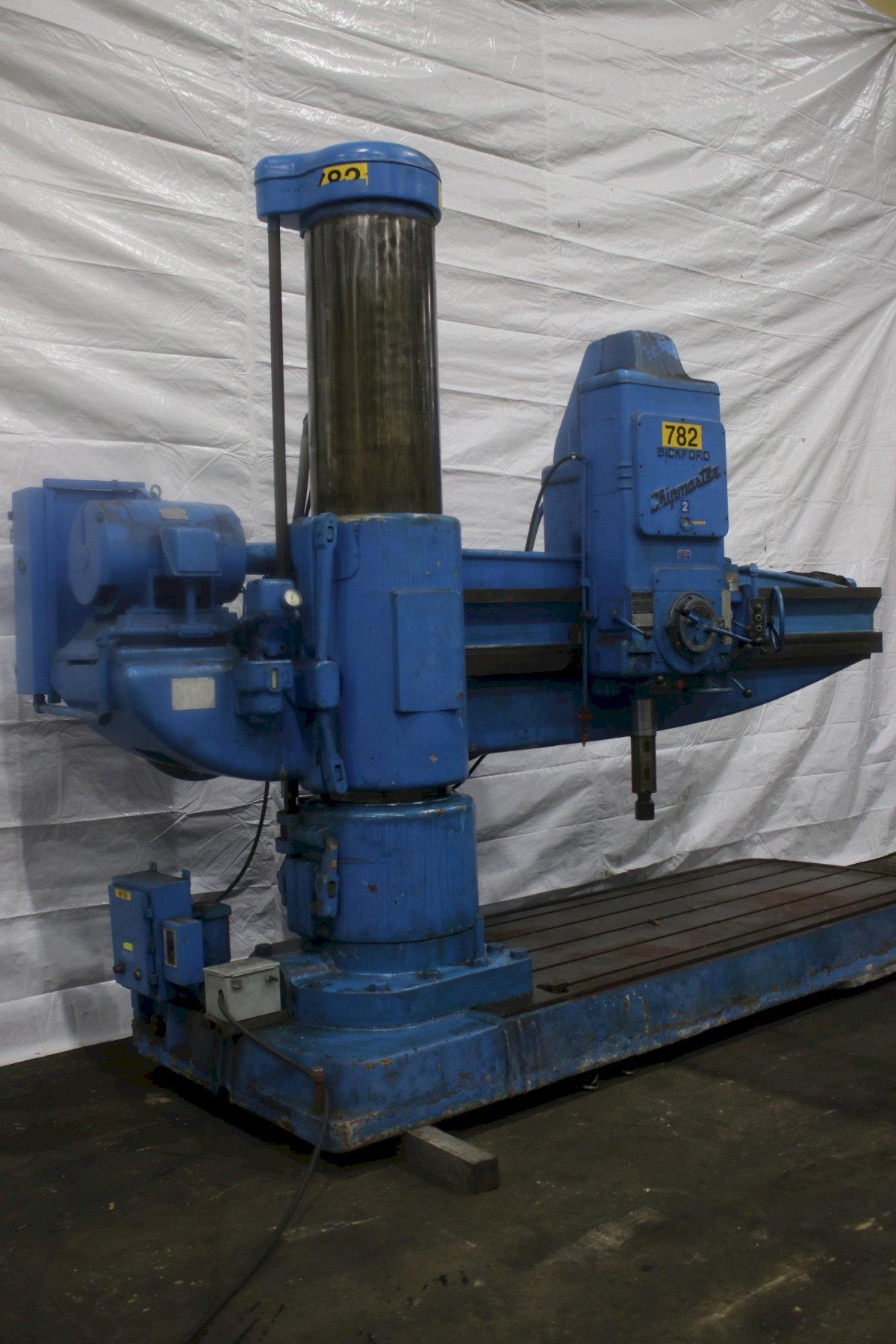

8' X 19" GIDDINGS & LEWIS MODEL 00190 RADIAL DRILL

NEW 1974

SPECIFICATIONS:

AREA OF BASE ......................... 102" X 50"

SPINDLE SPEEDS ....................... (36) 10 TO 1250 RPM

FEEDS ................................ (18) .004 TO .125 IPR

THREADS .............................. 8, 11-1/2, 14, 18, 20, 27 TPI

SPINDLE TRAVEL ....................... 20"

DIAMETER OF SPINDLE .................. 4-1/2"

TAPER IN SPINDLE ..................... #6MT

DISTANCE SPINDLE TO COLUMN ........... 17" MINIMUM, 96 MAXIMUM

DISTANCE SPINDLE TO BASE ............. 36" MINIMUM, 78" MAXIMUM

TRAVERSE OF HEAD ON ARM .............. 79"

TRAVERSE OF ARM ON COLUMN ............ 42"

POWER HEAD TRAVERSE .................. YES

POWER ELEVATION & CLAMPING ........... YES

COOLANT .............................. YES

MAIN MOTOR HORSEPOWER ................ 25
