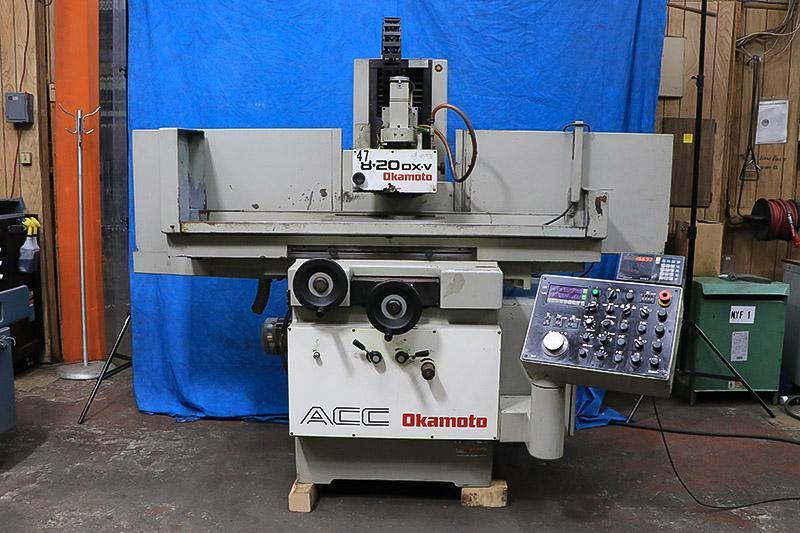

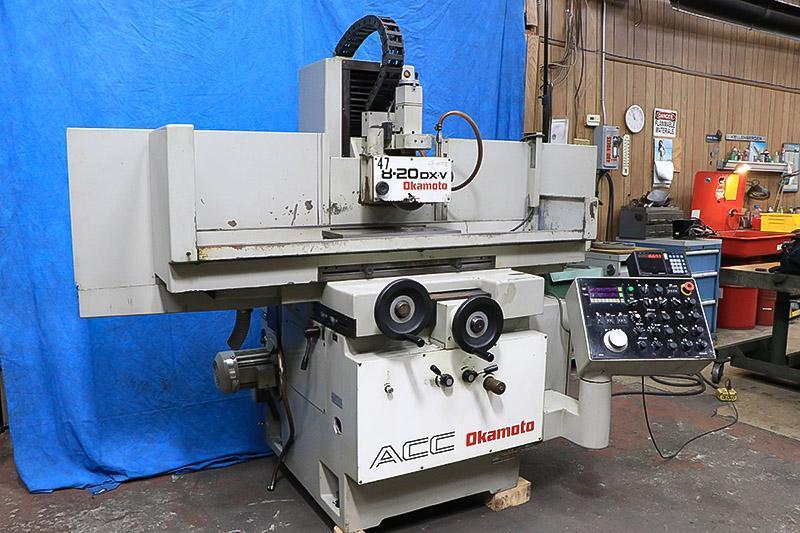

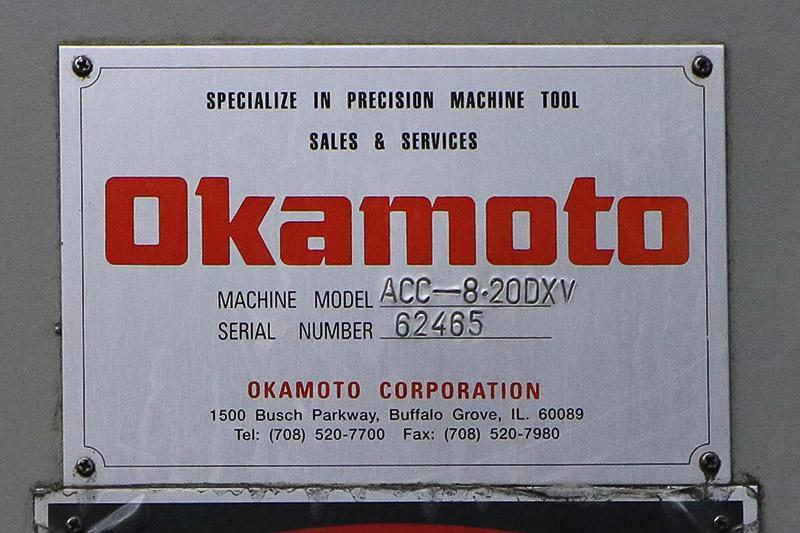

NOMINAL GRINDING CAPACITY ................... 8" x 20"

MAXIMUM HEIGHT UNDER 8" WHEEL ............... 15.6"

TABLE SPEED, INFINITELY VARIABLE ............ UP TO 82' FPM

MAX. LONGITUDINAL TABLE MOVEMENT, MANUAL .... 24"

AUTO CROSS FEED INCREMENT ................... 0.002" TO 0.40"

AUTO CONINOUS CROSSFEED ..................... 4' TO 40' FPM

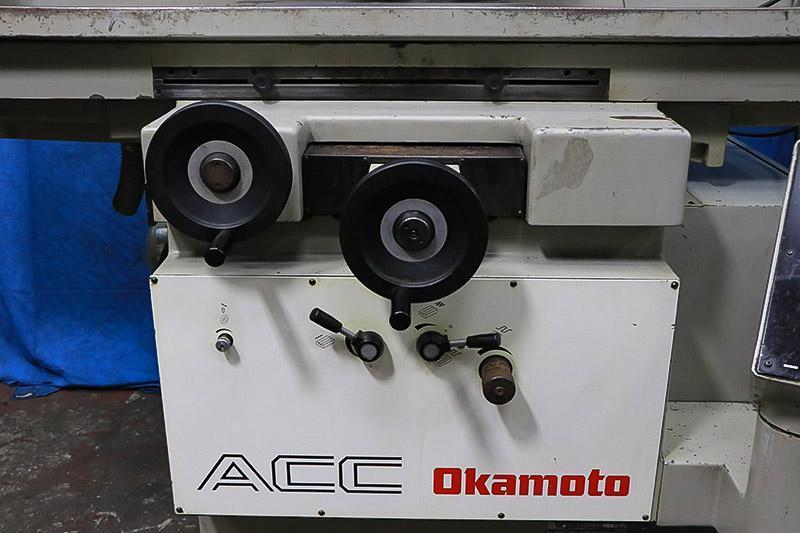

CROSSFEED, MANUAL, HAND FEED PER REV. ....... 0.25"

                   GRAD. OF HANDWHEEL ....... 0.0004"

MAX. CROSSFEED, MANUAL ...................... 9"

AUTO INCREMENTAL DOWNFEED INCREMENTS ........ 0.00005" TO .0015"

POWER RAPID WHEEL POSITIONING RATE .......... 16" IPM

SPINDLE MOTOR ............................... 2 H.P.

WHEEL SIZE .................................. 8"DIA. x 1"W x 1.25"B

APPROX. MACHINE WEIGHT ...................... 3,810 LBS.

APPROX. DIMS. ............................... 95" x 63" x 70"H

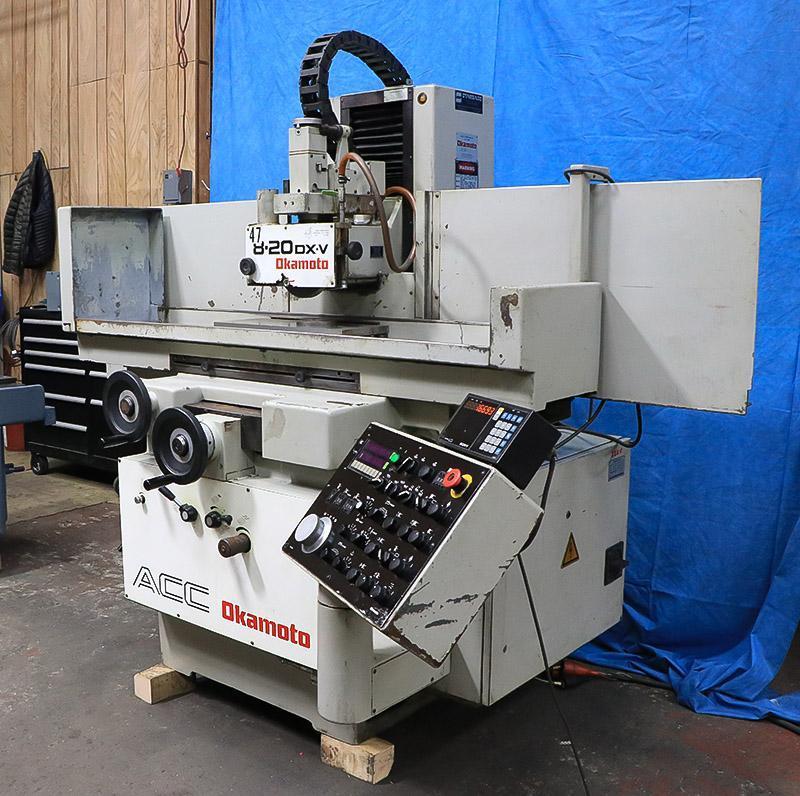

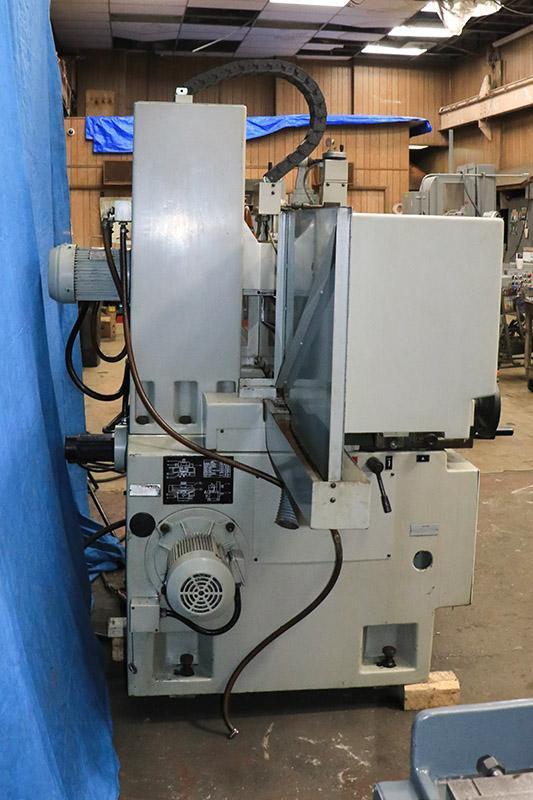

MACHINE FEATURES:

3-AXIS AUTOMATIC FEEDS

HYDRAULIC TABLE TRAVERSE & AUTOMATIC CROSSFEED

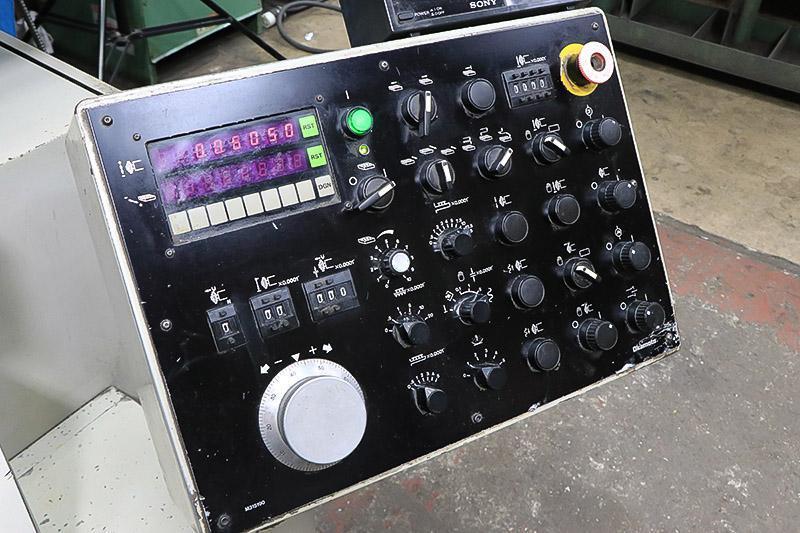

"DX" PROGRAMMABLE ELECTRONIC AUTO INCREMENTAL DOWNFEED:

-SERVO DRIVEN DOWNFEED

-AUTO INCREMENTAL DOWNFEED FOR BOTH SURFACE & PLUNGE

  OPERATIONS

-DUAL RATE AUTO DOWNFEED W/COARSE & FINE SELECTIONS

-DIGITAL DISPLAY FOR VERTICAL AXIS

-SPARKOUT PASSES (0 TO 5) W/AUTO TABLE PARK AT

  COMPLETION OF GRIND CYCLE

-ELECTRONIC HANDWHEEL FOR MANUAL VERTICAL MOVEMENT

  W/EACH GRAD. EQUIVALENT TO .00001", .0001" OR .001"

-POWER RAPID WHEEL POSITIONING

-"FACTORY OPTION THIS MACHINE ALSO HAS" -

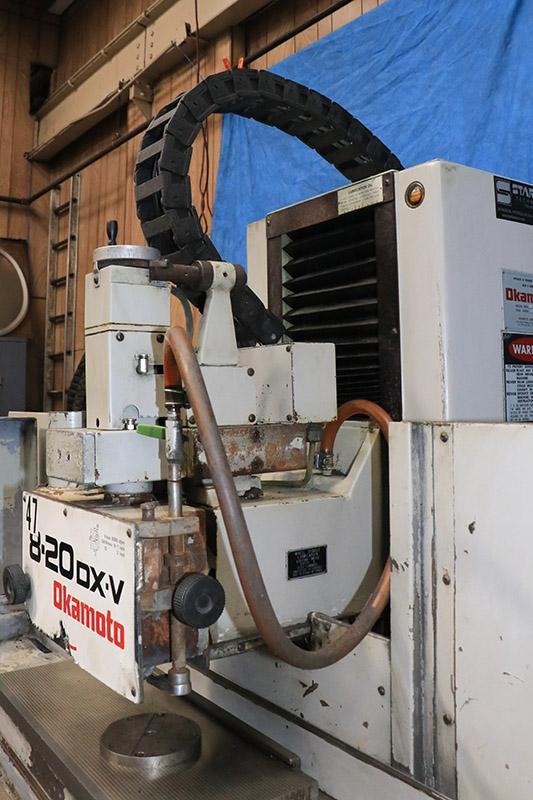

  HYDRAULICALLY POWERED AUTO WHEEL DRESSER WITH AUTO

  WHEEL WEAR COMPENSATION & DRESS INTERVAL SELECTION,

  ROTARY ENCODER INSTALLED ON THE DRESSER ADJUSTS

  WHEELHEAD POSITION TO MAINTAIN THE GRINDING WHEEL

  TO WORKPIECE RELATIONSHIP.  SAVES TIME, BOOSTS

  PRODUCTIVITY.

EQUIPPED WITH:

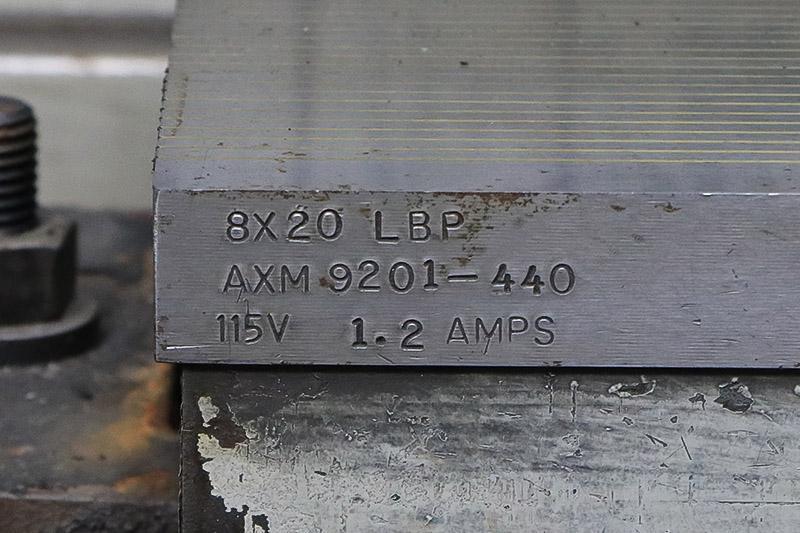

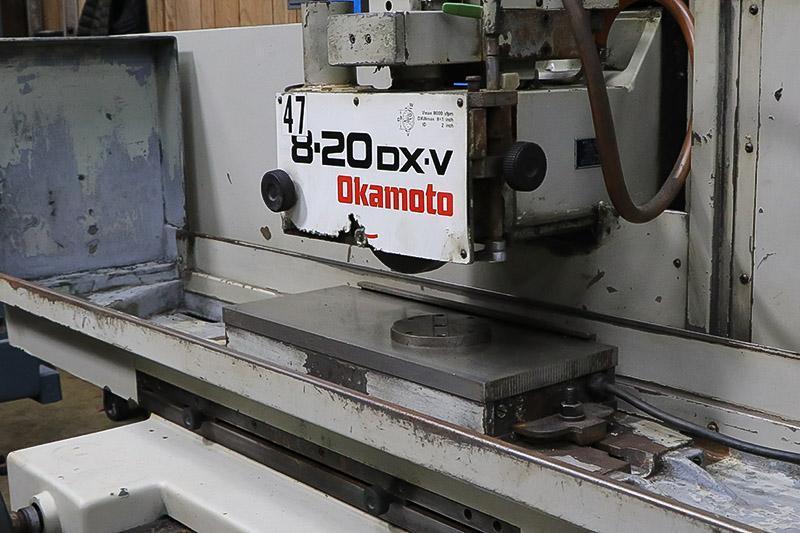

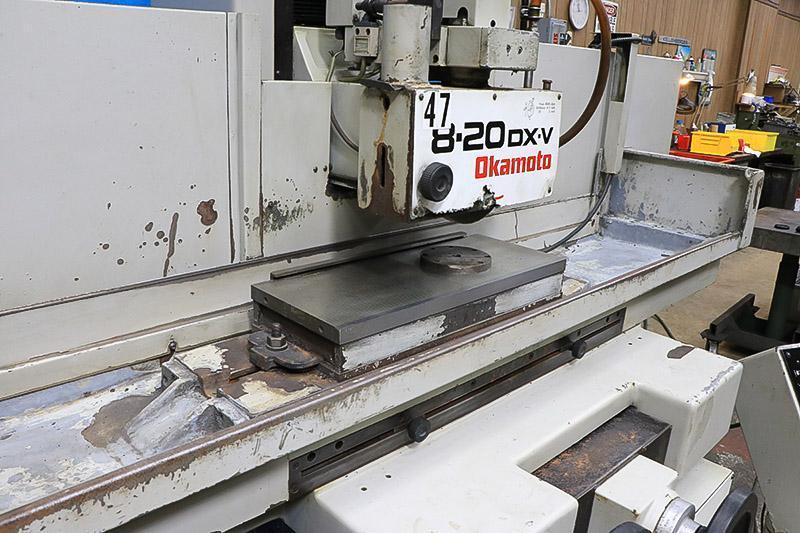

8" X 20" FINE-DIVISION "LBP" ELECTRO-MAGNETIC CHUCK

VARIABLE HOLD NEUTROFIER CONTROL & DEMAGNETIZER

COOLANT SYSTEM

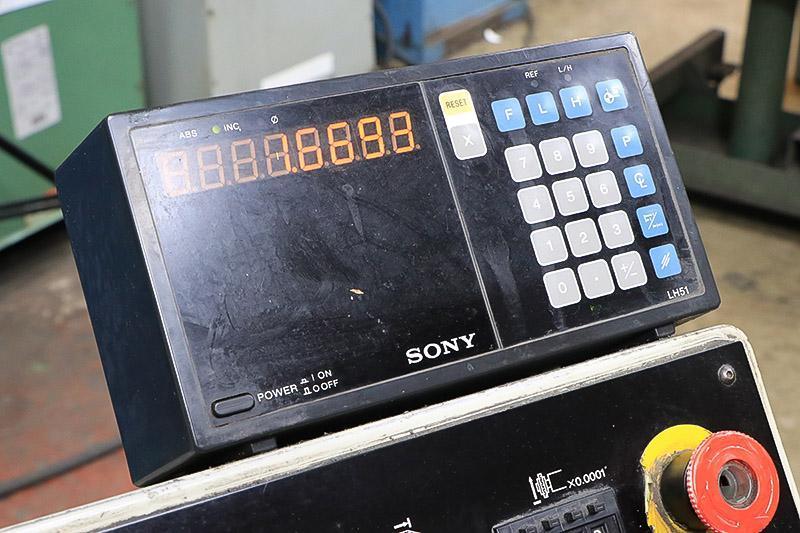

"SONY" DIGITAL READOUT DISPLAY FOR THE CROSS AXIS

2 H.P. SPINDLE MOTOR

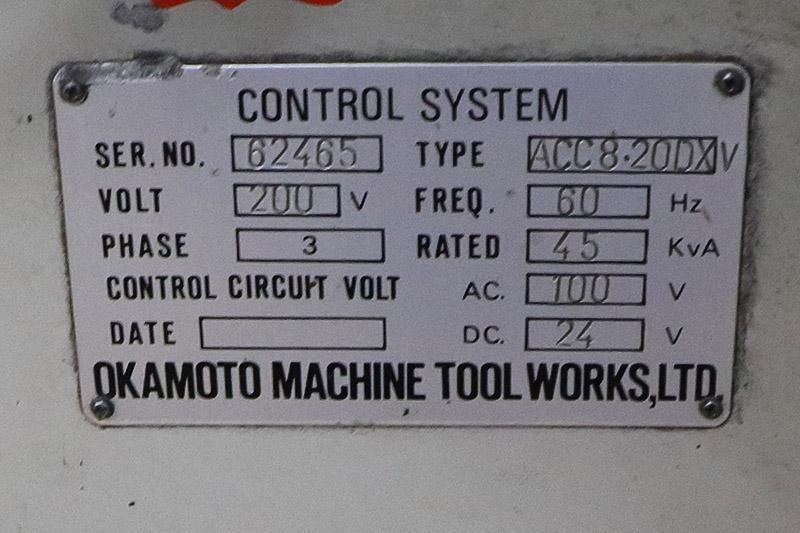

PRESENTLY WIRED FOR 3/60/200-220 VOLTS ELECTRICS
