Equipped With

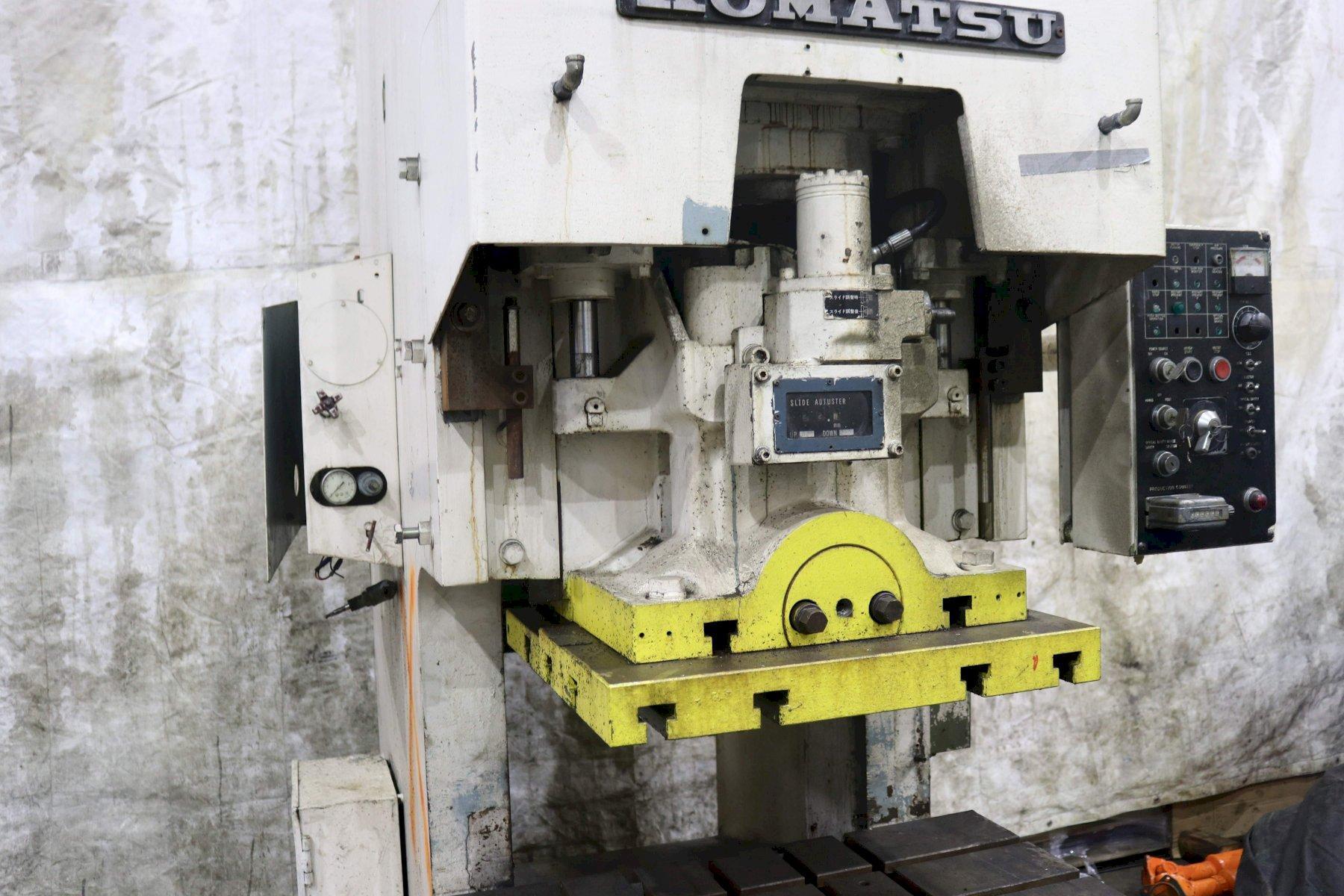

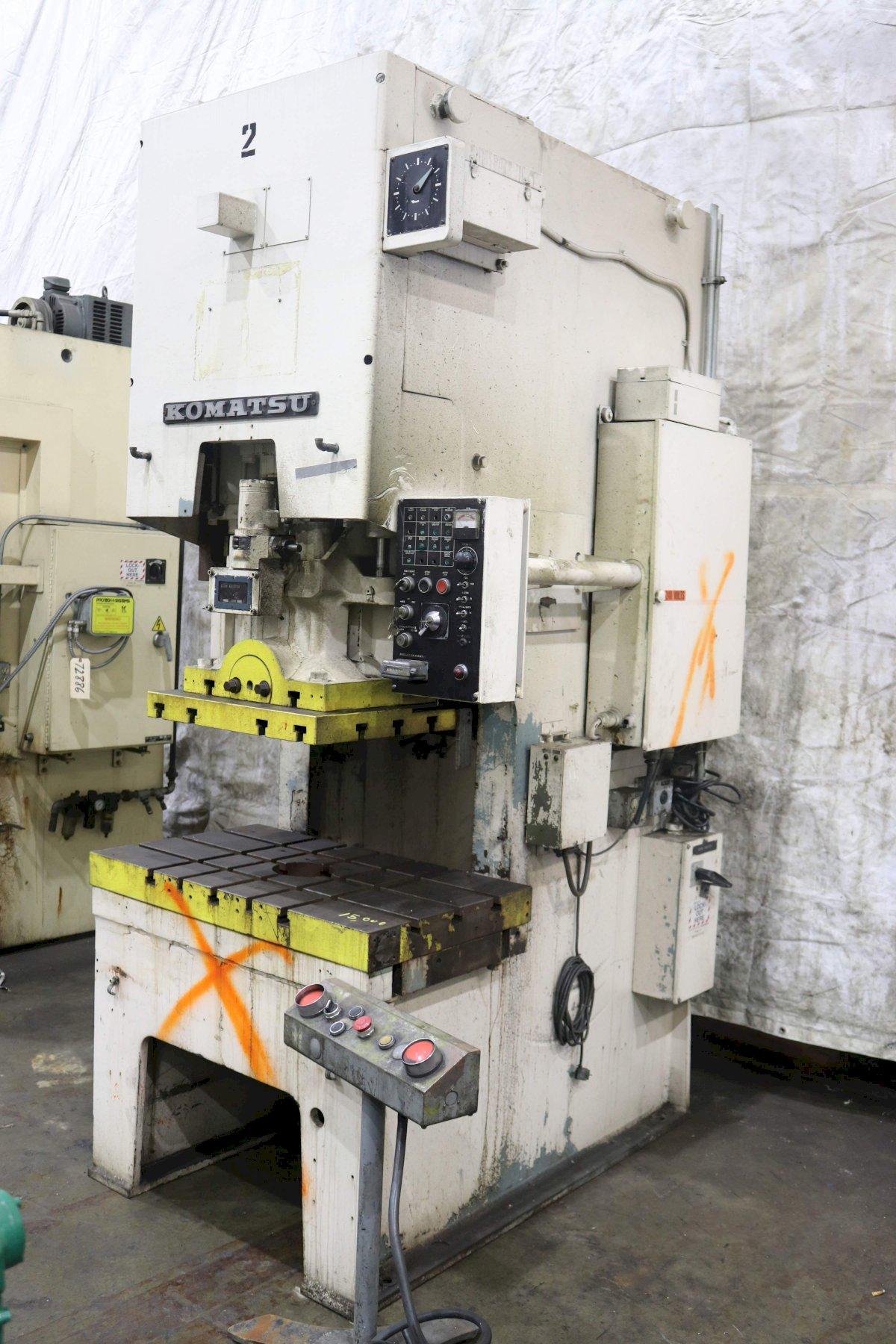

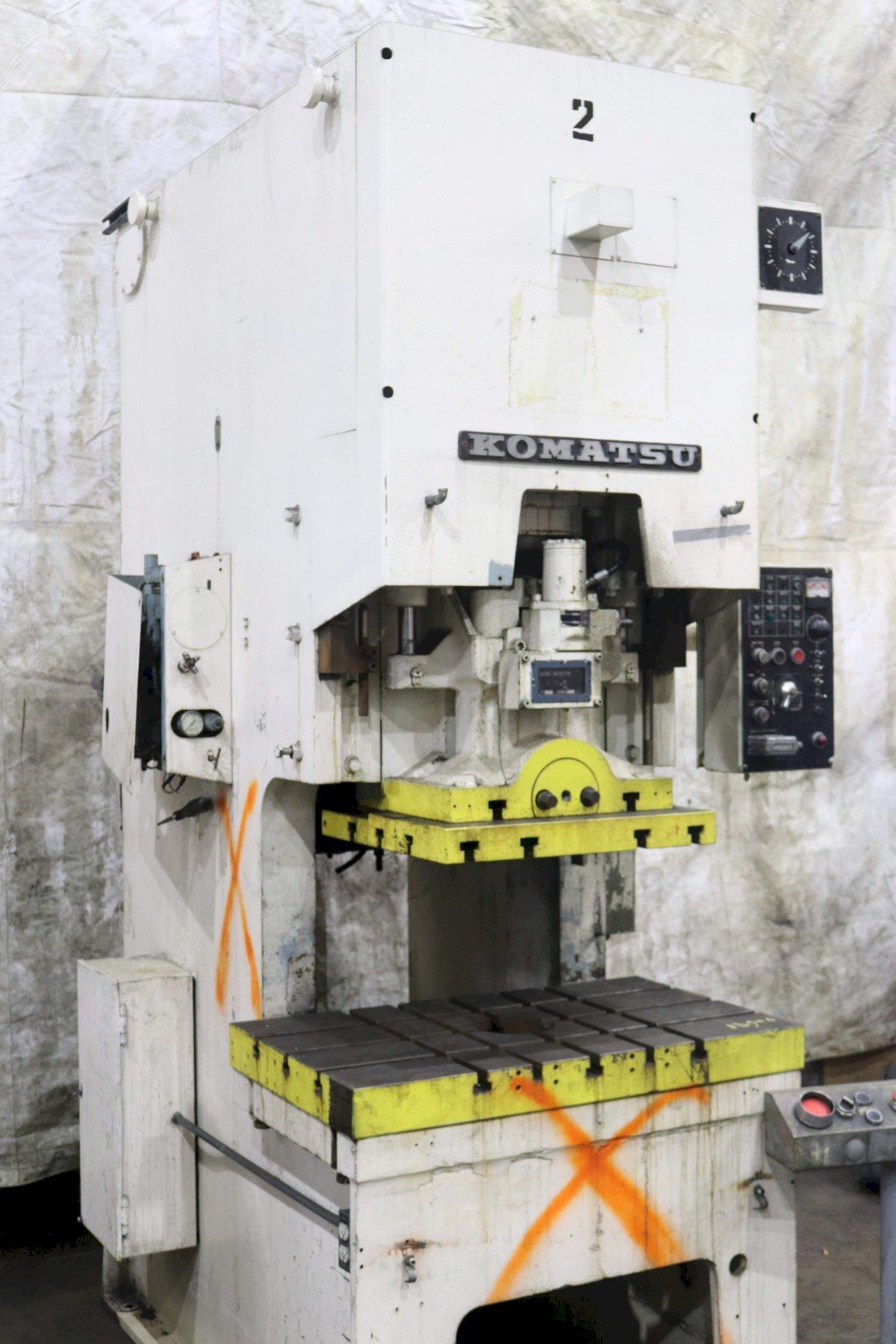

80 TON KOMATSU MODEL #OBS-80-2 GAP FRAME PRESS

NEW 1981


CAPACITY ....................... 80 TON
STROKE OF SLIDE ................ 6.29921"
SLIDE ADJUSTMENT (POWER) ....... 3.14961"
STROKE PER MINUTE (VARIABLE) ... 60
SHUT HEIGHT (SDAU) ............. 13.189" SLIDE TO BOLSTER
AREA OF BED .................... 39-1/4" X 23-1/2"

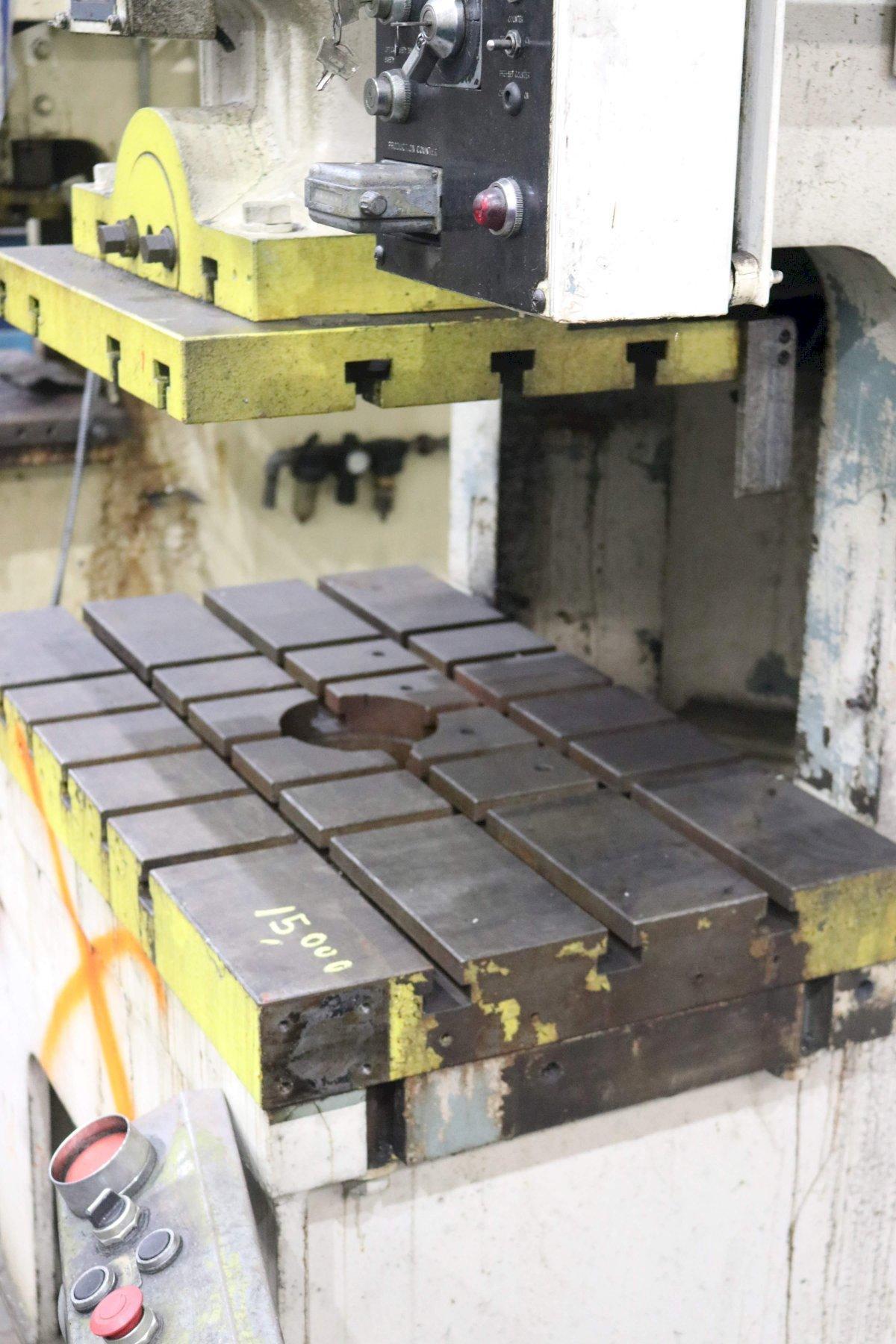

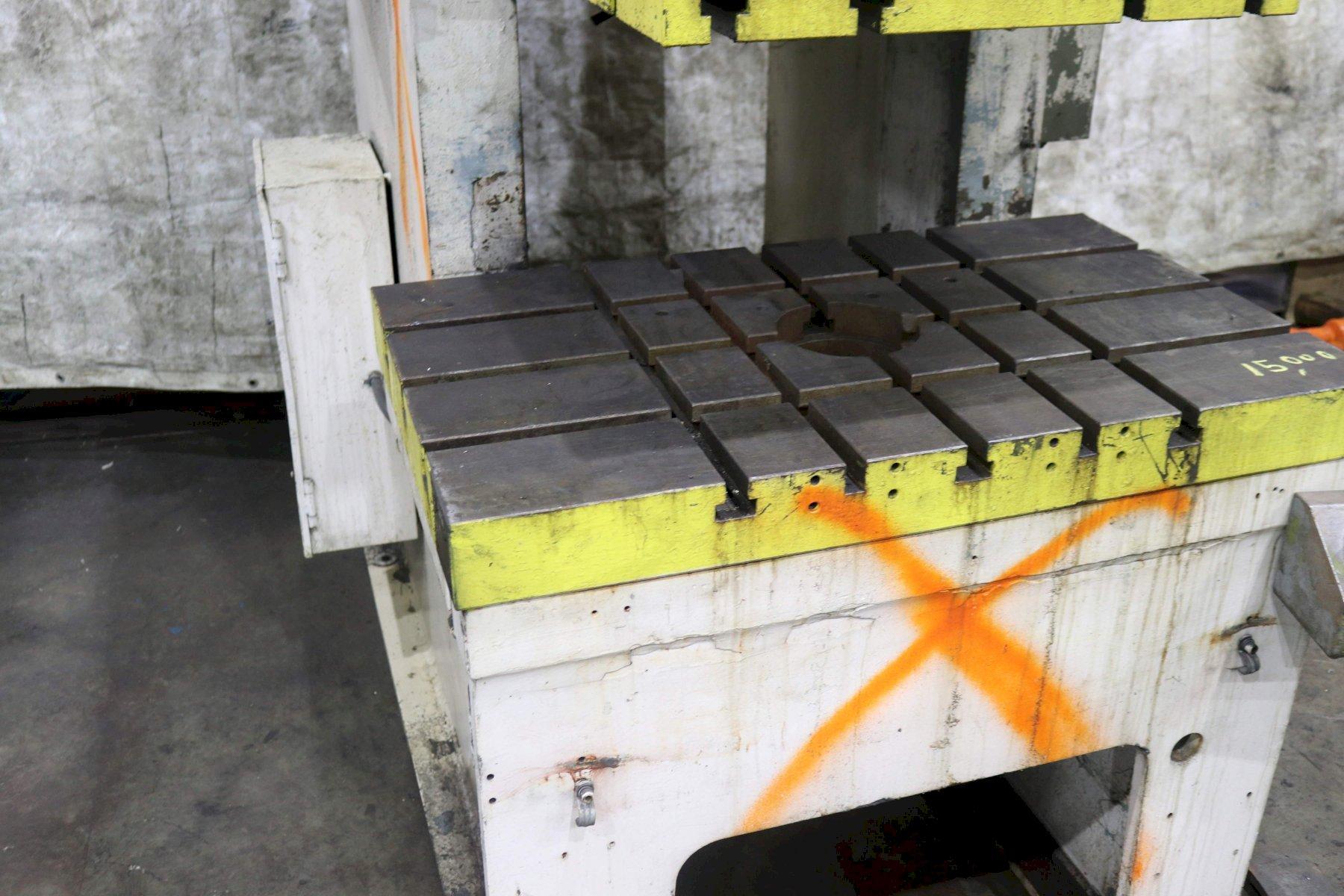

AREA OF BOLSTER ................ 39-1/4" X 23-1/2" X 3-1/2"
AREA OF SLIDE .................. 19-3/4" X 16"

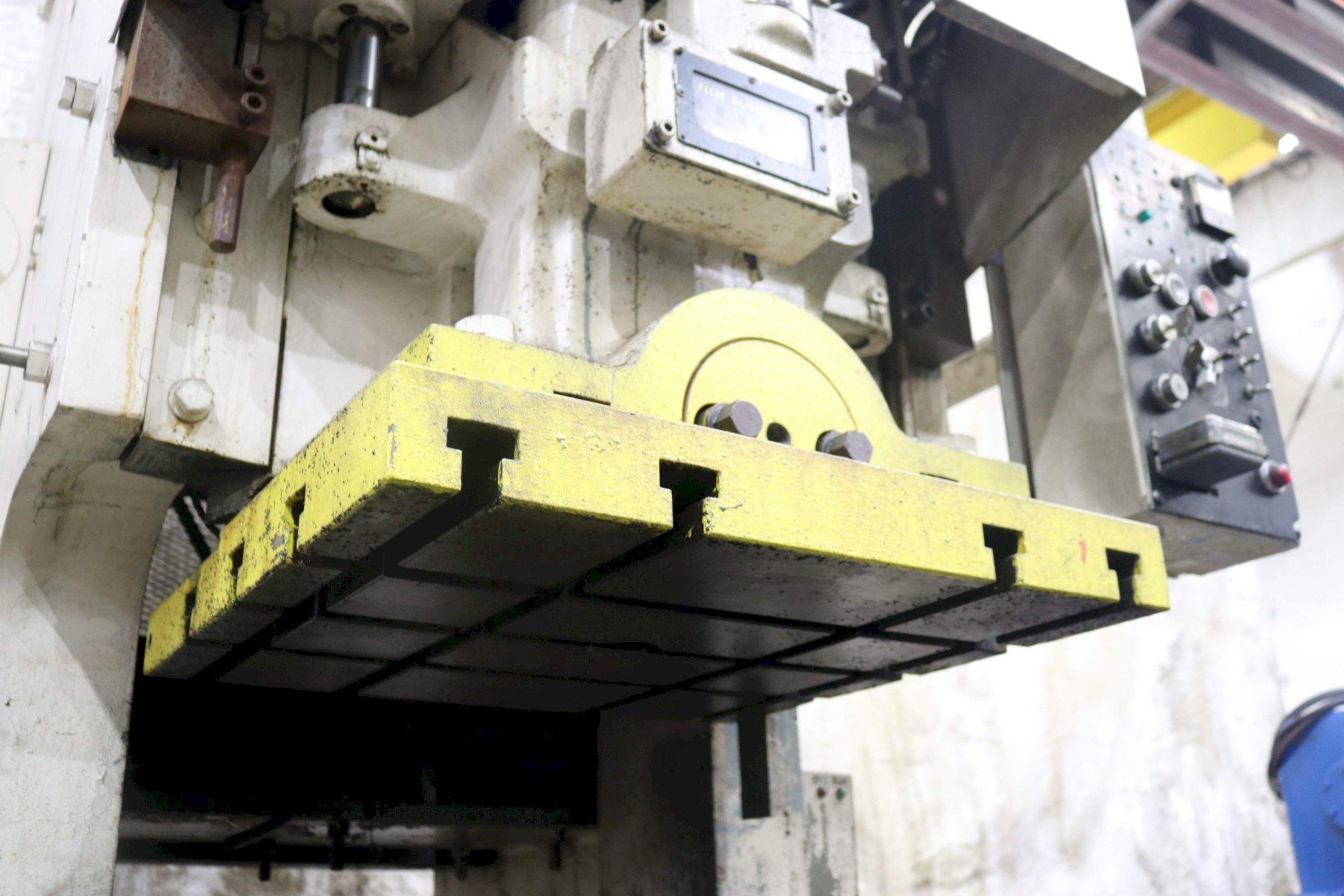

T SLOTTED BOLSTER ON SLIDE ..... 23-1/2" X 21"
AIR CLUTCH & BRAKE ............. YES
AIR COUNTER BALANCES ........... YES
DUAL PALM BUTTONS .............. YES
AUTO LUBE SYSTEM ............... YES
RUN/SINGLE & INCH CONTROLS ..... YES
PASSLINE HEIGHT ................ 36"
MOTOR .......................... 7-1/2 HORSEPOWER
