Equipped With

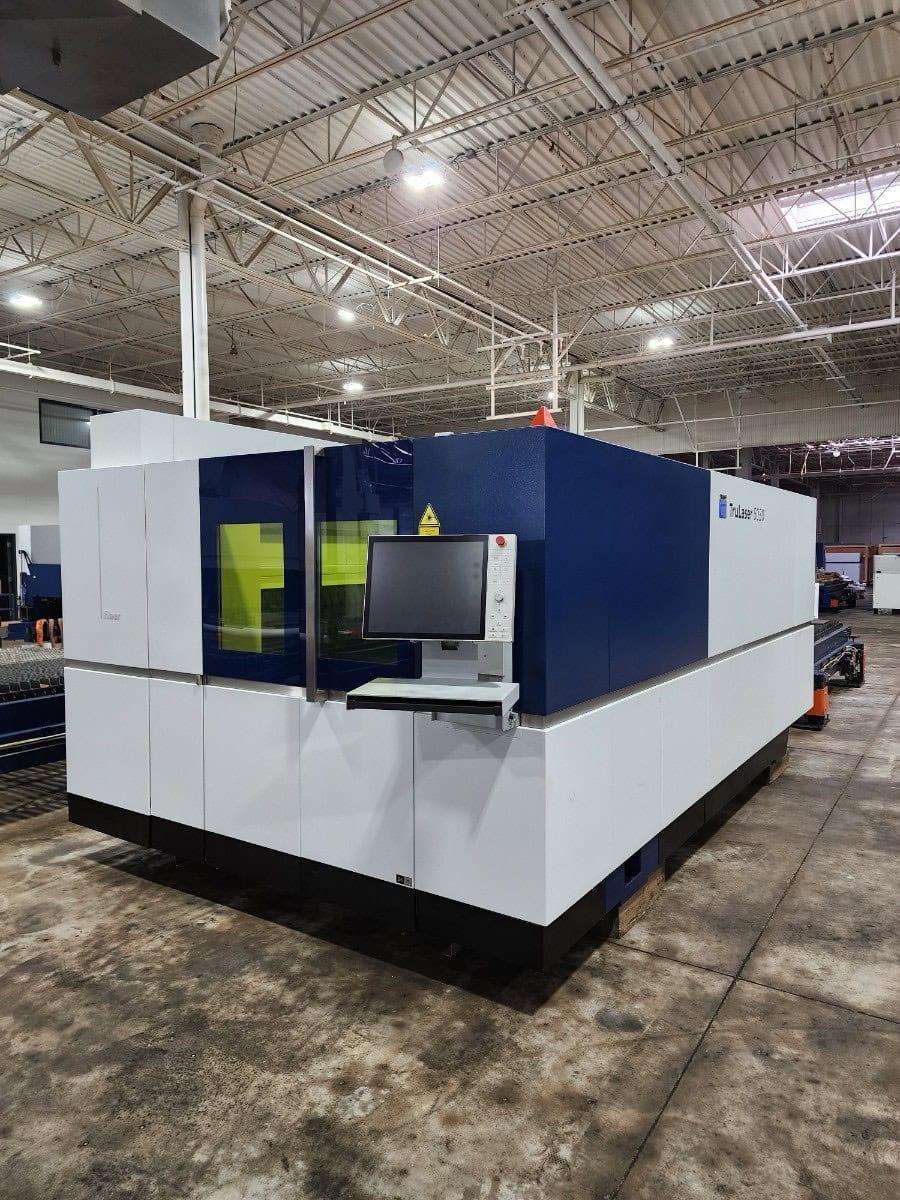

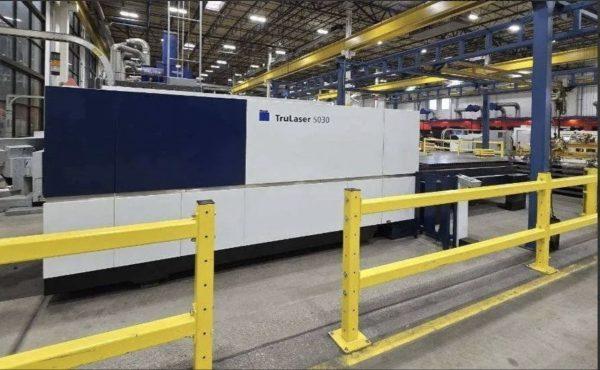

8000 Watt Trumpf TruLaser 5030 fiber, 2016 – REFURBISHED, 10,700 beam on hours – TruDisk 8001

New 2016

SPECIFICATIONS:

X axis: 120”
Y axis: 60”
Z axis: 4.5”

Working Range: 120” x 60”

Workpiece

Max weight: 1984 lbs.

Max Thickness
Mild steel: 1”
Stainless steel: 0.8/1″
Aluminum: 0.8/1”
Copper/Brass: 0.4”

Max Speed
Simultaneous: 10,433” /min

Trumpf CNC Control: Siemens Sinumerik 840D SL

Accuracy
Position deviation P: 0.002”
Average position scatter P: 0.001”

Dimensions:
Length: 347”
Width: 189”
Height: 95”
Weight: 26,456 lbs.

Laser: TruDisk 5001
Wavelength: 1.03 um

EQUIPPED WITH:
Dust Collector
10,700 beam on hours
left install
BrightLine fiber
nozzle changer
nozzle inspection
performance package
Copper/Brass package
CoolLine
Smart Beam Control
Proc. Monitoring Camera
air cutting
wide transverse conveyor
