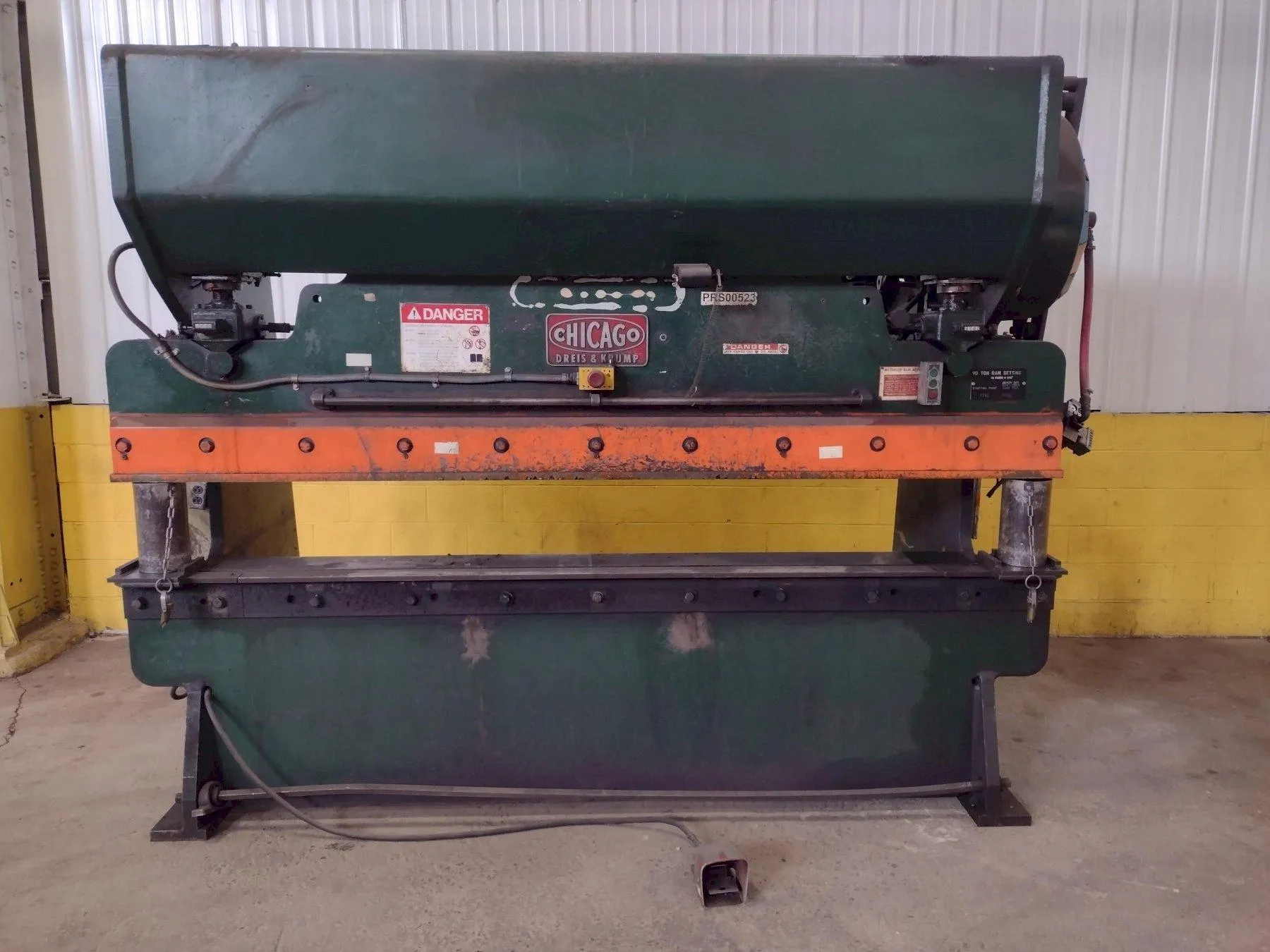

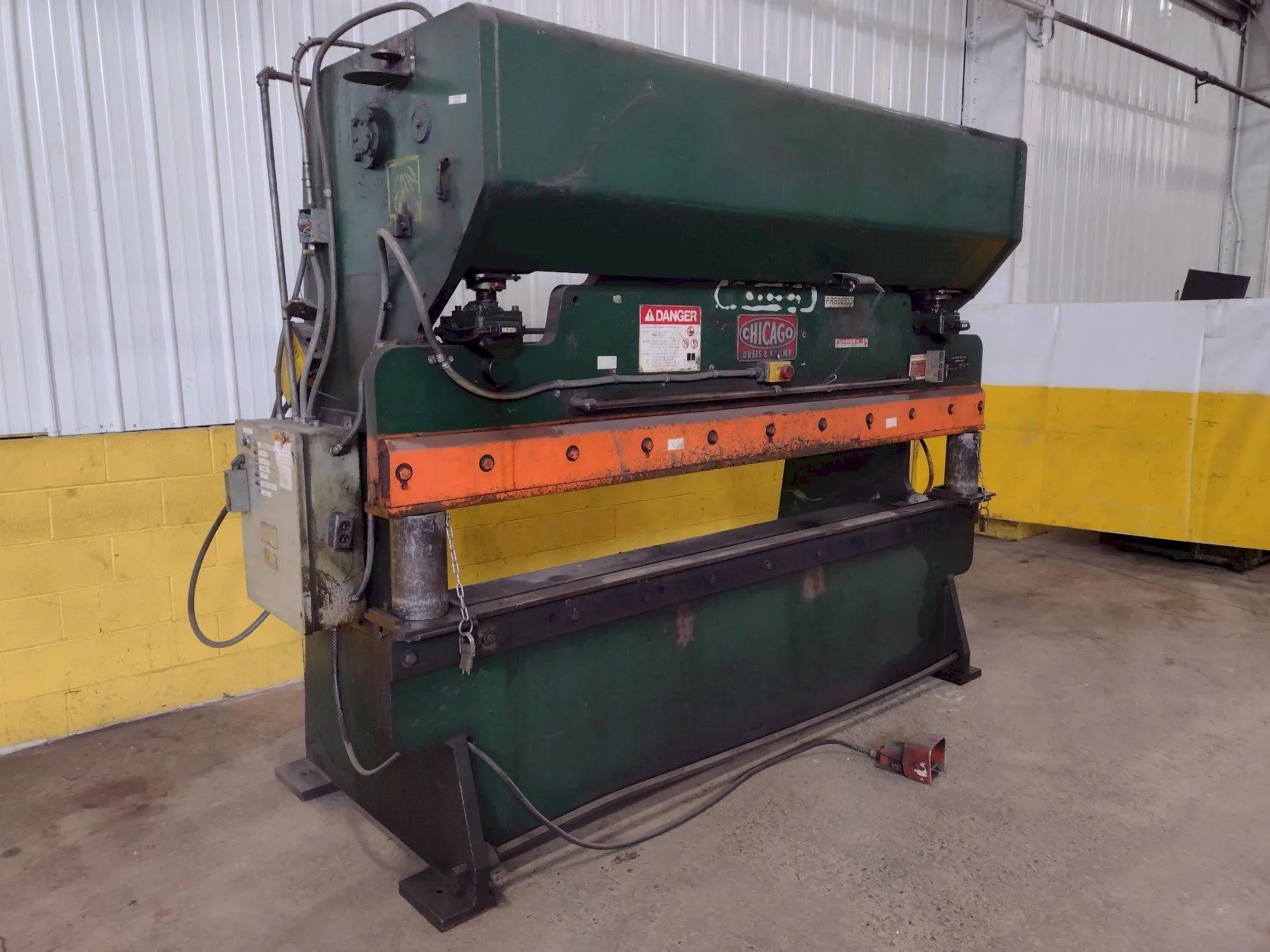

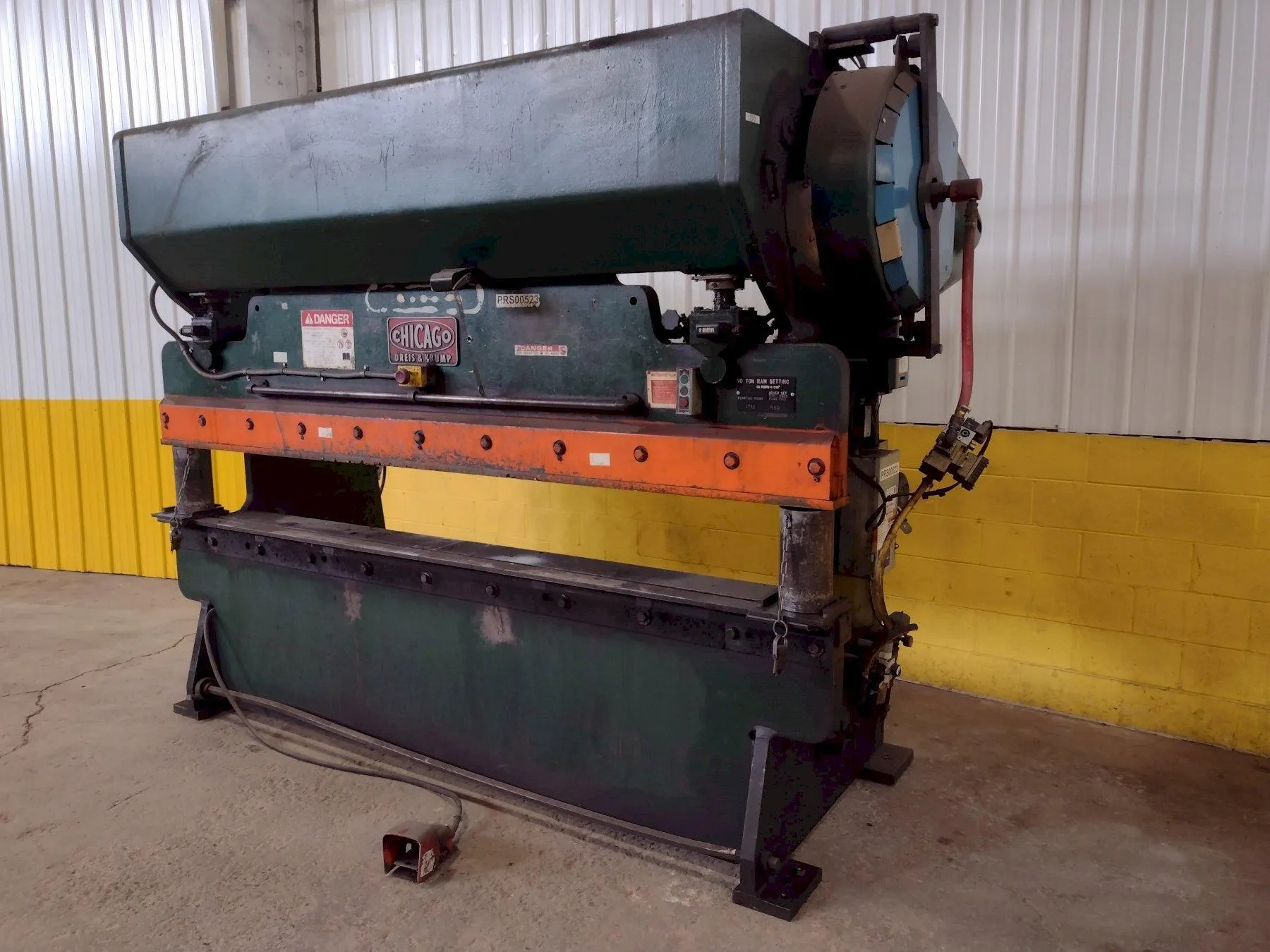

90 TON X 10' CHICAGO D&K MODEL #810-L MECHANICAL BRAKE WITH AIR CLUTCH
Year
1965
Stock #
20032
Condition
Very Good
Keep Scrolling To Learn More
Specifications
Equipped With
90 TON X 10' CHICAGO D&K MODEL #810-L MECHANICAL BRAKE WITH AIR CLUTCH
NEW 1965
SPECIFICATIONS:
CAPACITY ................... 90 TON
LENGTH OF BED & RAM ........ 10'
DISTANCE BETWEEN HOUSING ... 8'6"
STROKE ..................... 3"
SHUT HEIGHT (SDAU).......... 12"
RAM ADJUSTMENT (POWER) ..... 5" MOTORIZED
ADJUSTMENT MOTOR .......... 1/3 HP
ADJUSTMENT MOTOR .......... 1/3 HP
STROKES PER MINUTE ......... 40
DEPTH OF THROAT ............ 8"
FLOOR TO TOP OF BED ........ 34"
CLUTCH & BRAKE ............. AIR
CLUTCH & BRAKE ............. AIR
CONTROLS ................... YES WITH FOOT TRIP
MOTOR ...................... 7.5 HORSEPOWER
MOTOR ...................... 7.5 HORSEPOWER
