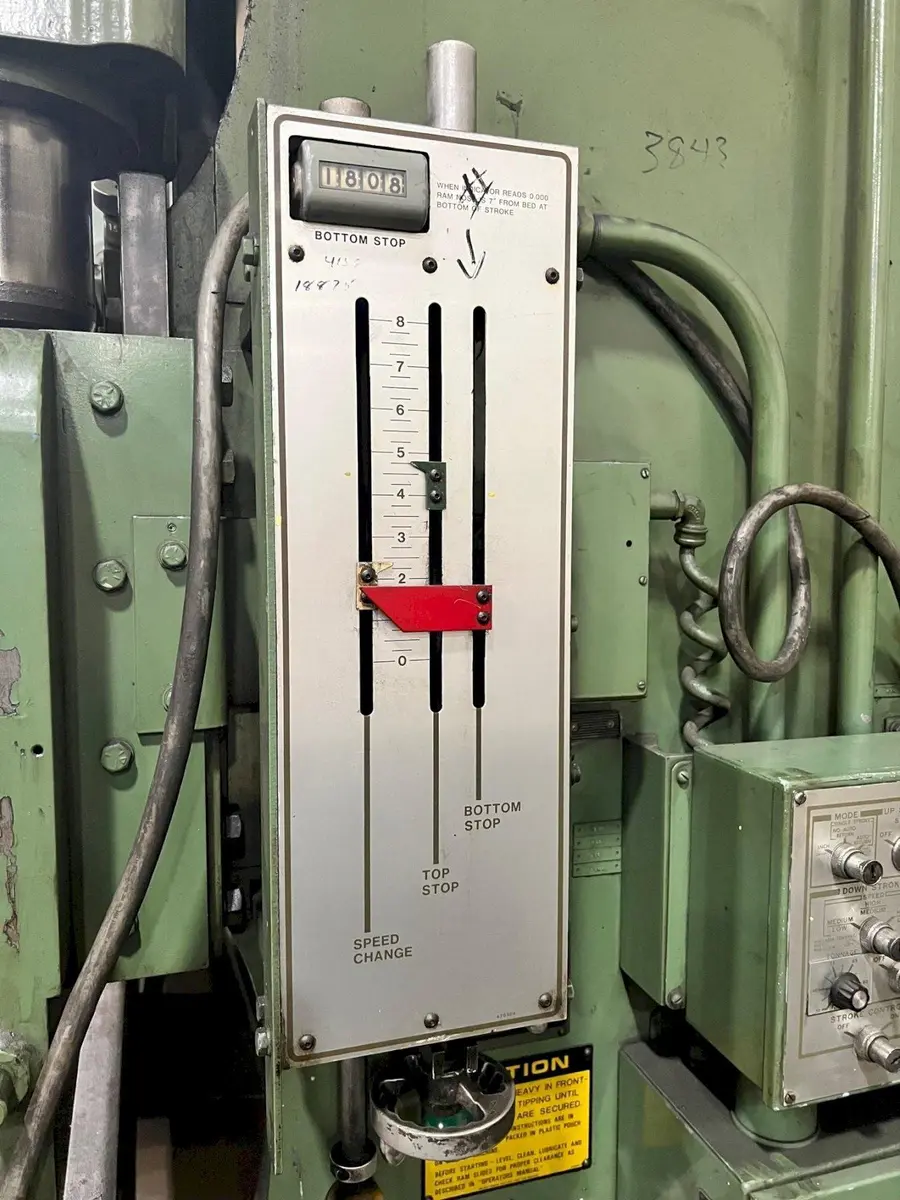

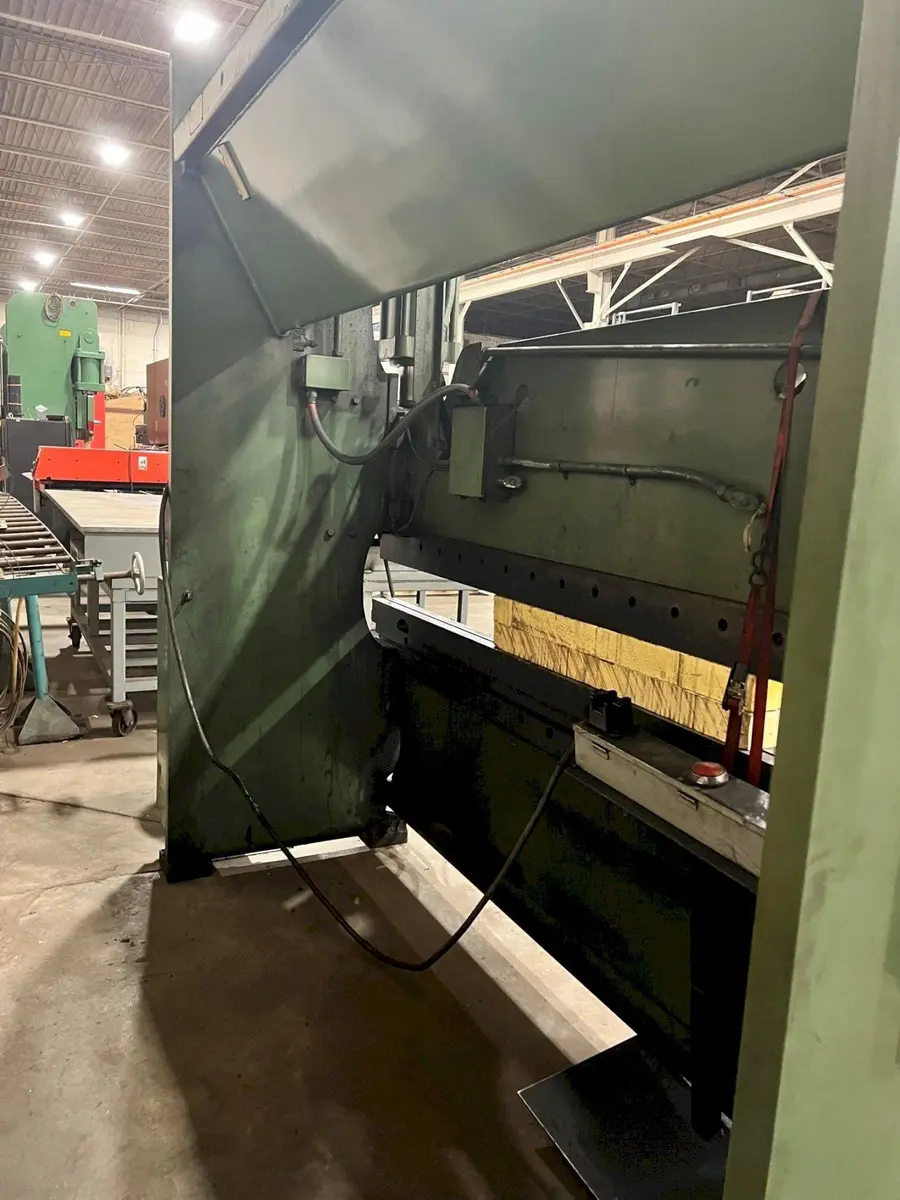

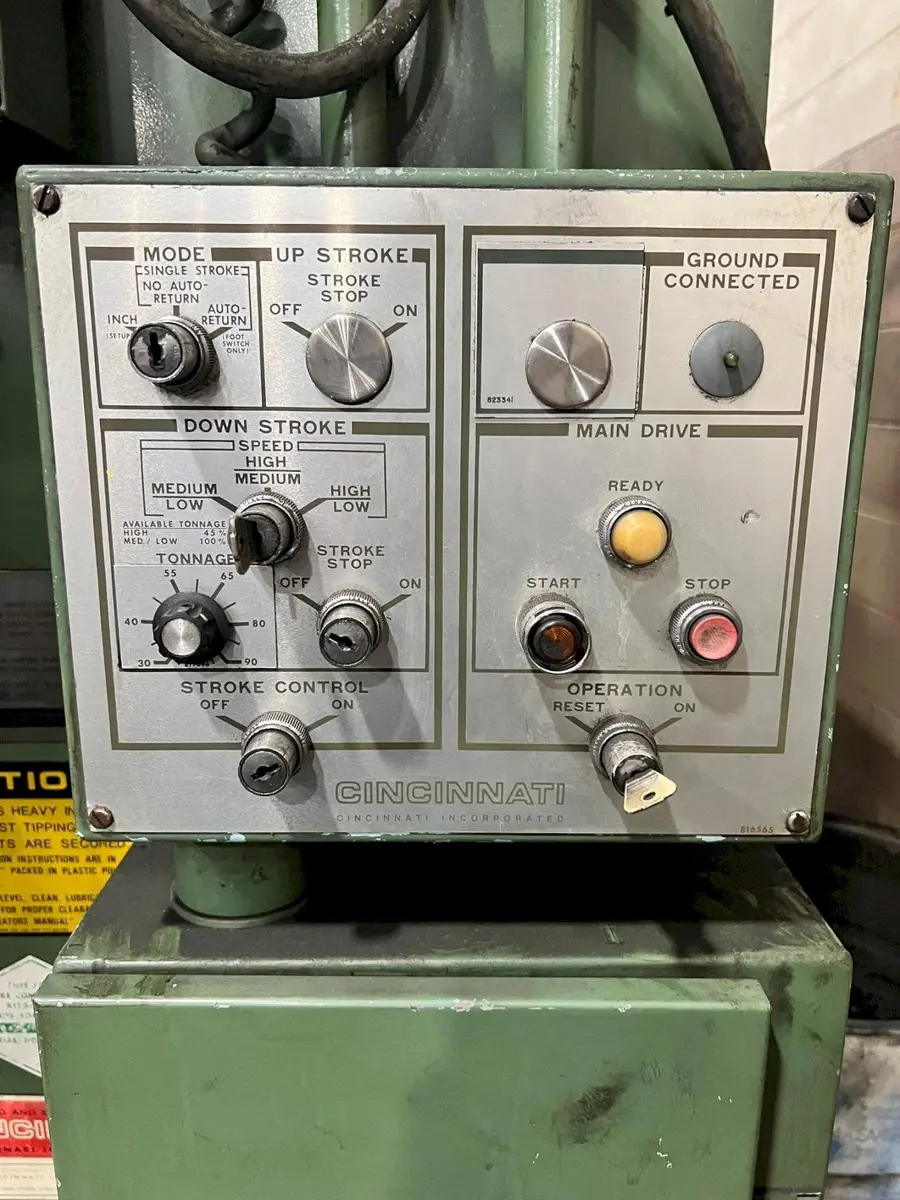

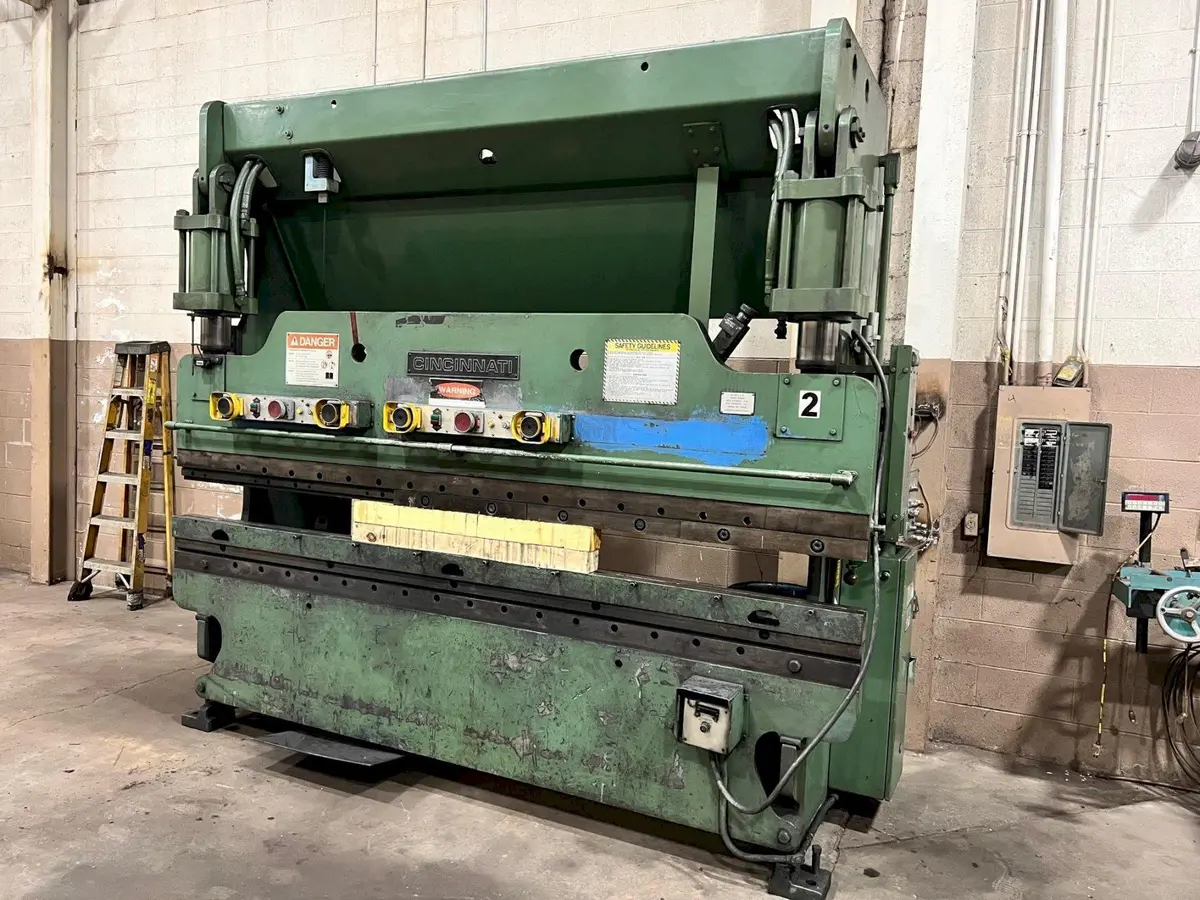

90 TON x 10' CINCINNATI 90CB8 HYDRAULIC PRESS BRAKE
Year
Not provided
Stock #
30362
Condition
Not specified
Keep Scrolling To Learn More
Specifications
Equipped With
90 TON x 10' CINCINNATI 90CB8 HYDRAULIC PRESS BRAKE
Equipped With:
|
|
Inch, single, auto stroke settings
Full length die holder
Sectionalized ram clamps
Power ram tilt
Tonnage control
Low, medium, high ram speeds
Palm buttons mounted to ram
Specifications:
Tonnage: 90 tons
Length of bed: 10'
Distance between housings: 8' 6-1/4"
Stroke length: 8"
Open height: 15"
Closed height: 7"
Throat: 7"
Ram high speed: 150 IPM
Ram medium speed: 71 IPM
Ram low speed: 21 IPM
Ram return speed: 136 IPM
Main motor: 15 H.P.
Voltage: 220 / 440 volt 3 phase (currently wired 440 volt)
Dimensions: 120" x 40" x 117"
Weight: 14,500 Lbs.
