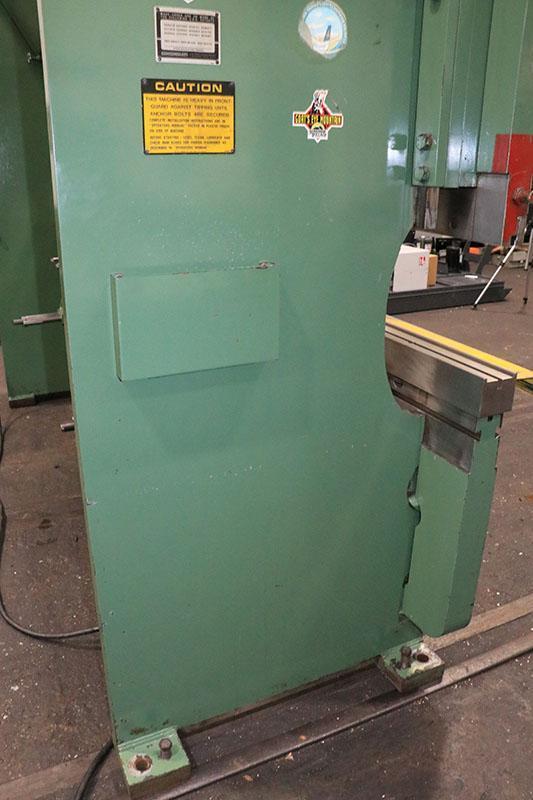

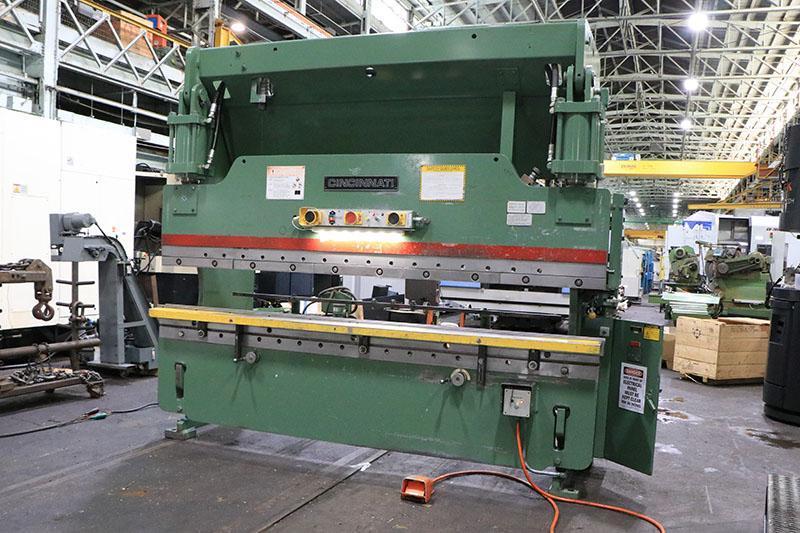

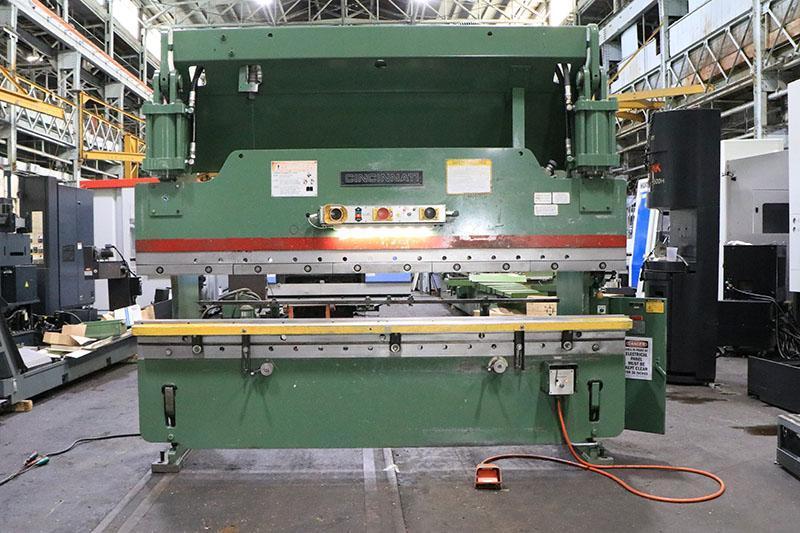

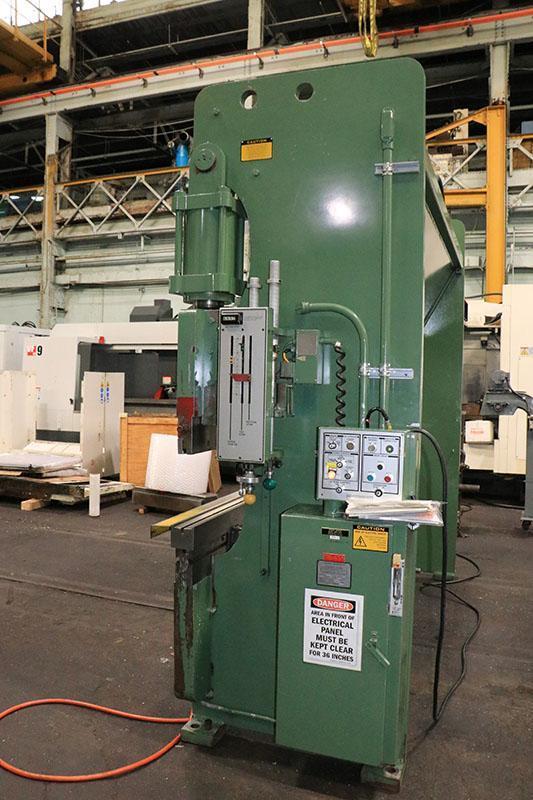

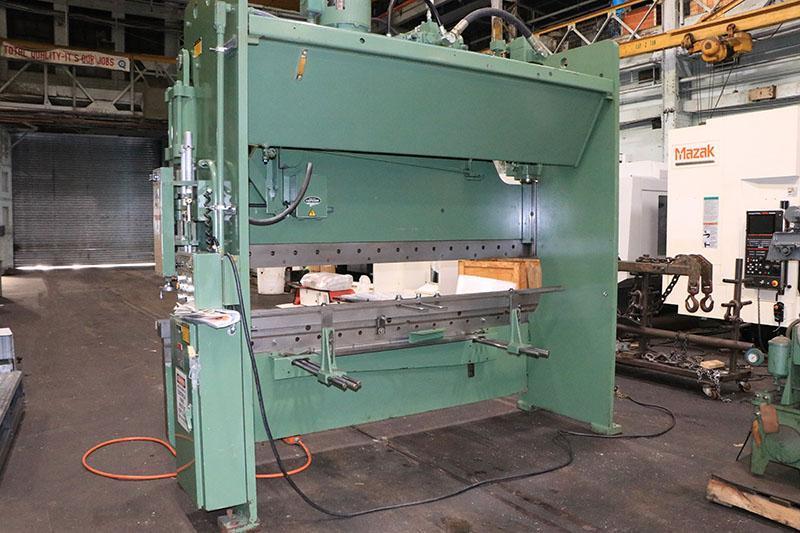

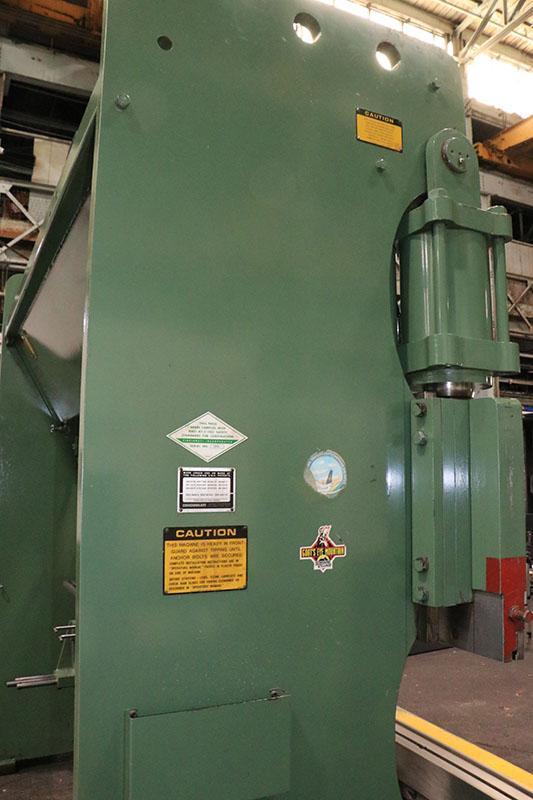

90 TON X 10' CINCINNATI MODEL 90CBX8 HYDRAULIC PRESS BRAKE

New 1991

SPECIFICATIONS:

Capacity ............................. 90 tons

Bending capacity ..................... 10' x 12 gauge

                 ..................... 5' x 1/4"

Distance between housings ............ 8' 6"

Stroke ............................... 8"

Throat ............................... 7"

Overall die surface .................. 10"

Die space - open ..................... 15"

Closed ............................... 7"

Ram speed: High ...................... 150 ipm

           Medium .................... 71 ipm

           Low ....................... 21 ipm

           Return .................... 136 ipm

Motor ................................ 15 HP

Approximate overall dimensions .. 60 D x 120 W x 116 H

Approximate weight ................... 14,000 lbs.

Machine is equipped with:

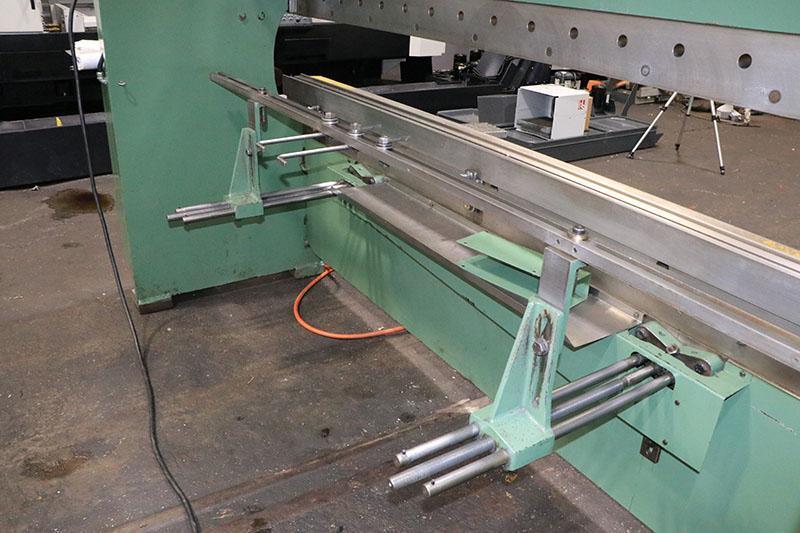

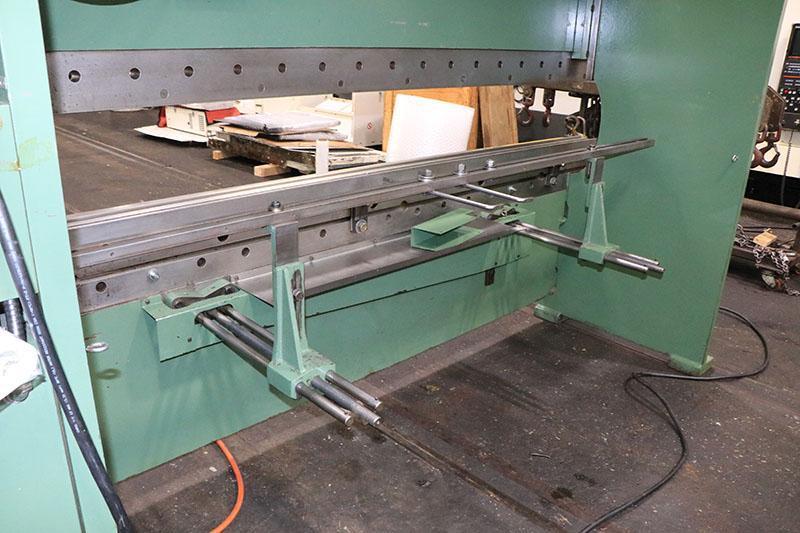

- Manually adjustable back stops

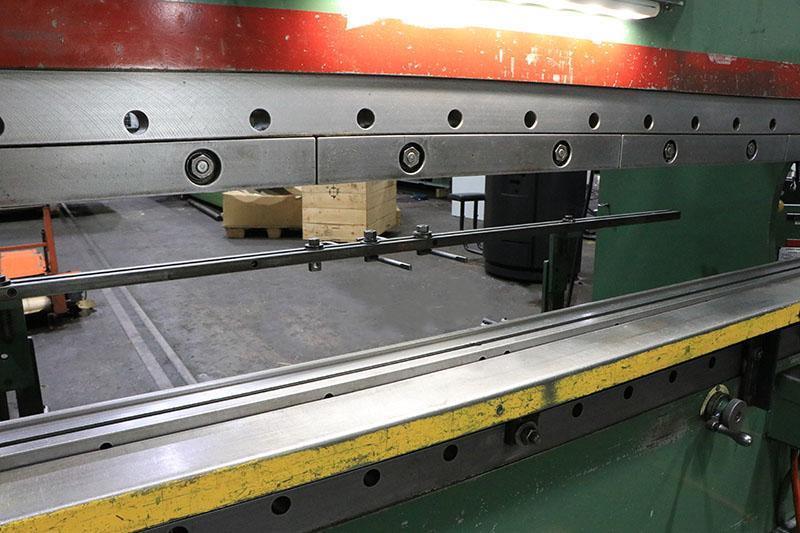

- Lower die rail

- 3-speed (low / medium / high)

- Adjustable tonnage control

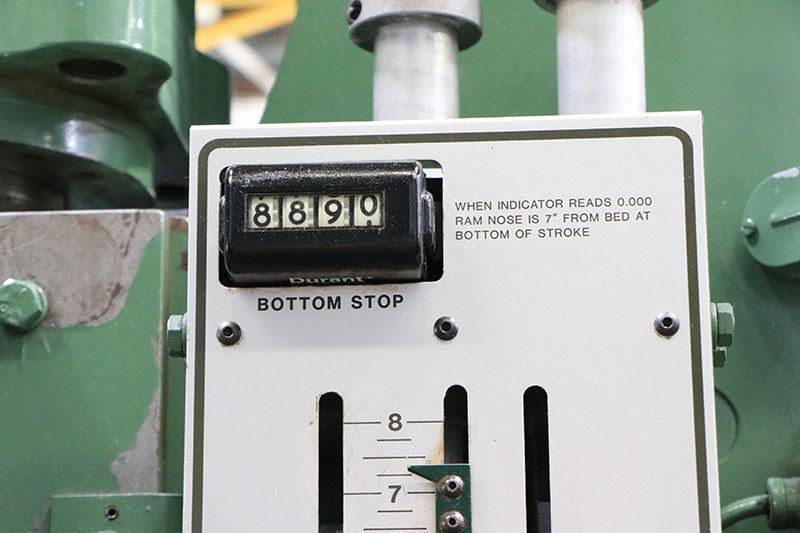

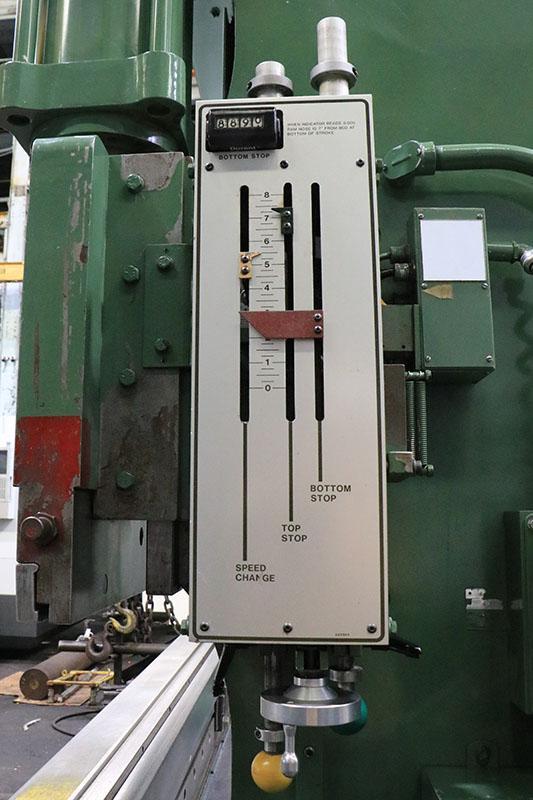

- Adjustable stroke and speed change w/ position indicator

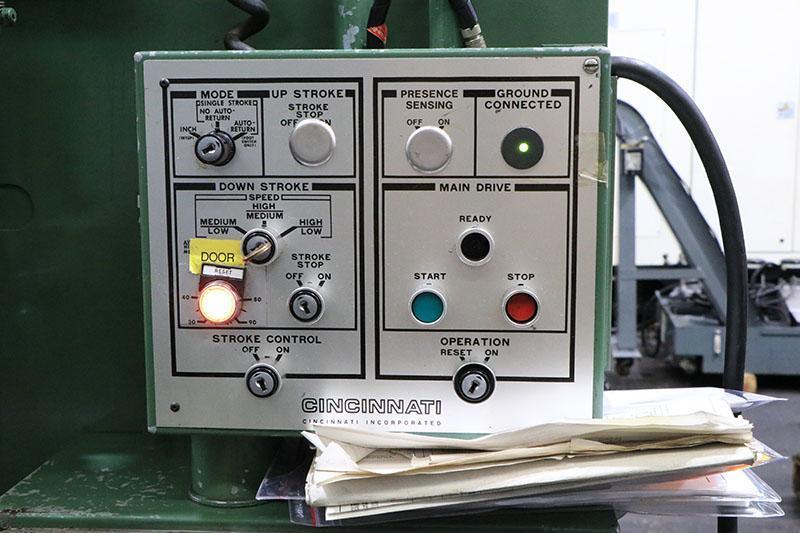

- Single / Inch Modes

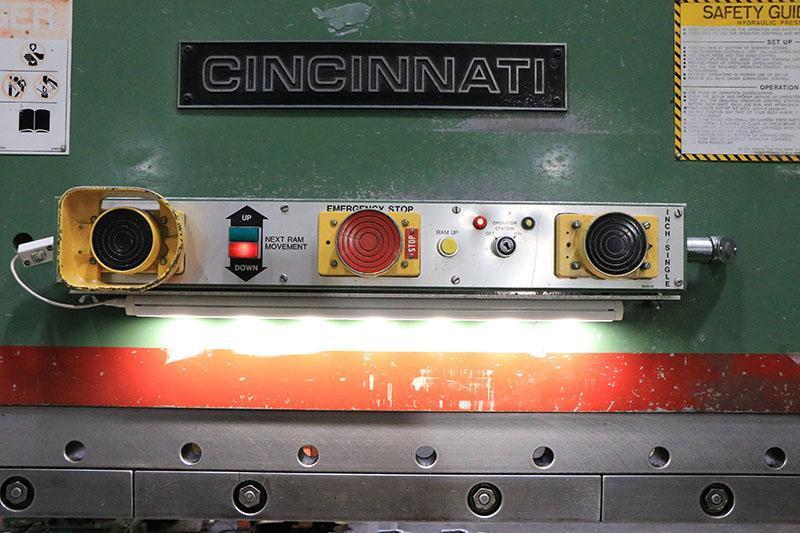

- Palm buttons mounted on machine face with E-Stop

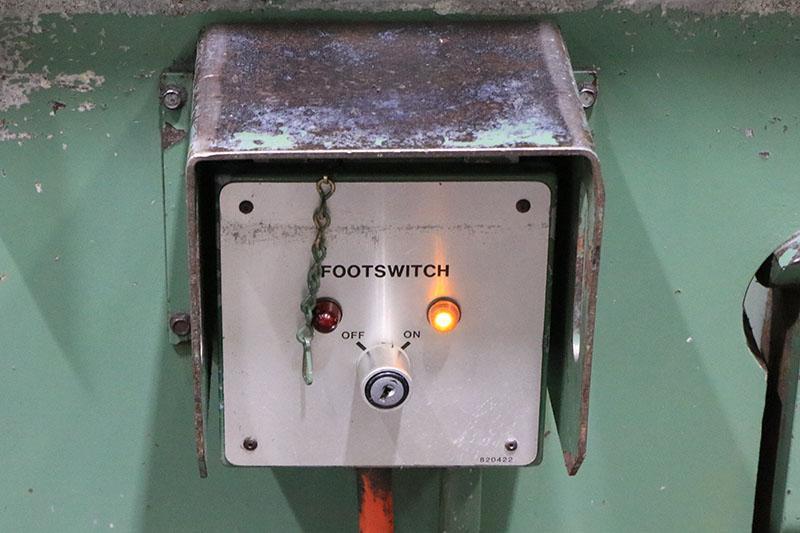

- Remote Foot Pedal

- Manuals
