Equipped With

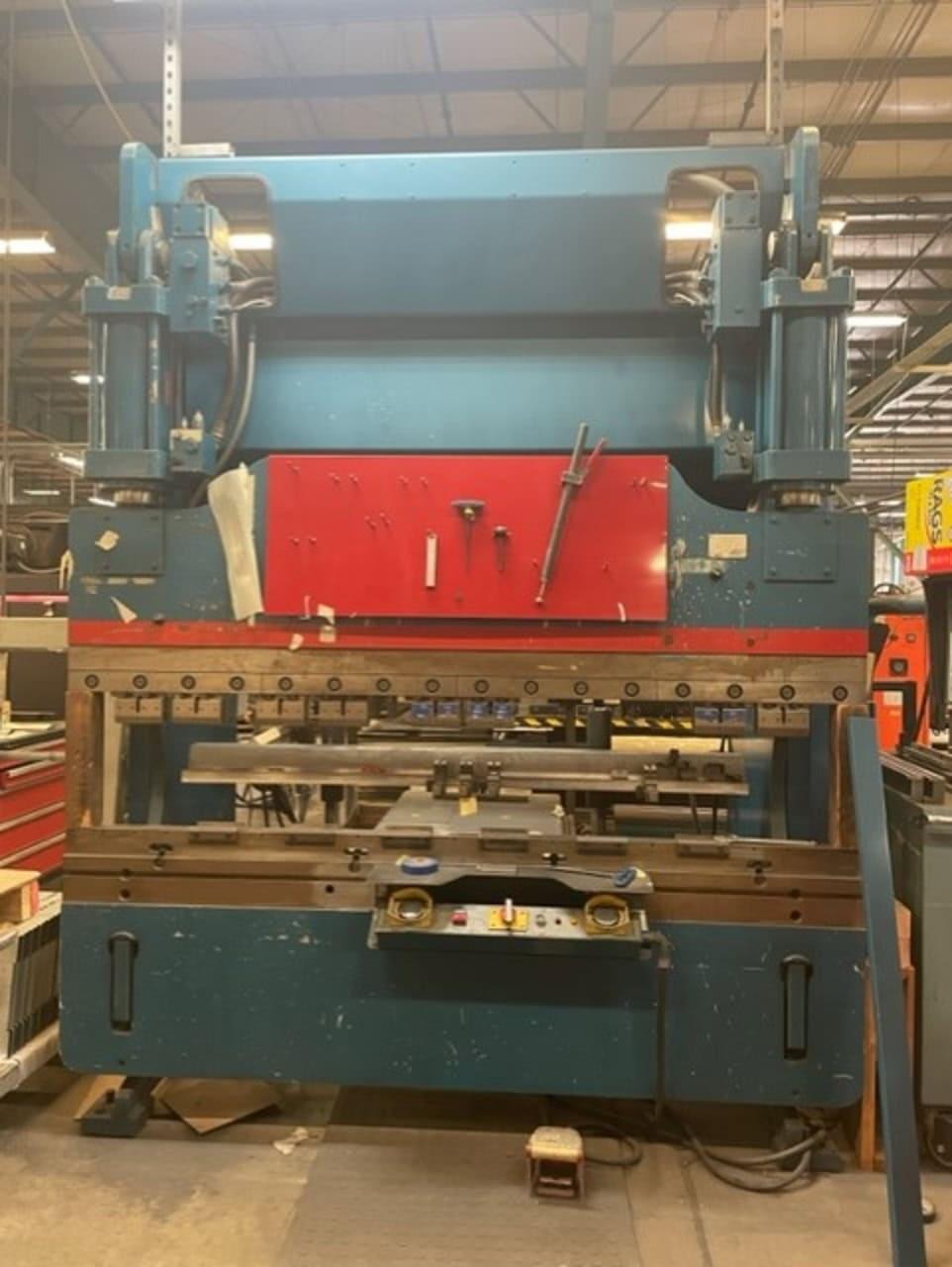

90 TON × 8' CINCINNATI 90CBII-6 HYDRAULIC CNC PRESS BRAKE

New: 1997

Specifications:
Capacity:  90 tons
Overall Length:  8 ft
Distance Between Housings:  6 ft
Stroke:  14 in
Open Daylight:  21 in
Closed Daylight:  7 in

Bending Capacity:
5 ft × 1/4 in
6 ft 8 in × 3/16 in

Ram Speeds:
Approach:  200 IPM
Bending High:  55 IPM
Bending Medium:  20 IPM
Bending Low:  5 IPM
Return:  185 IPM

Backgauge Range:  24 in
Number of Backgauge Axes:  2

Dimensions:  102 in × 60 in × 112 in High
Approximate Weight:  12,000 lbs

Equipped With:

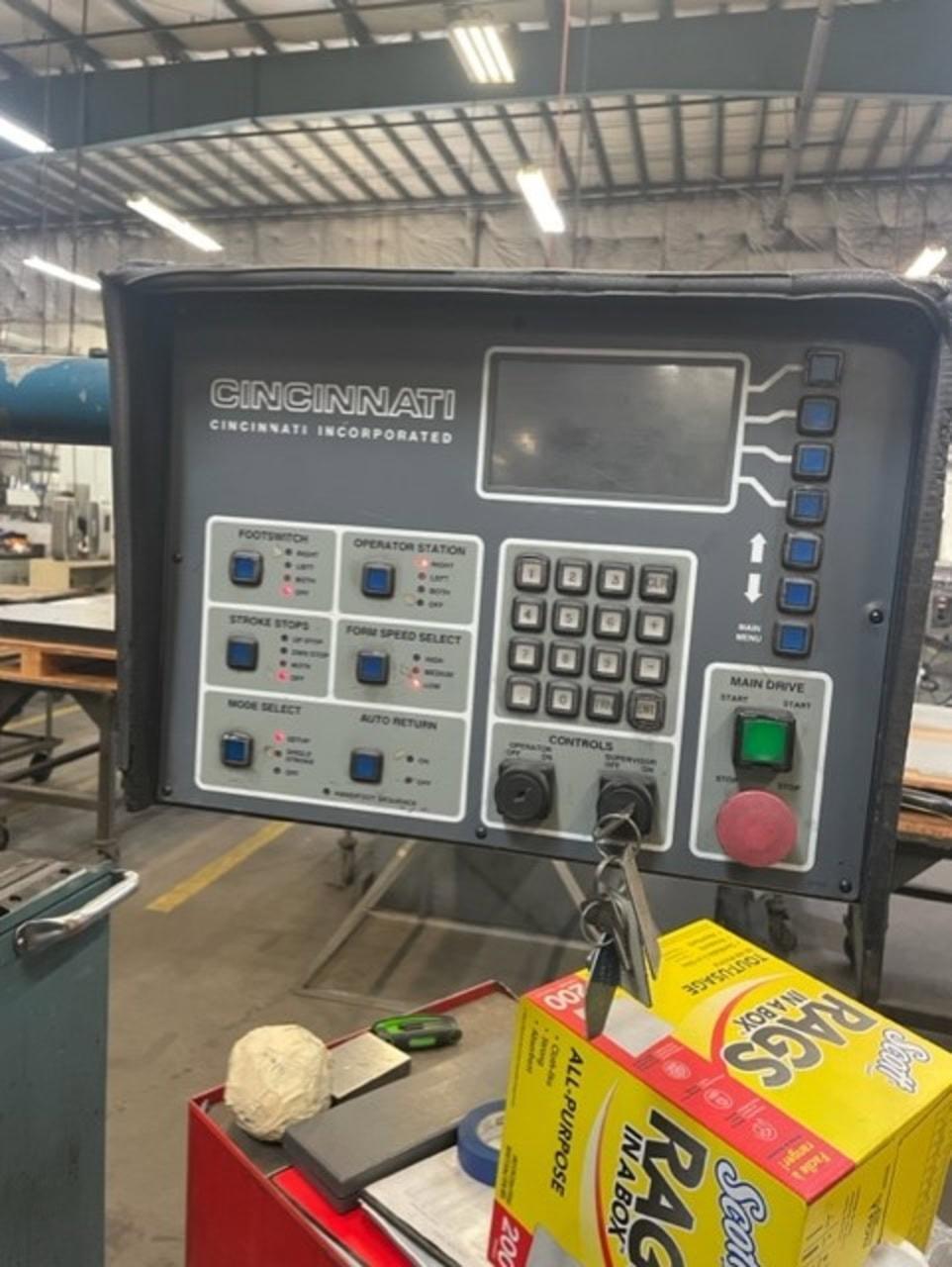

CNC Control
2-Axis Backgauge
