Equipped With

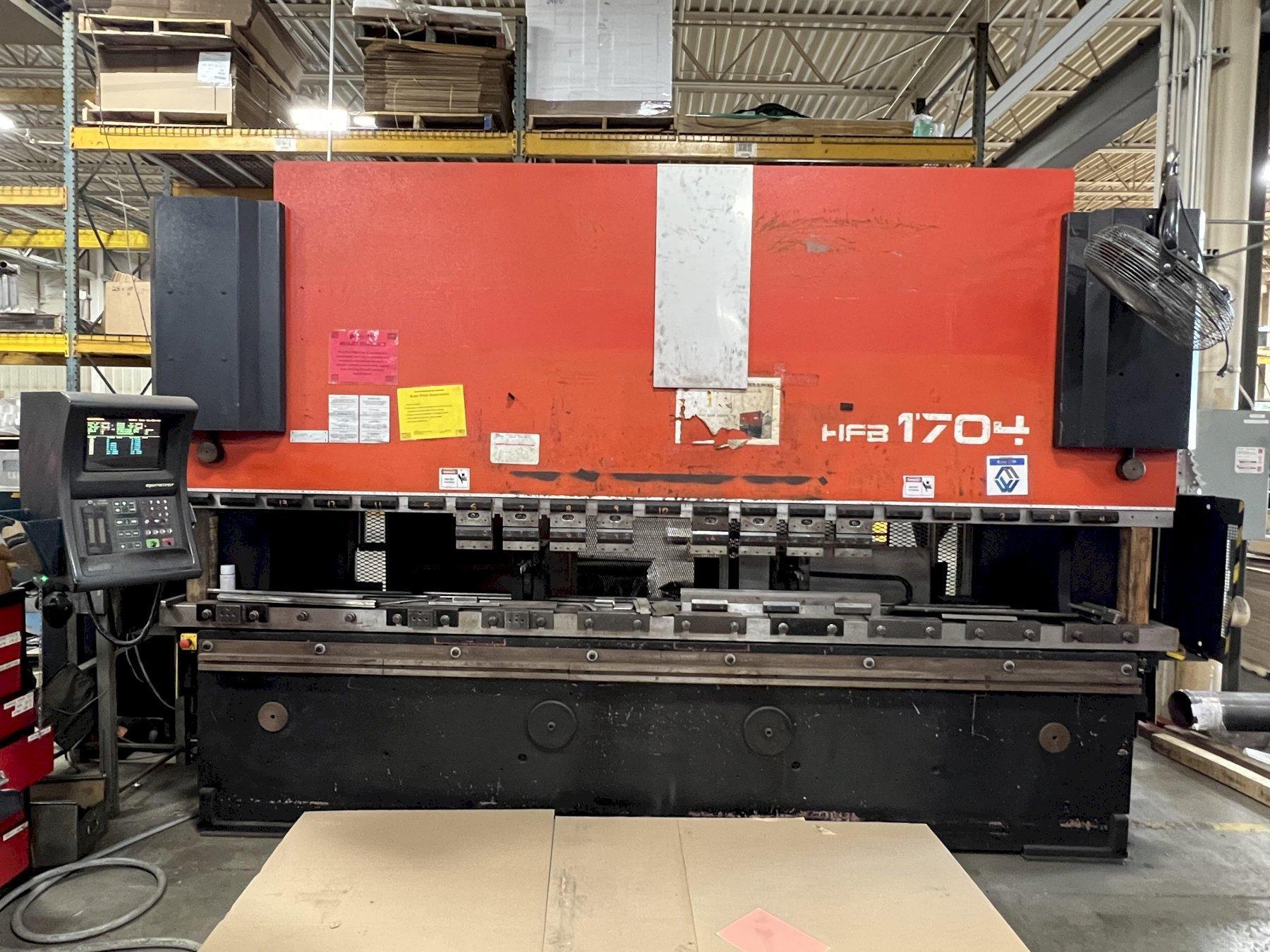

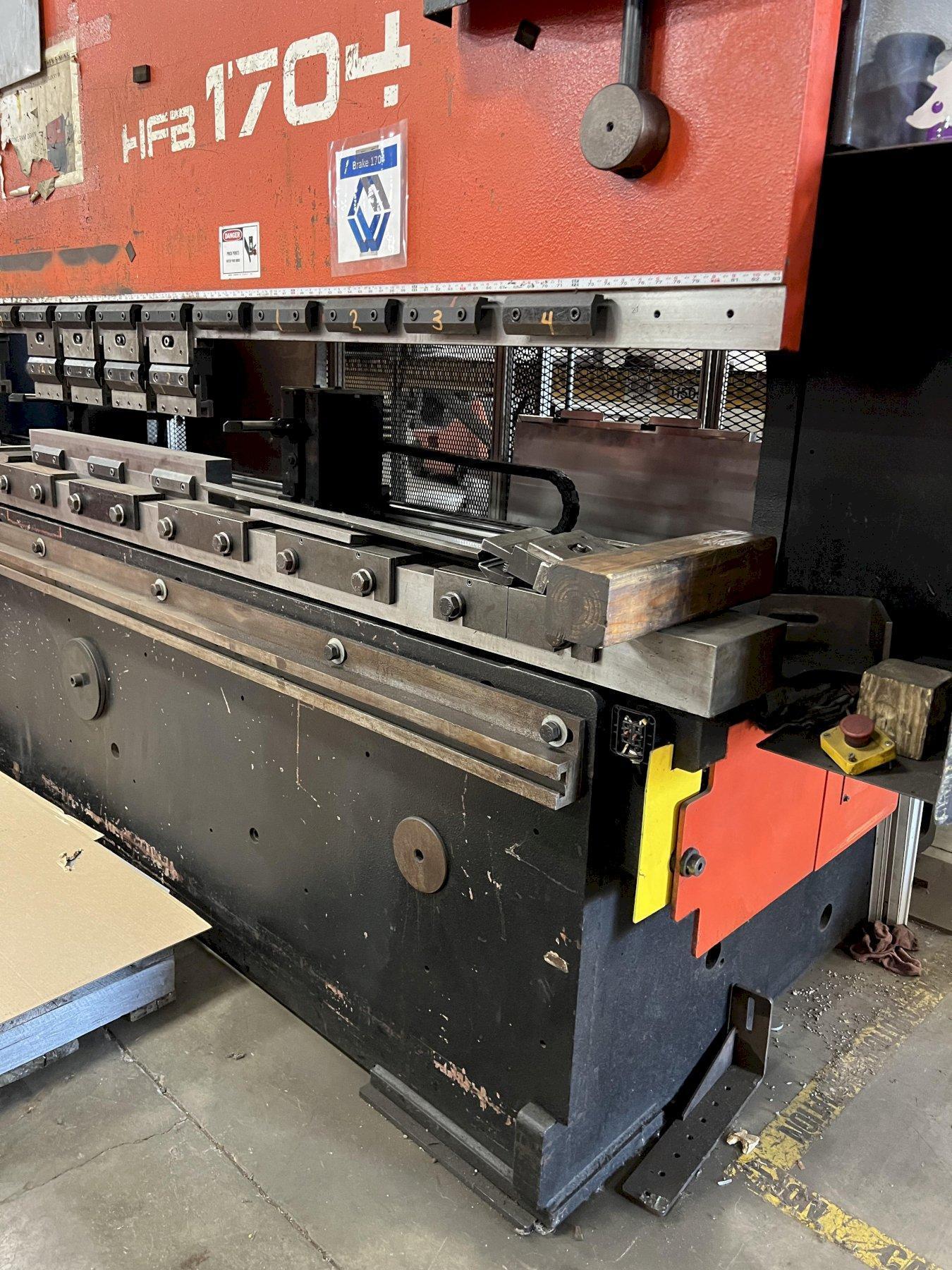

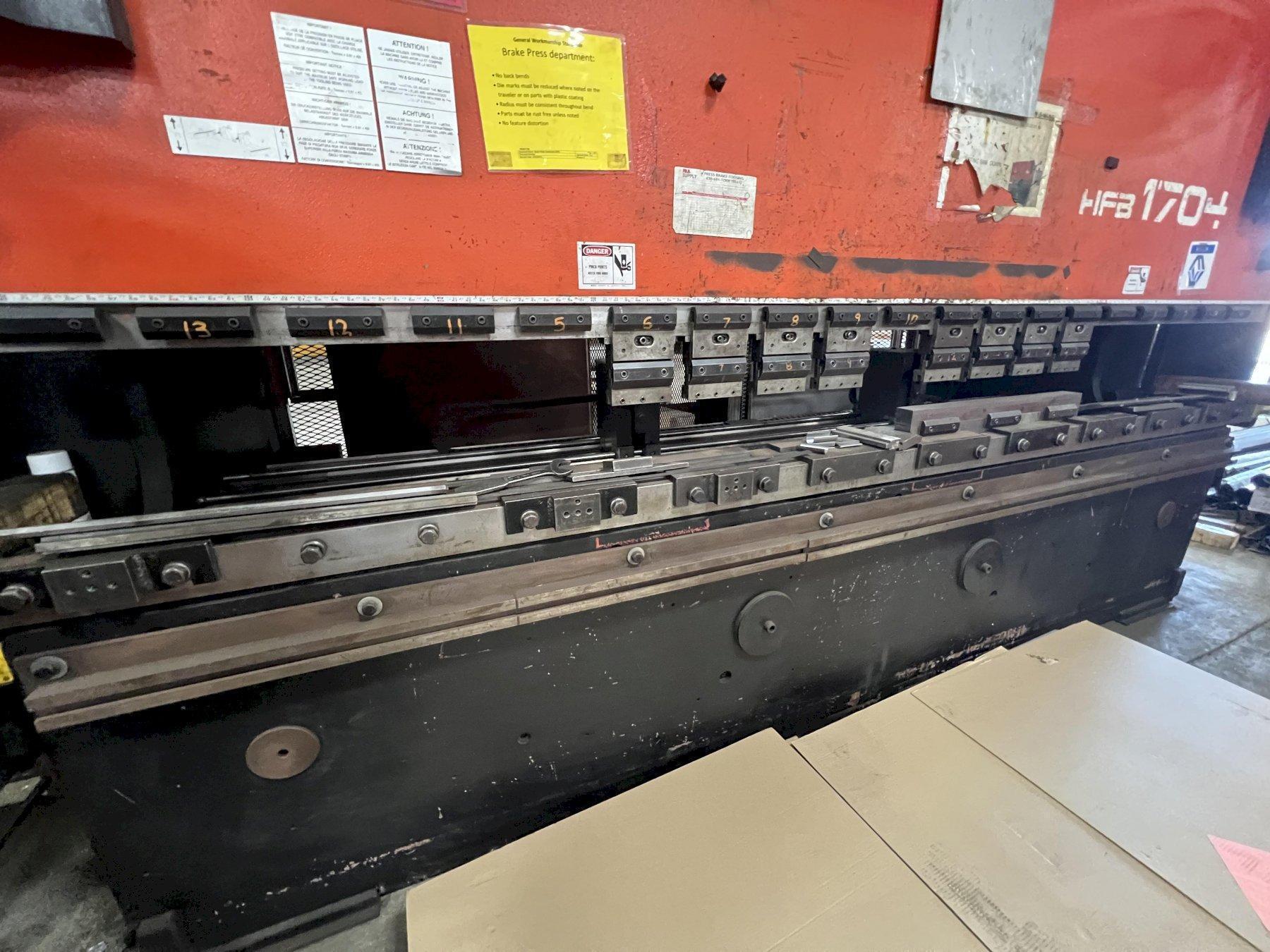

AMADA HFB170-40 HYDRAULIC PRESS BRAKE

New: 1999

Specifications:

Capacity......................... 187 U.S. tons
Bend Length...................... 167" inches
Maximum Stroke Length............ 7.08 inches
Open Height...................... 17.71 inches
Throat Depth..................... 16 inches
Distance Between Housings........ 148 inches
Ram Repeatability................ +/- 0.00004 inches
Table Width...................... 2.36 inches
Approach Speed................... 4 inches per second
Bending Speed.................... 0.04 - 0.32 inches per second, programmable
Return Speed..................... 0.04 - 3.15 inches per second, programmable
Overall Machine Length........... 190 inches
Machine Width.................... 85.8 inches
Machine Height................... 115.7 inches
Hydraulic Oil Capacity...........  gallons
Machine Weight................... 28,600 pounds
Motor HP......................... 15
Current Voltage.................. 460/3/60hz

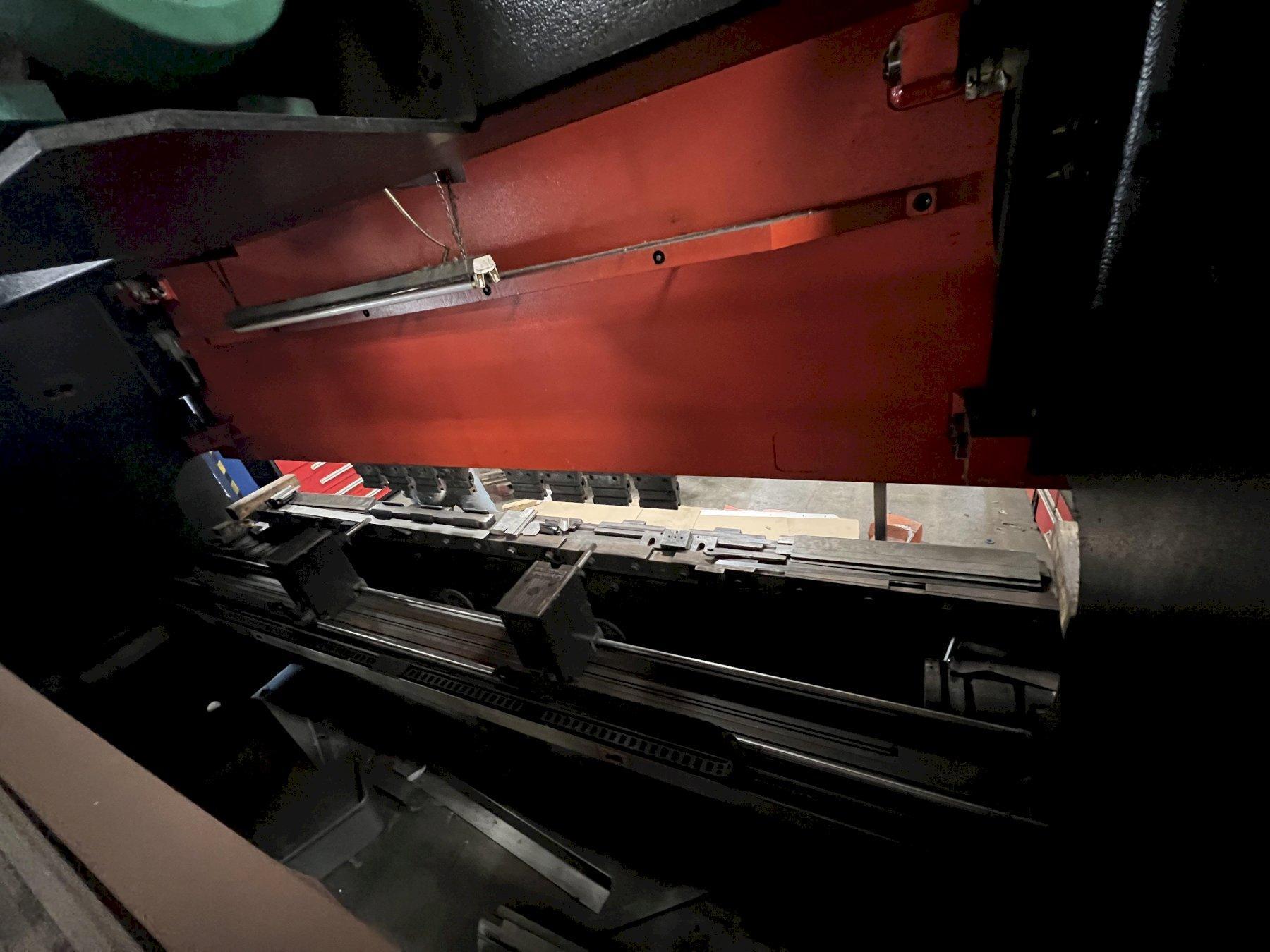

Backgauge
Number of Work Stoppers.......... 2
Repeatability.................... L Axis +/- 0.0004 inches
   Movement Range
X Axis........................... 27.55 inches (cnc control)
R Axis........................... 7.87 inches (manual)
Z Axis........................... 94 inches Feed Speed
X Axis........................... 19.5 inches per second
R Axis........................... 6.2 inches per second
Z Axis........................... 39.3 inches per second
Minimum Command Unit............. 0.0001 inch

CNC Controller
Model............................ Amada OPERATOR 2 Version 4
Axes of Control.................. 8 standard
    Y1,Y2 Ram depth
    X1,X2 Back gauge
    Z1,Z2 Horizontal finger position of two stoppers
    R1,R2 Vertical finger position of two stoppers
Input Method..................... Keyboard, 3.5" diskette and RS232
Display.......................... 12" Color VGA
Program Storage.................. 60 in active memory plus 30 on diskette
Bends per Program................ 25
Die Library...................... 70 dies
Punch Library.................... 30 punches, 10 spacers, 10 holders
