Equipped With

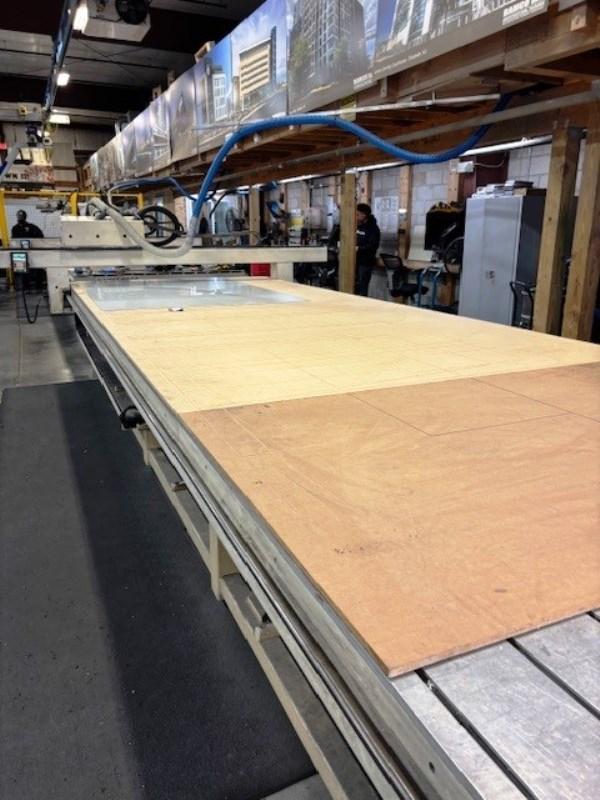

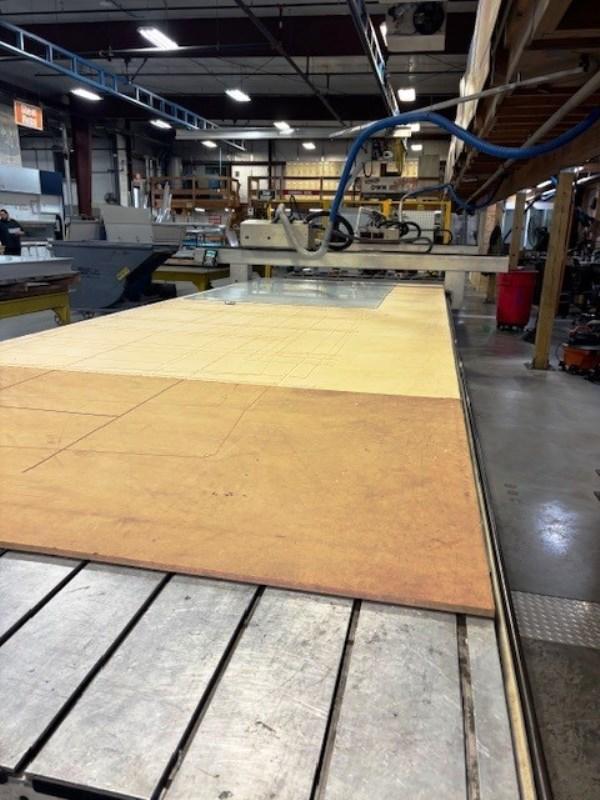

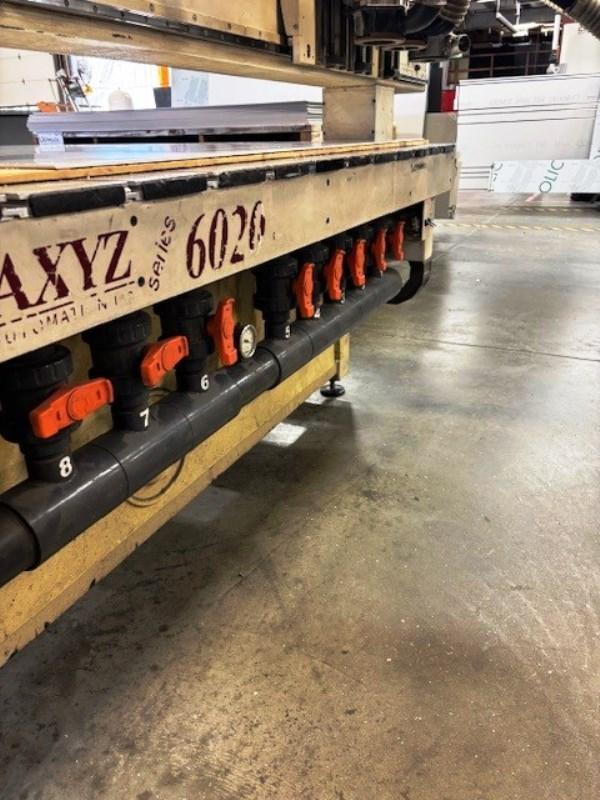

AXYZ SERIES 6020 CNC ROUTER

New 2006

Controls Retrofitted in 2014

SPECIFICATIONS:
Table Width 85"
Table Length 20'
Number of Axis 5
Travels
X - Travel 240"
Y - Travel 85"
Z - Travel 7.5"

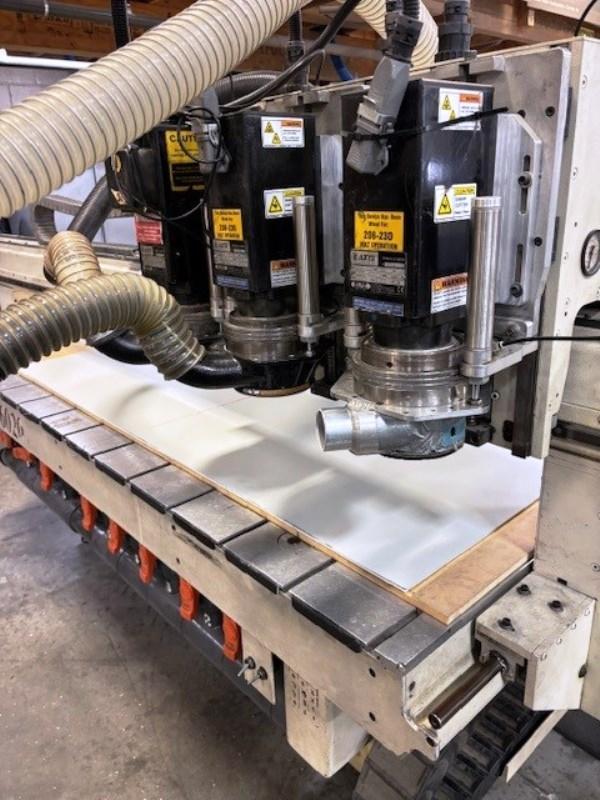

Spindle Speed 24,000 RPM
Gantry Clearance 6"
Gantry Length 138"
Approx. Dimensions 264" L x 92" W x 71" H
Approximate Weight 5500 Lbs.

EQUIPPED WITH:

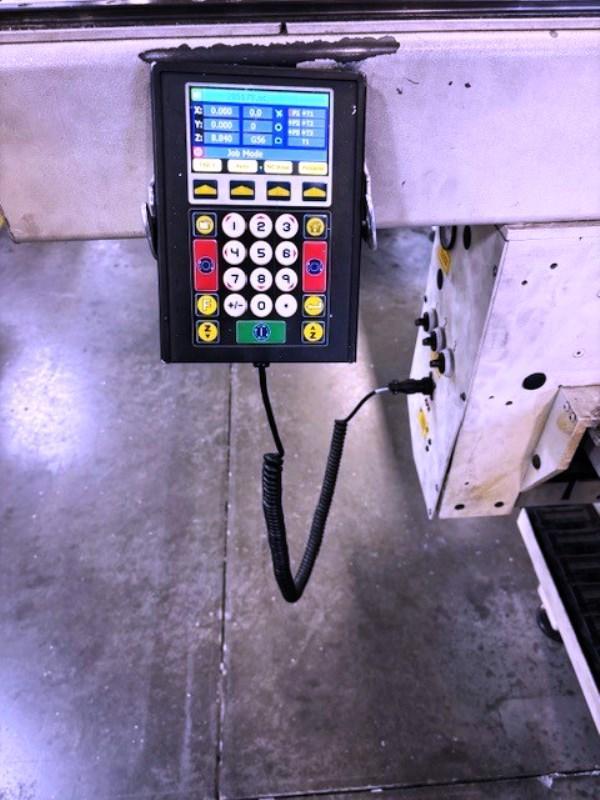

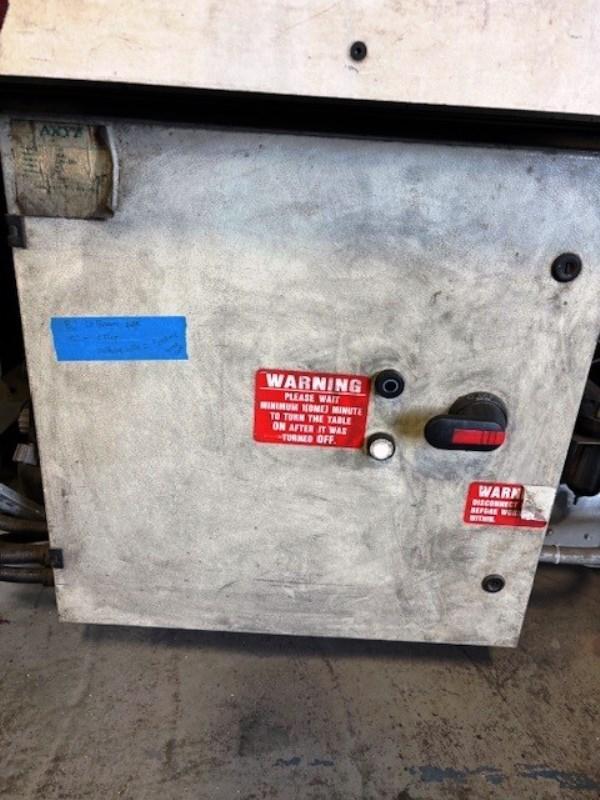

AXYZ Revision 6 CNC Controls
Microsoft CLA # 00039-623-838-555
Stepper Drives

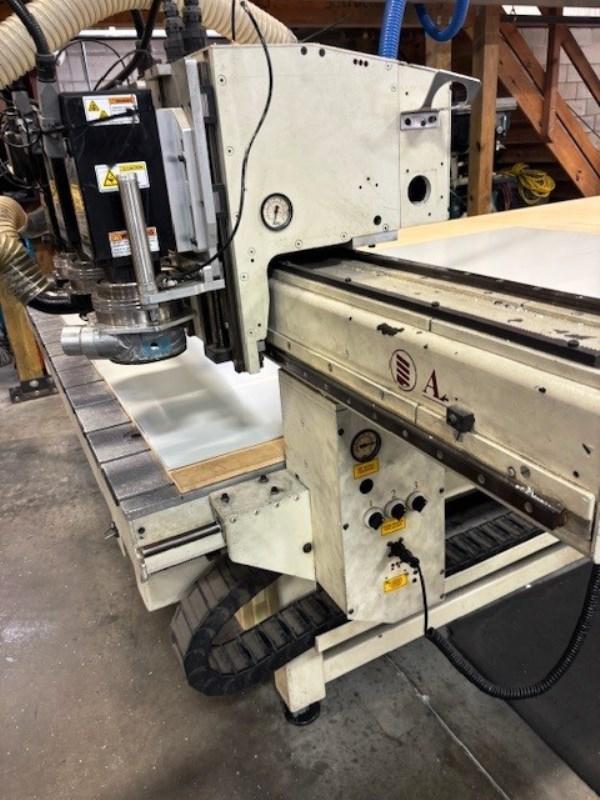

Right Pressure Foot x 2w/ Nose Riders
Left Pressure Foot w/Nose Rider
Pop-up Pins x 3
Smouse Surface Tooltip Sensor

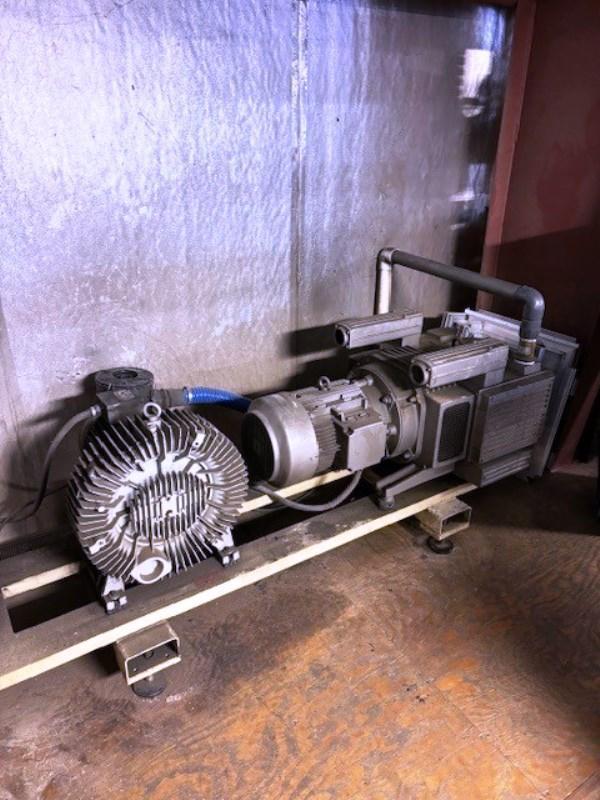

10 HP Becker Dry Vane Vacuum Pump

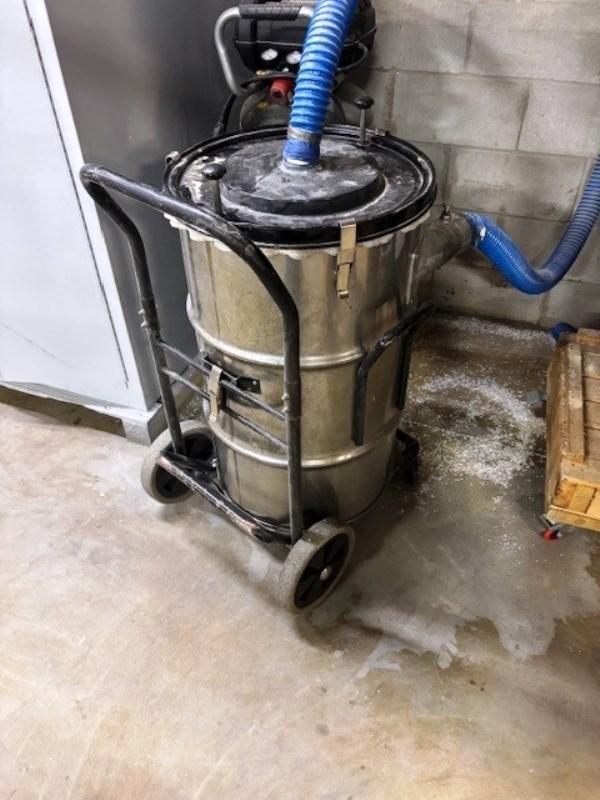

ACM Dust system
