Equipped With

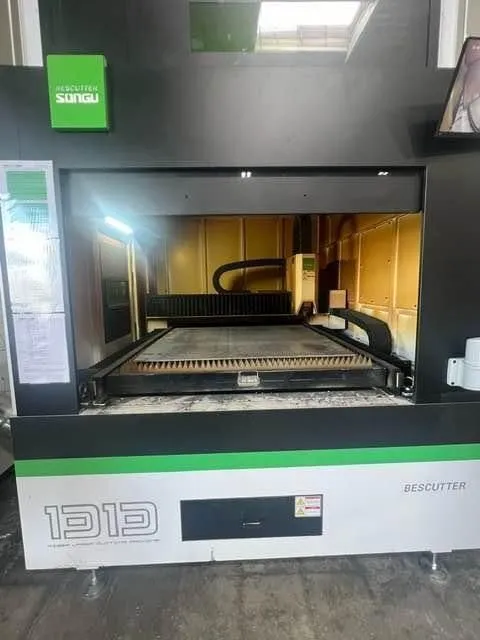

BESCUTTER SMART CUBE 4X4 1313A – 3000 WATT FIBER LASER

New: 2021 (Under 100 HOURS)

Specifications:

Working size:          51" W x 51" L (1,300 mm x 1,300 mm)
X-axis travel:          51" (1,300 mm)
Y-axis travel:          51" (1,300 mm)
Z-axis travel:          4" (100 mm)

Laser power:          3000 watt IPG
X/Y-axis positioning accuracy:  0.05 mm/m
X/Y-axis repeat positioning accuracy: 0.02 mm
Lubrication system:       Automatic lubrication (reminder available)
Max speed:           55"/s (84 m/min)

Machine weight:        5,500 lbs (2,500 kg)
Dimensions (L x W x H):     85" x 91" x 83" (2,150 mm x 2,300 mm x 2,120 mm)

Laser resonator:        IPG
Laser head:          RayTools
Control system:        CYPCUT BCS 100
Servo motors:         Y: 2 × 1,500W X: 1 × 1,000W Z: 1 × 400W

Equipped with:
Dust collector

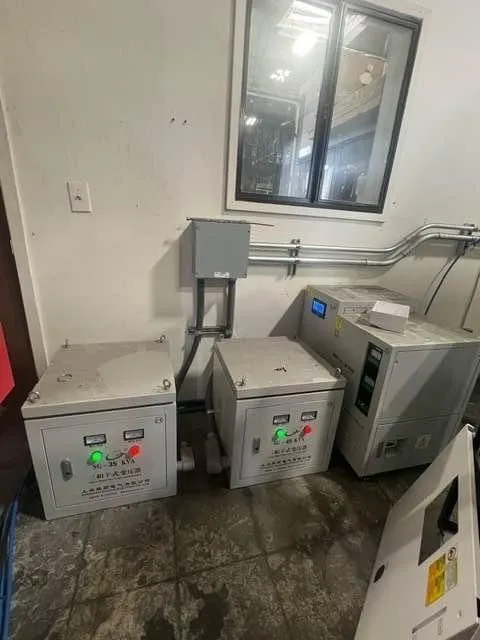

Transformers
