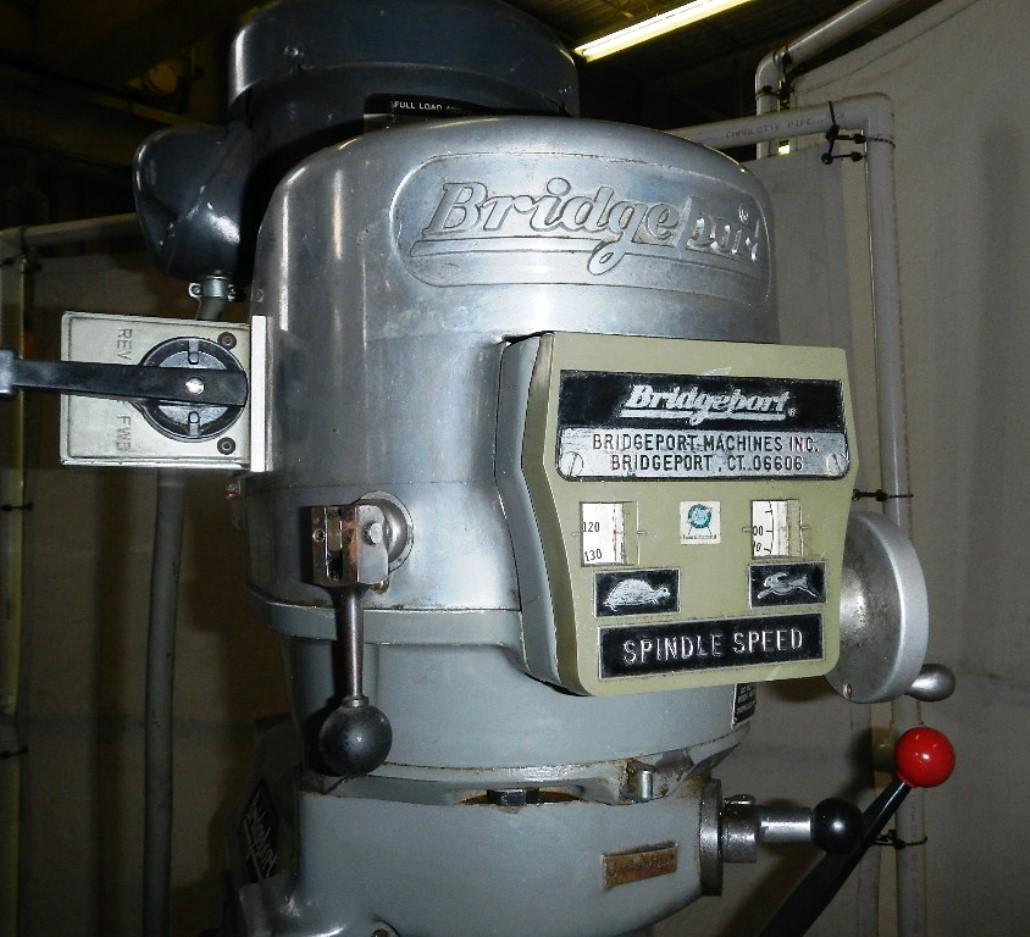

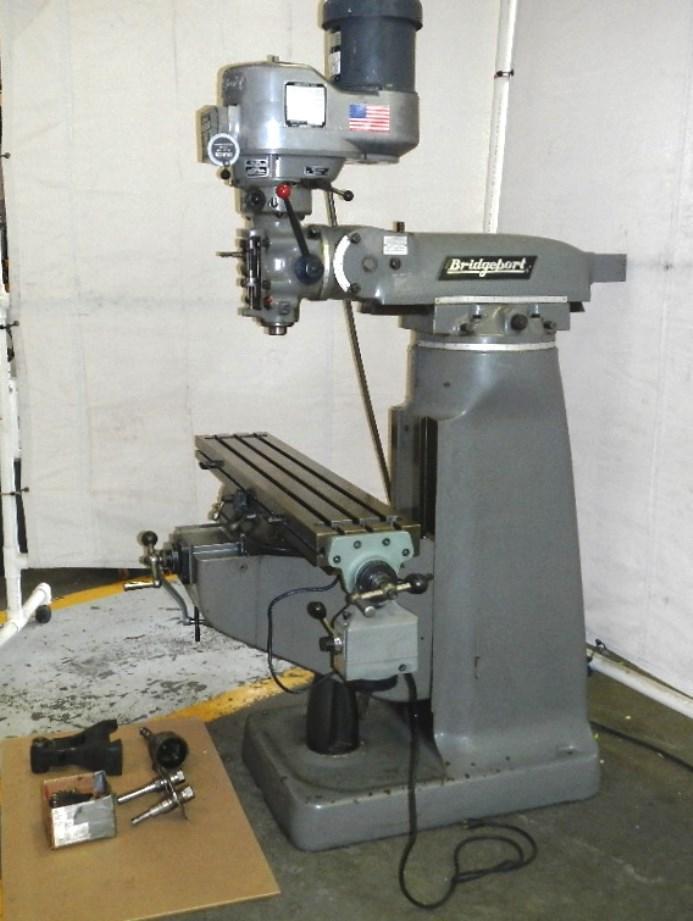

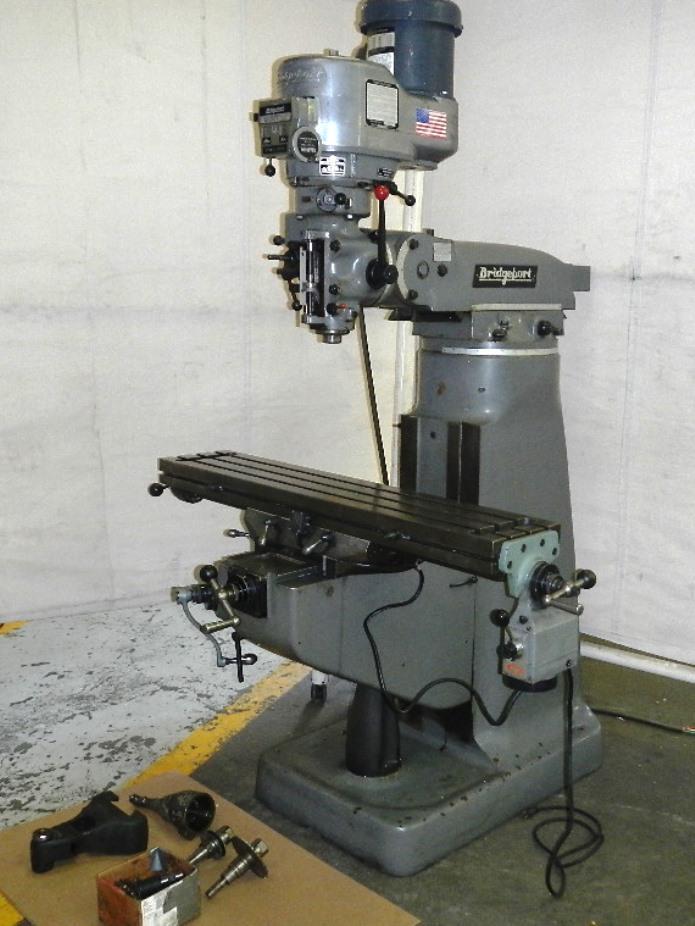

BRIDGEPORT SERIES 1 VERTICAL MILL
2-Axis Servo Type 140 X-Axis Power Feed
Power Draw Bar
Servo 150 Power Feed (X-axis)

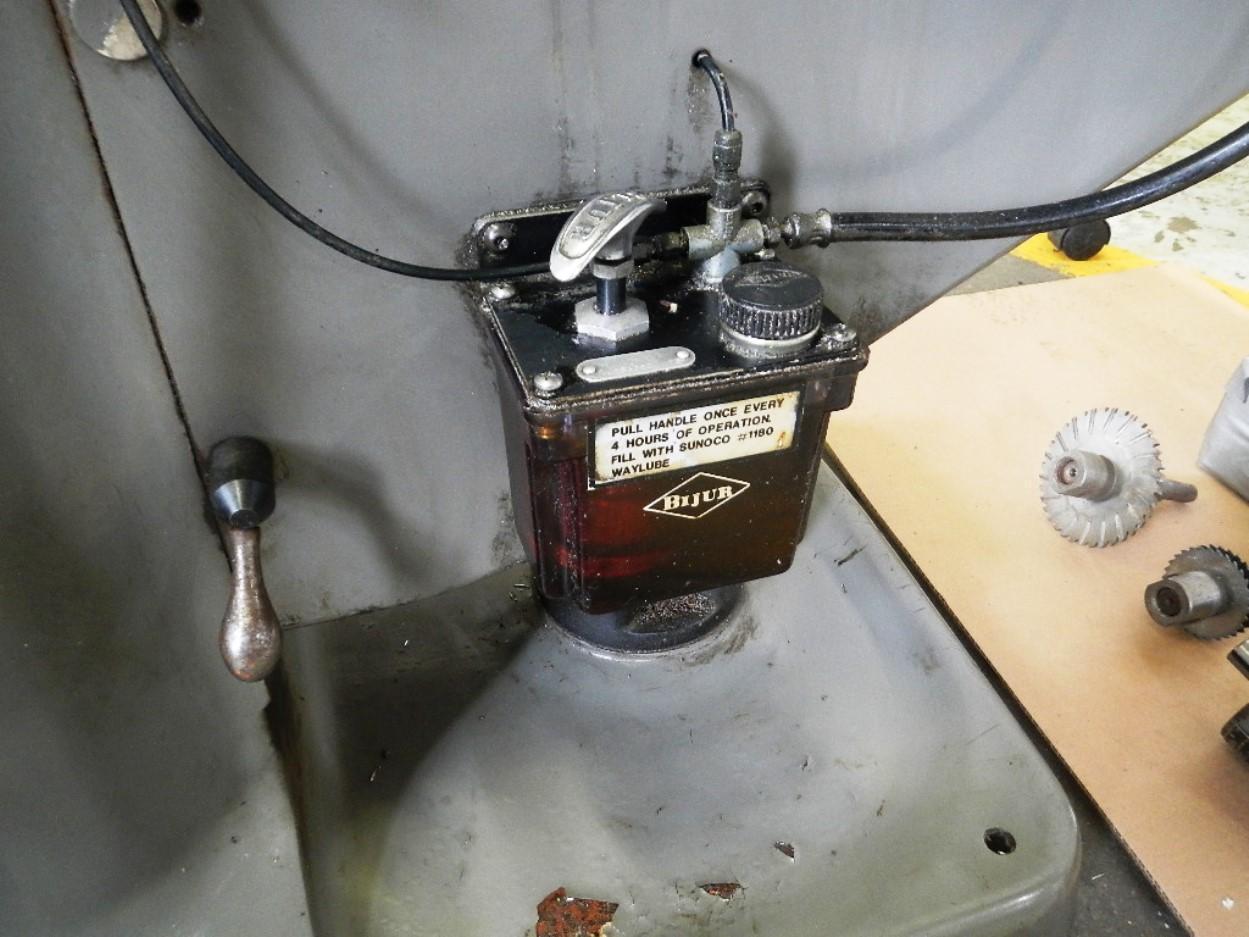

Bijur Automatic Lube
Adjustable Table Travel Stop
Type JA universal 50% speed increasing compound spindle attachment

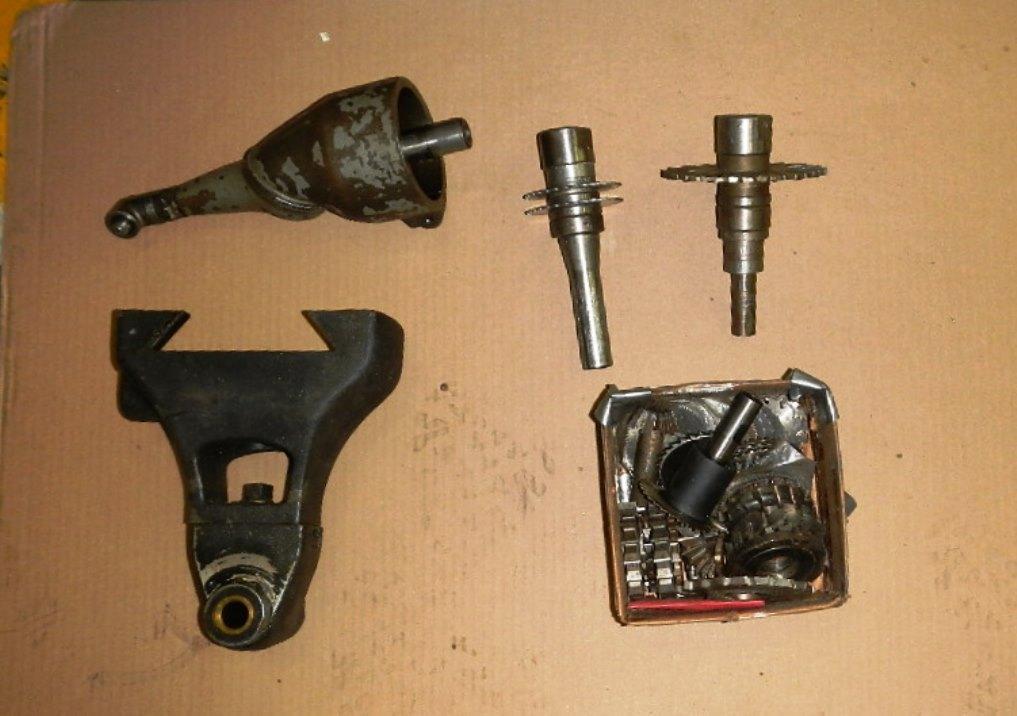

Dovetail mounted arbor support with miscellaneous arbors and cutter
Table working surface 9 x 48
Table travel (longitudinal X) 36
Saddle travel (Y) 12
Quill travel 5
Knee travel 16
Ram travel 12
Throat distance 6 3/4 - 18 3/4"
Spindle speeds 60 - 4,200 rpm
Power down feed to head (3) .0015 , .003 , .006
Collet capacity 3/4
Spindle taper R-8
Max workpiece weight 750 lbs.
Electrics 2 HP/220-440/3/60
Approximate overall dimensions 66 W x 63 D x 83 H
Approximate weight 2,000 lbs.
There are no files attached to this listing currently. If you Have any further questions regarding this listing, please contact us for more information.
