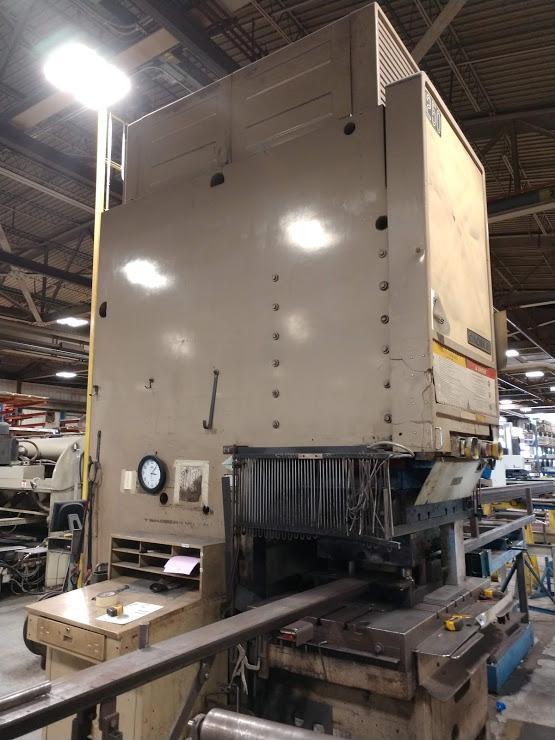

CINCINNATI 250 TON OBS PRESS
Year
1990
Stock #
16468
Condition
Used
Keep Scrolling To Learn More
Specifications
Equipped With
CINCINNATI 250 TON OBS PRESS
New 1990
Motor Driven with 40 HP, 3-Phase, 60 Cycle, AC Motor & Controls

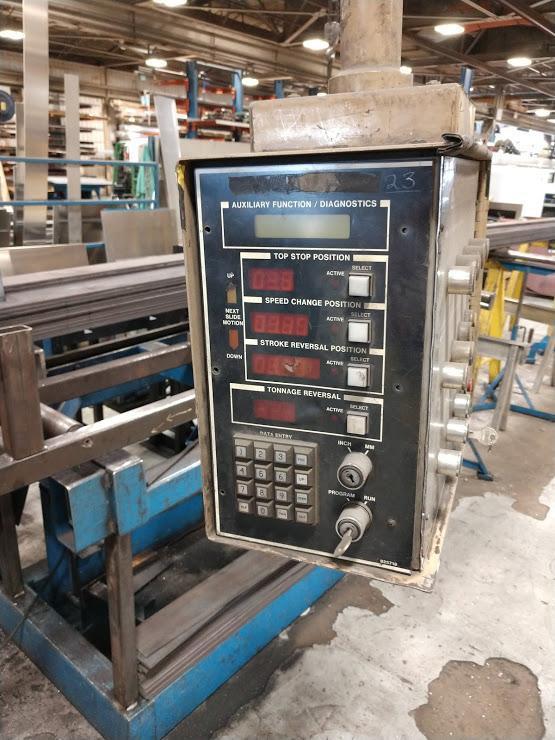

EQUIPPED WITH: Cincinnati CNC Microprocessor Controller, 36" x 60" x " 6.5" T-Slotted Bolster, 38" x 30" x 4.25" T-Slotted Slide Bolster, Dual Palm Buttons
SPECIFICATIONS:
Tonnage: 250
Stroke: 12"
Open Die Height (Over Bolster): 30"
Closed Die Height: 18"
Bed Area: 60" L-R x 36" F-B
Ram Area: 38" L-R x 30" F-B
Depth of Throat: 21.5"
Opening Through Back: 39"
Distance Bed to Floor: 40"
Speeds:
444 - IPM High
444 - IPM High
206 - IPM Low Return
83 - IPM Medium
492 - IPM High Return
49 - IPM Low
Bolster Size 60" x 36" x 6.5"
Slide Bolster Size 38" x 30" x 4.25"
Approximate Dimensions 14' High
Approximate Weight 68,000 Lbs.
Bolster Size 60" x 36" x 6.5"
Slide Bolster Size 38" x 30" x 4.25"
Approximate Dimensions 14' High
Approximate Weight 68,000 Lbs.
