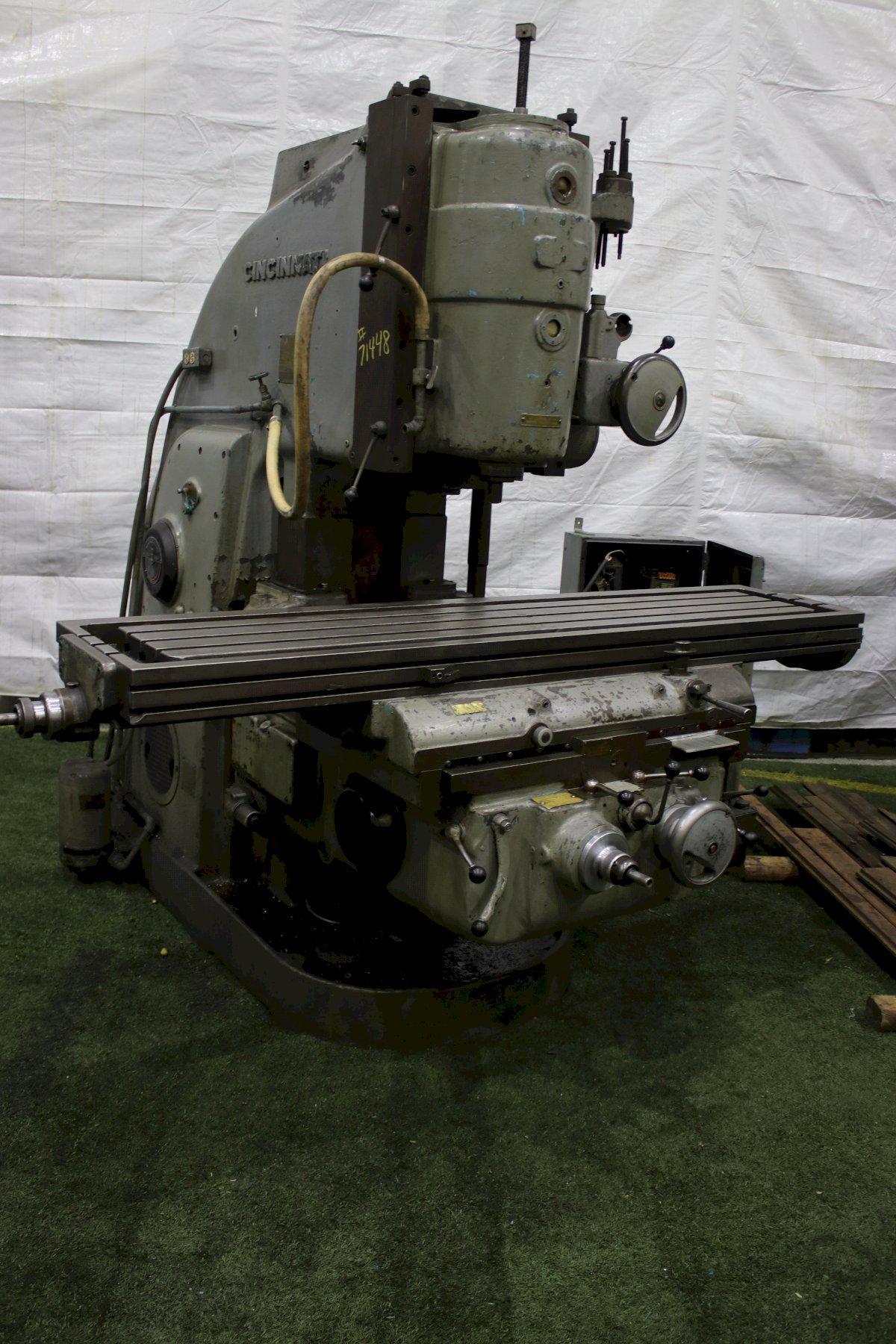

CINCINNATI #4 VERTICAL MILL

MODEL ......................... #4
AREA OF TABLE ................. 18" X 80"
SPINDLE SPEEDS ................ 16 TO 1600 RPM
LONGITUDINAL AND CROSS FEEDS .. 32 TO 90 IPM
VERTICAL KNEE FEEDS ........... 3/32 TO 30 IPM
VERTICAL HEAD FEEDS ........... 3/16 TO 45 IPM
LONGITUDIANL TRAVEL ........... 42"
CROSS TRAVEL .................. 16"
VERTICAL KNEE TRAVEL .......... 16"
VERTICAL HEAD TRAVEL .......... 7"
TAPER IN SPINDLE .............. 50 NS
MAIM MOTOR .................... 20 HORSEPOWER
