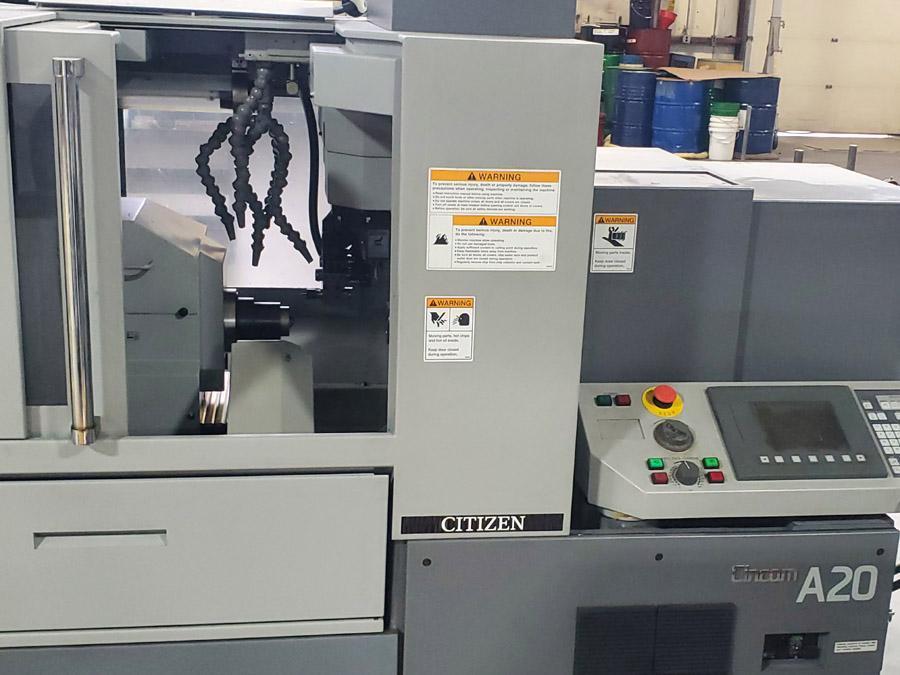

CITIZEN MODEL A20 VIPL SWISS TYPE CNC LATHE
Year
2008
Stock #
19915
Condition
Not specified
Keep Scrolling To Learn More
Specifications
Equipped With
CITIZEN MODEL A20 VIPL SWISS TYPE CNC LATHE
New 2008
Equipped With (Subject to Buyer Verification):

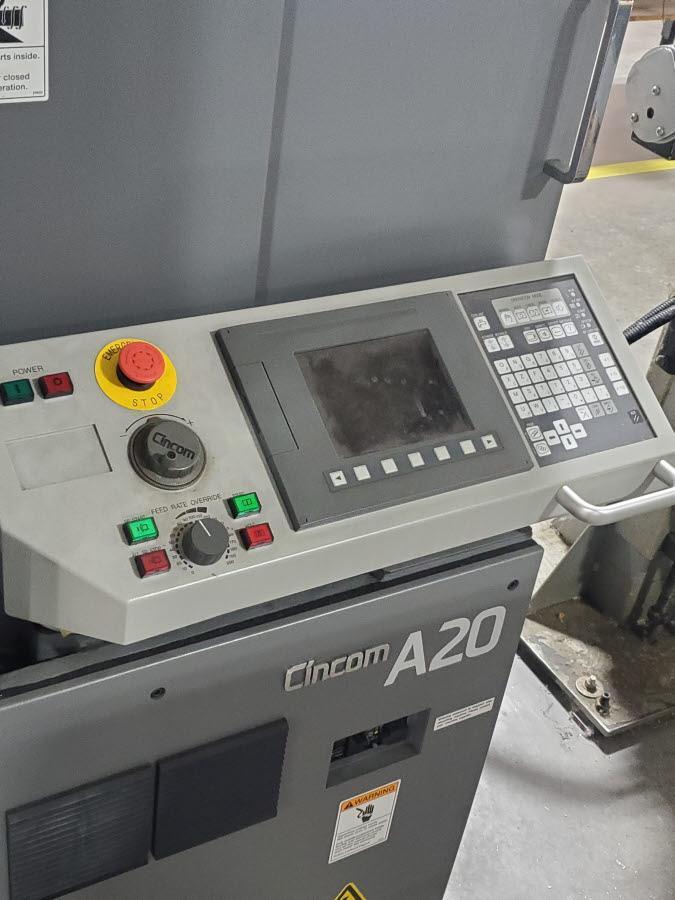

CNC control
Control Features:
1-Spindle Speed on A Single Line
3-M Codes on A single Line
Background Editing
Canned Cycle for Thr4eading, Main Side
Chamfer/Corner Rounding (I and II)
Constant Surface Speed, Main & Back
Continuous Thread Cutting
Minimum Increment (.001mm or .0001 Inch)
Multiple Repetitive Cycle
Number of Offsets (40)
Part Program Storage (80 Meters)
Program Check Function (Funs forward with Pulse Handle)
Program Editing Support (M&G Code List, Calculation Function)
Single Point Threading (Front & Back)
Spindle Speed Fluctuation Detection (Main & Back)
Superimposed & Simultaneous Control
Cutoff Tool Breakage Detector
Tool Nose Radius Compensation
User Macro
Rigid Tapping Function
Spindle Sync.
Canned Drilling Cycles
Tool Life I and II
(B” Codes
Multiple Thread Cutting
Variable Lead Threading
Direct Drawing Input
Part Program Storage Area (120m Tape Storage)
Machine:
Main Spindle Indexing (1 Deg)
Main Spindole Full “C” Axisw (.001 “)
Back Spindle Indexing (1 Deg.)
Back Spindle Full “C” Axis (.001”)
Workpiece Separator (Chute)
Back Spindle Air Blow Unit
Kncokout
Automatic Power Off
Parameter List
Back Spindle Long Workpiece Adaptor
Coolant Oil Flow Detector
Cut-off Breakage Detector
Middex Tool Monitoring System
Chip Conveyor

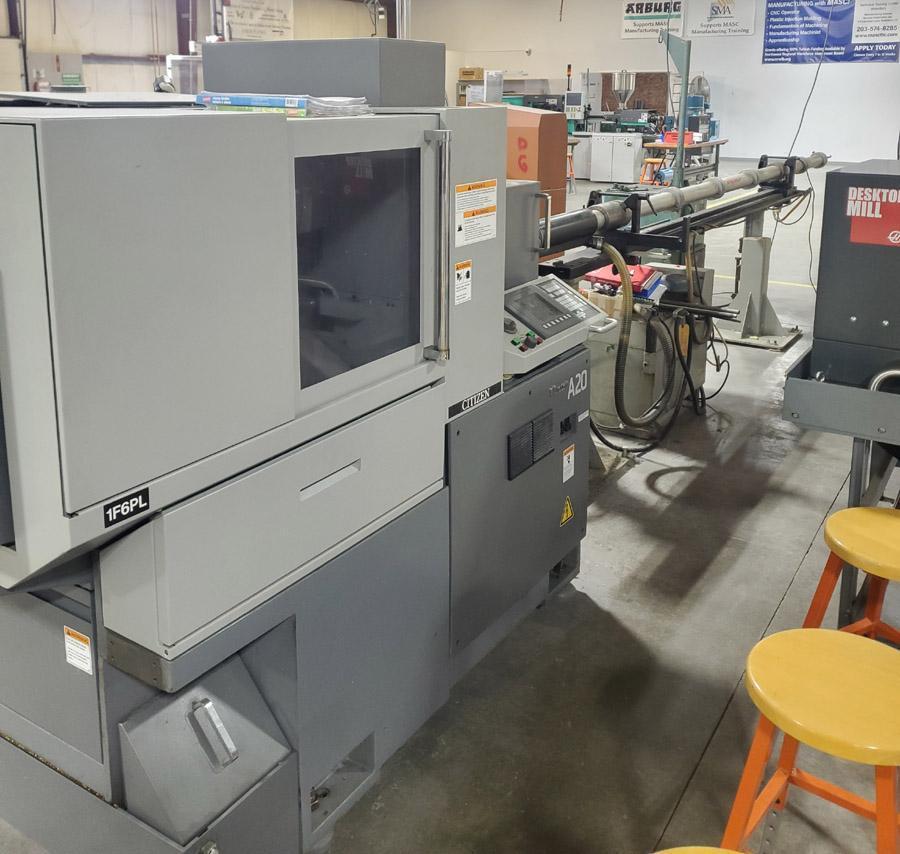

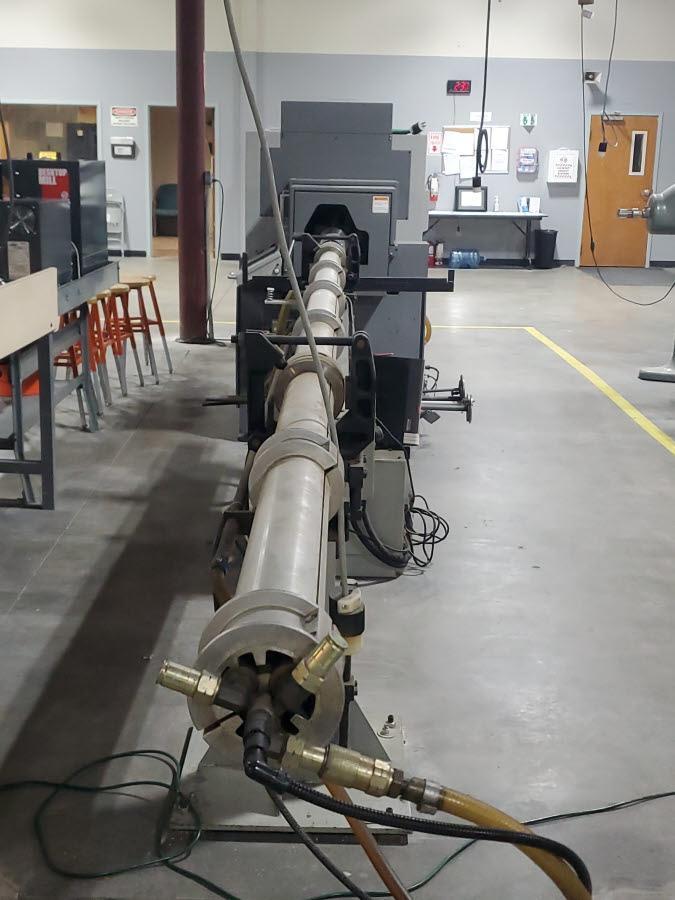

LNS 3.20 HS-4.8 Barfeed
SPECIFICATIONS
Main Spindle: Bar Stock Max .812” (Spindle Sleeve ID is .840”)
Sub Spindle: .790 max (Spindle Sleeve ID is .800)
Rotary: 1.25” Max Saw
maximum turning diameter (main spindle): 20 mm (.787”)
maximum turning length: 165 mm (6.49”)
maximum turning diameter (sub-spindle): 20 mm (.787”)
maximum capture length: 80 mm (3.14”)
bar diameter range: 2-20 mm (.078 - .787”)
rapid traverse in X1 axis: 708 IPM
rapid traverse in Y1, Z1, X2, Z2 axes: 1259 IPM
C-axis indexing (main spindle): every 0.001°
C-axis indexing (sub-spindle spindle): every 0.001°
maximum rotational speed (main spindle): 8000 rpm
maximum rotational speed (sub-spindle spindle): 8000 rpm
maximum drive power (main spindle): 3.7 HP
maximum drive power (sub-spindle): 1.5 HP
Number of Tools: 18
Turing: 7 (Tool #4 is 5/8”)
Cross Drilling / Milling: 3
Front Work: 4
maximum rotational speed of driven tools: 6000 rpm
driven tools drive power: .75 HP
Dimensions (D x W x H): 42” x 83” x 69”
Weight of machine: 5070 lbs
