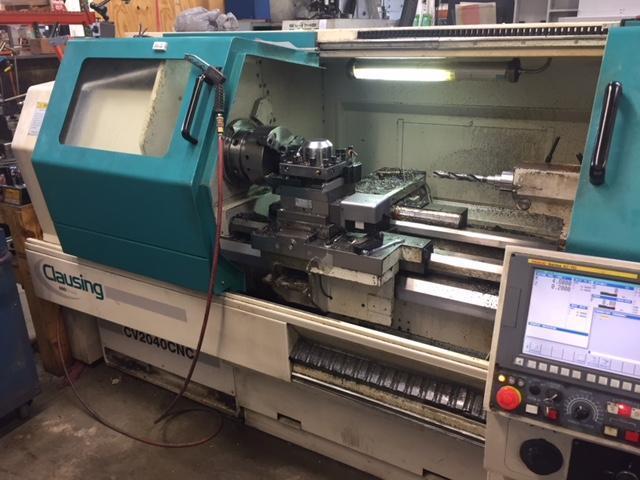

CLAUSING MODEL CV 2040 CNC FLAT BED LATHE
Year
2007
Stock #
15308
Condition
Excellent
Keep Scrolling To Learn More
Specifications
Equipped With
CLAUSING MODEL CV 2040 CNC FLAT BED LATHE
NEW 2007
CATALOG SPECIFICATIONS:
MAXIMUM SWING: 20"
MAXIMUM TURNING DIAMETER: 19.5"
MAXIMUM DISTANCE BETWEEN CENTERS: 39"
X-AXIS TRAVEL: 11"
Z-AXIS TRAVEL: 27"
BAR CAPACITY: 3.25"
RAPID TRAVERSE (X & Z): 160 & 320 IPM
SPINDLE SPEEDS-INFINITE (THREE RANGES): 30 - 3000 RPM
MACHINE DIMENSIONS: 100" x 68" x 64" HIGH
MACHINE WEIGHT: 6000 LBS. APPROX.
EQUIPPED WITH:

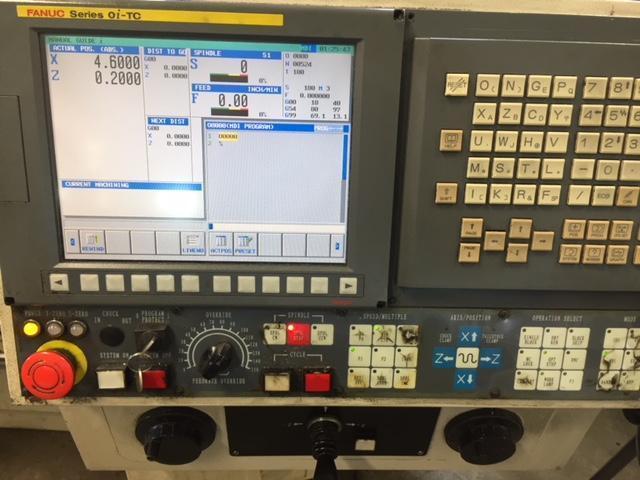

FANUC 0i-TC CONTROL
10" 3 JAW CHUCK
COOLANT TANK AND PUMP
TAILSTOCK
15 HP SPINDLE MOTOR
STEADY REST

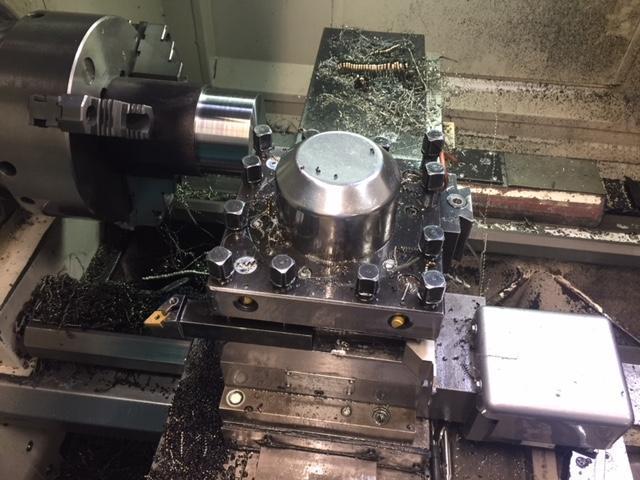

4 WAY CNC TOOL POST
