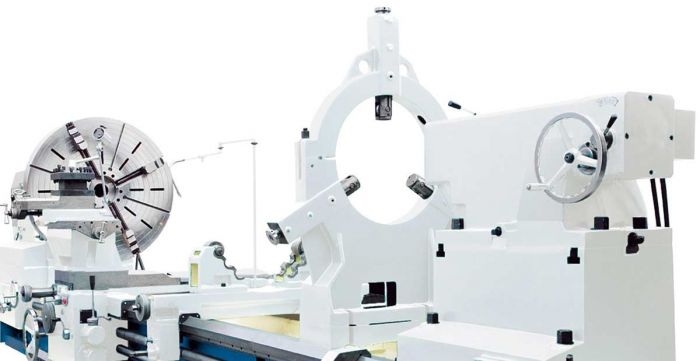

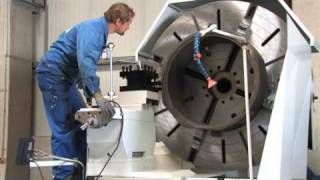

KNUTH MODEL "DL E HEAVY" HEAVY-DUTY ENGINE LATHE

Type

Lathes, Turret

Manufacturer

KNUTH

Model

DL E Heavy

Year

Not provided

Stock #

16317

Condition

New

Request A Quote

Keep Scrolling To Learn More

KNUTH MODEL "DL E HEAVY" HEAVY-DUTY ENGINE LATHE
KNUTH MODEL "DL E HEAVY" HEAVY-DUTY ENGINE LATHE
KNUTH MODEL "DL E HEAVY" HEAVY-DUTY ENGINE LATHE
  • KNUTH MODEL "DL E HEAVY" HEAVY-DUTY ENGINE LATHE
  • KNUTH MODEL "DL E HEAVY" HEAVY-DUTY ENGINE LATHE
  • KNUTH MODEL "DL E HEAVY" HEAVY-DUTY ENGINE LATHE

Specifications

Equipped With

  DL E Heavy 500/3000DL E Heavy 500/5000DL E Heavy 500/8000DL E Heavy 620/3000DL E Heavy 620/5000DL E Heavy 800/3000DL E Heavy 800/5000DL E Heavy 800/8000DL E Heavy 1000/2000DL E Heavy 1000/5000DL E Heavy 1000/8000DL E Heavy 500/1500DL E Heavy 620/1500DL E Heavy 1000/3000DL E Heavy 620/8000
Working Area
Workpiece length (max.)118 in197 in315 in118 in197 in118 in197 in315 in79 in197 in315 in59 in59 in118 in315 in
Turning diameter over bed39 in39 in39 in49 in49 in63 in63 in63 in79 in79 in79 in39 in49 in79 in49 in
Turning-¯ over support26 in26 in26 in35 in35 in50 in50 in50 in63 in63 in63 in26 in35 in63 in35 in
Work piece weight (max.)13,200 lbs13,200 lbs13,200 lbs13,200 lbs13,200 lbs13,200 lbs13,200 lbs13,200 lbs22,000 lbs22,000 lbs22,000 lbs13,200 lbs13,200 lbs22,000 lbs13,200 lbs
Bed width30 in30 in30 in30 in30 in38 in38 in38 in43 in43 in43 in30 in30 in43 in30 in
Travels
Travel X-axis20.1 in20.1 in20.1 in24.8 in24.8 in32.3 in32.3 in32.3 in40.2 in40.2 in40.2 in20.1 in24.8 in40.2 in24.8 in
Travel Z-axis110 in189 in307 in110 in189 in110 in189 in307 in71 in189 in307 in51 in51 in110 in307 in
Travel Z1-axis12 in12 in12 in12 in12 in8 in8 in8 in8 in8 in8 in12 in12 in8 in12 in
Swing range of top slide± 180¡
Headstock
Spindle speeds (right)(21) 3.15 - 315 rpm(21) 3.15 - 315 rpm(21) 3.15 - 315 rpm(21) 3.15 - 315 rpm(21) 3.15 - 315 rpm(21) 2.5 - 250 rpm(21) 2.5 - 250 rpm(21) 2.5 - 250 rpm(21) 2 - 200 rpm(21) 2 - 200 rpm(21) 2 - 200 rpm(21) 3.15 - 315 rpm(21) 3.15 - 315 rpm(21) 2 - 200 rpm(21) 3.15 - 315 rpm
Spindle speeds (left)(12) 3.15 - 315 rpm(12) 3.15 - 315 rpm(12) 3.15 - 315 rpm(12) 3.15 - 315 rpm(12) 3.15 - 315 rpm(12) 3.15 - 250 rpm(12) 3.15 - 250 rpm(12) 3.15 - 250 rpm(12) 2.5 - 200 rpm(12) 2.5 - 200 rpm(12) 2.5 - 200 rpm(12) 3.15 - 315 rpm(12) 3.15 - 315 rpm(12) 2.5 - 200 rpm(12) 3.15 - 315 rpm
Spindle bore5 in
Spindle mountA2-15
Rapid Feed
Rapid Feed X-axis73.62 in/min
Rapid Feed Z-axis147.24 in/min
Feed
Feed X-axis0.00252 - 0.47244 in/R
Feed Z-axis0.00126 - 0.23622 in/R
Feed Z1-axis0 - 0.12 in/R
Tapping
Tapping, metric(45) 0.04 - 4.72 in
Tapping, diametric(42) 30 - 1/4 DP(42) 30 - 1/4 DP(42) 30 - 1/4 DP(42) 30 - 1/4 DP(42) 30 - 1/4 DP(42) 30 - 1/4 DP(42) 30 - 1/4 DP(42) 30 - 1/4 DP(42) 30 - 1/4 DP(42) 30 - 1/4 DP(42) 30 - 1/4 DP(42) 30-1/4 DP(42) 30 - 1/4 DP(42) 30 - 1/4 DP(42) 30 - 1/4 DP
Tapping, module(46) 0.02 - 2.36 in
Tapping, withworth(48) 0,5 - 60 TPI(48) 0,5 - 60 TPI(48) 0,5 - 60 TPI(48) 0,5 - 60 TPI(48) 0,5 - 60 TPI0.5 - 60 (48) TPI(48) 0.5 - 60 TPI(48) 0,5 - 60 TPI(48) 0,5 - 60 TPI(48) 0,5 - 60 TPI(48) 0,5 - 60 TPI(48) 0,5-60 TPI(48) 0,5 - 60 TPI(48) 0,5 - 60 TPI(48) 0,5 - 60 TPI
Tailstock
Tailstock quill diameter6 in6 in6 in6 in6 in6 in6 in6 in8 in8 in8 in6 in6 in8 in6 in
Tailstock quill tapermetric 80 metric 80 metric 80 metric 80 metric 80 metric 80 metric 80 metric 80 MT 6 metric 80 metric 80 metric 80 metric 80 metric 80 metric 80
Tailstock quill stroke12 in
Tailstock traverse adjustment± 0.1 in
Drive Capacity
Motor rating main drive29.5 Hp29.5 Hp29.5 Hp29.5 Hp29.5 Hp29.5 Hp29.5 Hp29.5 Hp40.2 Hp40.2 Hp40.2 Hp29.5 Hp29.5 Hp40.2 Hp29.5 Hp
Measures and Weights
Overall dimensions (length x width x height)241x72x71 in319x72x71 in438x72x71 in241x75x76 in319x75x76 in238x82x88 in317x82x88 in435x82x88 in205x87x95 in319x87x95 in509x94x99 in182x73x71 in182x72x71 in241x87x95 in438x75x76 in
Weight23,870 lbs27,830 lbs35,420 lbs25,410 lbs29,260 lbs28,380 lbs35,640 lbs46,244 lbs28,600 lbs51,040 lbs66,176 lbs20,570 lbs21,450 lbs40,700 lbs36,960 lbs

  • Powerful 29-HP motor ensures very high chip removal capacity
  • Heavy, large cast-iron body and machine bed with strong ribbing to reduce vibrations to a minimum
  • Induction hardened and ground guideways
  • Sturdy multi-disk clutch for headstock drive
  • Separate rapid feed motor for feed in X and Z-axis
  • Joystick control for X and Z feeds is mounted directly to support
  • Motorized positioning of tailstock (all models with a minimum center width of 118 inch)
  • Large spindle bearings
  • Includes completely assembled 3-axis position indicator
  • Overload clutch enclosed in apron

3-axis position indicator

  • More accuracy
  • Lower error rate
  • Increased productivity
  • Resulting in valuable time savings
  • For increased productivity
  • Easy to read display
  • Operator-specific features
  • Convenient keyboard layout
  • Resolution: 0.0004 / 0.0002"
  • Default coordinates
  • Axis position is maintained when display is turned off
  • Hole circle pattern calculation
  • Calculator function
  • Storage for 10 tools
  • Radius / diameter toggle
  • Mm/inch conversion
  • Easy expansion and maintenance-free operation
  • Display for top (Z0) and box way slide (Z1) both separate and in differential / cumulative mode for lathes

  • 3-axis position indicator
  • 4-jaw face plate chuck ¯ 40"
  • coolant system
  • follow rest 2" - 9"
  • steady rest 2" - 23"
  • motorized tailstock
  • LED work lamp
  • center points
  • reducing sleeves
  • foundation bolts
  • central lubrication
  • operating tools
  • operator instructions
