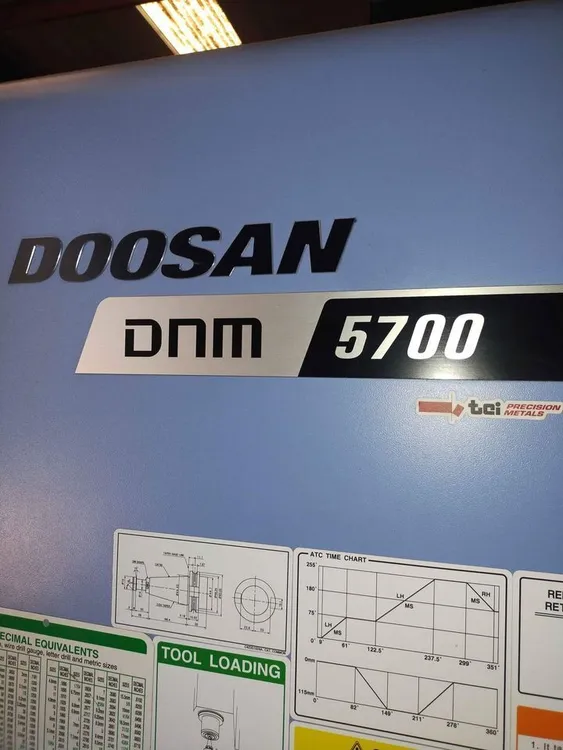

DOOSAN DNM 5700 VERTICAL MACHINING CENTER
Year
2018
Stock #
30182
Condition
Excellent
Keep Scrolling To Learn More
Specifications
Equipped With
DOOSAN DNM 5700 VERTICAL MACHINING CENTER
New: 2018 (Very Low Cutting Hours)
Specifications:
Axis Configuration: 3-Axis
X-Axis Travel: 41.3 in
Y-Axis Travel: 22.4 in
Z-Axis Travel: 20.1 in
Table Size: 51.2 in × 22.4 in
Maximum Table Load: 2,205 lbs
Spindle Taper: CAT-40
Spindle Speed: 8,000 RPM
Spindle Motor: 15 HP
Rapid Traverse: 1,417 IPM
Cutting Feed Rate: 590 IPM
Tool Changer Capacity: 30 Station Side-Mounted
Maximum Tool Weight: 17.6 lbs
Maximum Tool Diameter: 3.1 in (4.9 in without adjacent tools)
Maximum Tool Length: 11.81 in
Tool Change Time: 1.2 Seconds
Overall Dimensions: 122.4 in × 95 in × 117.5 in
Machine Weight: 14,330 lbs
Equipped with:
Fanuc Series CNC Control
Chip Conveyor
30 Position Tool Changer

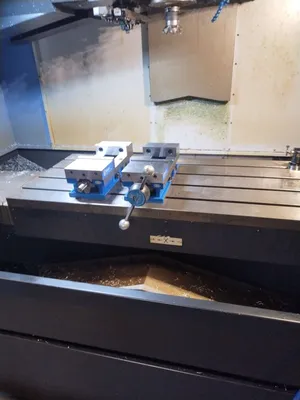

Table Vises
Attachments
There are no files attached to this listing currently. If you Have any further questions regarding this listing, please contact us for more information.
