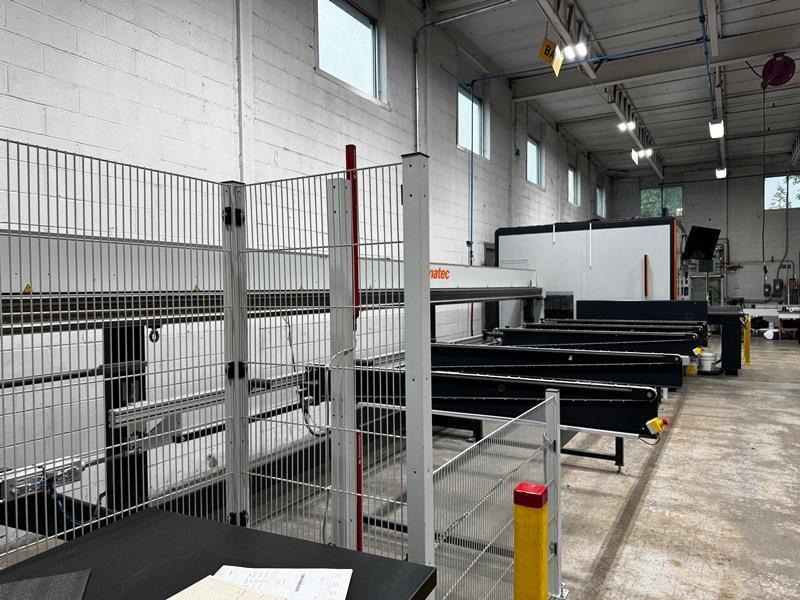

ELUMATEC SBZ-628-S PROFILE MACHINING CENTER

New 2020

SBZ 628 S: Pass-Through System for Windows, Doors and Curtain Walls.

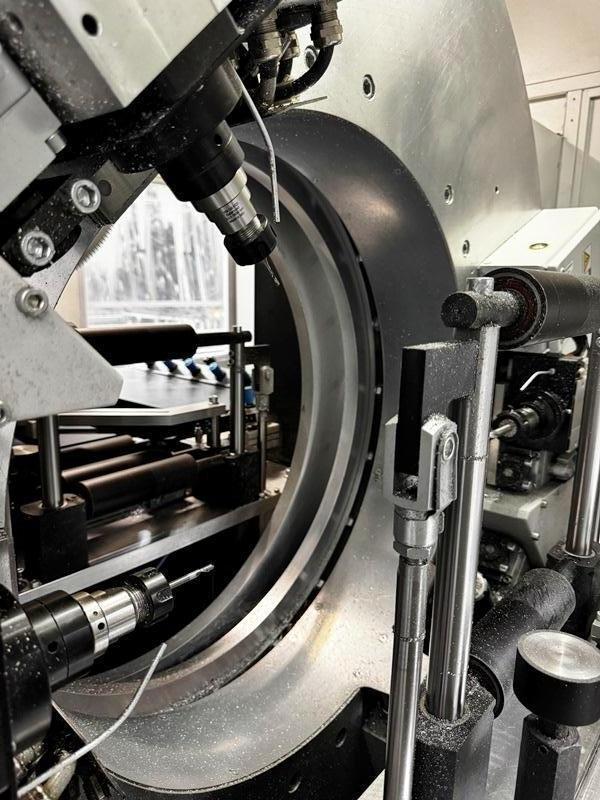

Four Spindles for Routing or Drilling
Separating Cuts from -45° to 90° (Lead Cut), from 90° to 45° (end cut) Continuously Adjustable.

Machine Configuration:
Left loading magazine for automatic production processes.
The routing spindles can be positioned continuously over 360° on the profile bar for machining profiles in various clamping situations.
Easy-access controls and maintenance elements simplify operation.

Max. profile cross-section (WxH):
200 x 160 / 160 x 200 mm
Min. profile cross-section: 30 x 10 mm (depending on gripper position)

Blank Bar Length: 7,600 mm
Finished Part Length: 350-4,600 mm
Short Parts: (50-150 / 150-350) –

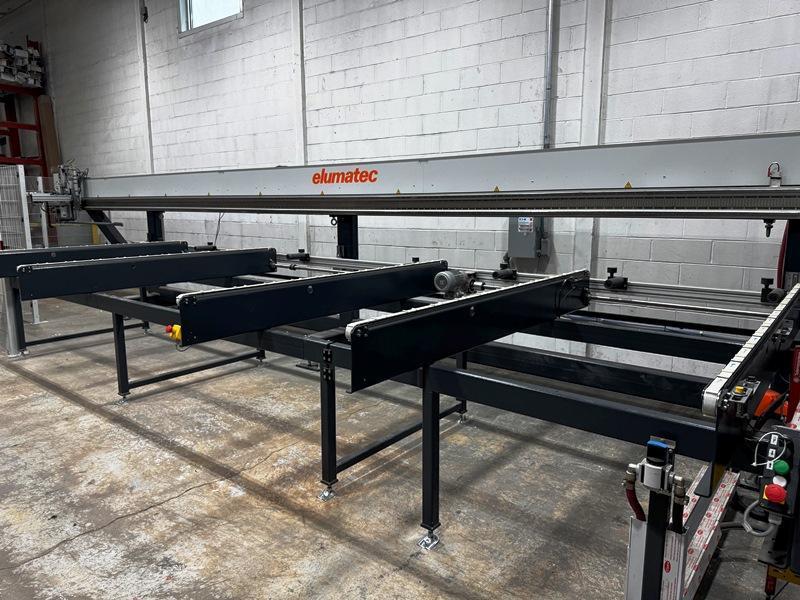

Feed magazine
Shortest Blank Bar Length: 3,000 mm
Number of Swing Arms: 5
Mounting Positions: 10

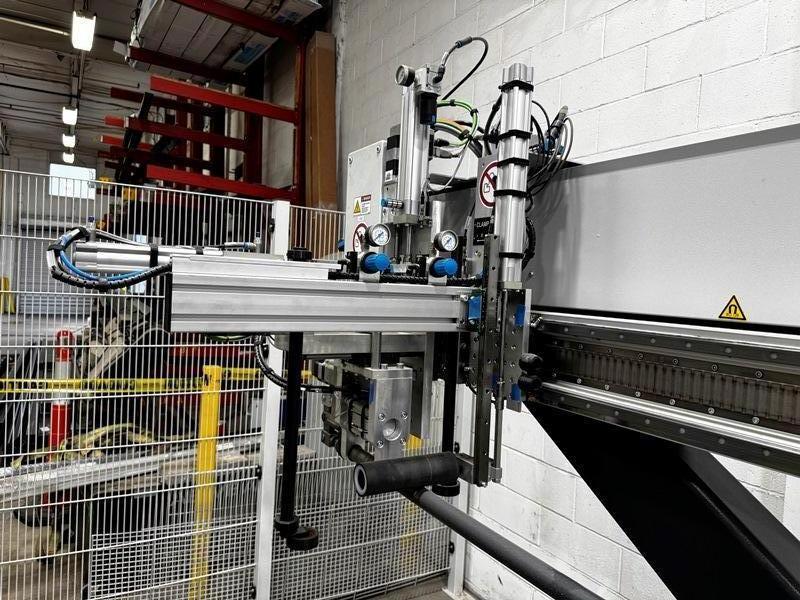

Infeed
Servo Drive: Linear
Motorized Gripper Adjustment: Y/Z
Gripper rotation: Optional

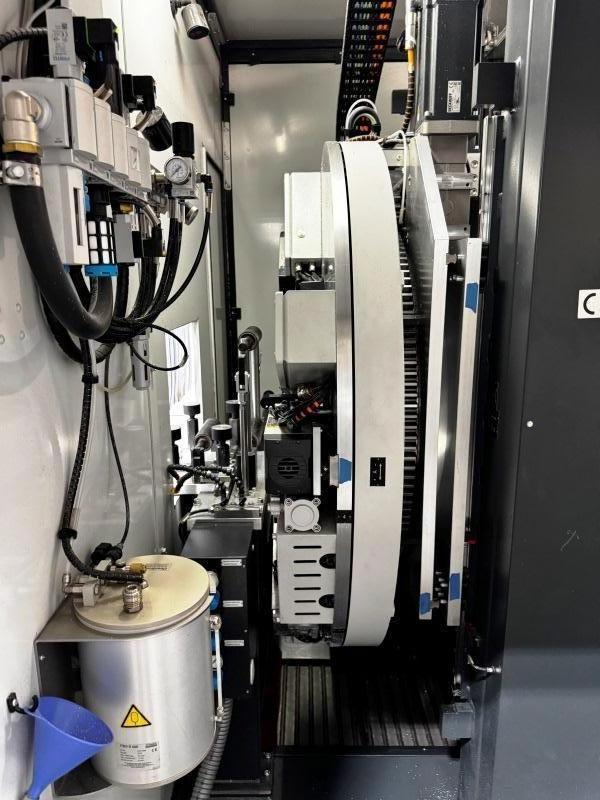

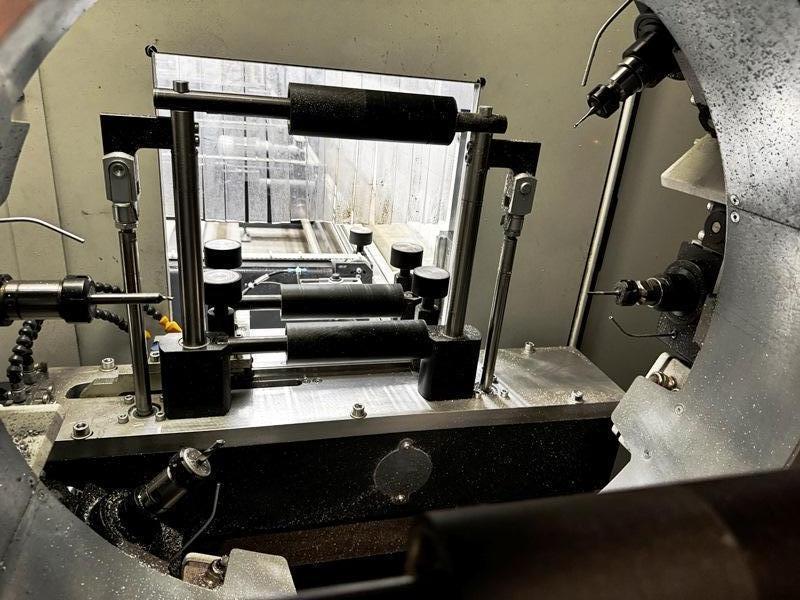

Machining station:
4-Axes
Router spindles: 4 (servo-assisted)

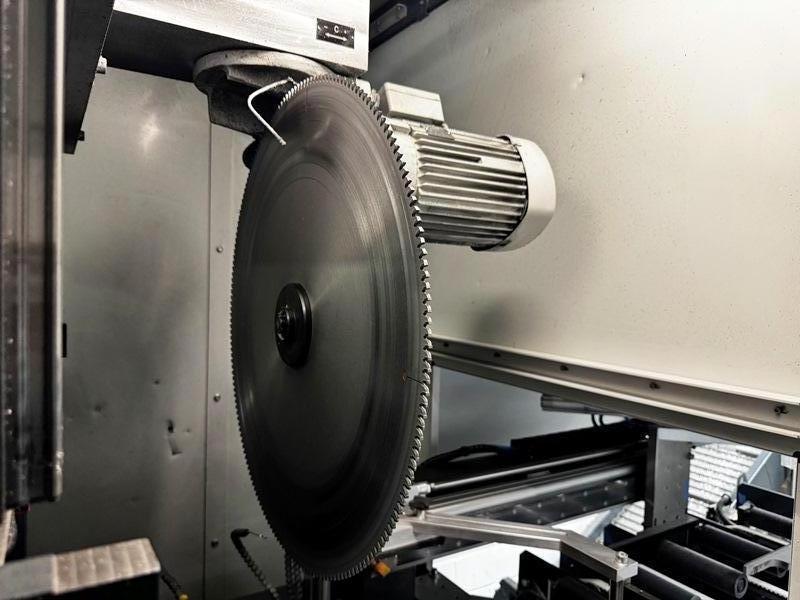

Saw:
Axes: 2
Saw Blades (diameter): 1 (650 mm)
Sawing Angles: 45° – 135° (pivoting)
Notching

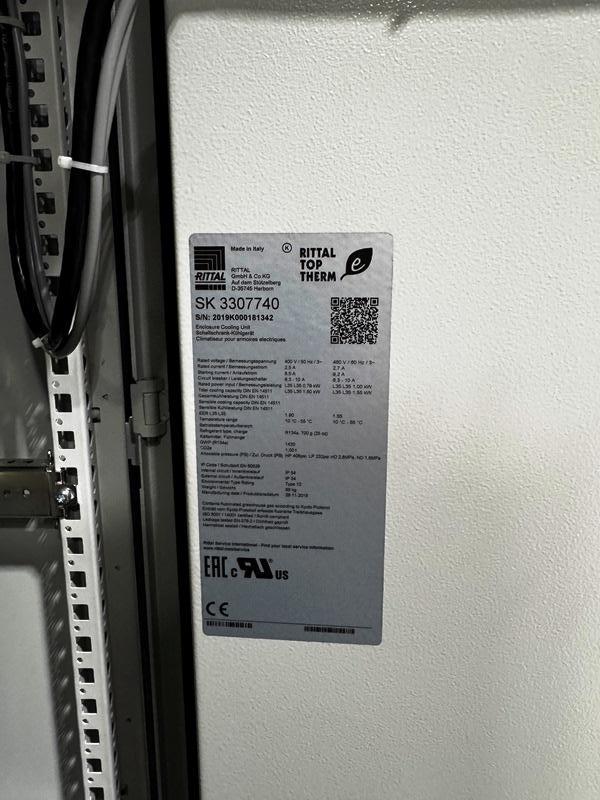

Equipped with:
Beckhoff Drive Control

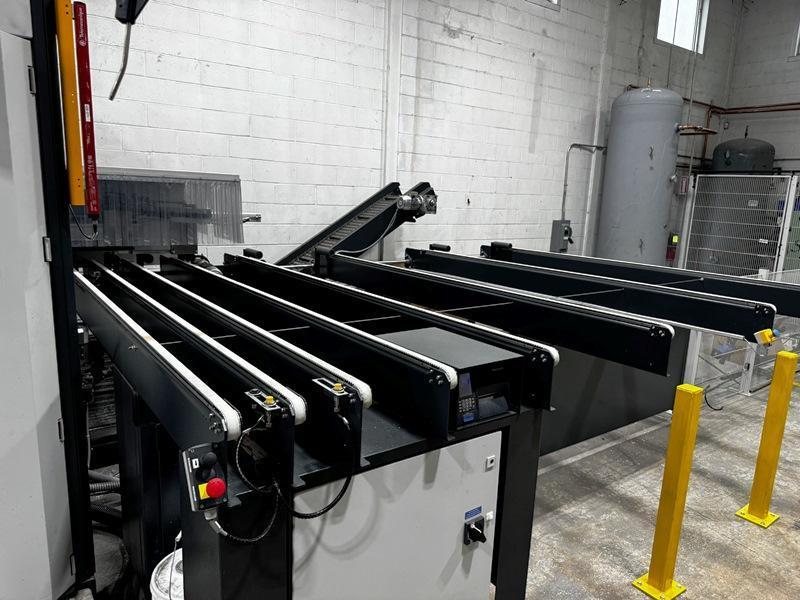

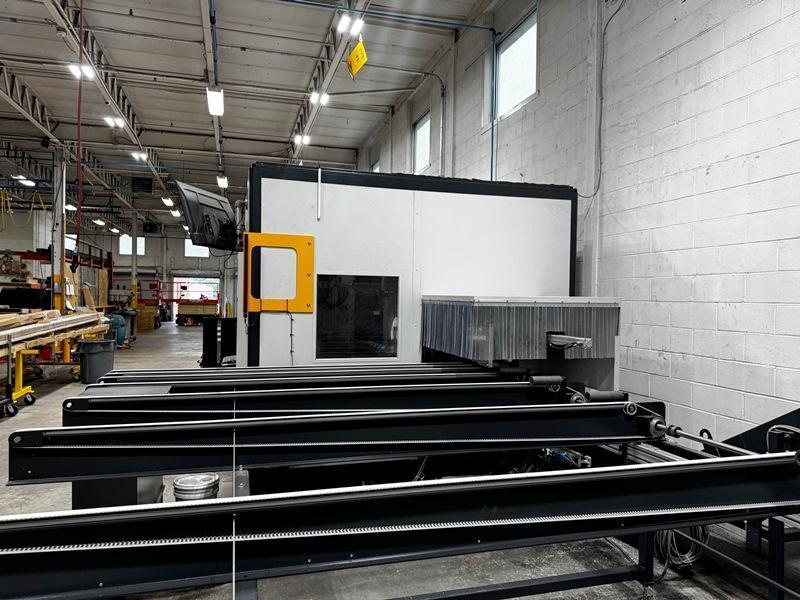

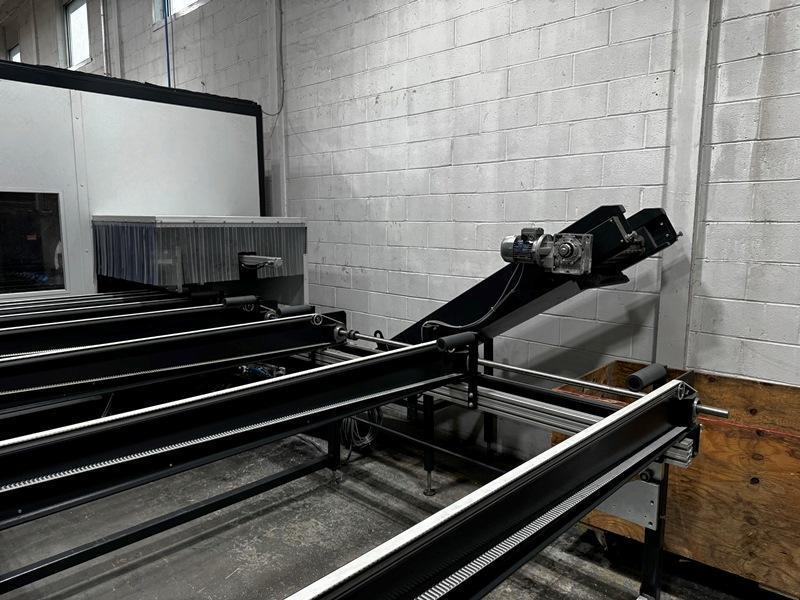

Outfeed Conveyor:
Lifting Station: Yes
Number of Swing Arms: 8
Outfeed conveyor width (options): 4,000 mm
