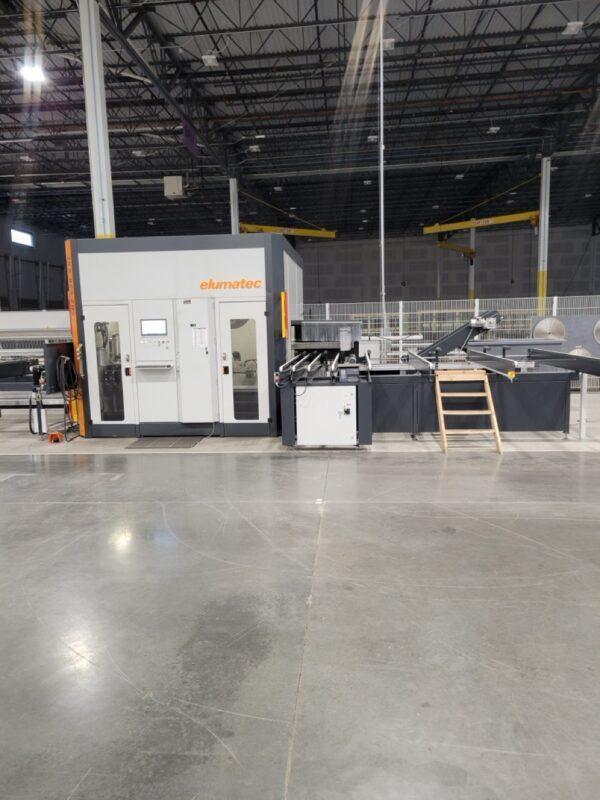

ELUMATEC SBZ 686 XXL CNC PROFILE MACHINING CENTER

New 2022

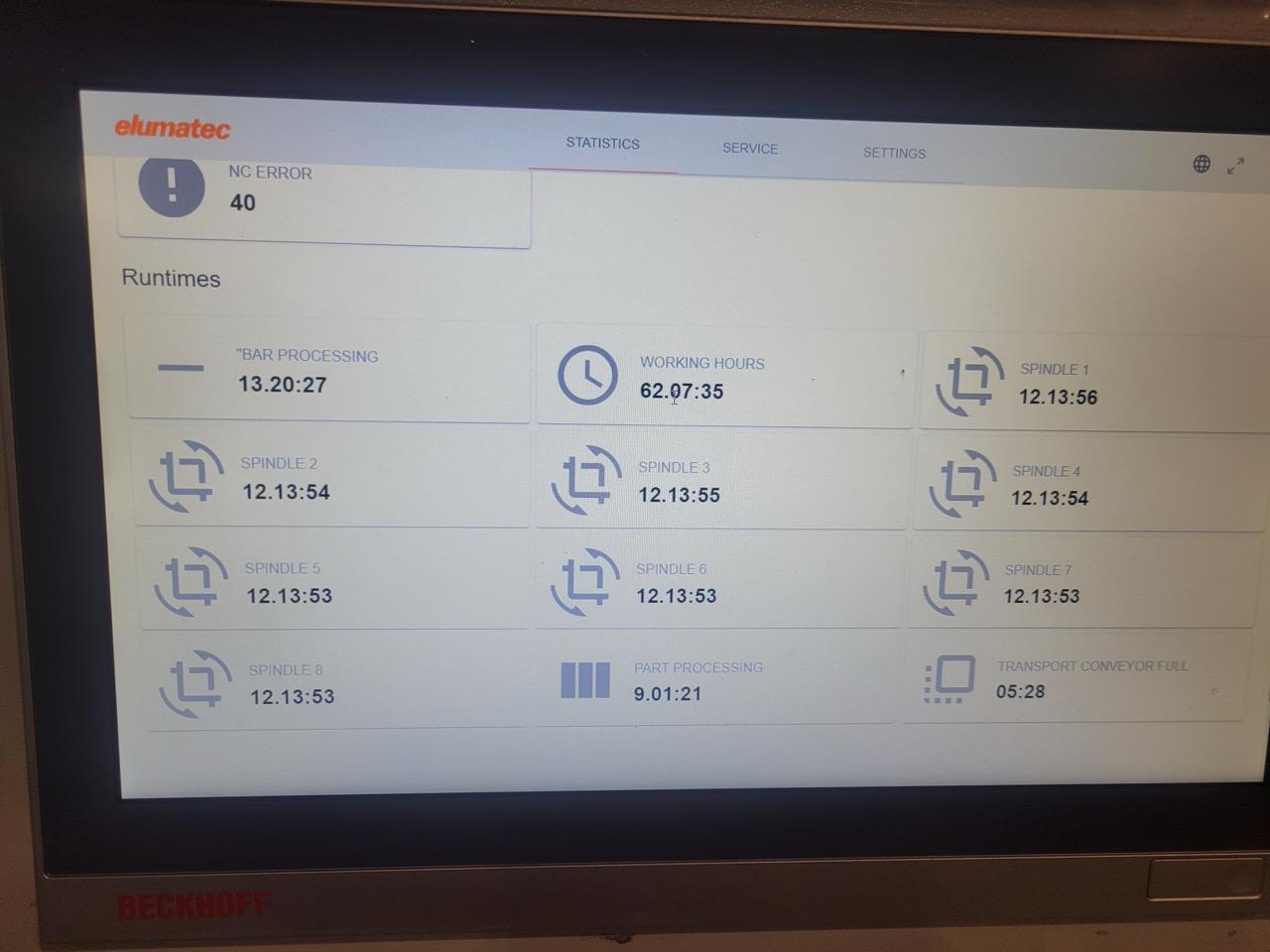

Only 62 Hours

The SBZ 628 series offers ultimate flexibility in both machining and length cutting of aluminium profiles for metal construction and industrial applications. Its production reliability, speed, cost-effectiveness and impressive versatility make the flexible profile machining center the perfect all-rounder. It allows fully automatic machining of various profile types, such as for windows, doors and curtain walls, using up to eight routing units that can operate freely on the profile cross-section in coordination with innovations such as combination clamping systems, travelling clamps and pivoting grippers.

Eight spindles for routing or drilling Different separating cut strategies from 22.5° to 157.5° (pivoting)

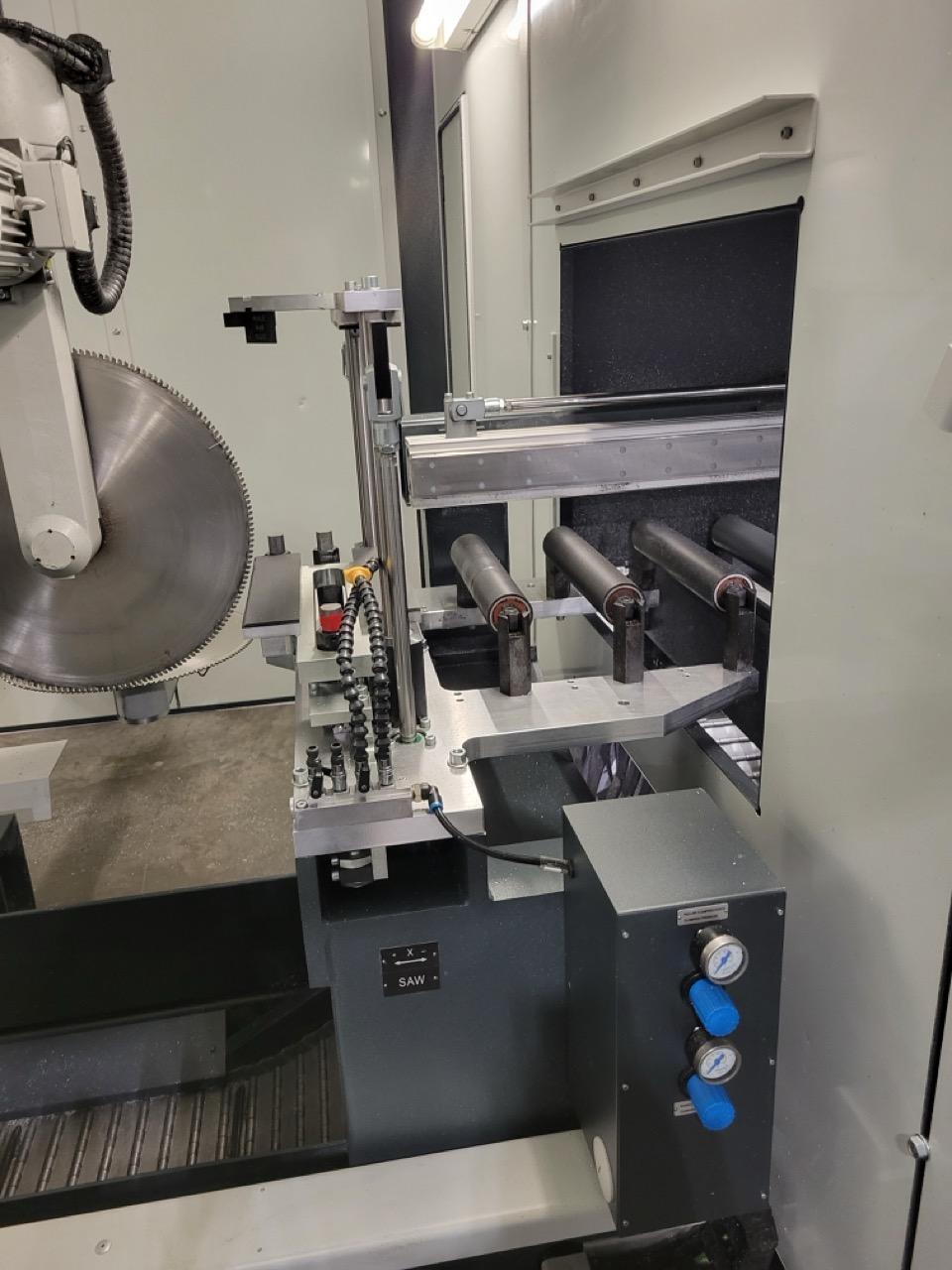

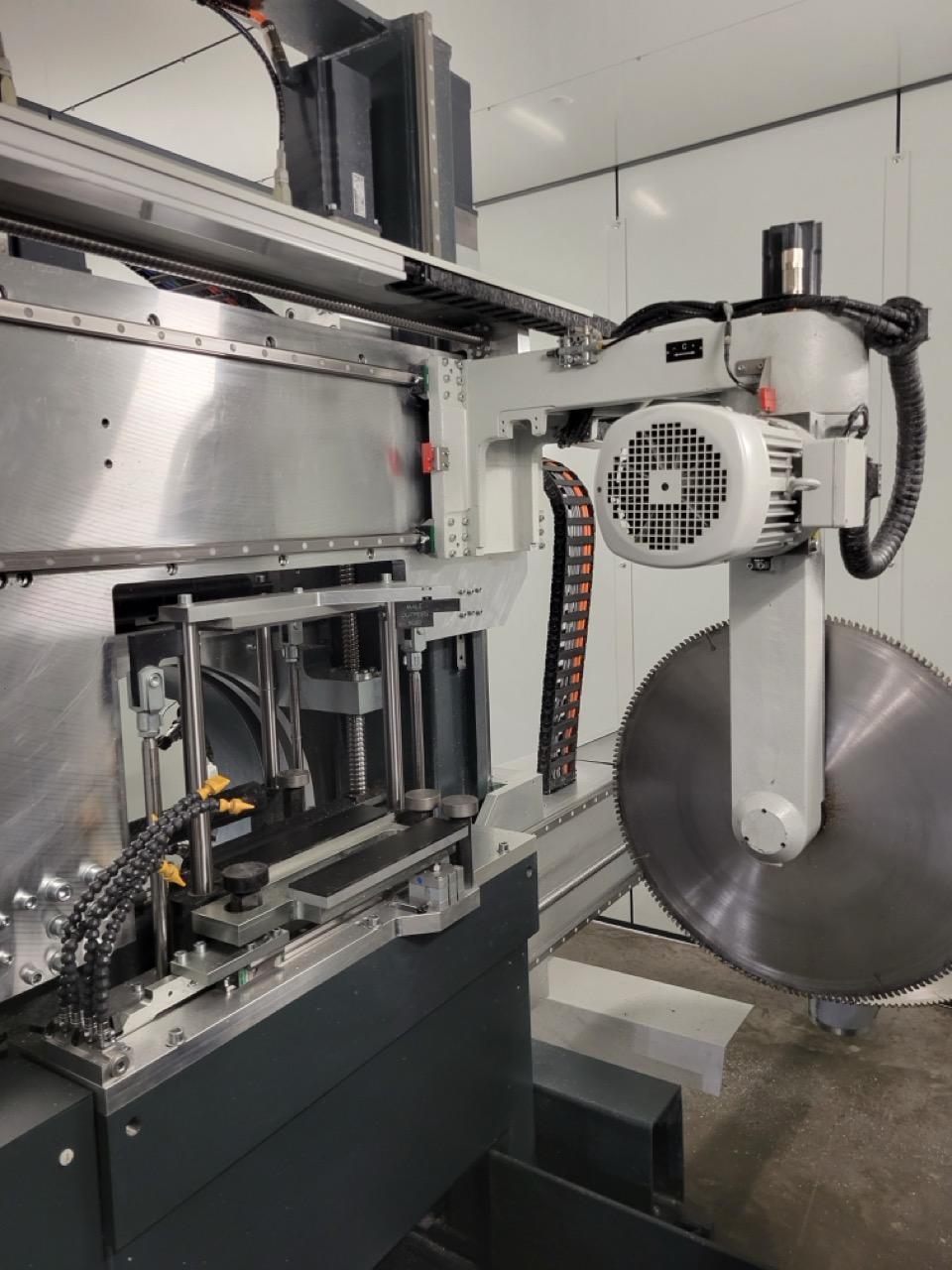

Additional saw unit from 45° to 135° (tilting)
Combined notching
Quick-change systems for tension rollers and clamping plates for atypical profiles Mode for manual insertion and clamping of non-stationary profiles.

Machine configuration

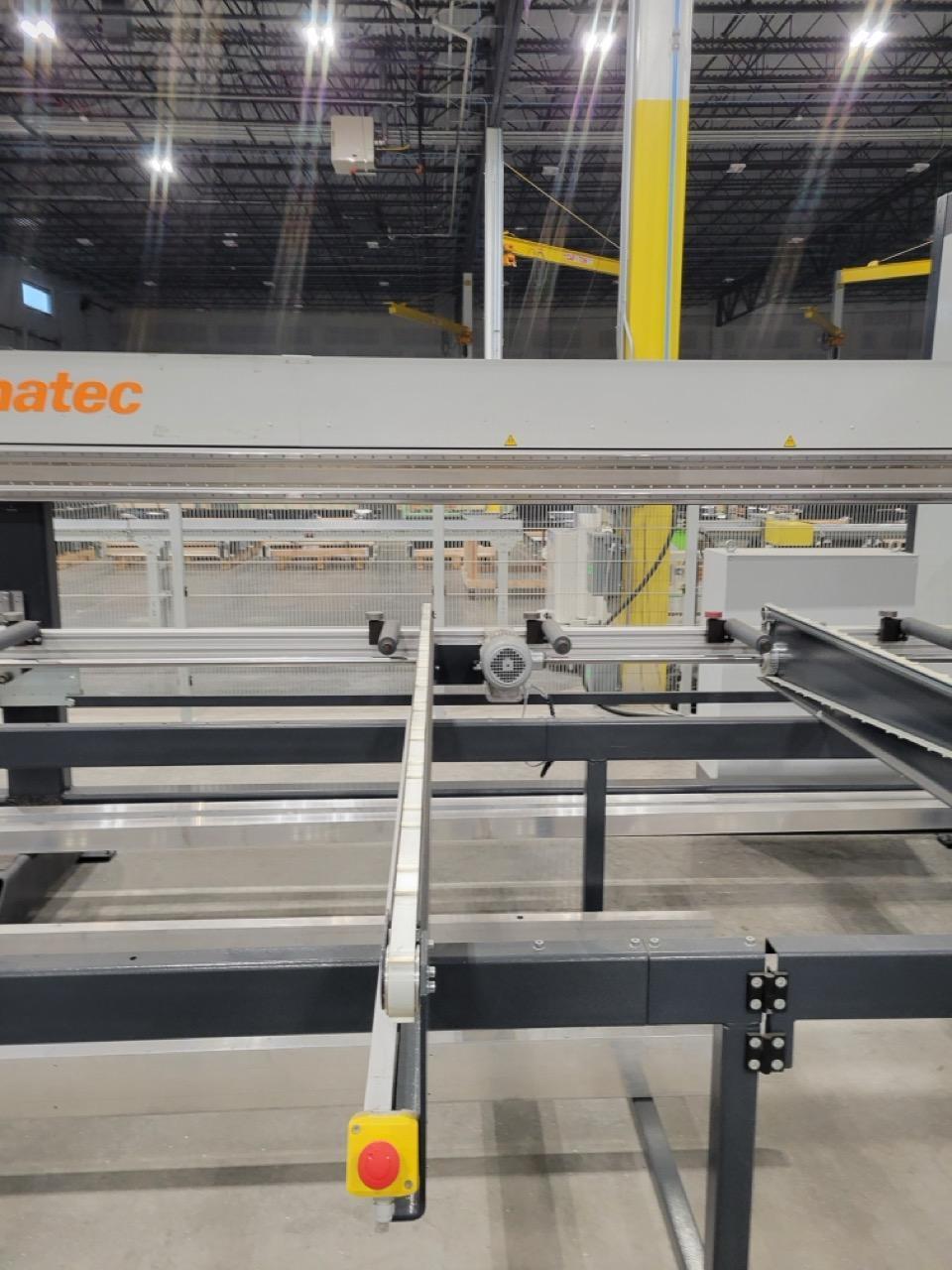

Left loading magazine for automatic production processes

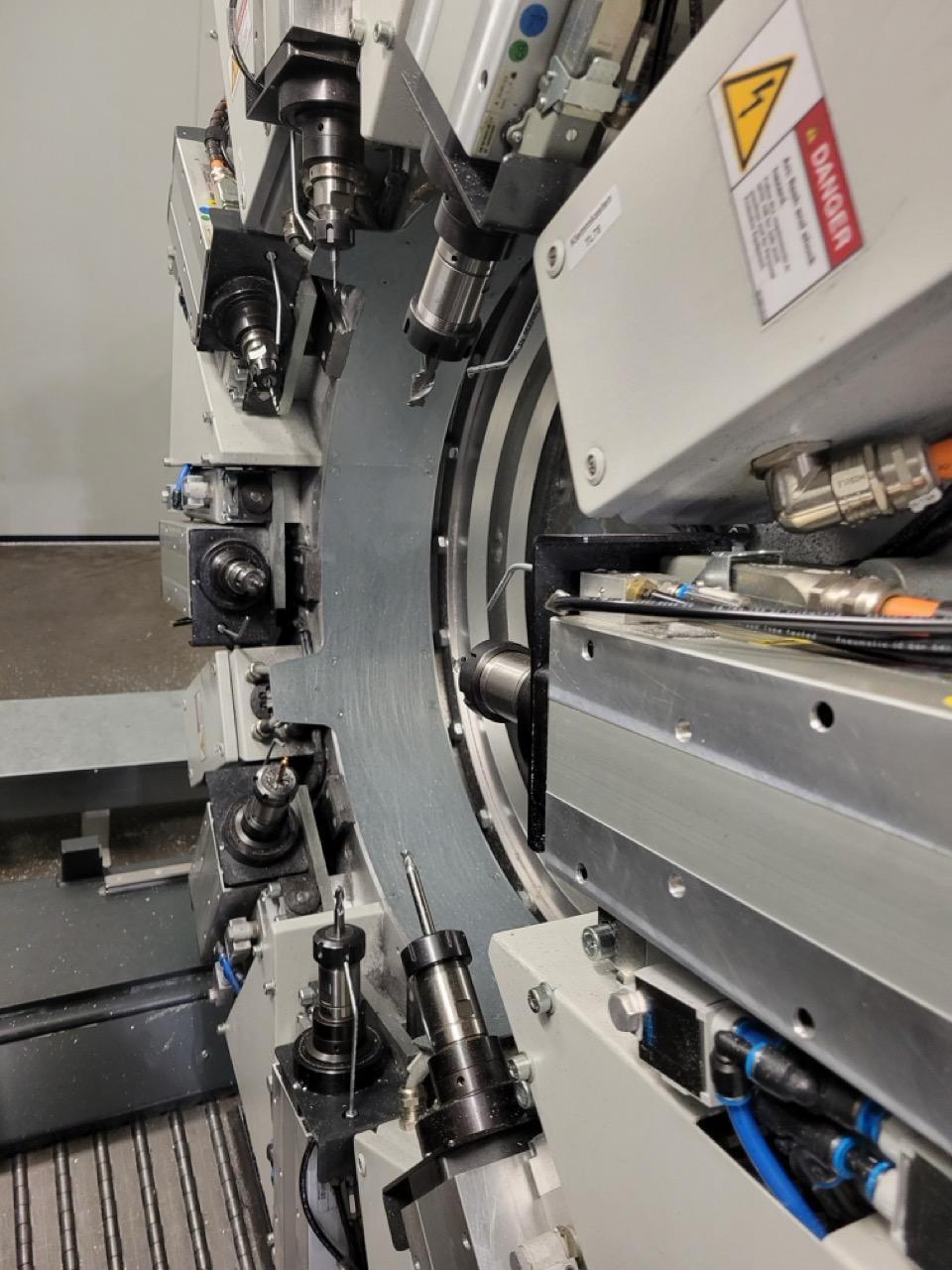

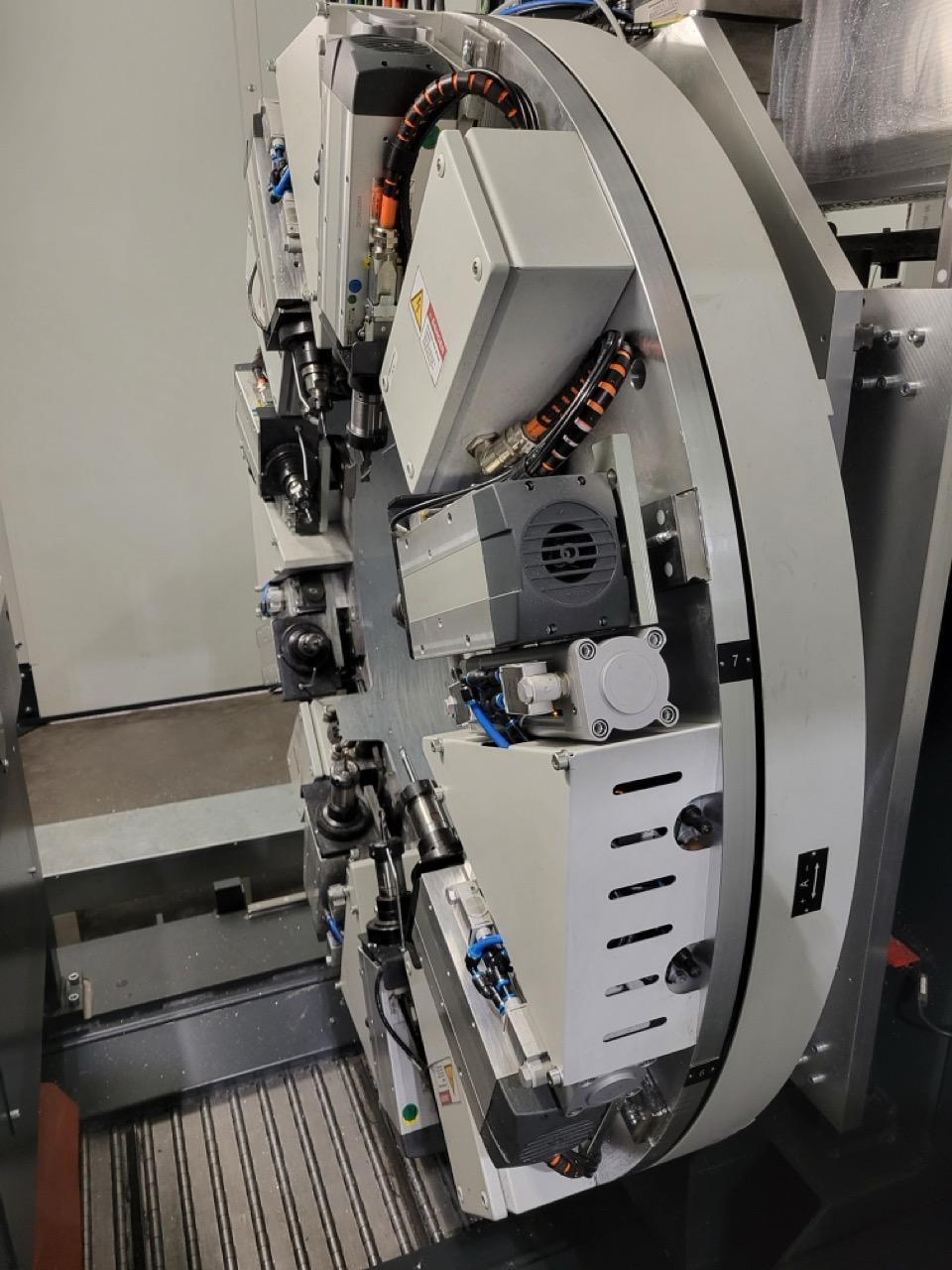

The routing spindles can be positioned continuously over 360° on the profile bar, and the cutting angle can be adjusted
continuously over 360° for machining profiles in various clamping situations

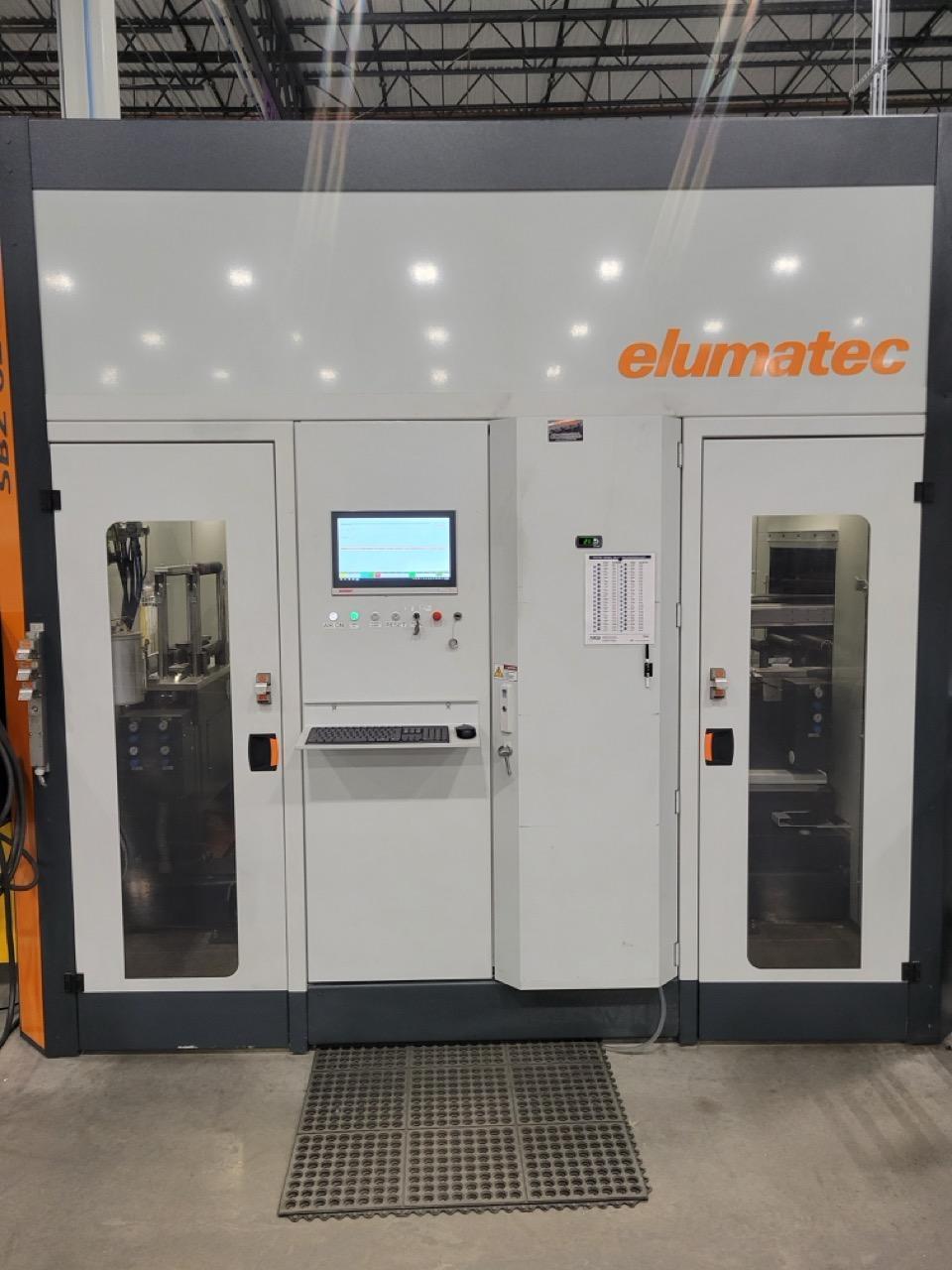

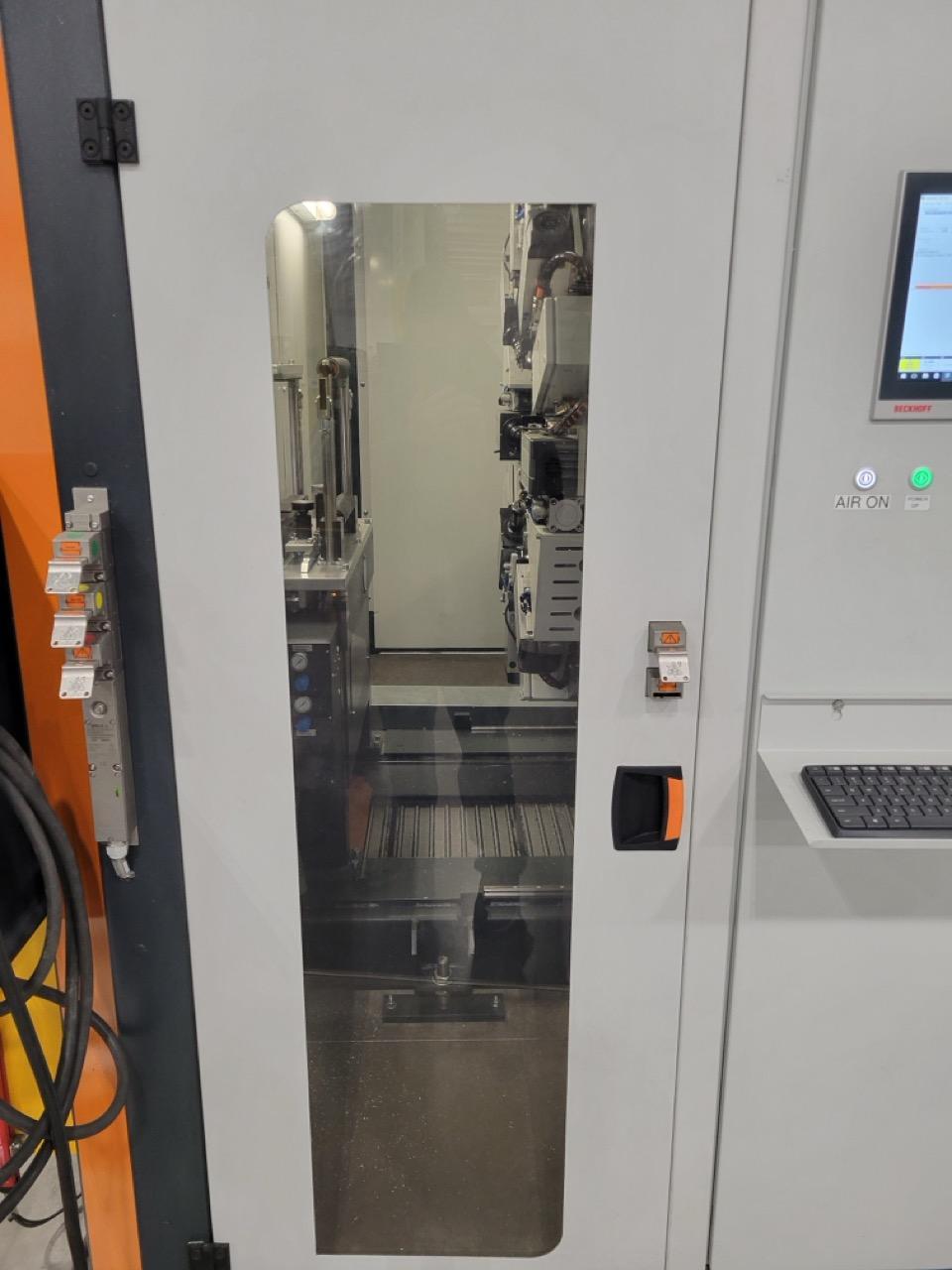

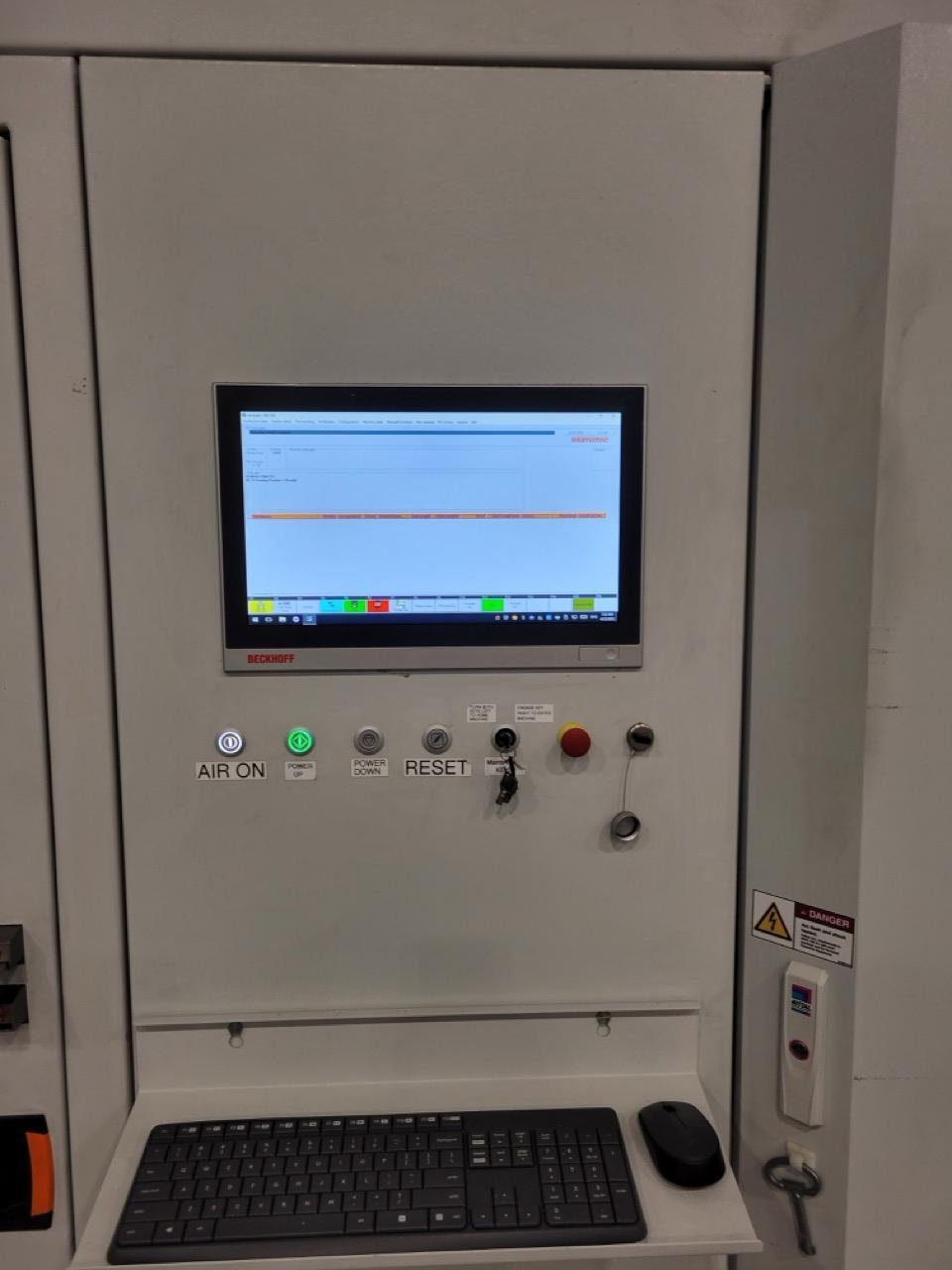

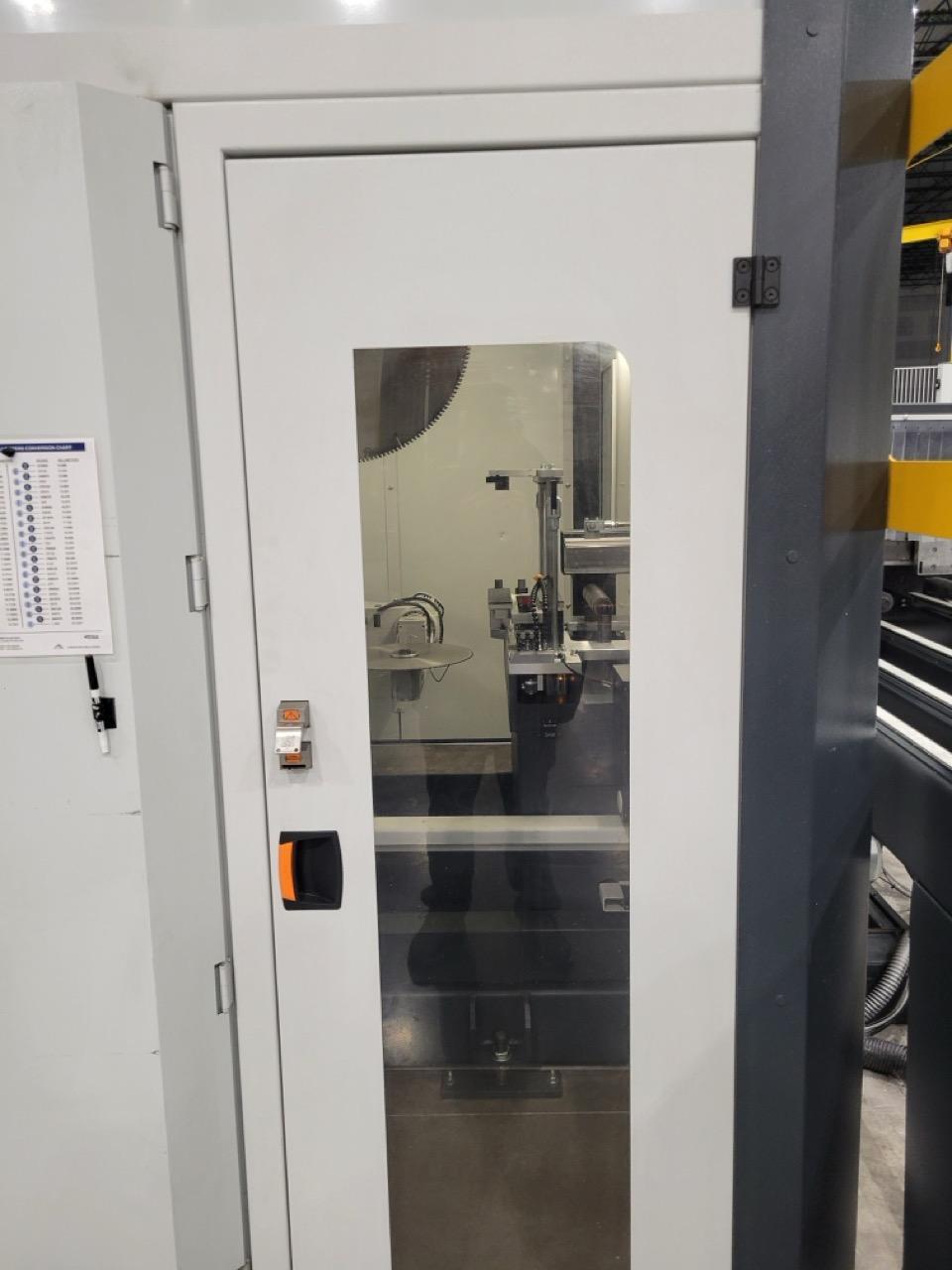

A generously dimensioned noise abatement enclosure and the easy-access controls and maintenance elements simplify operation

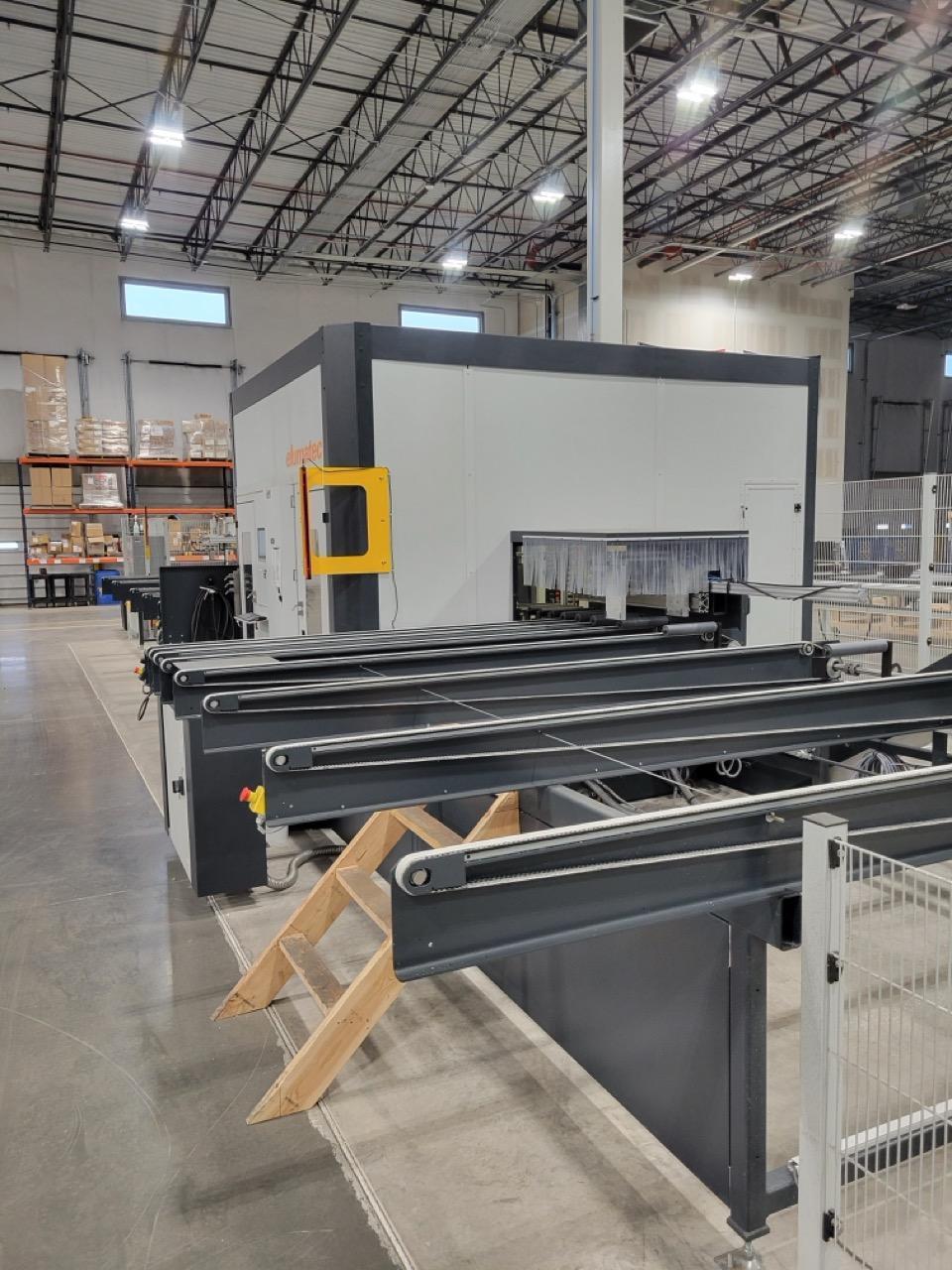

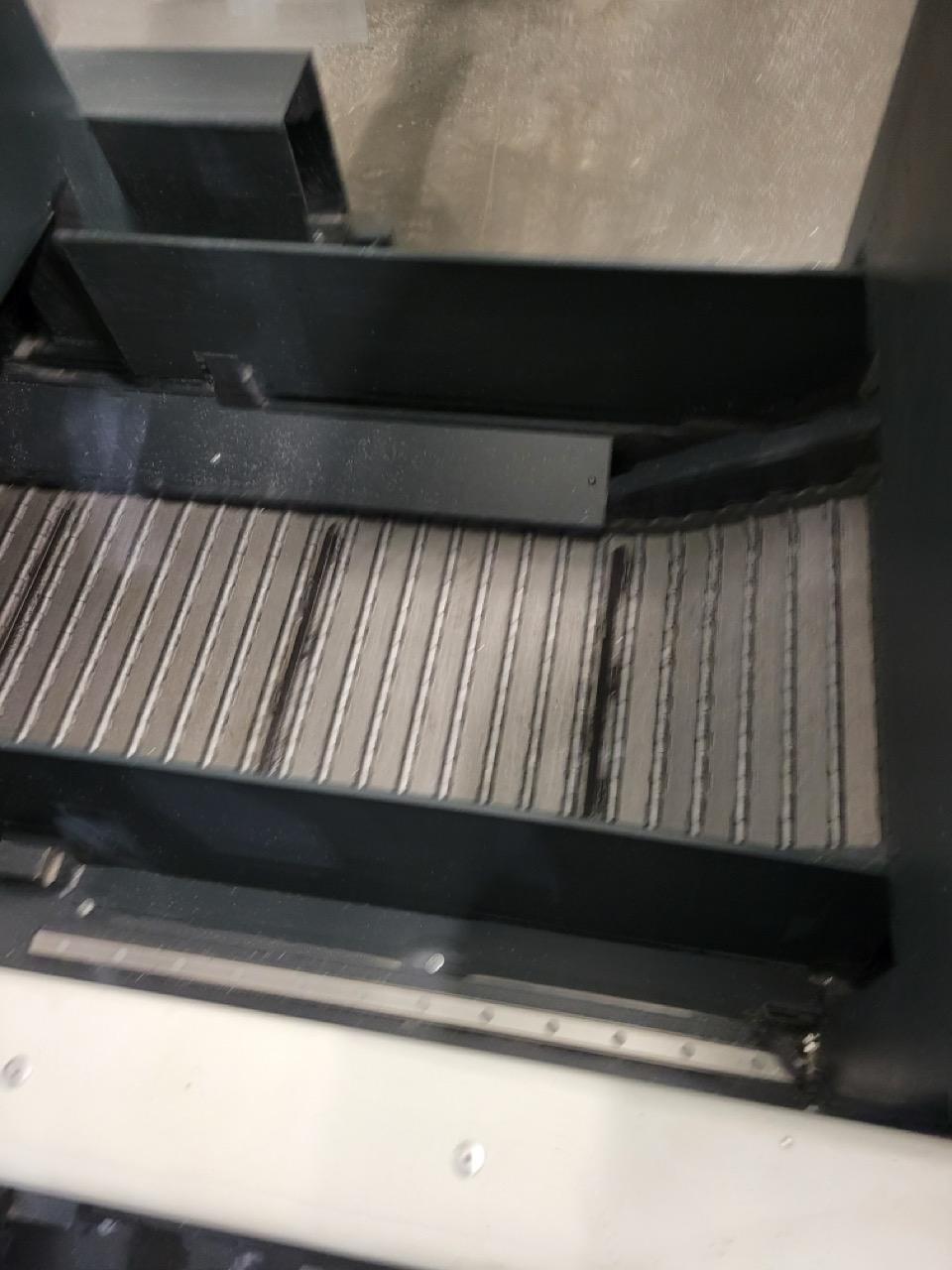

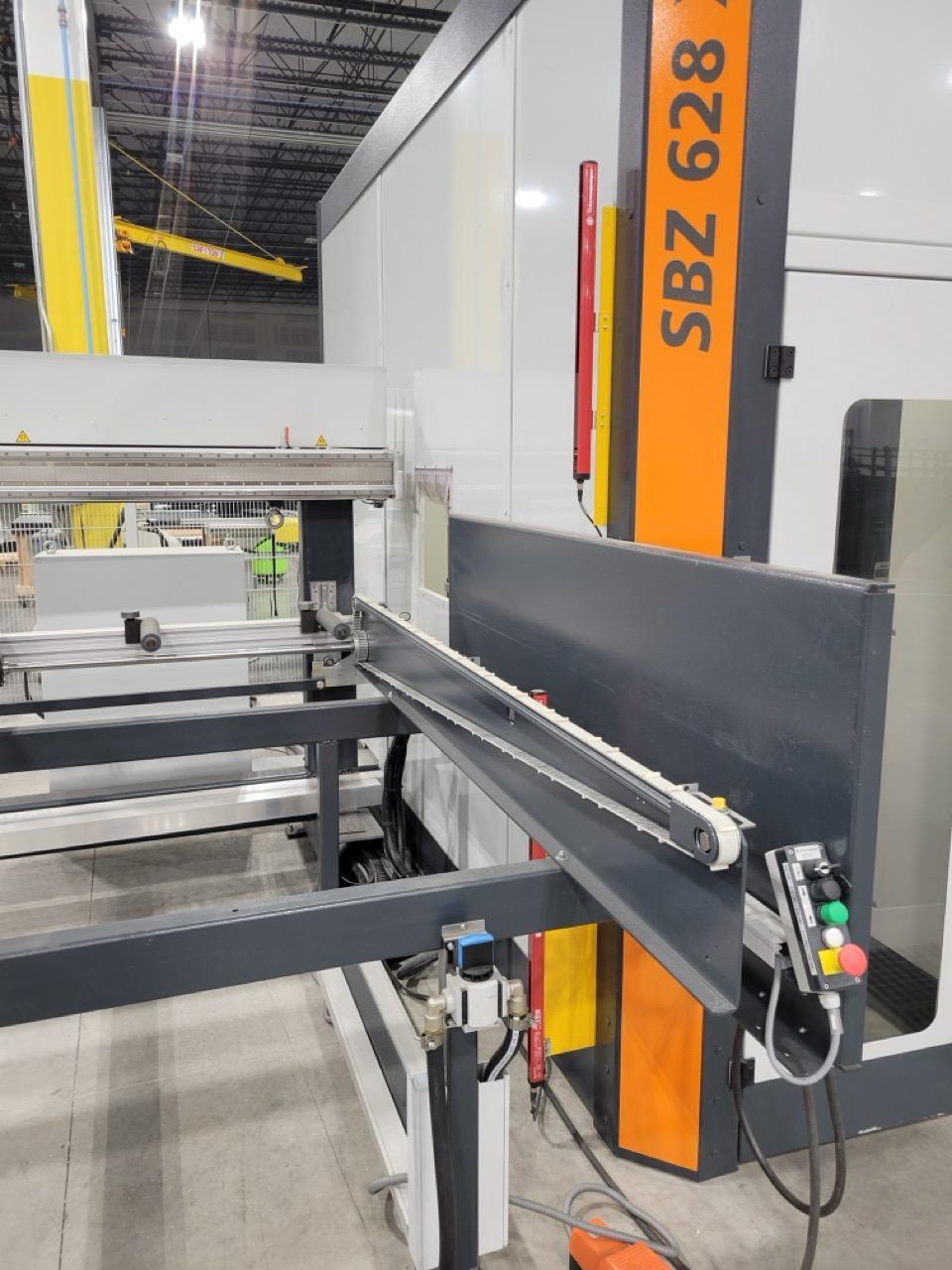

Machined profiles are placed gently onto the unloading magazine

Equipped With:
Bar lengths up to 10,500 mm
Expansion options for outfeed of up to 6,000 mm/8,000 mm
“Full bar” outfeed
Outfeed of short parts >150 mm
Cycling short parts (in single bar mode) >50 mm >150 mm
Round tube machining

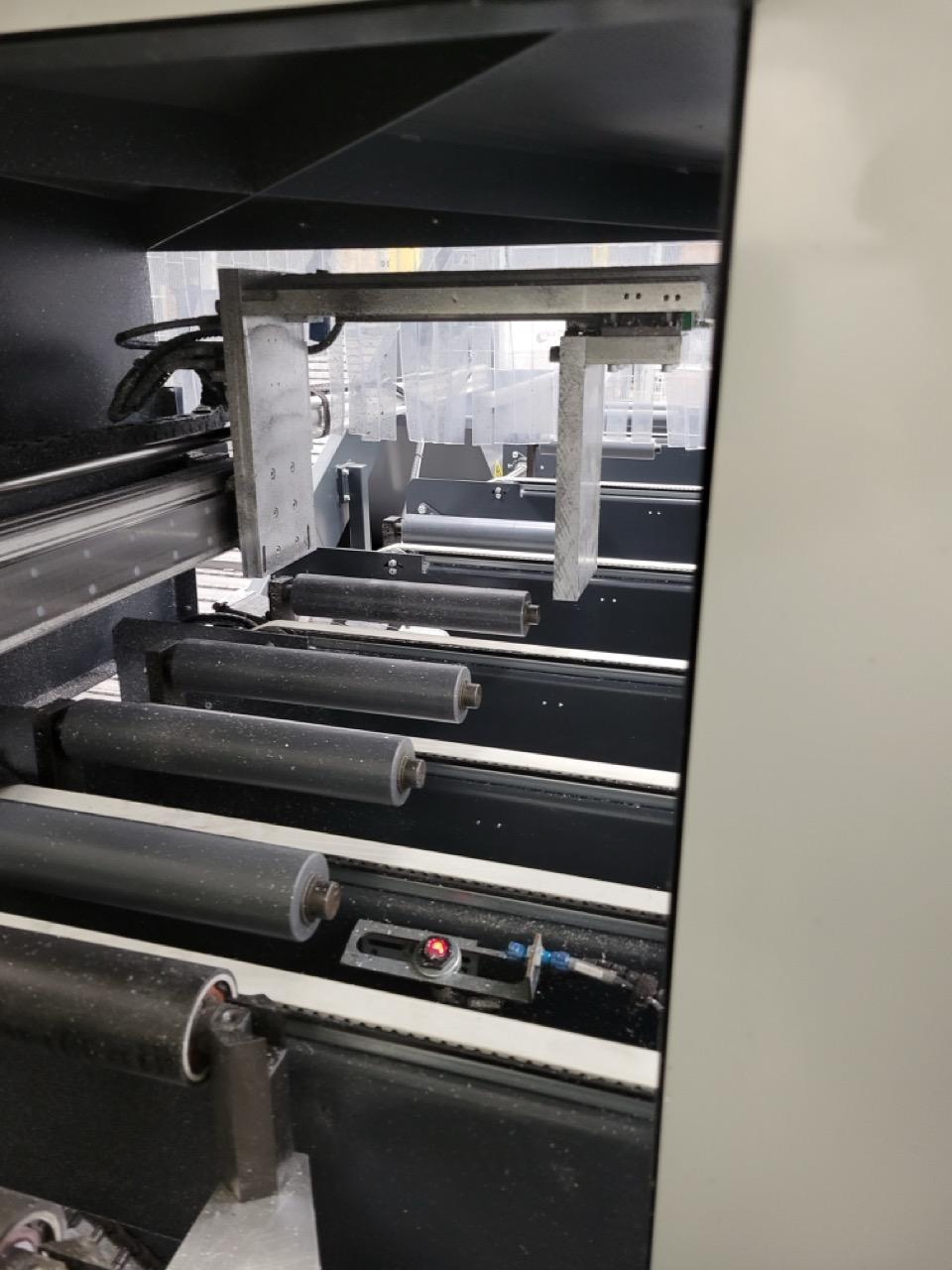

Additional arms in the infeed

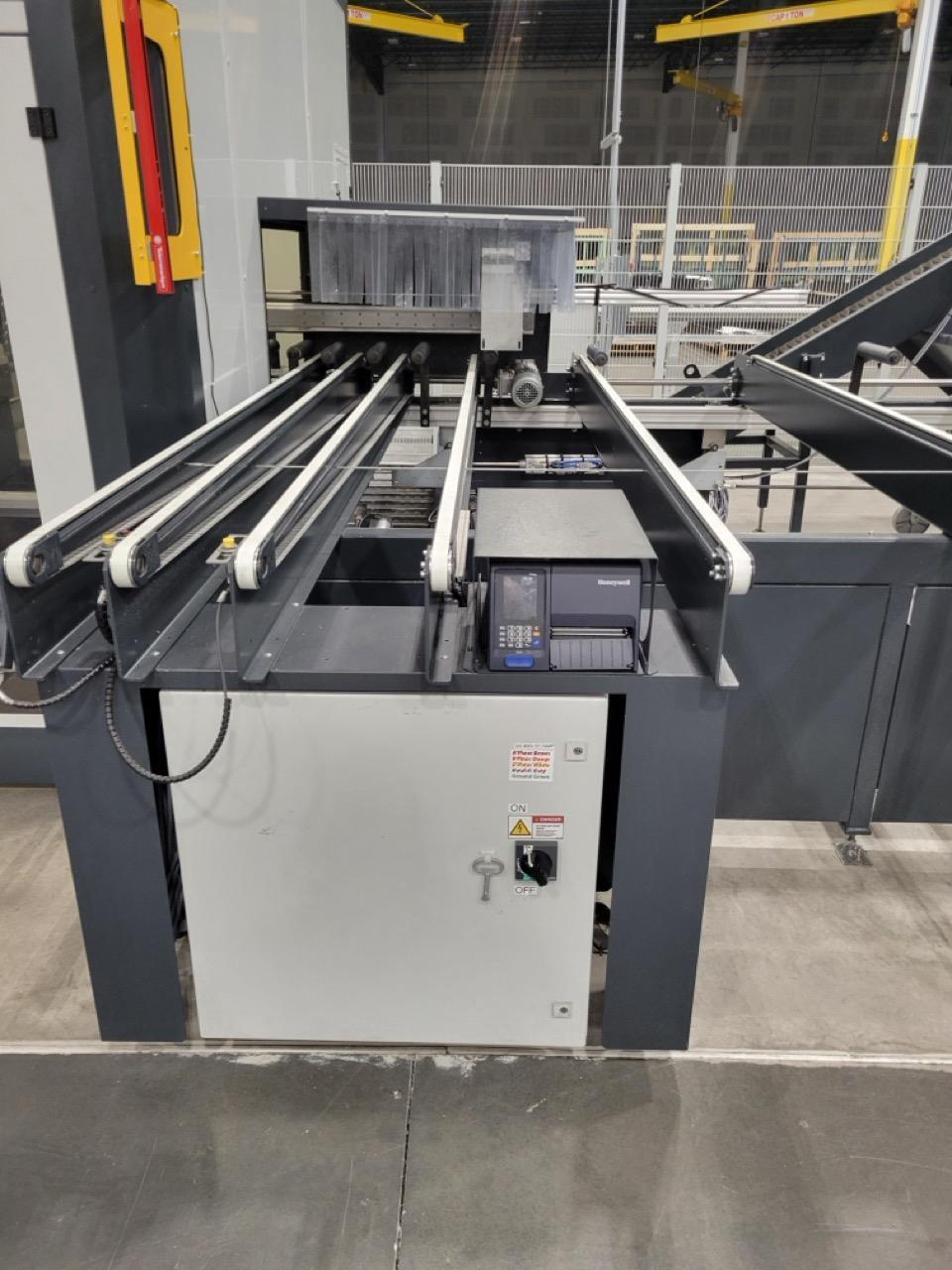

Label printer thermal direct w/ stand
Transfer housing DYN5
VHM cutter set
eluCad Software Package
Vapour extractor
Air conditioner, control cabinet for ambient temperature <35 °C
Tools
Saw blades
