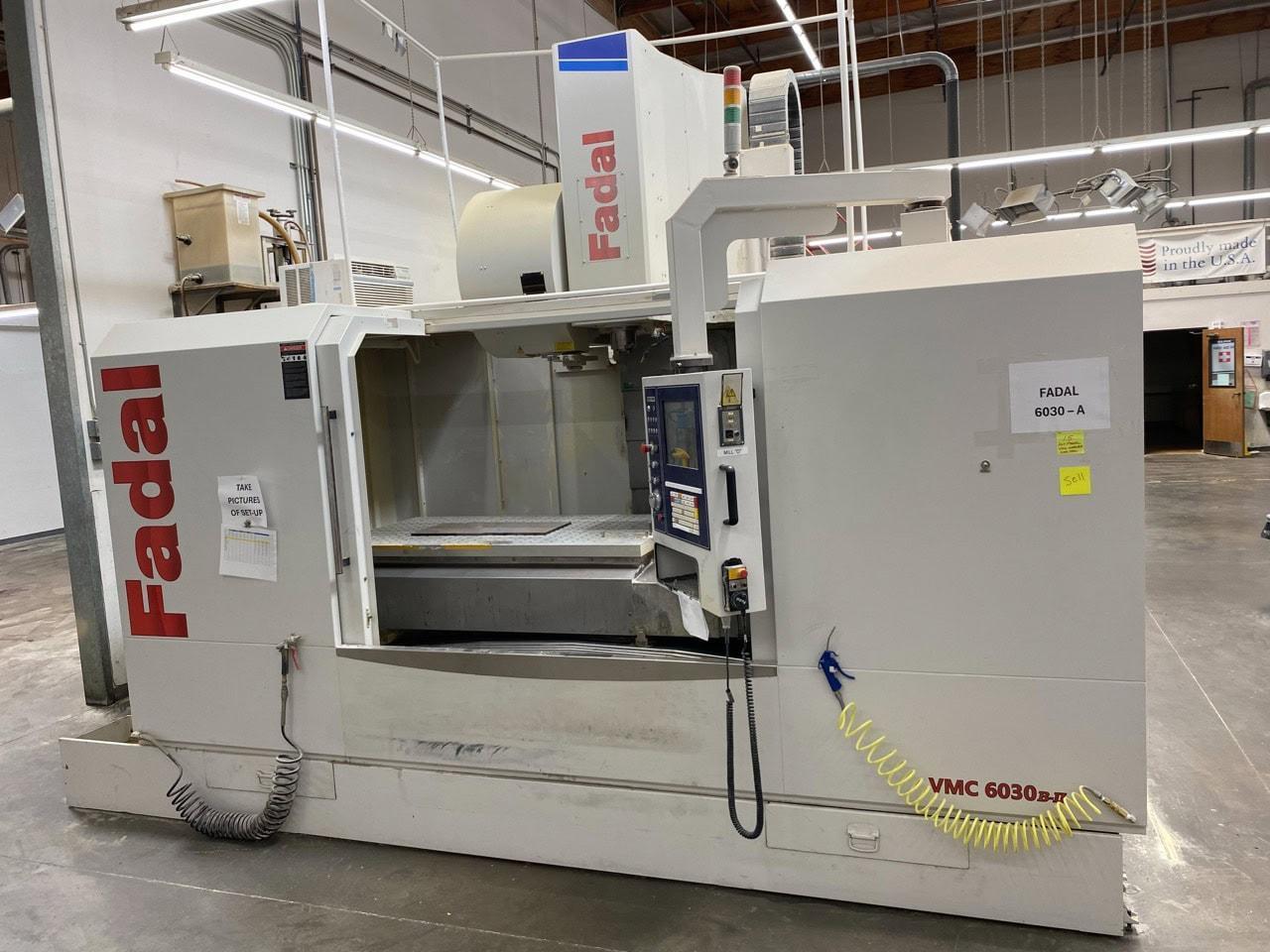

FADAL 6030B-II 3-AXIS CNC VERTICAL MACHINING CENTER
Year
2017
Stock #
30015
Condition
Very Good
Keep Scrolling To Learn More
Specifications
Equipped With
FADAL 6030B-II 3-AXIS CNC VERTICAL MACHINING CENTER
New 2017
SPECIFICATIONS:
X-Axis Travel: 60″
Y-Axis Travel: 30″
Z-Axis Travel: 30″
Table Size: 62.5″ x 30″
Spindle Speed: 10,000 rpm
Spindle Taper: CAT 40
Spindle Power: 22.5 hp
Rapid Traverse (x/y/z): 400 ipm
Approx. Dimensions: 158″ x 103″ x 122″
Approx. Weight: 18,000 lbs
EQUIPPED WITH:

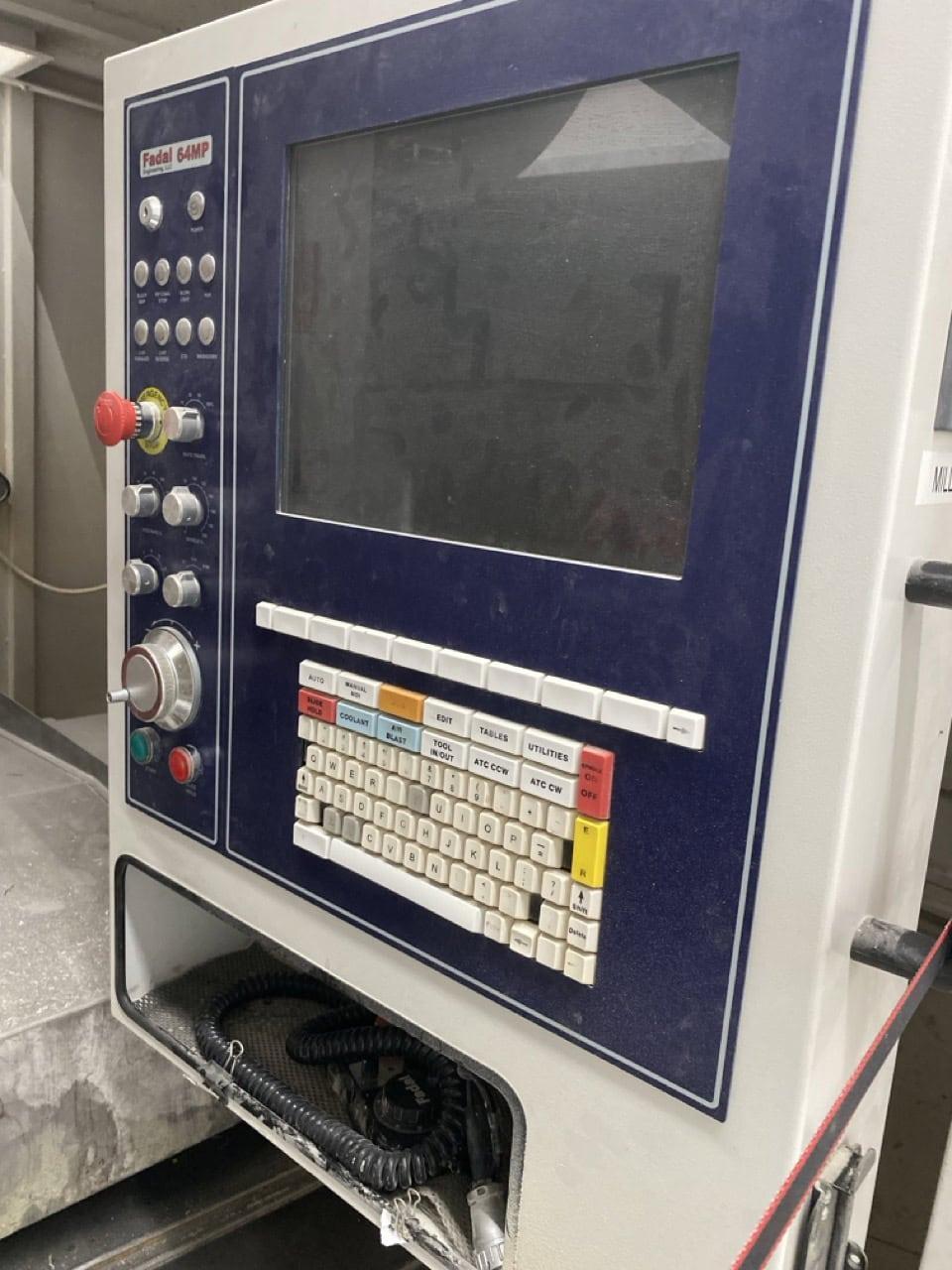

Fadal 64MP Control
30 Position DATC
Spindle Chiller
Rigid Tap
High Torque
Remote Manual Pulse Generator
4th Axis Servo Disconnect
Marposs Wireless Probe & Tool Presetter
Attachments
There are no files attached to this listing currently. If you Have any further questions regarding this listing, please contact us for more information.
