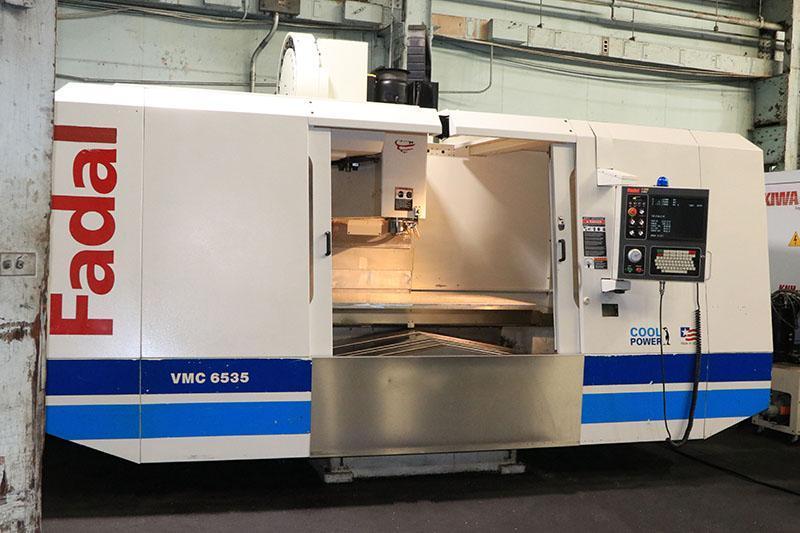

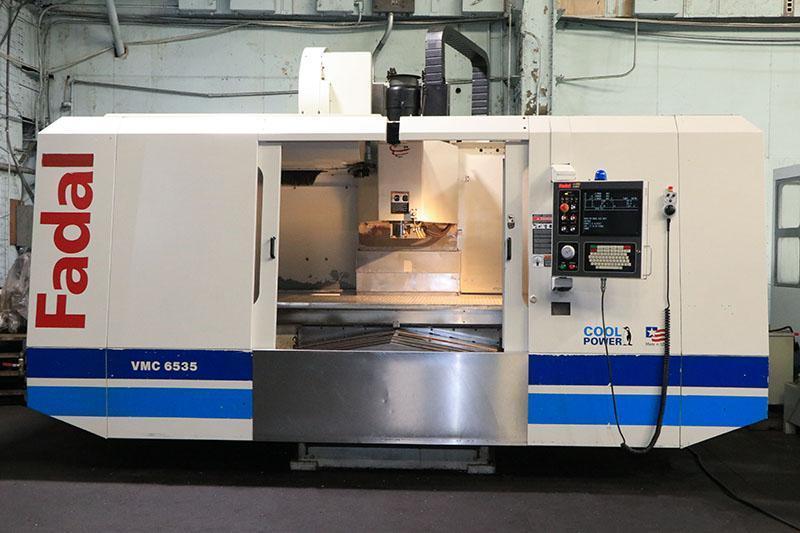

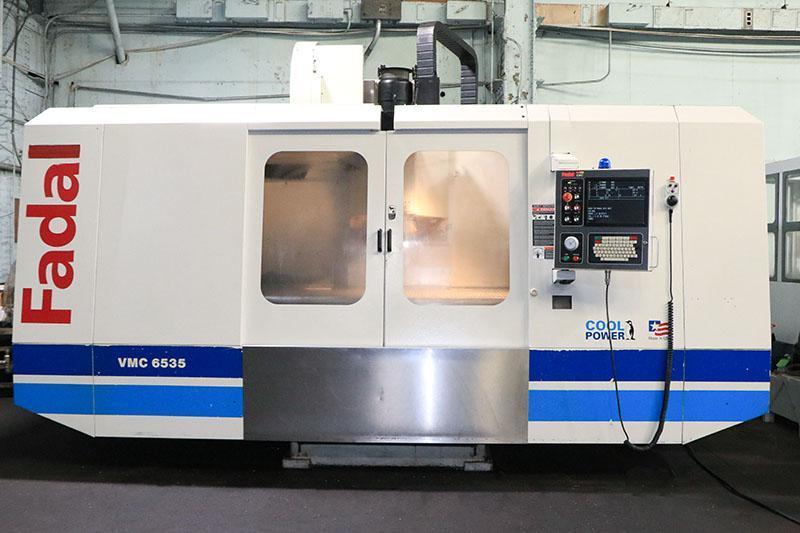

FADAL VMC-65354T-HT VERTICAL MACHINING CENTER

new 2005

SPECIFICATIONS:

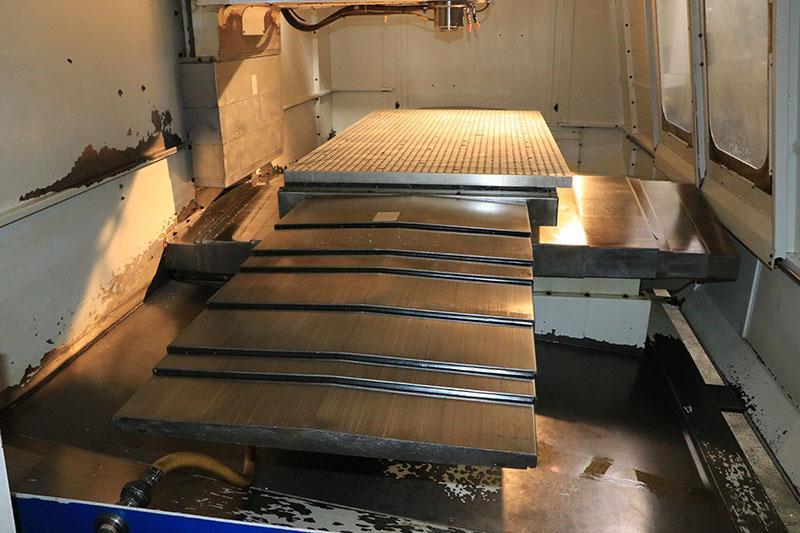

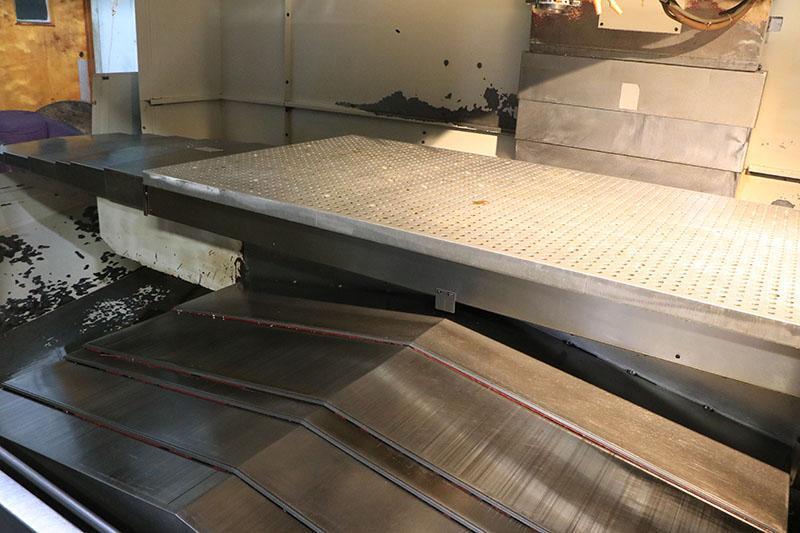

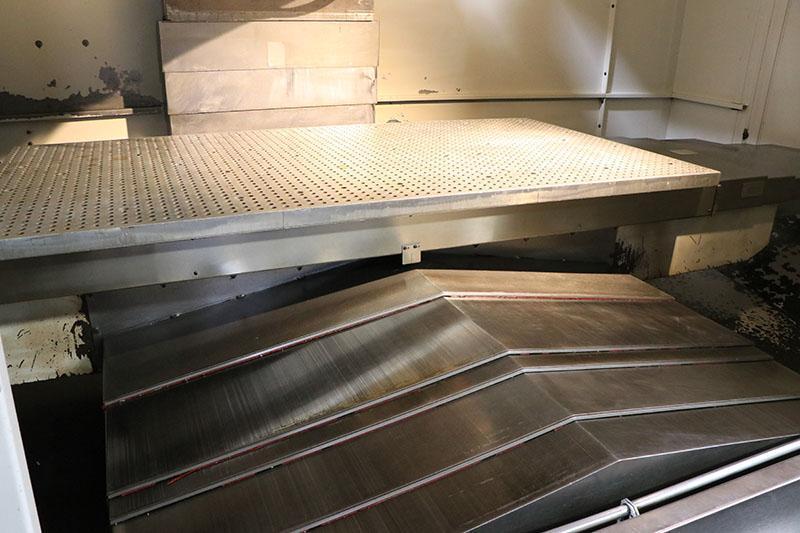

TABLE SIZE ................................... 75" x 35"

TABLE WEIGHT CAPACITY ........................ 4,250 LBS

MACHINE TRAVELS:

    X - AXIS ................................. 65"

    Y - AXIS ................................. 35"

    Z - AXIS ................................. 34"

TABLE TOP TO SPINDLE ......................... 4" - 38"

THROAT DEPTH ................................. 34"

SPINDLE NOSE ................................. #40 CT

SPINDLE SPEED ................................ 10,000 RPM

TOOL MAGAZINE ................................ 24 ATC

MAX TOOL DIAMETER ............................ 3" / 6"

MAX TOOL LENGTH .............................. 15"

RAPID TRAVERSE - X/Y AXIS .................... 900 IPM

RAPID TRAVERSE - Z-AXIS ...................... 700 IPM

CUTTING FEEDRATE ............................. 400 IPM

MAIN MOTOR ................................... 22.5 HP

MACHINE WEIGHT ............................... 28,500 LBS.

APPROXIMATE DIMENSIONS ....................... 219"W x 130"D x 133"MAX H

EQUIPPED WITH:

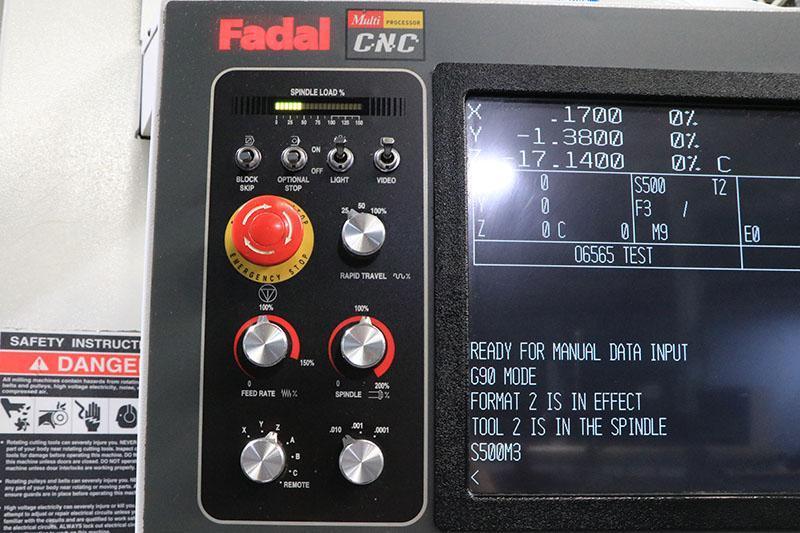

FADAL MODEL: 32 MP CNC CONTROL

   HIGH SPEED CPU, GRAPHICS, COLOR MONITOR, 422K MEMORY

RIGID TAPPING

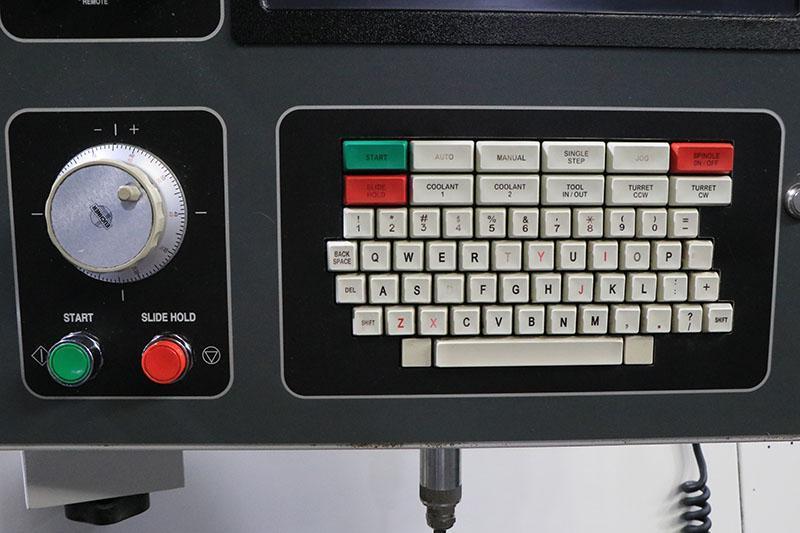

REMOTE JOG HANDLE

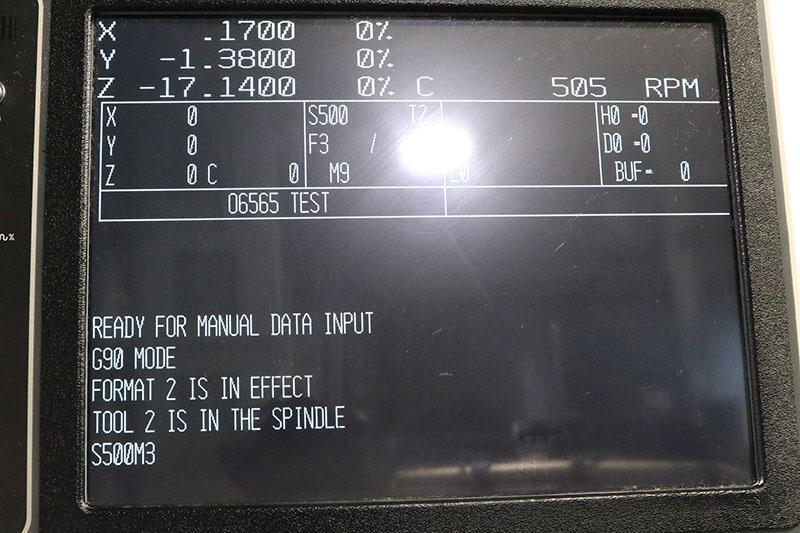

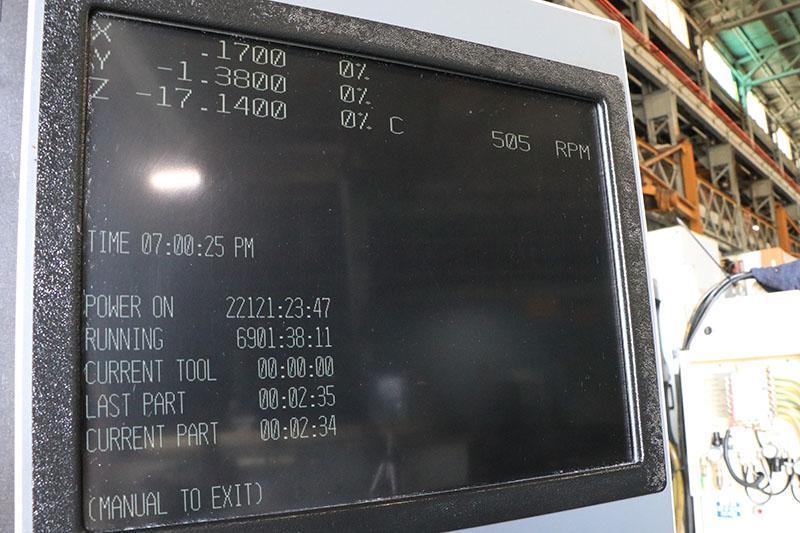

LCD MONITOR

COOLANT THROUGH SPINDLE

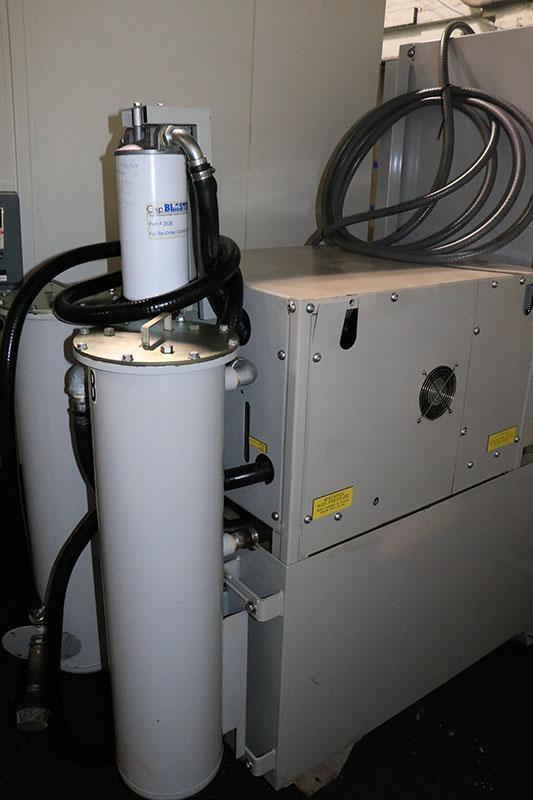

CHIP BLASTER HIGH PRESSURE

COOLANT SYSTEM & WASH DOWN

HIGH TORQUE SPINDLE

24 STATION SIDE MOUNTED TOOL CHANGER

COOL POWER (TEMPERATURE CONTROL OF SPINDLE & BALLSCREWS)

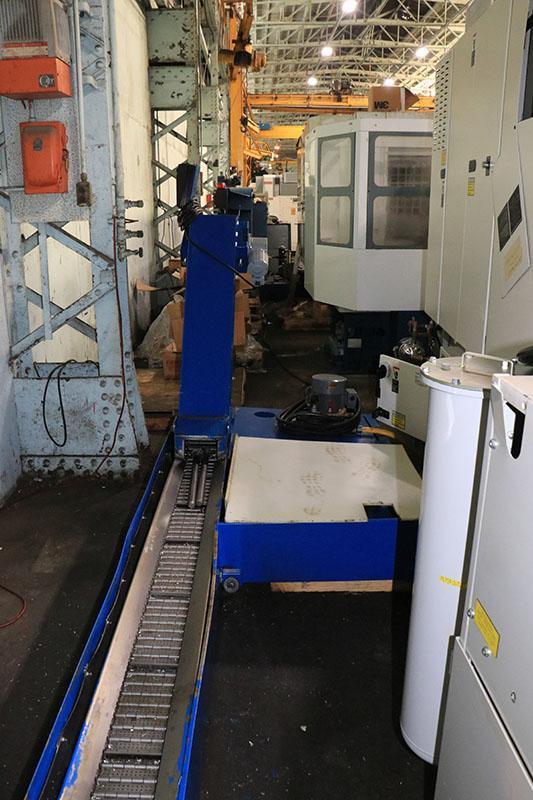

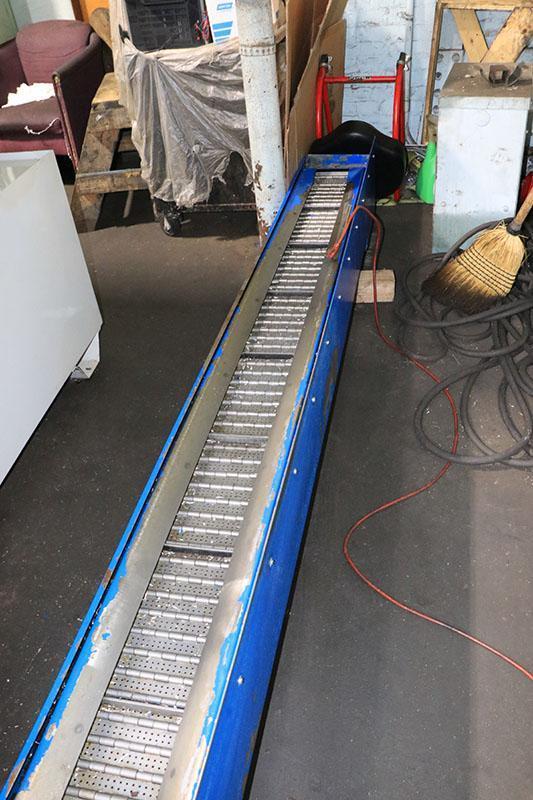

CHIP CONVEYOR

BOX WAYS ALL AXES
