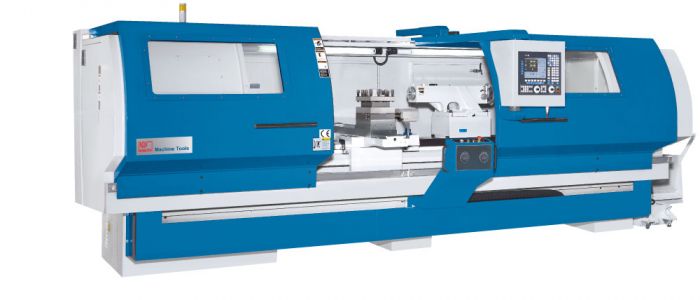

KNUTH "Forceturn" CNC BOX WAY LATHE
Year
Not provided
Stock #
16164
Condition
New
Keep Scrolling To Learn More
Specifications
Equipped With
| Forceturn 630.15 | Forceturn 630.30 | Forceturn 630.50 | Forceturn 800.15 | Forceturn 800.30 | Forceturn 800.50 | |
|---|---|---|---|---|---|---|
| Working Area | ||||||
| Turning diameter over bed | 26 in | 26 in | 26 in | 32 in | 32 in | 32 in |
| Bed width | 18 in | |||||
| Center height | 13 in | 13 in | 13 in | 17 in | 17 in | 17 in |
| Turning-¯ over support | 16 in | 16 in | 16 in | 22 in | 22 in | 22 in |
| Workpiece length (max.) | 63 in | 122 in | 201 in | 63 in | 122 in | 201 in |
| Travels | ||||||
| Travel X-axis | 17.7 in | |||||
| Travel Z-axis | 59 in | 118 in | 197 in | 59 in | 118 in | 197 in |
| Headstock | ||||||
| Speed range | 27 - 2,250 rpm | 27 - 2,250 rpm | 27 - 2,250 rpm | 20 - 1,500 rpm | 20 - 1,500 rpm | 20 - 1,500 rpm |
| Spindle mount | D1-8 | D1-8 | D1-8 | A1-11 | A1-11 | A1-11 |
| Spindle bore | 3 in | 3 in | 3 in | 4 in | 4 in | 4 in |
| Rapid Feed | ||||||
| Rapid Feed X-axis | 196.85 in/min | |||||
| Rapid Feed Z-axis | 196.85 in/min | |||||
| Tool Head | ||||||
| Number of tool stations | 4 positions | |||||
| Accuracies | ||||||
| Positioning accuracy X-axis | 0.00059 in | |||||
| Positioning accuracy Z-axis | 0.00059 in | 0.00079 in | 0.00118 in | 0.00059 in | 0.00079 in | 0.00118 in |
| Repeatability X-axis | 0.00028 in | |||||
| Repeatability Z-axis | 0.00028 in | 0.00039 in | 0.00059 in | 0.00028 in | 0.00039 in | 0.00059 in |
| Tailstock | ||||||
| Tailstock taper | MT 5 | |||||
| Tailstock quill diameter | 4 in | |||||
| Tailstock quill stroke | 7 in | |||||
| Drive Capacity | ||||||
| Motor rating main drive | 20.1 Hp | |||||
| Main drive, continuous load | 29.5 Hp | |||||
| Motor rating X-axis | 2.7 Hp | |||||
| Motor rating Z-axis | 4.83 Hp | |||||
| Measures and Weights | ||||||
| Overall dimensions (length x width x height) | 158x89x89 in | 217x89x89 in | 296x89x97 in | 158x89x89 in | 217x89x89 in | 296x89x97 in |
| Weight | 9,020 lbs | 12,320 lbs | 16,720 lbs | 9,900 lbs | 13,200 lbs | 17,600 lbs |
- Lots of experience went into the design and construction of this machine bed featuring large guides that are hardened, ground and counter-laminated
- Powerful main drive motor handles part weights up to 3748 lb with ease
- Infinitely variable, programmable, and adjustable spindle speeds with automatic 3-step main gear

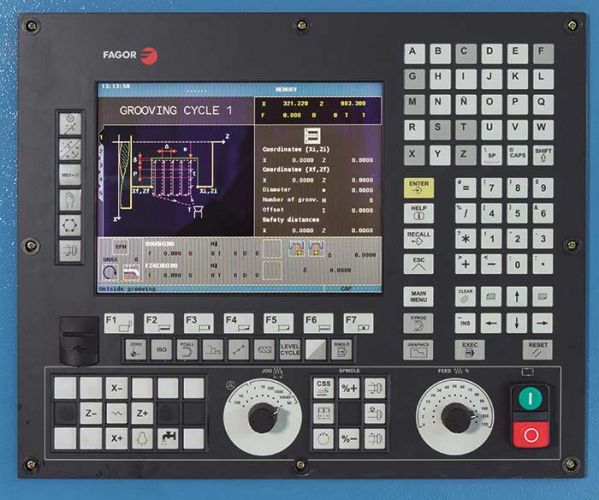

- Fagor 8055i A-TC featuring intuitive, easy to learn cycle programming, including Profile Editor, for batch and single part production of complex workpieces
- Graphical simulation for added safety
- Heavy, automatic 4-station servo-driven tool changer for programmed tool changes
- 2 electronic hand-wheels at the control panel for manual operation and for easy, quick setup of new workpieces and tools
- A high-performance coolant system and automatic central lubrication system are included
- The FAGOR 8055 Numeric Controls are user-friendly and easy to handle
- A graphical Profile Editor is available to facilitate contour input. The contour to be produced can easily be created by using the information from parts drawings
- The graphically displayed cycles can be used individually or they can be linked within a user application
- The Fagor 8055i/A Version TC Cycle Control is a powerful CNC, specifically designed for the most demanding machine tool applications. Its calculation capacity and high speed ensure maximum power and increased programming flexibility.
- Profile Editor
- DIN ISO programming is also possible
- Fixed cycles with options for graphic geometry definition
- With multi-threaded thread cycle
- Thread repair with cycle
- Graphic simulation with solid body display, including simultaneous for editing
- Easy to use tool management
- USB port
- RS232 port
- Look Ahead function (75 blocks)
- Block Processing Time: 1.5 ms
- Compact Flash with storage expansion up to 2 GB
- Optional C axis function prepared for lathes
- Optional up to 1 MB RAM user memory
- Optional free M-Codes, inputs and outputs
- Fagor 8055i FL-TC control
- 2 electronic hand-wheels
- 3-jaw chuck ¯ 12Ó
- automatic 3-step gears
- 4-station servo tool holder
- coolant system
- central lubrication
- tailstock
- work lamp
- operating tools
- operating manual and programming instructions
