8" x 18" KNUTH MODEL FSM 480 SURFACE GRINDER
Year
Not provided
Stock #
16166
Condition
New
Keep Scrolling To Learn More
Specifications
Equipped With
| Table dimensions | 8x18 in |
| Spindle axis-to-table surface distance | 17.72 in |
| Travel X-axis | 18.9 in |
| Travel Y-axis | 9 in |
| Travel distance per hand-wheel rotation, X-axis | 0.2 in |
| Travel distance per hand-wheel rotation, Y-axis | 0.2 in |
| Travel distance per hand-wheel rotation, Z-axis | 0.04 in |
| Scale ring division X-axis | 0.00079 in |
| Scale ring division Y-axis | 0.00079 in |
| Scale ring division Z-axis | 0.0002 in |
| Roughness | >= 0,63 µm Ra |
| Motor rating main drive | 2 Hp |
| Grinding wheels dimensions | 8x1x1 in |
| Weight | 1,606 lbs |
| Part No. | 122802 |

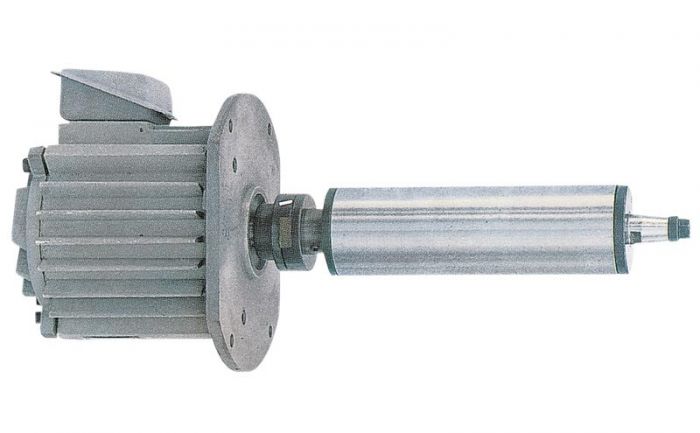

- Spindle resists high loads; mounted in pre-loaded angular deep-groove ball bearings ensures low-vibration operation, high accuracy, increased lifetime and low maintenance
- Completely leak-proof and balanced spindle motor with high load capacity
- Solid, vibration-absorbing construction
- V- and flat guides in X and Y direction for consistently high accuracy
- Longitudinal table movement over linear ball guide; linear roller guide way
- Adjustable hand wheel scales for vertical and transverse adjustments allows zeroing at any position
- Central lubrication
- Grinding parallelism 0.0002" / 12"
- exhaust vacuum
- work lamp
- magnetic clamping plate 5"x11.75"
- diamond dresser
- balancing shaft
- balancing station

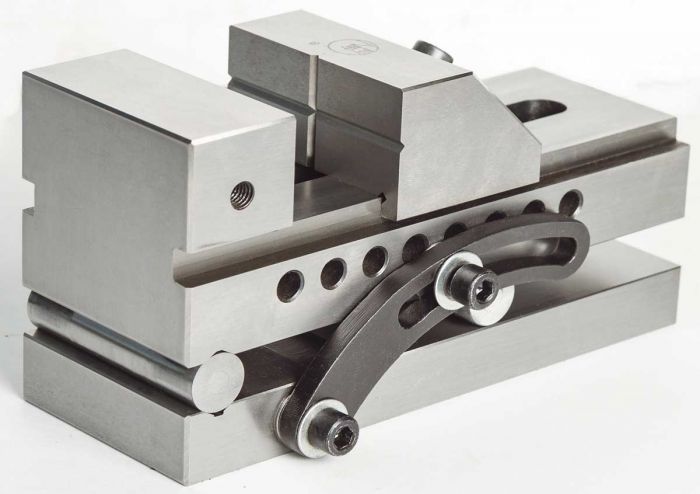

- Angle - adjustable grinding vise
- grinding wheel dresser holder
- operating tools
- operator manual
