Equipped With:

5" SPINDLE DIAMETER

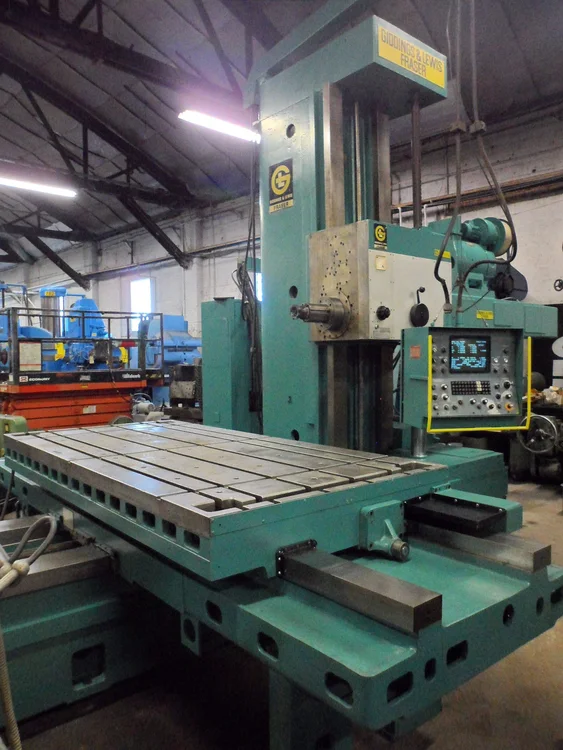

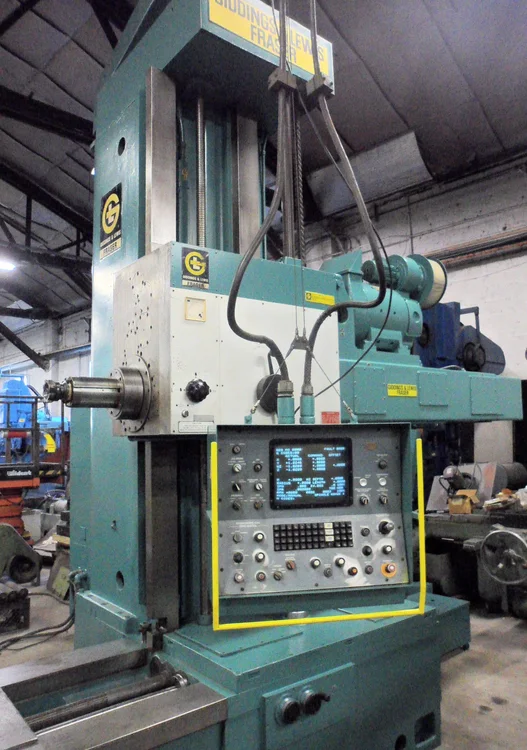

G & L "NUMERIPOINT" M-400 CONTROL WITH CRT ON PENDANT - MANUAL CONTROL
#50 TAPER W/POWER DRAW BAR
PENDANT CONTROL
SPINDLE SPEEDS 6 TO 1120 RPM
FEEDS- 0.0492 In -139.76 IPM
HEAD TRAVEL - 72"
TABLE TRAVEL - 84"
SADDLE TRAVEL - 60"
SPINDLE TRAVEL 36"

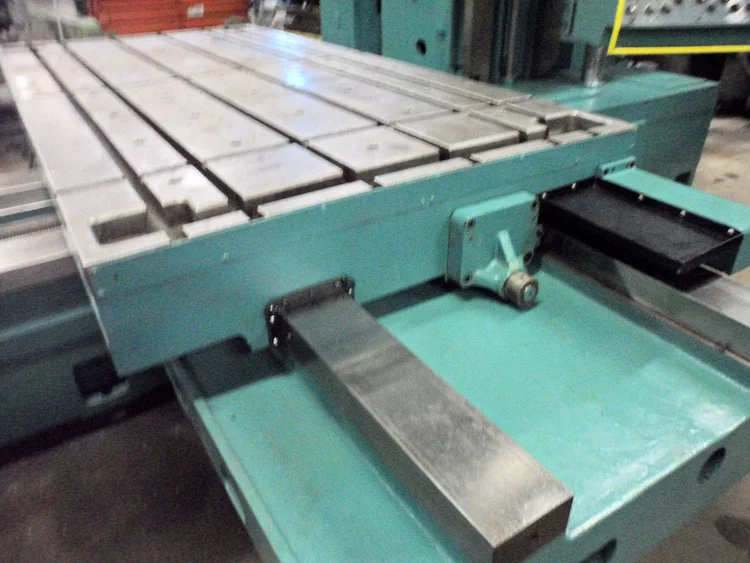

48"X 98" TABLE
EQUIPPED WITH:

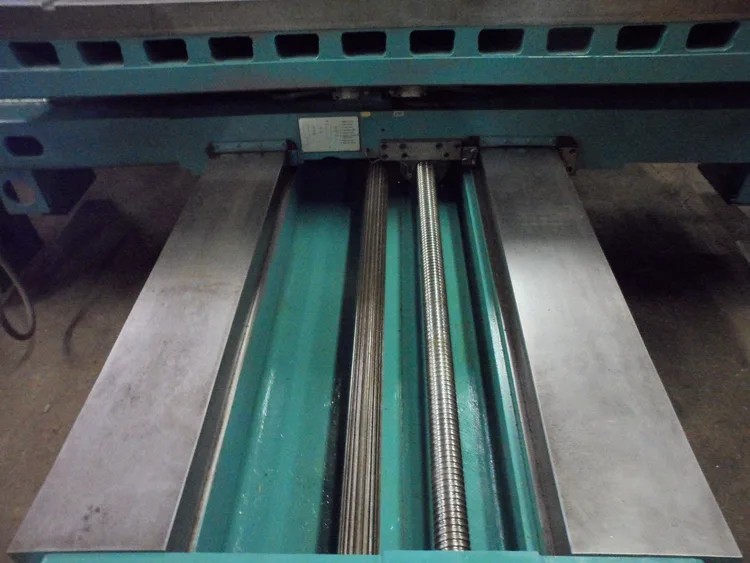

BALLSCREWS
AS WELL AS POINT TO POINT POSITIONING

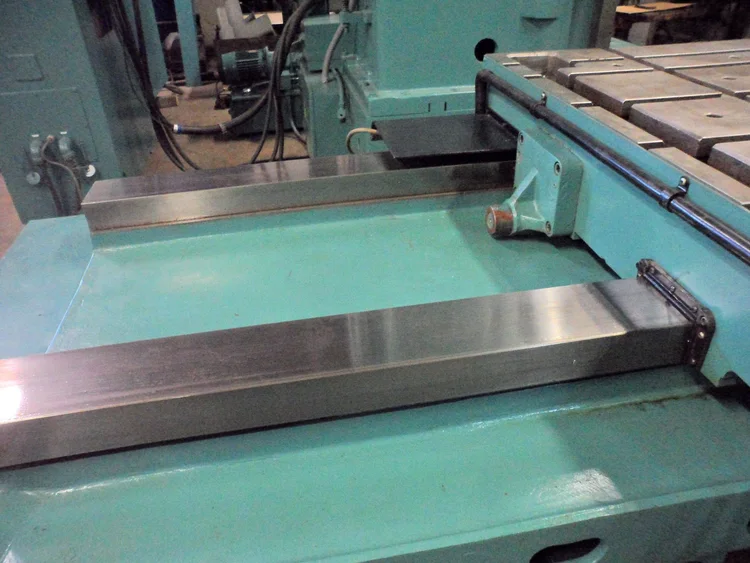

HARDENED WAYS ON TABLE AND BED
UPDATED LATER MODEL BALDOR H2 VECTOR DRIVE AND BALDOR 30 HP SPINDLE MOTOR
OUTRIGGER SUPPORTS
VOLTAGE - 480 VOLTS 3 PH 60 CYCLE
ALL AVAILABLE MANUALS & ELECTRICAL SCHEMATICS
