SPECIFICATIONS:

DIAMETER ACCURACY:  0.00005"

ROUNDNESS:  0.00005"

GRINDING DIAMETER:  MIN 0.002",  MAX 2.5"

GRINDING LENGTH:  INFEED 8"

                  THRUFEED - NO LIMIT

WORK WHEEL DIA.: 9"

WORK WHEEL LENGTH:  8-5/8"

WORK WHEEL SPINDLE POWER:  7.5HP

WORK WHEEL:  2,400 RPM

REGULATING WHEEL DIAMETER:  4"

REGULATING WHEEL:  10 TO 400 RPM

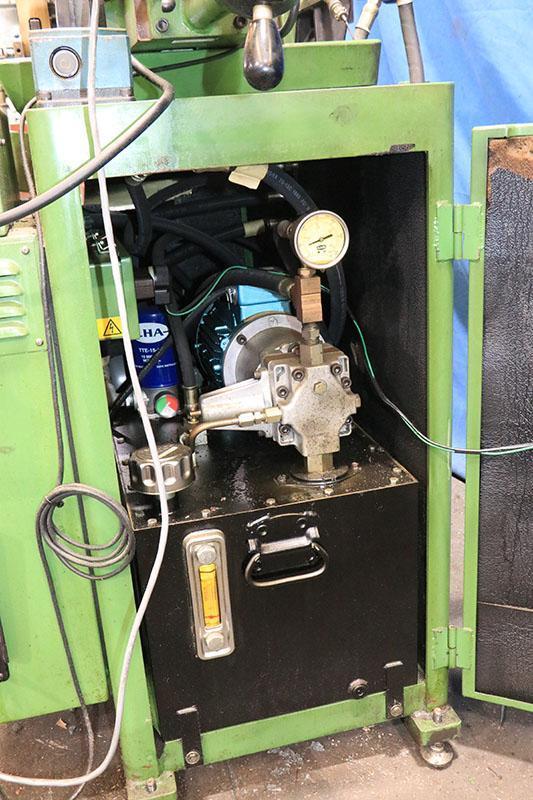

HYDRAULIC MOTOR:  2 H.P.

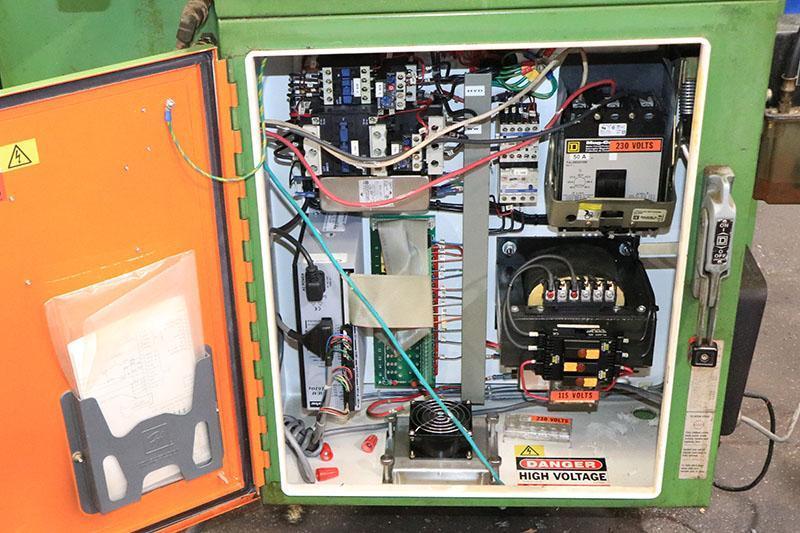

ELECTRICS: 230V, 3 PH, 60 CYC

 APPROX. MACHINE WEIGHT:  2,085 LBS.

 KEY FEATURES:

INDUSTRIAL TOUCH SCREEN WORKSTATION,

 NEMA 4 RATED

CLOSED LOOP CONTROL VIA LINEAR SCALE,

 ON THE MOVABLE SLIDE

TOUCHSCREEN PC BASED

 RUNNING INTERACT OS;

 CLOSED LOOP POSITIONING

 WITH GLASS SCALE TO 0.000050"

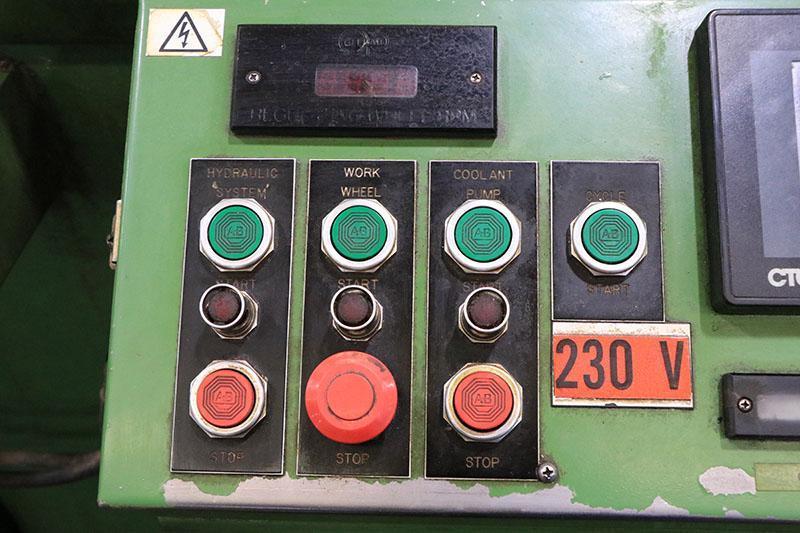

OPERATOR FRIENDLY CONTROL

INTERFACE TO MEASUREMENT INSTRUMENTS

AUTOMATIC SIZE COMPENSATION CAPABILITY

AUTOMATIC INFEED FOR FORMING SMALL SHAPED PARTS

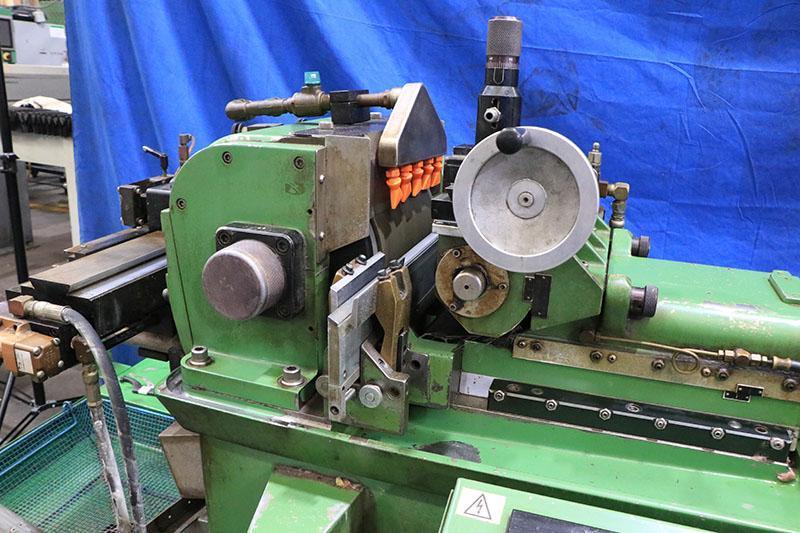

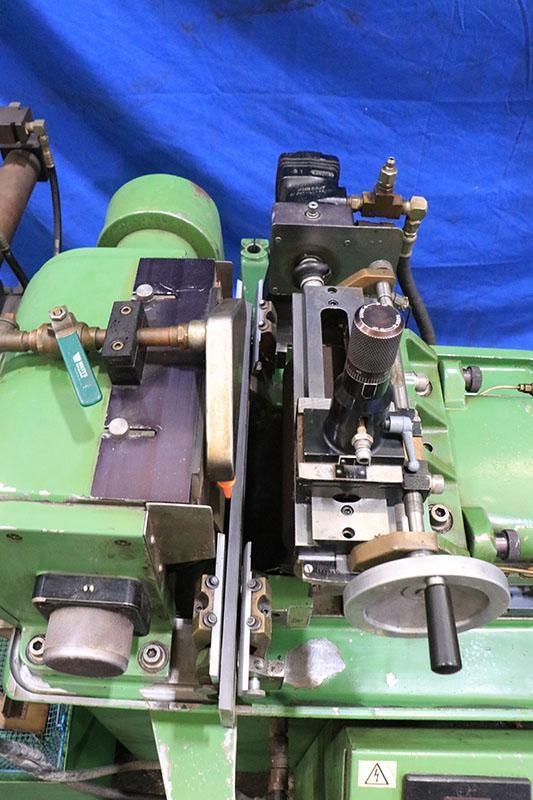

SUPER PRECISION REGULATING HOUSING

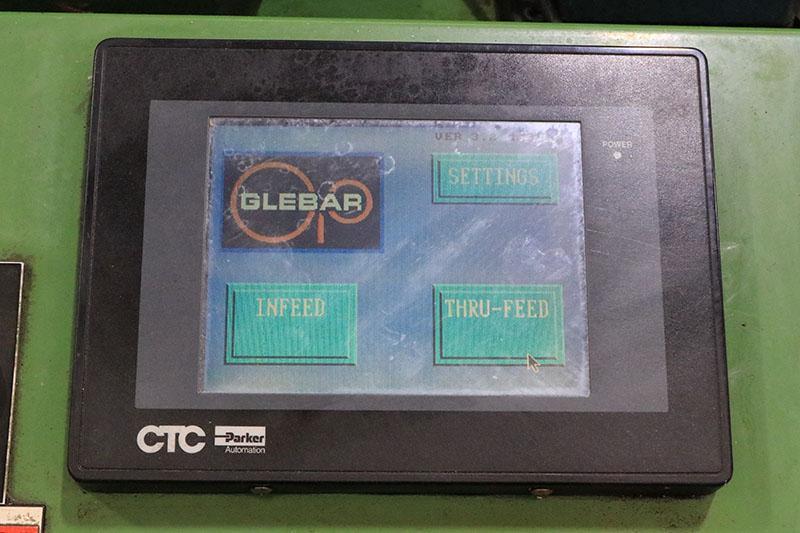

BUILT IN INFEED AND THRUFEED CYCLES,

 WITH PROGRAMMABLE INPUTS AND POSITIONING

MACHINE FEATURES:

PRECISION 8- 5/8" WIDE SPINDLES ON BOTH REGULATING

  & WORK WHEELS

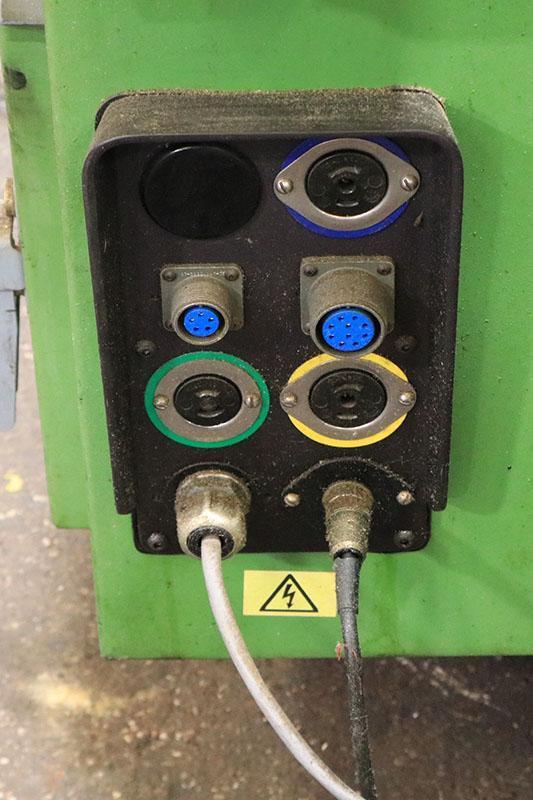

INTERFACE TO FEEDING SYSTEM

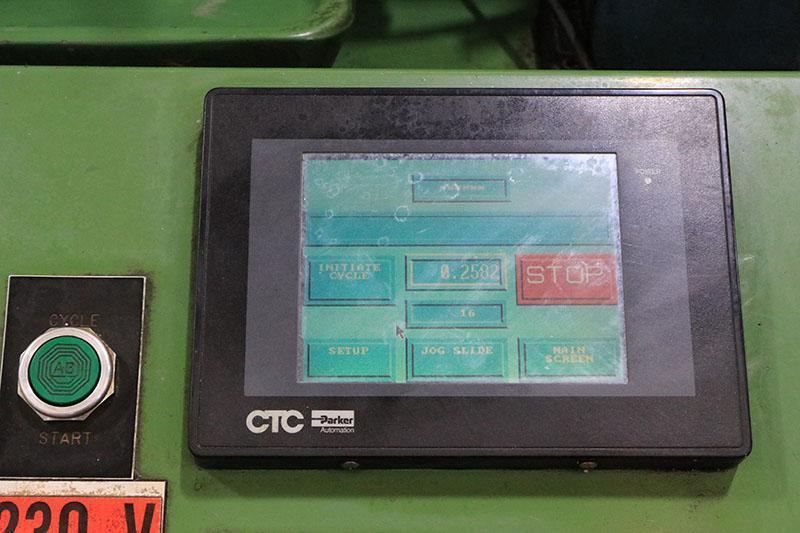

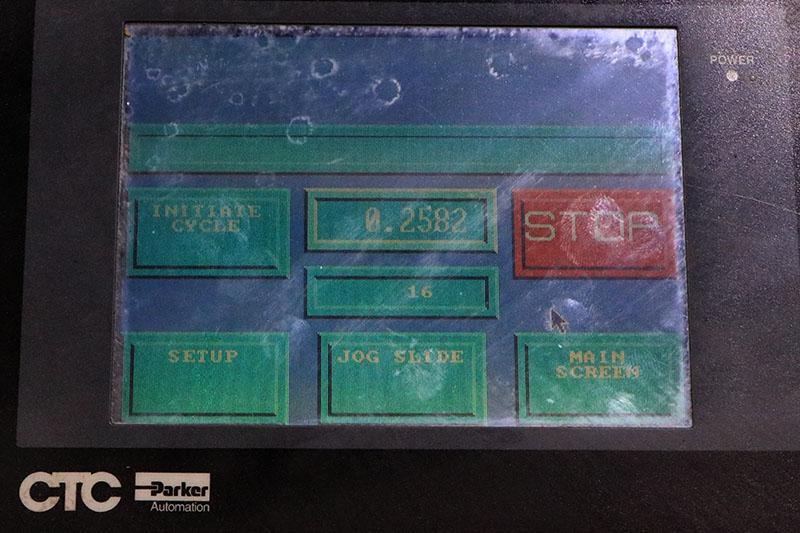

COLOR TOUCH SCREEN

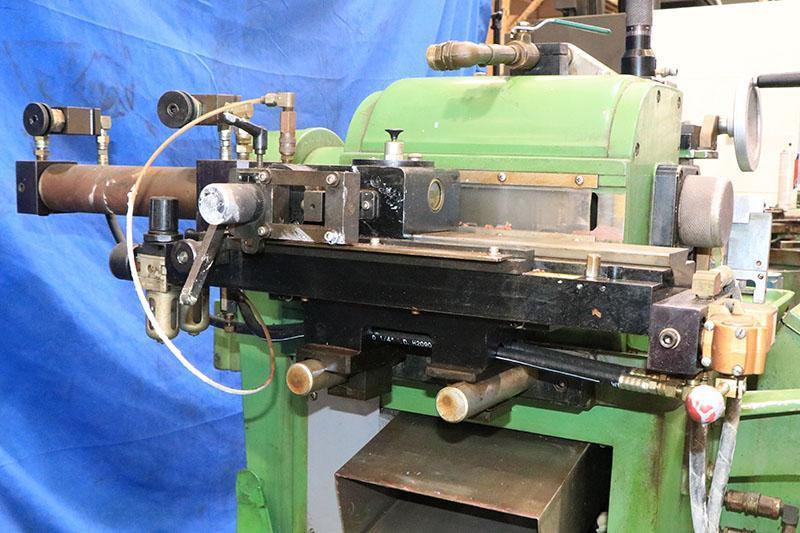

INDEPENDENT UPPER & LOWER SLIDES

PRODUCE MULTI-FORMED PARTS UP TO 8- 1/4" LONG

 OR MULTIPLE PARTS PER CYCLE.

EQUIPPED WITH:

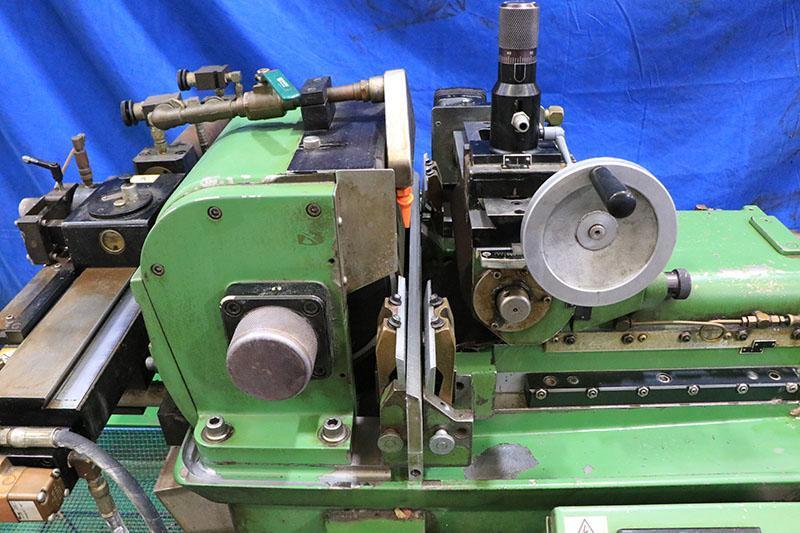

HYDRAULIC DRESSER FOR THE GRINDING WHEEL

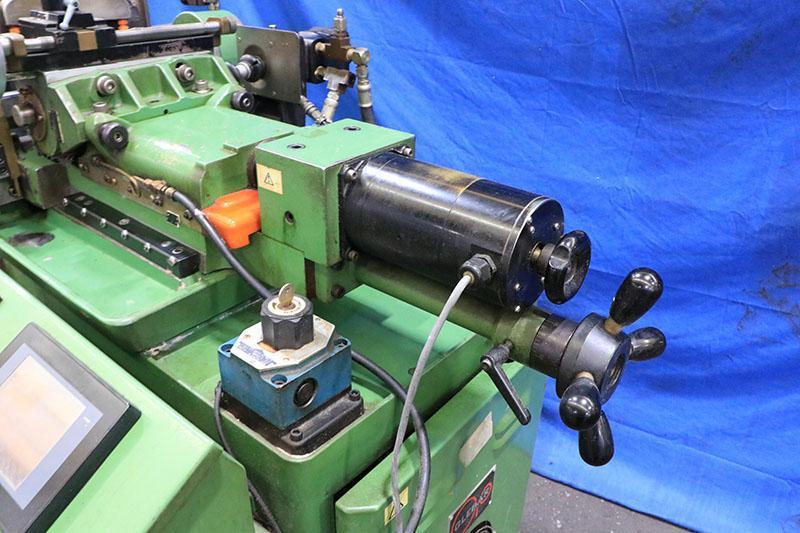

REMOVABLE MANUAL DRESSER FOR THE REGULATING WHEEL

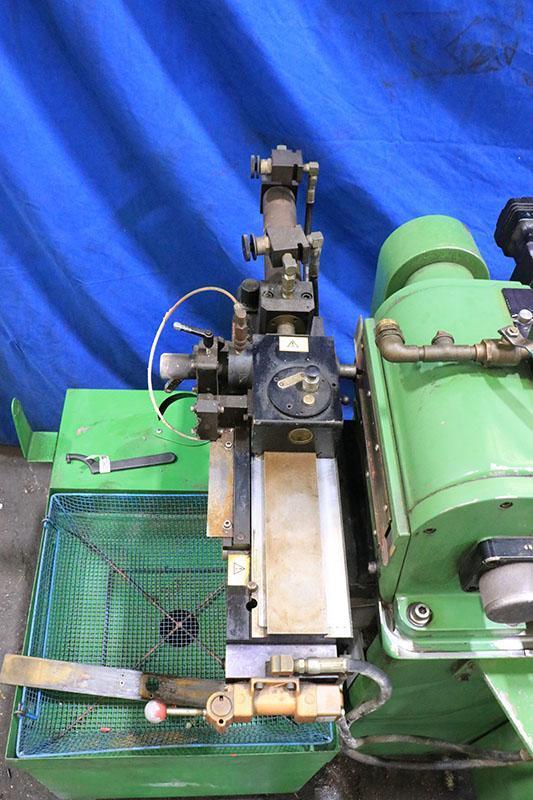

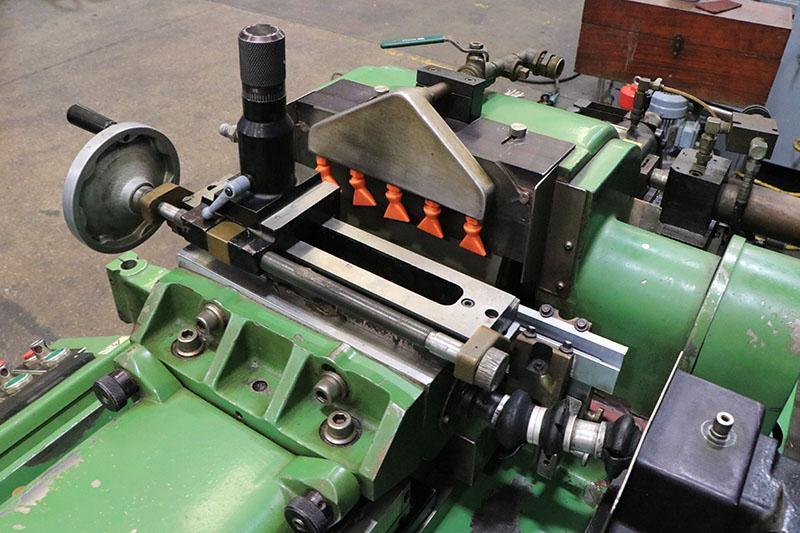

WORK REST

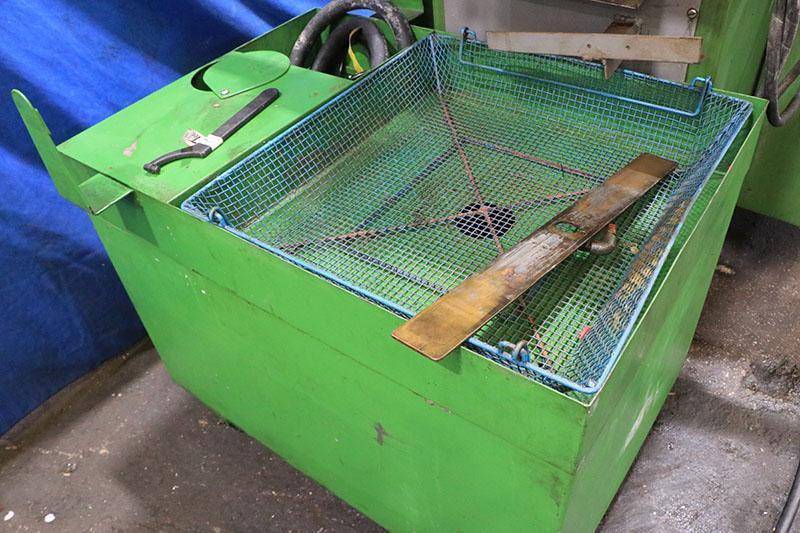

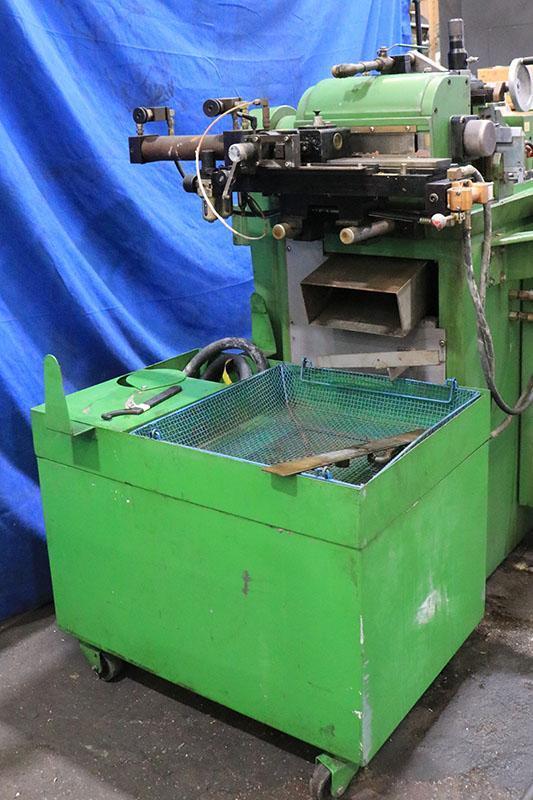

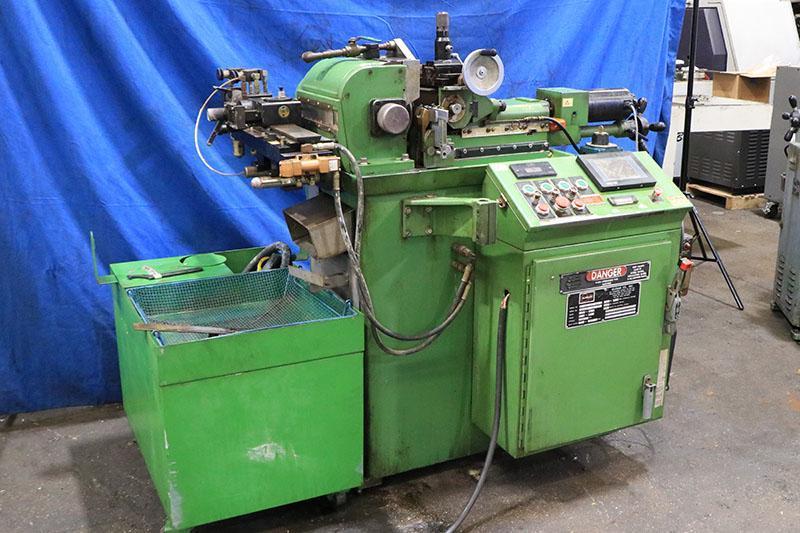

COOLANT SYSTEM, TANK WITH PUMP

CAST IRON CONSTRUCTION DESIGN

MACHINE IS PRESENTLY WIRED FOR 3/60/220 VOLTS
