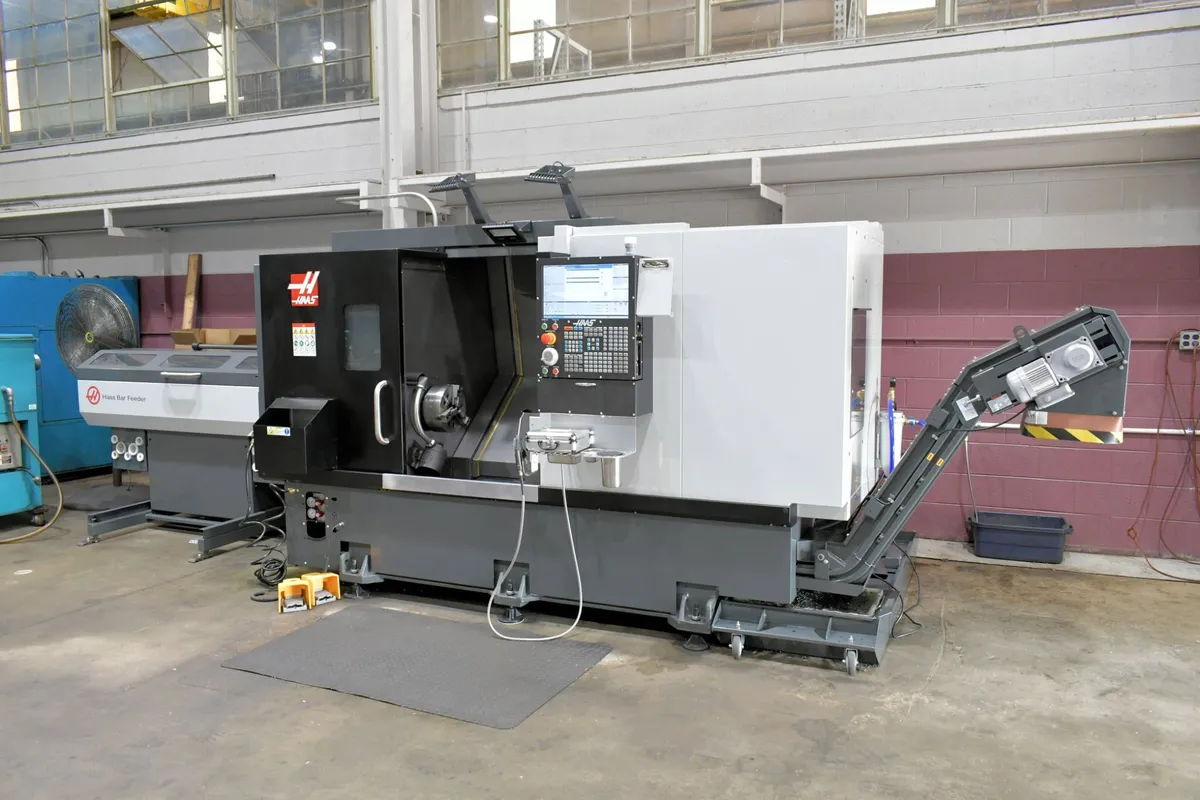

HAAS CNC LATHE MODEL ST-30 WITH HAAS V2 BARFEEDER

New: 2025

Specifications:
Swing:  21 in
Maximum Part Swing:  21 in
Maximum Cutting Diameter:  15 in
Maximum Cutting Length:  32.5 in

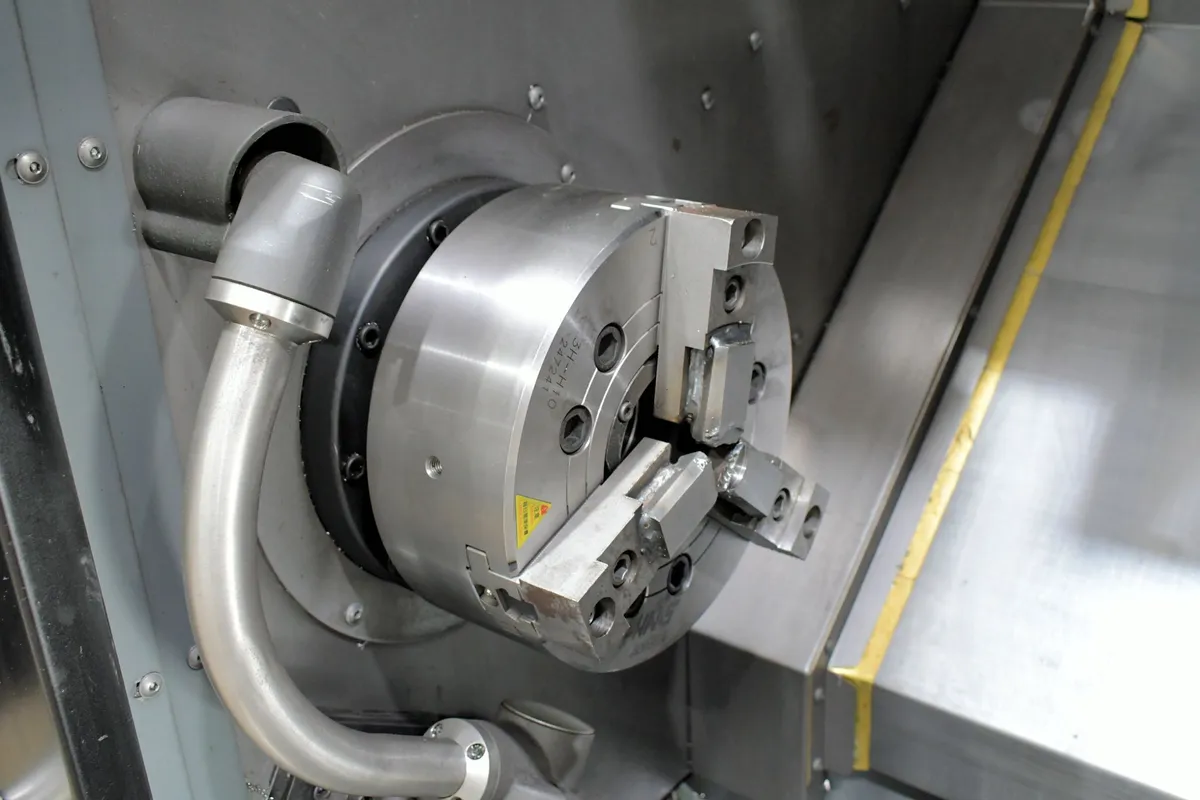

Chuck Size:  10 in Hydraulic
Bar Capacity:  3 in
Spindle Bore:  3.5 in
Spindle Nose:  A2-6

X-Axis Travel:  9.4 in
Z-Axis Travel:  32.5 in
Rapid Traverse (X / Z):  945 IPM

Maximum Thrust (X):  4,100 lbf
Maximum Thrust (Z):  5,100 lbf

Spindle Speed:  3,400 RPM
Maximum Torque:  300 ft-lb @ 500 RPM
Main Motor:  30 HP

Tool Capacity:  12 Station BOT Turret
Boring Bar Rear Clearance:  4 in

Coolant Capacity:  55 Gallons
Air Requirement:  100 PSI
Drive System:  Direct Speed Belt Drive
Electrical:  220 Volt / 3 Phase

Overall Dimensions:  171 in × 90 in × 98 in
Machine Weight:  10,900 lbs

Equipped with:

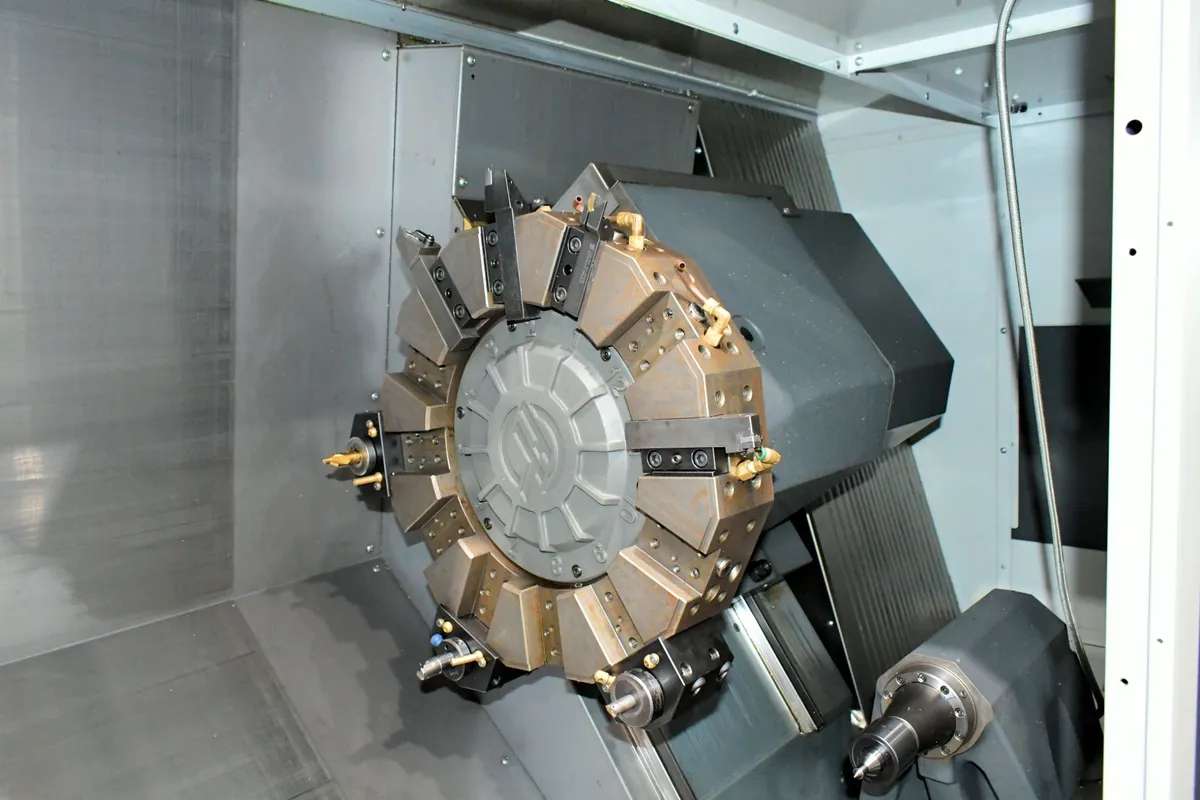

12-Station BOT Turret

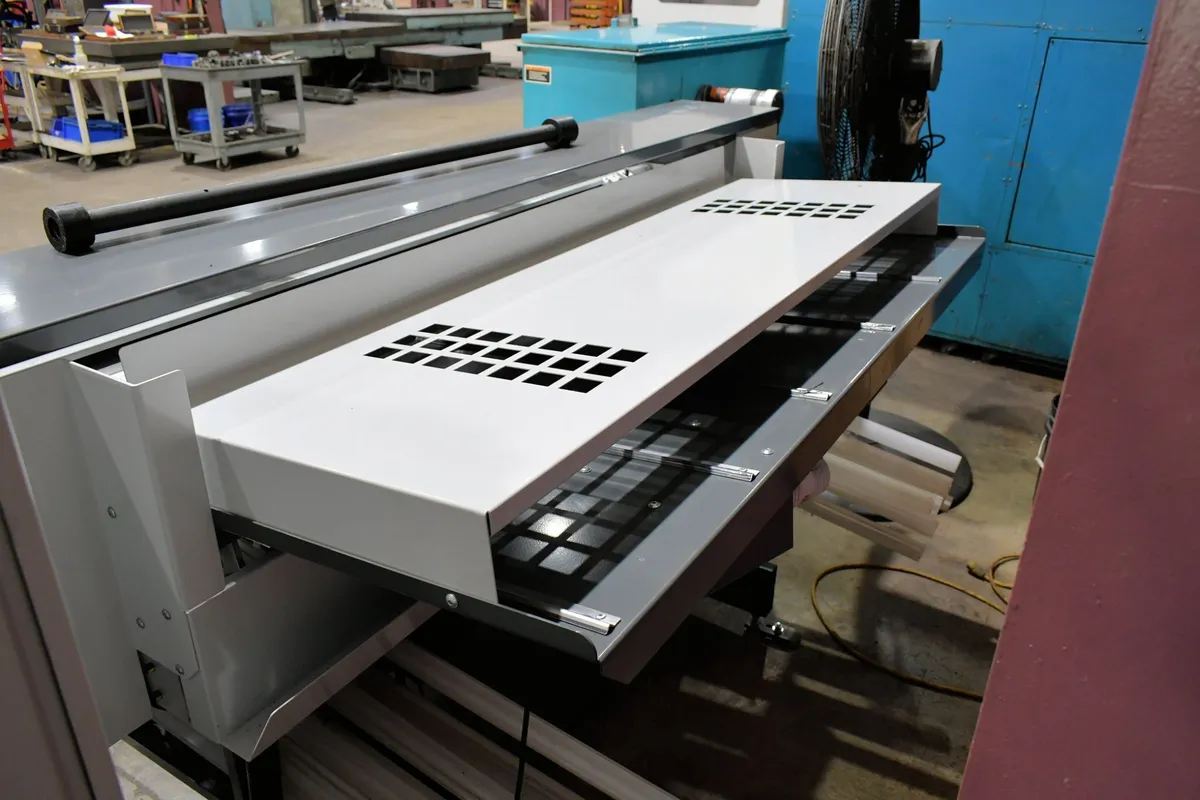

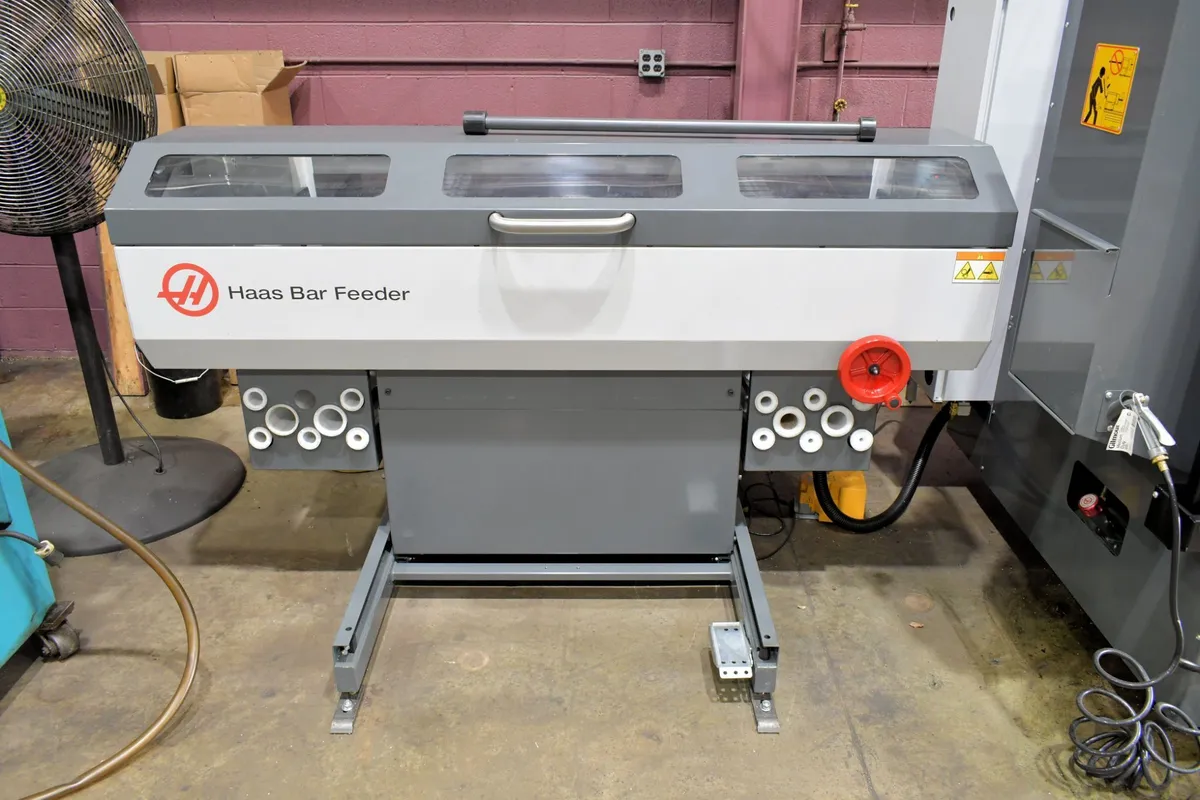

Haas V2 Automatic Barfeeder (0.375 in – 3 in Capacity)
48 in Maximum Bar Length
10 in Minimum Bar Length
(30) 1 in Bar Tray Capacity

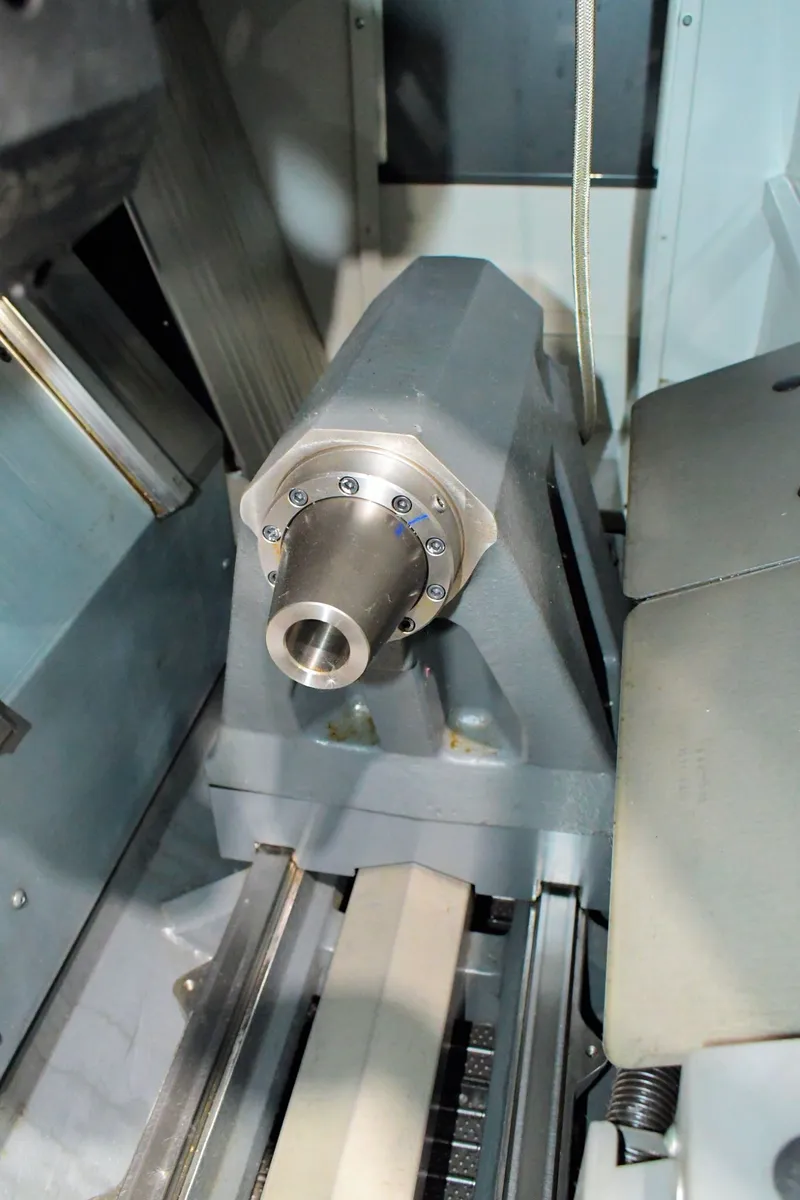

Programmable Hydraulic Tailstock

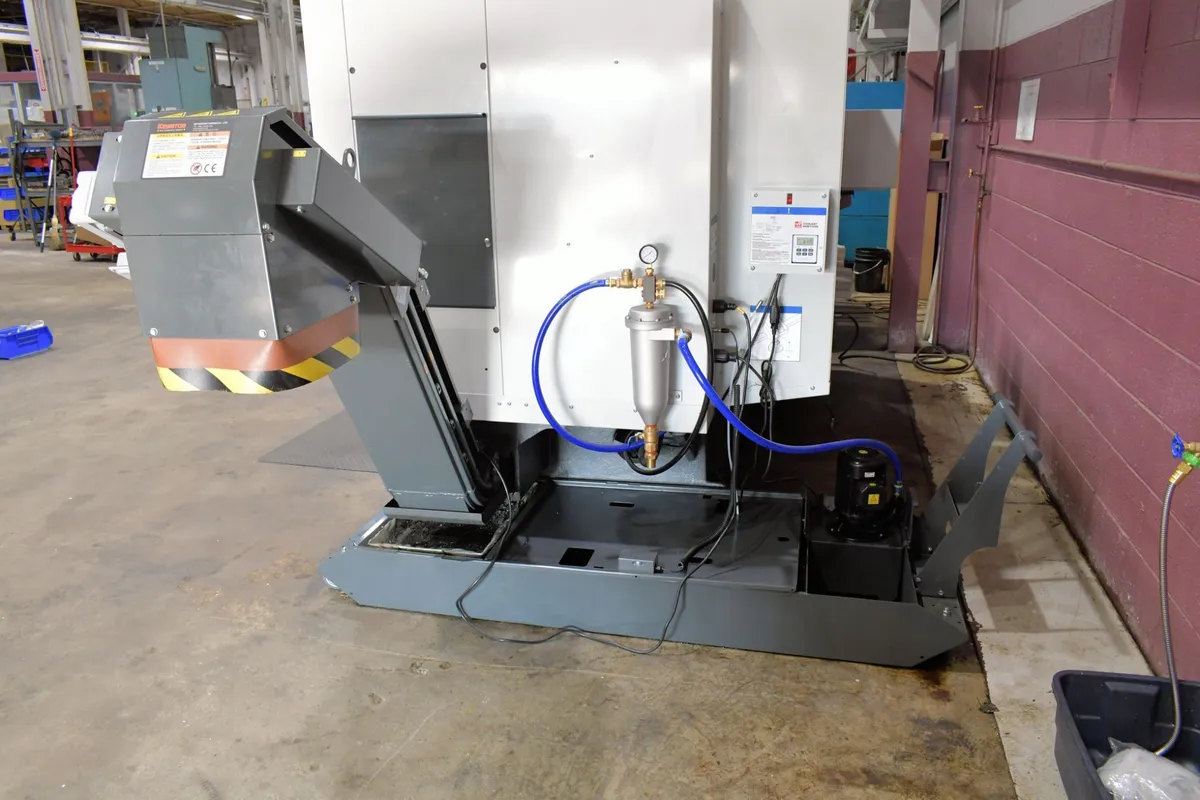

Key Arrow Belt-Type Motorized Chip Conveyor

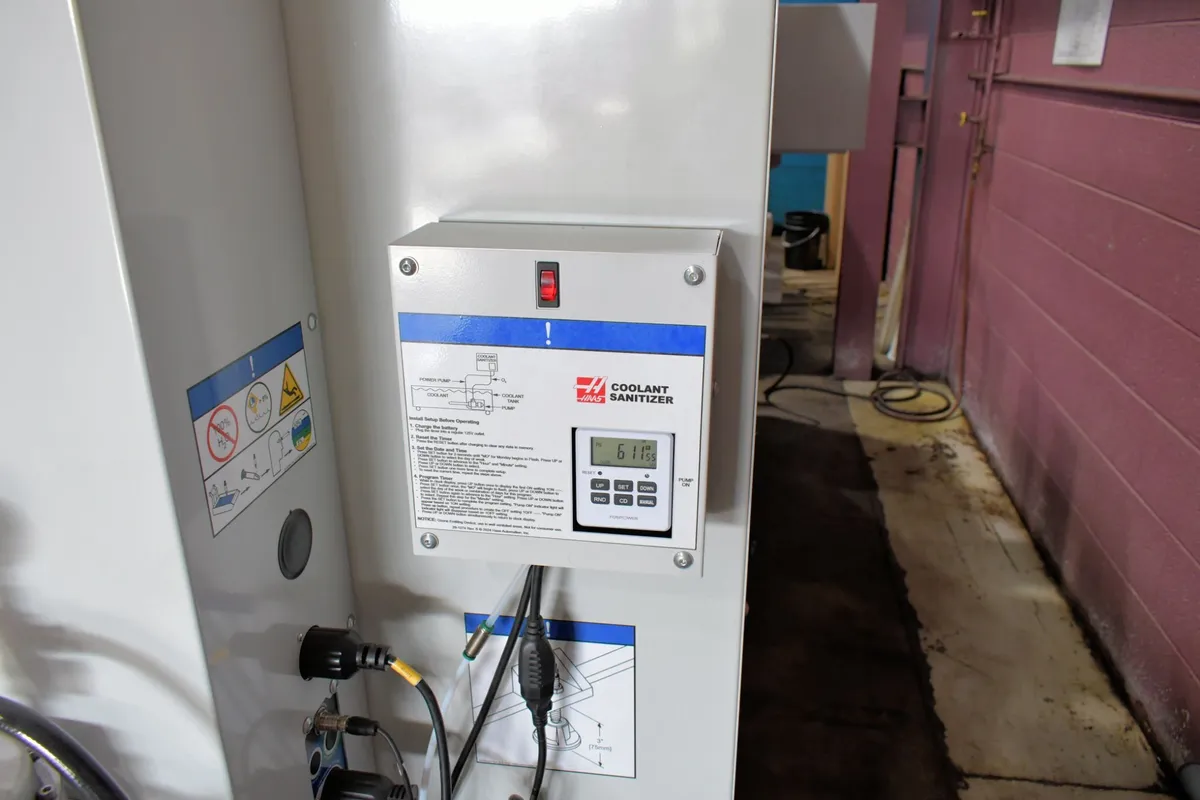

Haas Coolant Sanitizer
Single-Stage Coolant Pump

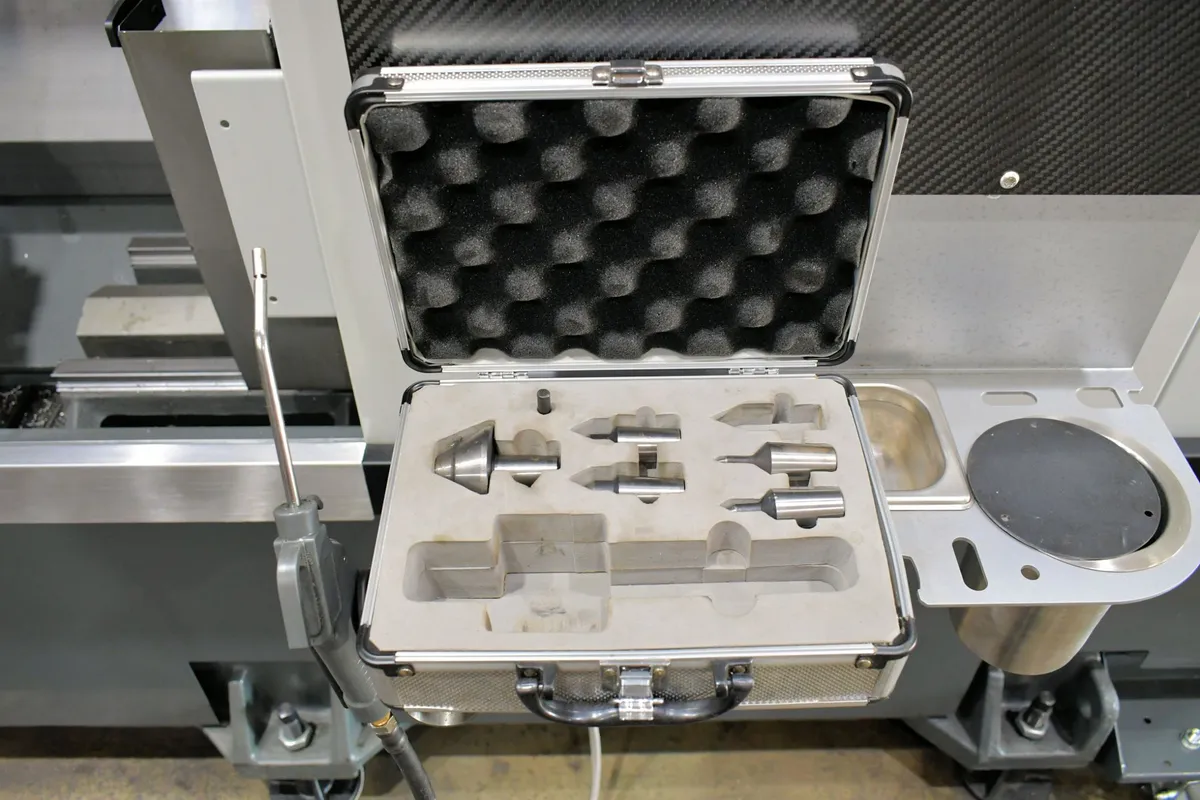

Automatic Tool Presetter
Rigid Tapping
Parts Catcher
CNC Control Cabinet Cooler
24V High-Intensity Lighting
1 GB Standard Program Memory
Visual Part Programming System (VPS)
User-Definable Macros
Early Power Failure Detection Module
Ethernet Interface
Haas Connect Remote Monitoring
HaasDrop
Media Display M-Code (M130)
Phone Charging Stand
Safe Run
Power Surge Protection

Notes:
Machine Sold As-Is, Where-Is.
