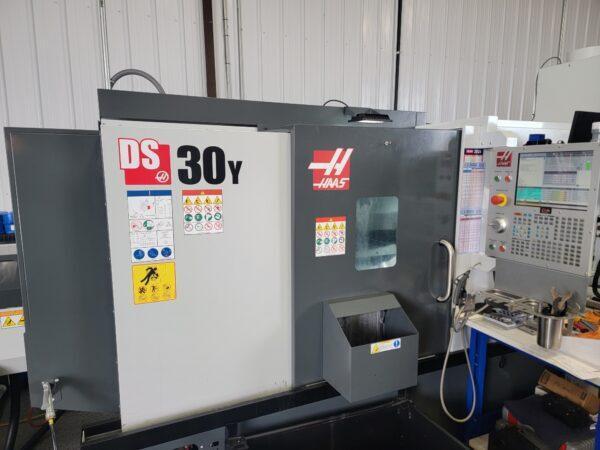

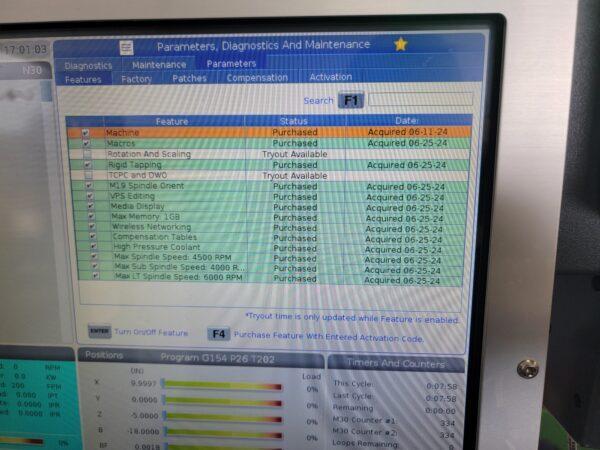

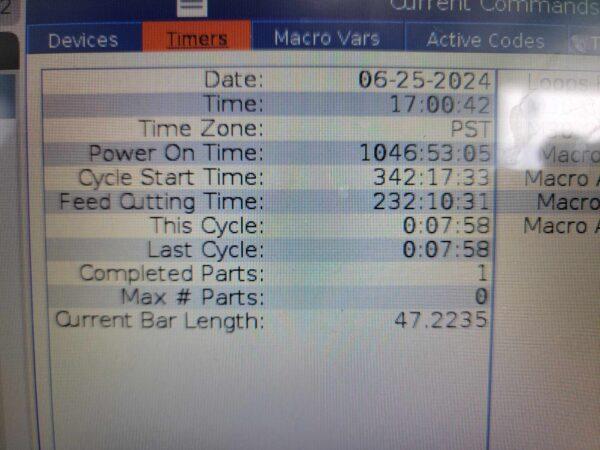

HAAS DS-30Y CNC LATHE-FULLY EQUIPPED, BAR FEEDER, LOW HOURS, TAILSTOCK

New: 2023

Specifications:

Swing Diameter:
Over Front Apron: 31.8 in (806 mm)
Over Cross Slide: 20.8 in (527 mm)
Over Second Spindle: 21.8 in (552 mm)

Capacities:
Chuck Size: 10.0 in (254 mm)
Max Cutting Diameter (varies with turret): 18.0 in (457 mm)
Max Cutting Length (varies with workholding): 23.0 in (584 mm)
Bar Capacity: 3.00 in (76 mm)

Travels:
X Axis: 12.5 in (318 mm)
Z Axis: 23.0 in (584 mm)

Feedrates:
Rapids on X: 472 ipm (12.0 m/min)
Rapids on Y: 472 ipm (12.0 m/min)
Rapids on Z: 945 ipm (24.0 m/min)

Axis Motors:
Max Thrust X: 4100 lbf (18238 N)
Max Thrust Y: 2300 lbf (10231 N)
Max Thrust Z: 5100 lbf (22686 N)

Spindle:
Spindle Nose: A2-6
Drive System: Direct Speed, Belt Drive
Max Rating: 30.0 hp (22.4 kW)
Max Speed: 4500 rpm
Max Torque: 275 ft-lbf @ 600 rpm (373 Nm @ 600 rpm)
Spindle Bore: 3.50 in (88.9 mm)

Main Spindle C Axis:
Max Rating: 5.0 hp (3.7 kW)
Positioning (±) 0.01°
Brake Clamp Force: 1000 lbf (4448 N)
Brake Diameter: 14.4 in (366 mm)
Control Type: Interpolated Motion and Positioning

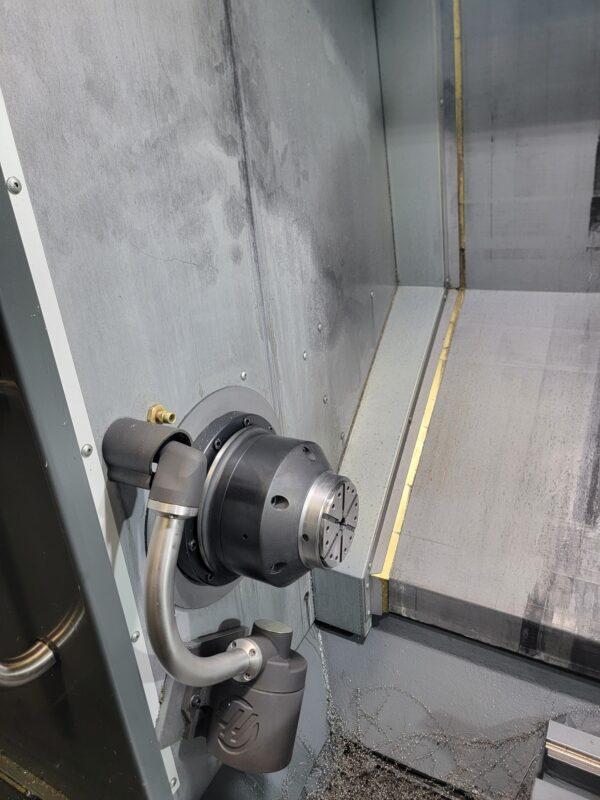

Secondary Spindle:
Chuck Size: 8.3 in (210 mm)
Spindle Nose: A2-5
Drive System: Direct Speed, Belt Drive
Max Rating: 20.0 hp (14.9 kW)
Max Speed: 4800 rpm
Max Torque: 110 ft-lbf @ 700 rpm (149 Nm @ 700 rpm)
Spindle Bore: 2.00 in (50.8 mm)
Bar Capacity: 2.00 in (51 mm)

Secondary Spindle Positioning:
Brake Clamp Force: 500 lbf (2224 N)
Brake Diameter: 7.0 in (178 mm)
Control Type: Positioning Only

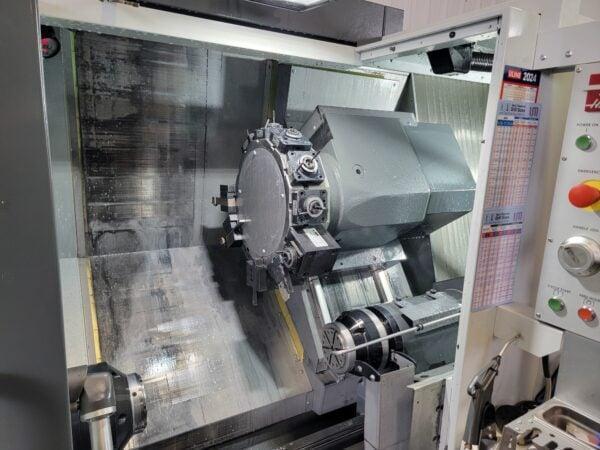

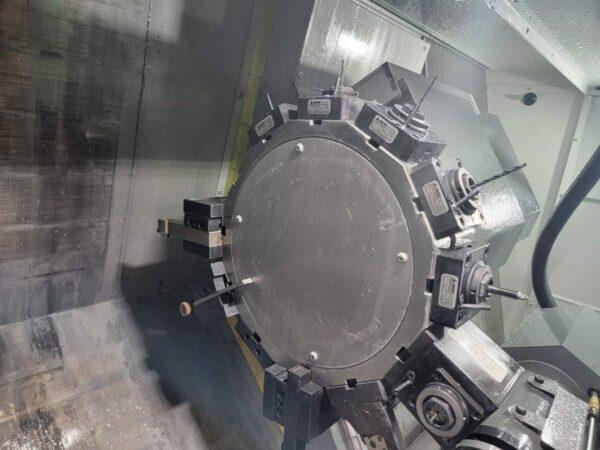

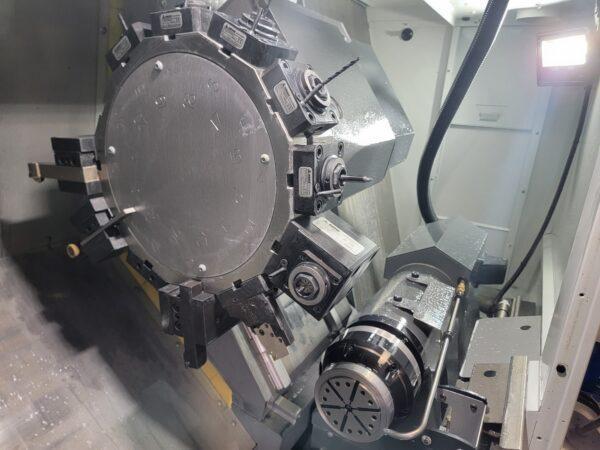

Turret:
Number of Tools: 12 Stations
OD vs ID Tools: Any Combination (varies with turret)
Boring Bar Rear Clearance: 4.00 in (102.0 mm)

Live Tooling:
Max Speed: 6000 rpm
Drive Ratio: 1:1
Tooling: BMT65

General:
Coolant Capacity: 55 gal (208 L)

Air Requirements:
Air Required: 4 scfm @ 100 psi (113 L/min @ 6.9 bar)
Inline Air Hose: 3/8 in
Coupler: 3/8 in
Air Pressure Min: 80 psi (5.5 bar)

Electrical Specification:
Spindle Speed: 4500 rpm
Drive System: Direct Speed, Belt Drive
Spindle Power: 30.0 hp (22.4 kW)
Input AC Voltage (3 Phase) – Low: 220 VAC
Full Load Amps – Low: 70 A
Input AC Voltage (3 Phase) – High: 440 VAC
Full Load Amps – High: 35 A

Dimensions – Shipping:
Domestic Pallet: 171 in x 90 in x 92 in (435 cm x 229 cm x 234 cm)
Export Pallet: 171 in x 90 in x 92 in (435 cm x 229 cm x 234 cm)
Weight: 16000 lb (7258.0 kg)

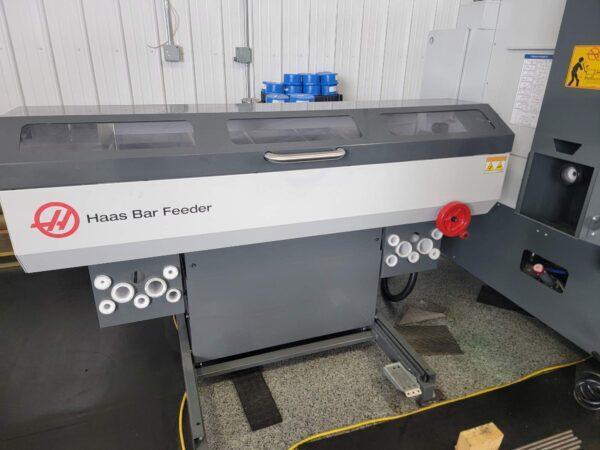

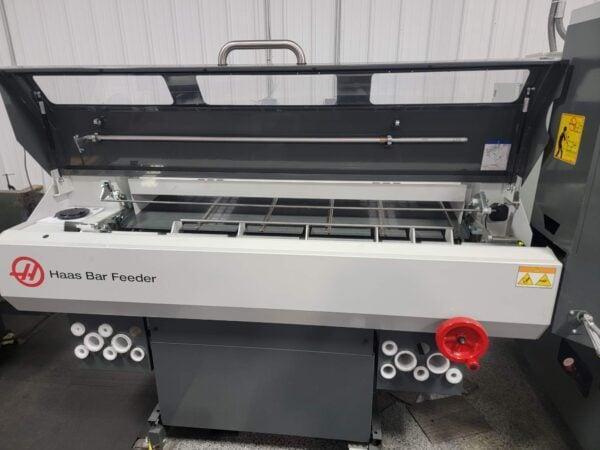

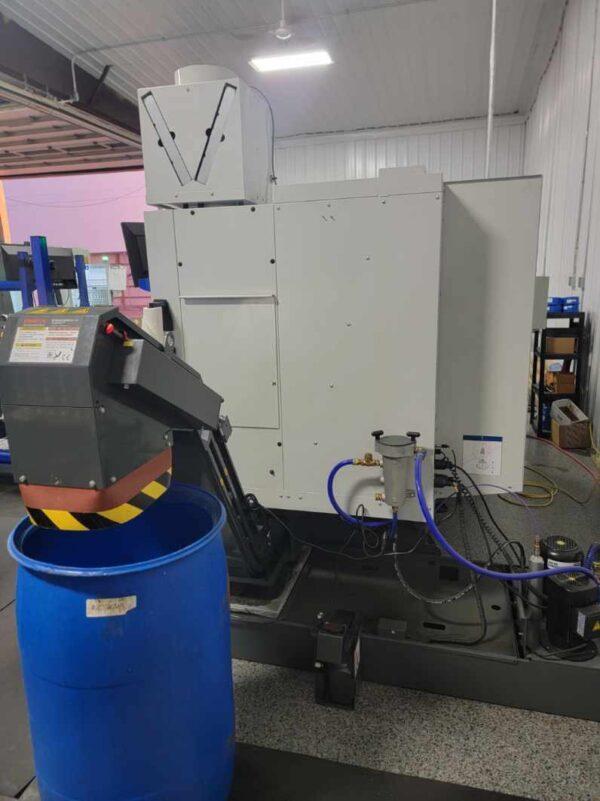

Bar Capacities:
Bar Diameter Range: 0.375 in to 3.125 in (9.5 mm to 79.4 mm)
Bar Length Capacity: 48 in (1219 mm)
Recommended Max Bar Length in Spindle: 48 in (1219 mm)
Minimum Bar Length: 10 in (254 mm)

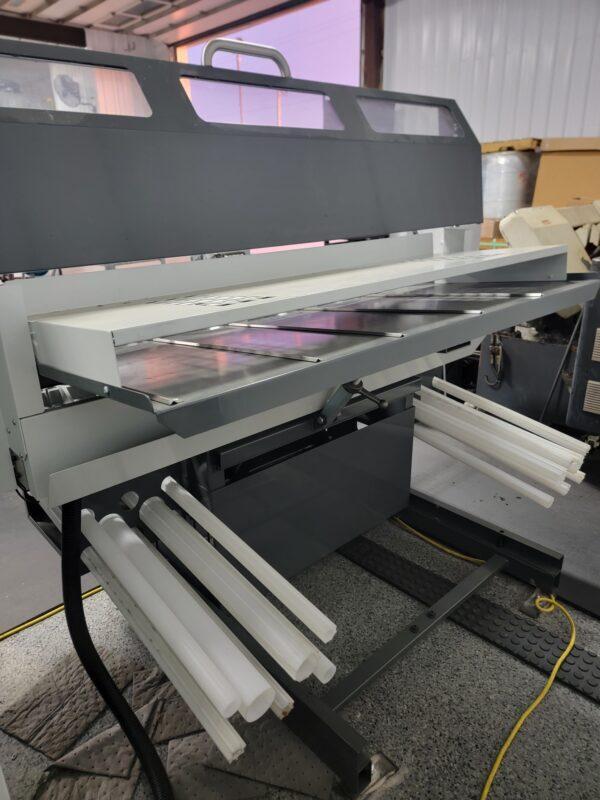

Charging Tray:
Max Number of Bars: Up to 30 in (762 mm) width, any combination of diameters
Max Weight of Total Bars: 650 lb (295 kg)

Max Bar Weight Capacity:
Lift Arm Max Weight Limit: 80 lb (36 kg)

Pushrod:
Maximum Thrust Push Limit: 100 lb (445 N)

Accuracy:
Positioning Without Deadstop: ± 0.01 in (±0.25 mm)
