HAAS SL-40 CNC LATHE
Year
2012
Stock #
19933
Condition
Very Good
Keep Scrolling To Learn More
Specifications
Equipped With
HAAS SL-40 CNC LATHE
New: 2012
Specifications:

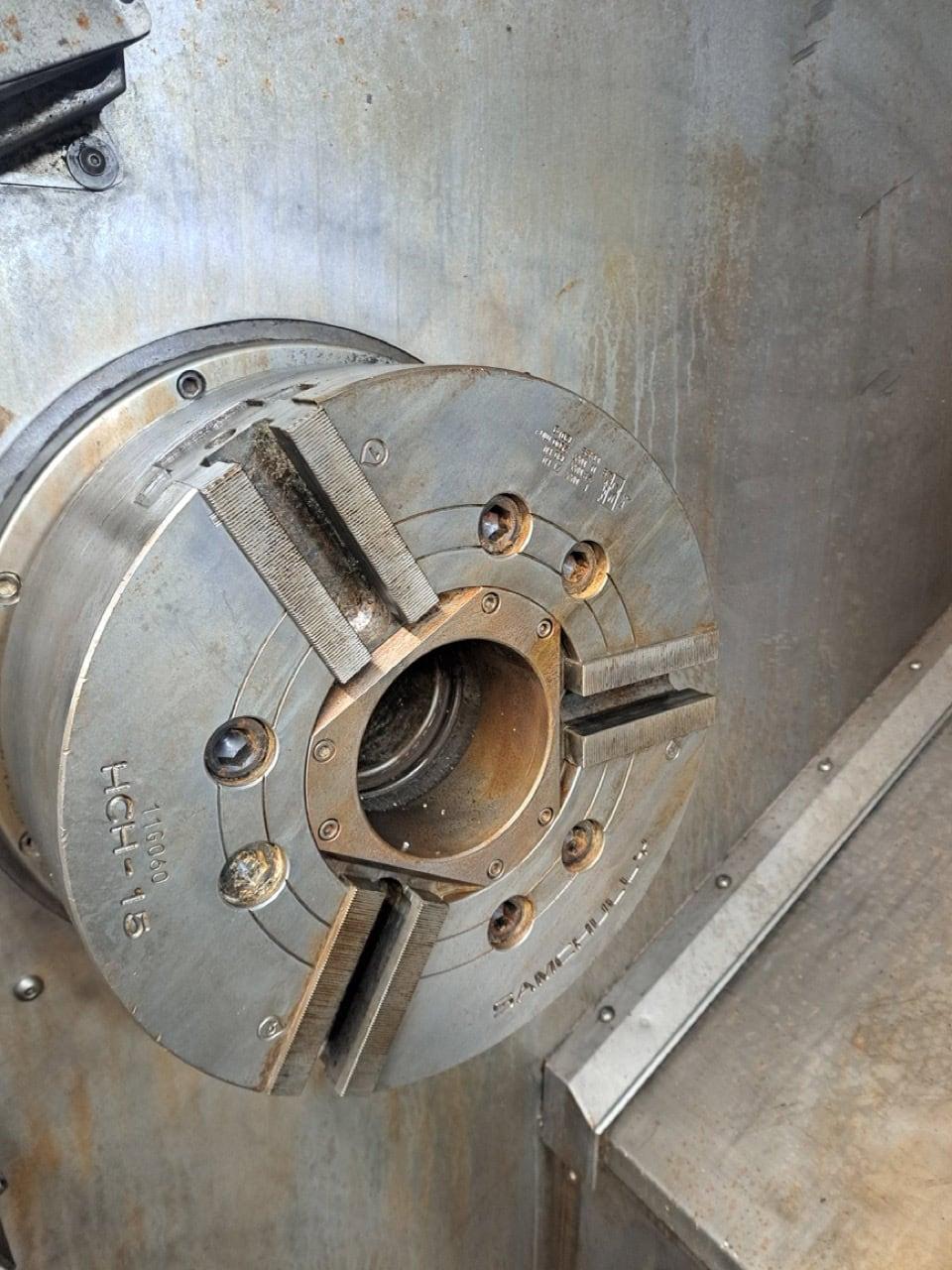

Chuck Size: 15"
Max Swing: 40"
Max Swing Over Cross Slide: 25"
Max Cutting Length: 44"
Max Bar Capacity: 4"
X-axis Travel: 17"
Z-axis Travel: 44"
Spindle Nose/ bore: A2-8 / 4.62"
Spindle Speeds: 2,400 RPM
Spindle Motor: 55 HP

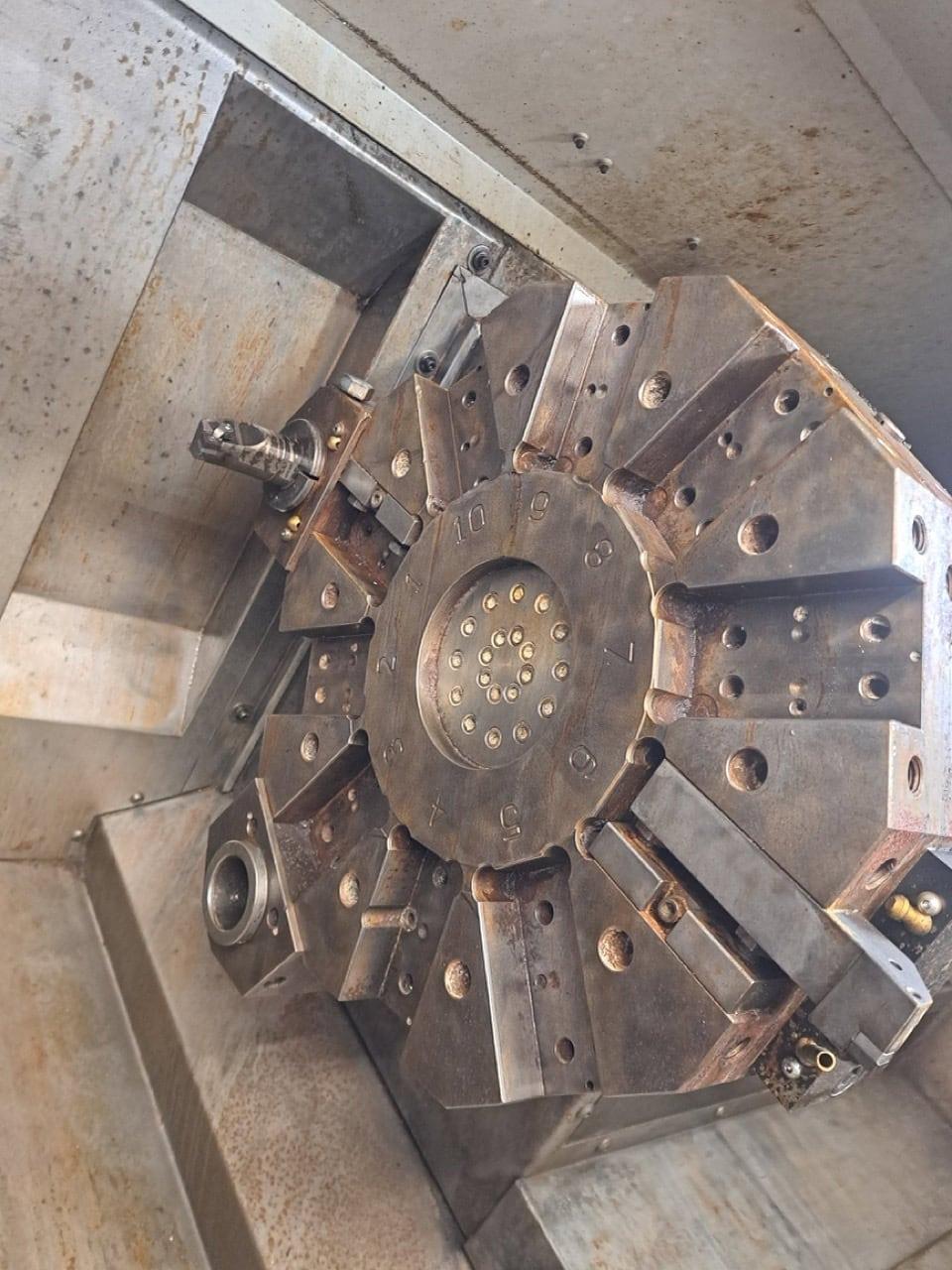

Number of Turret Positions: 10 Station Turret
Rapid Traverse Rates: 710 IPM
Approx. Dimensions: 170" x 102" x 89"
Approx. Weight: 25,000 lbs.
Equipped With:

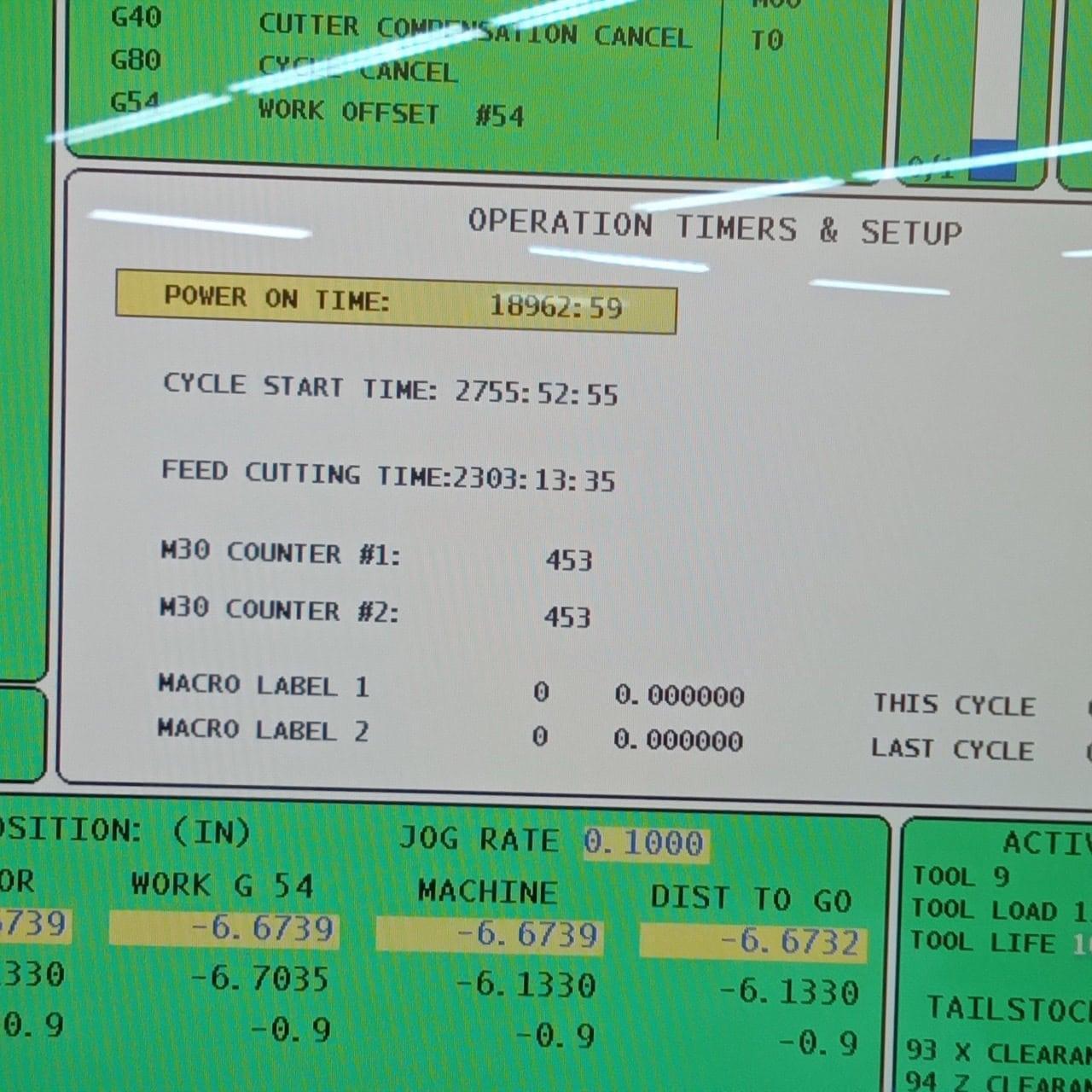

HAAS CNC Control

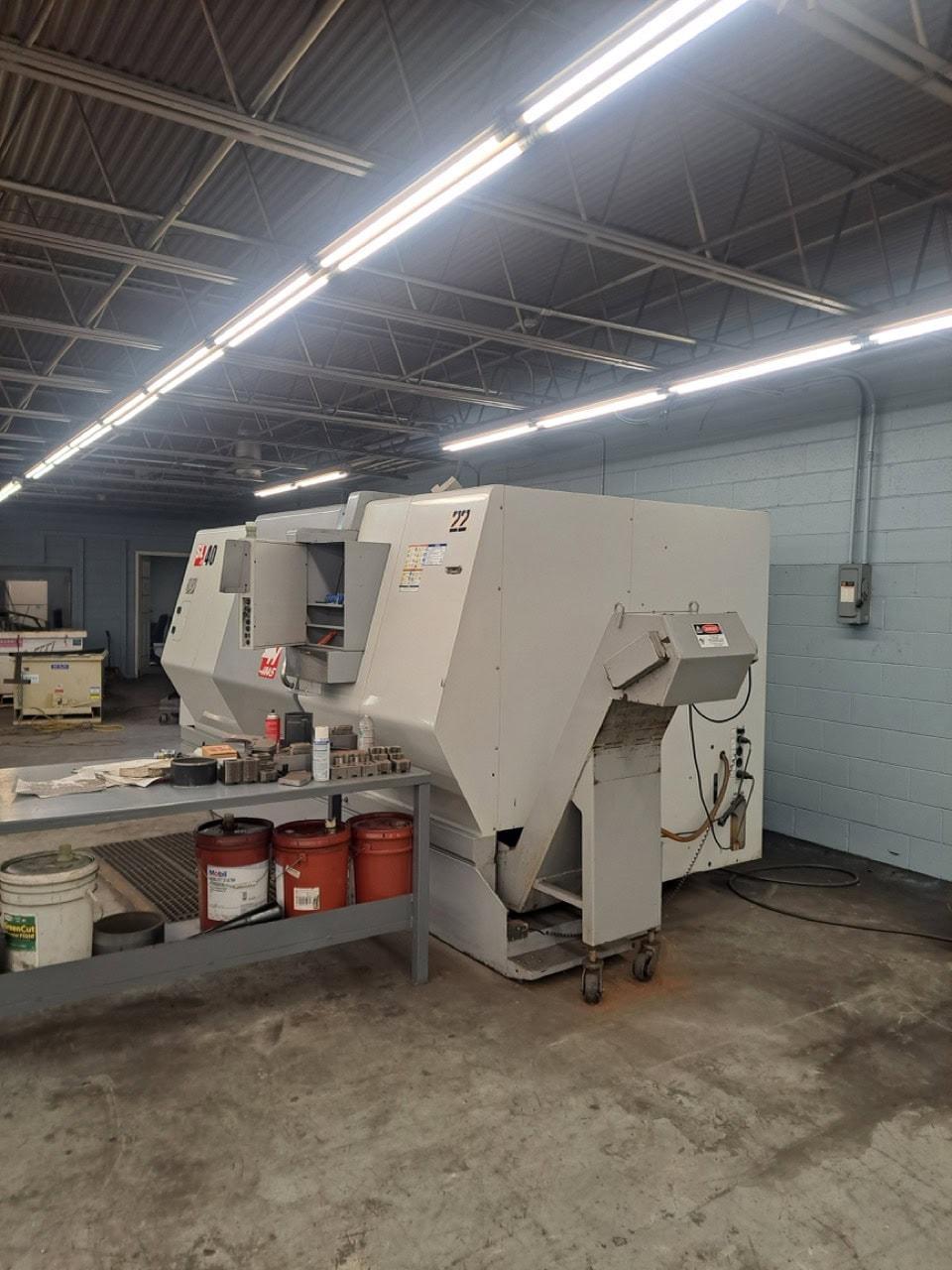

Chip Conveyor

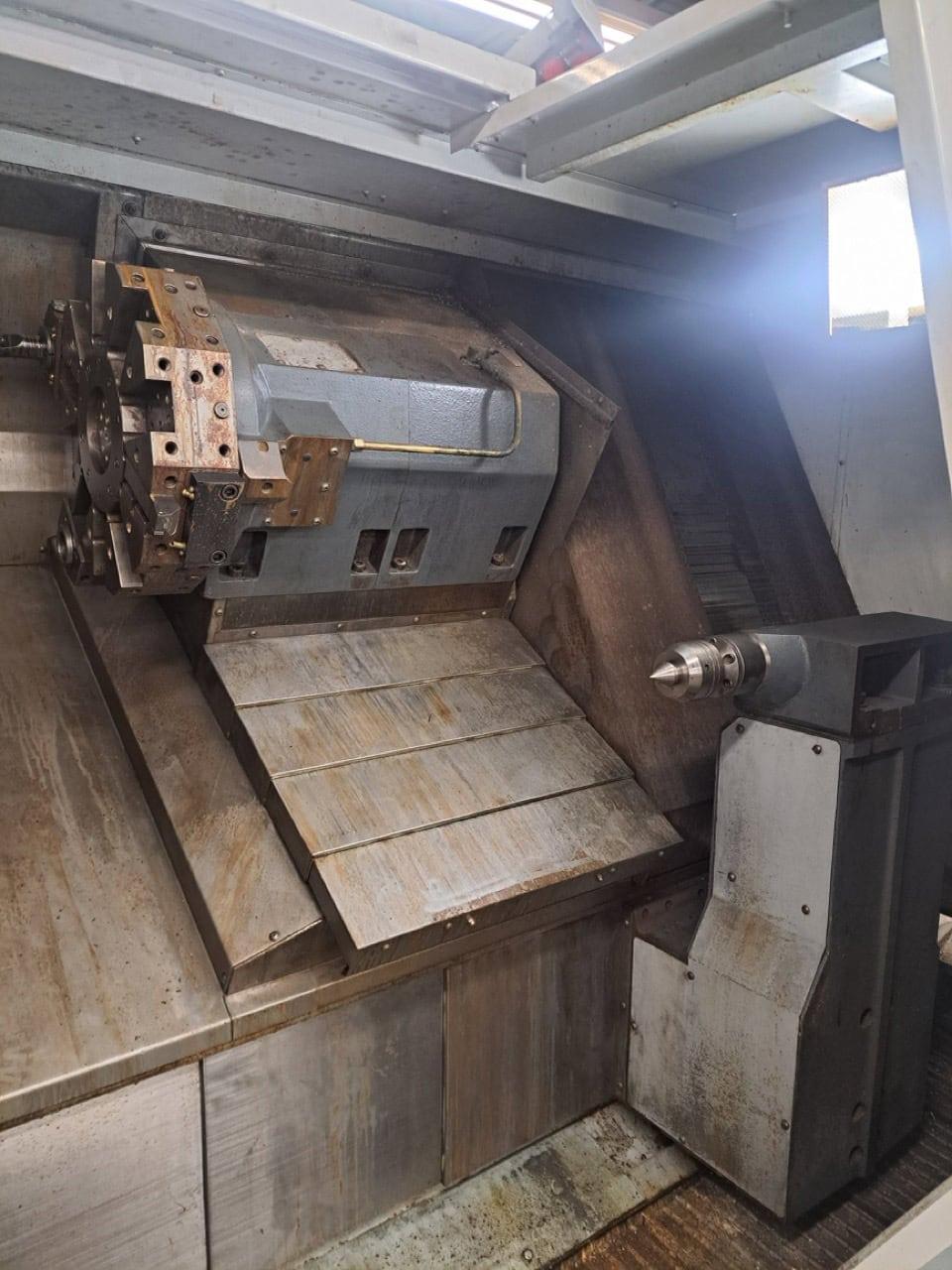

Tailstock
Attachments
There are no files attached to this listing currently. If you Have any further questions regarding this listing, please contact us for more information.
