HAAS ST-40L TURNING MACHINE With Live Tooling
Year
2012
Stock #
19579
Condition
Very Good
Keep Scrolling To Learn More
Specifications
Equipped With

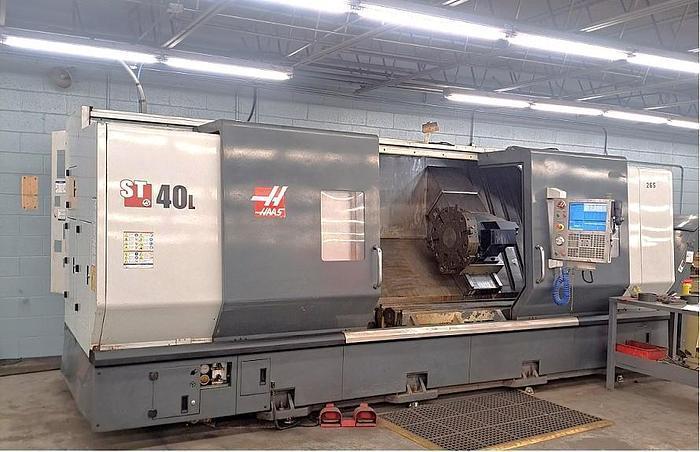

HAAS ST-40L TURNING MACHINE
New 2012
SPECIFICATIONS:
|
Chuck size |
15" Hydraulic Chk |
|
Maximum cut diameter/cut length |
25.5" / 80" |
|
Maximum swing |
34.5" |
|
X-axis travel |
17" |
|
Z-axis travel |
80" |
|
Swing over cross slide |
25.5" |
|
Maximum center distance |
89" |
|
Spindle nose / bore / bar capacity |
A2-8"/ 4.62" / 4" |
|
Turret type |
12 Position Turret |
|
Spindle motor |
40 HP |
|
Spindle speed |
2,400 RPM |
|
Rapid traverse rates x / z |
710 IPM |
|
Tailstock quill taper |
MT #5 |
|
Machine dimensions |
254" x 95" x 105" |
|
Machine weight |
29,900 lbs. |
EQUIPPED WITH:
|

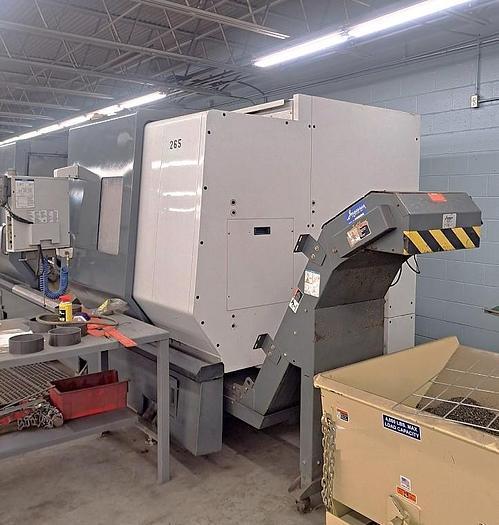

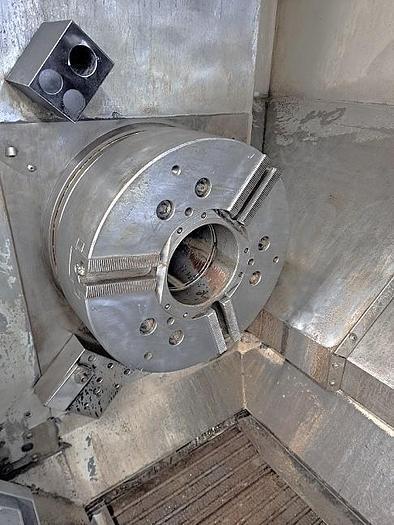

80" Long Bed Option 15" 3 Jaw Thru Hole Hydraulic Chuck Chip Conveyor Programmable Tailstock Remote Jog Handle Foot Pedals for Chuck & Tailstock USB Port Interface RS 232 Port Interface Coolant System with Tank & Pump Miscellaneous Tool Holders |
