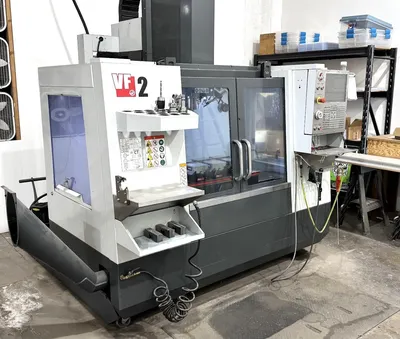

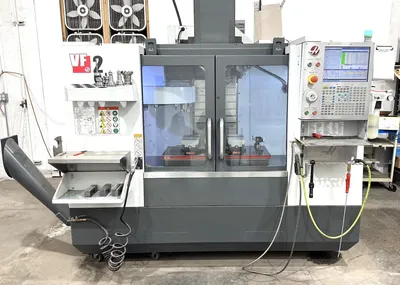

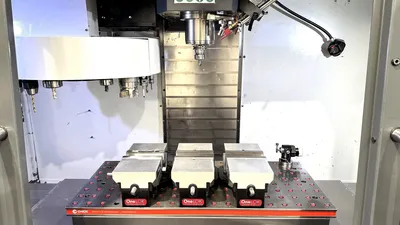

HAAS VF-2 CNC 3-AXIS VERTICAL MACHINING CENTER
New: 2018

Specifications

TRAVELS
X Axis  30.0 in (762 mm)
Y Axis  16.0 in (406 mm)
Z Axis  20.0 in (508 mm)
Spindle Nose to Table (max)  24.0 in (610 mm)
Spindle Nose to Table (min)  4.0 in (102 mm)

SPINDLE
Max Rating  30.0 hp (22.4 kW)
Max Speed  8100 rpm
Max Torque  90.0 ft-lbf @ 2000 rpm (122 Nm)
Drive System  Inline Direct-Drive
Taper  CT40
Bearing Lubrication  Air / Oil Injection
Cooling  Liquid Cooled

TABLE
Length  36.0 in (914 mm)
Width  14.0 in (356 mm)
T-Slot Width  0.626–0.630 in (15.9–16.0 mm)
T-Slot Center Distance  4.92 in (125 mm)
Number of Std T-Slots  3
Max Weight on Table  1500 lb (680 kg)

FEEDRATES
Max Cutting  833 ipm (21.2 m/min)
Rapids (X)  1400 ipm (35.6 m/min)
Rapids (Y)  1400 ipm (35.6 m/min)
Rapids (Z)  1400 ipm (35.6 m/min)

AXIS MOTORS
Max Thrust X  1995 lbf (8874 N)
Max Thrust Y  1995 lbf (8874 N)
Max Thrust Z  3085 lbf (13723 N)

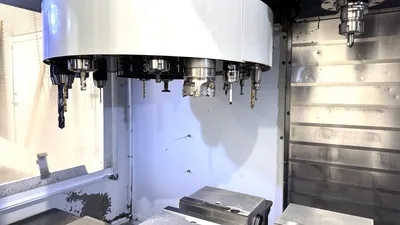

TOOL CHANGER
Type  Side Mount
Capacity  20+1
Max Tool Diameter (full)  2.5 in (64 mm)
Max Tool Diameter (adj. empty)  5.0 in (127 mm)
Max Tool Length  11 in (279 mm)
Max Tool Weight  12 lb (5.4 kg)
Tool-to-Tool (avg)  1.8 s
Chip-to-Chip (avg)  2.4 s

GENERAL
Coolant Capacity  55 gal (208 L)

AIR REQUIREMENTS
Air Required  4 scfm @ 100 psi (113 L/min @ 6.9 bar)
Inline Air Hose  3/8 in
Coupler (Air)  3/8 in
Air Pressure Min  80 psi (5.5 bar)

DIMENSIONS – SHIPPING
Domestic Pallet  101 × 99 × 101 in (257 × 251 × 257 cm)
Export Pallet  98 × 92 × 100 in (249 × 232 × 254 cm)
Weight  7800 lb (3539 kg)
Weight w/ Conveyor  8380 lb

ELECTRICAL
Drive System  Inline Direct-Drive
Spindle Power  30.0 hp (22.4 kW)
Input AC Voltage (Low)  220 VAC @ 70 A
Input AC Voltage (High)  440 VAC @ 35 A

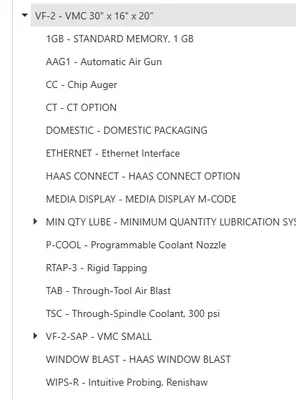

EQUIPPED WITH
Haas CNC Controls
8100 rpm
21 position tool changer
Coolant thru spindle, 300 psi
Air blast thru spindle
P-Cool nozzle
Ethernet interface
Rigid tapping
Automatic air gun
Chip conveyor
*Tooling and vises not included
