Equipped With

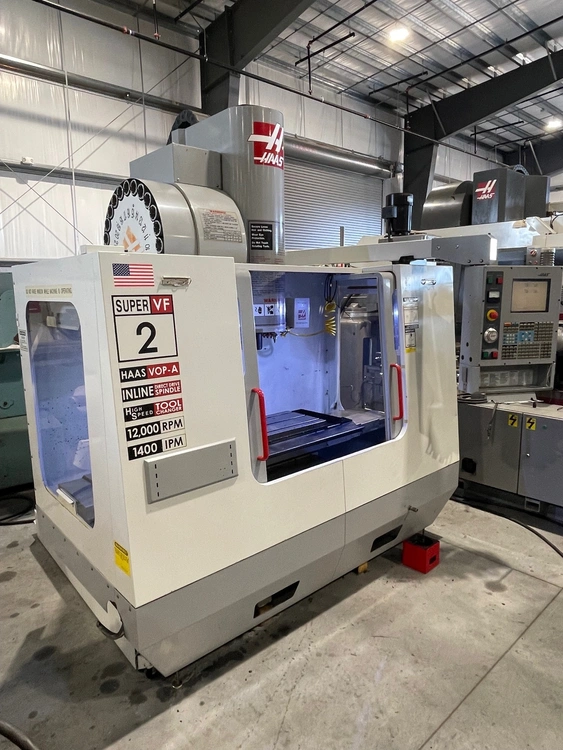

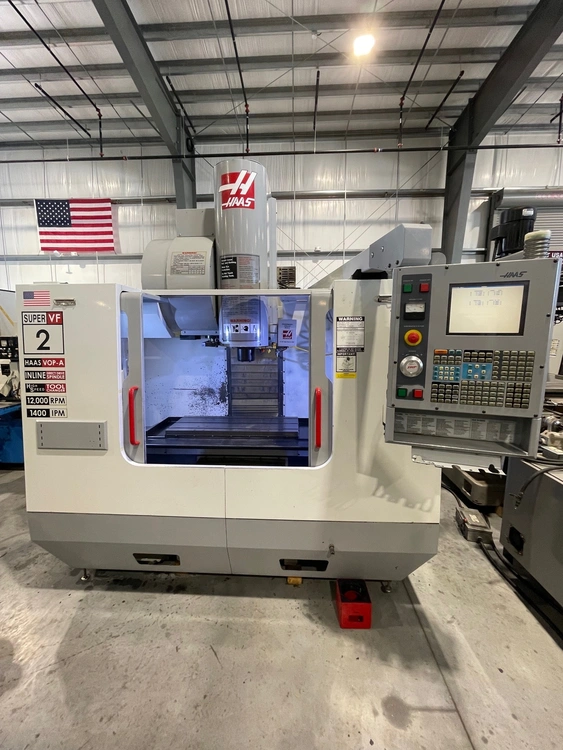

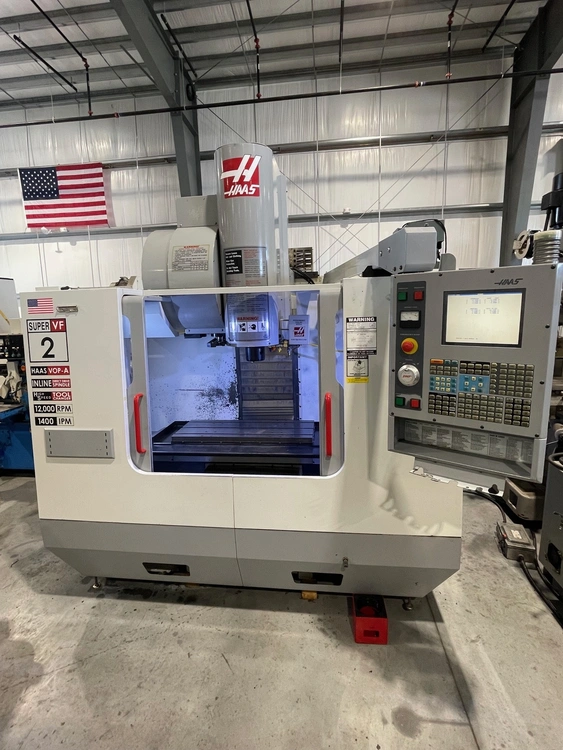

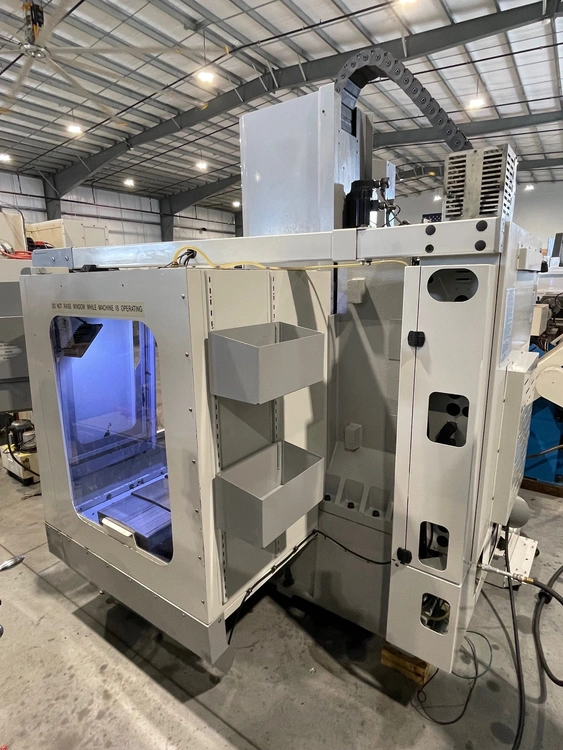

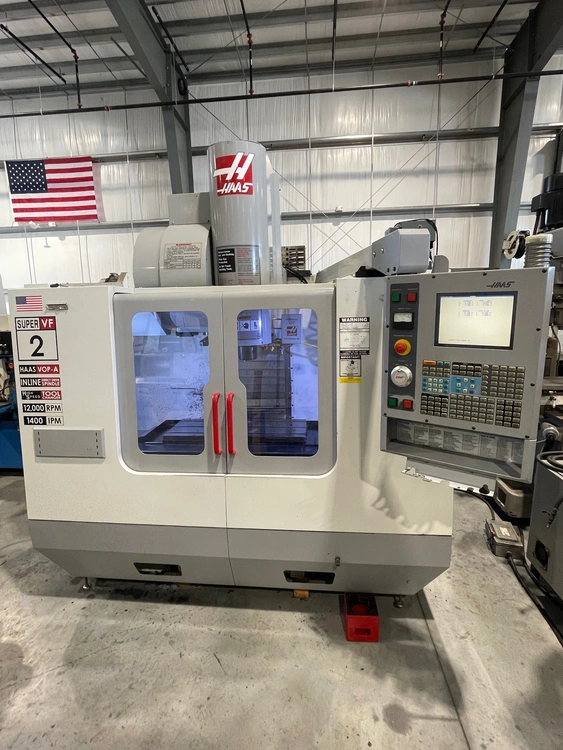

HAAS VF-2SS CNC VERTICAL MACHINING CENTER SUPER SPEED USA

New: 2003

Specifications:
X-Axis Travel:  30 in
Y-Axis Travel:  16 in
Z-Axis Travel:  20 in
Power:  30 HP
Spindle Speed:  12,000 RPM
Tool Changer:  24+1
Taper:  BT-40

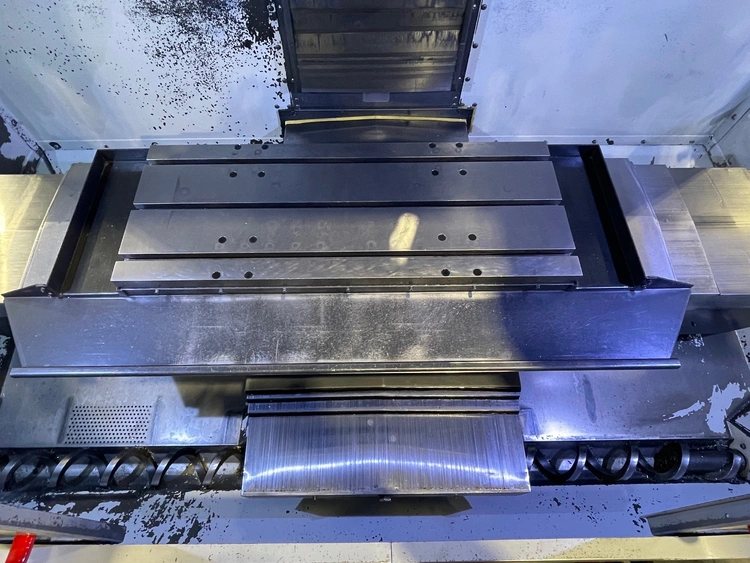

Table Size:  16 in × 36 in
Number of T-Slots:  3
Max Table Weight:  3000 lbs
Maximum Distance Spindle to Table:  24 in
Minimum Distance Spindle to Table:  4 in
Max Cutting Rate:  833 IPM
Rapid Speeds (X/Y/Z):  1400 IPM
Max Tool Diameter:  3 in
Max Tool Length:  11 in
Max Tool Weight:  12 lbs
Dimensions:  111 in L × 91 in W × 91 in H
Weight:  8000 lbs

Equipped With:
Programmable Coolant Nozzle
Side-Mount Tool Changer (24 Tool Station)
Telescopic Way Covers
Air Gun
Six Leveling Pads

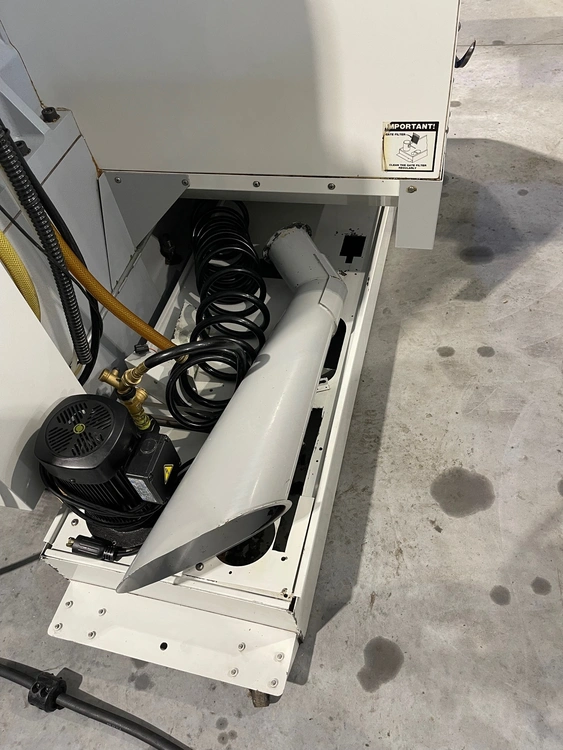

Chip Auger
Bijur Automatic Lubrication System
External Coolant Tank and Coolant Pump
Rigid Tapping
DNC
M19 Spindle Orient
Quick Code
30 HP Spindle Motor
Wired for 230V / 3-Phase / 60 Hz
Machine Hours: Servo 7,583 — Motion 21,811 — Spindle 22,022

FOB Sarasota, Florida
