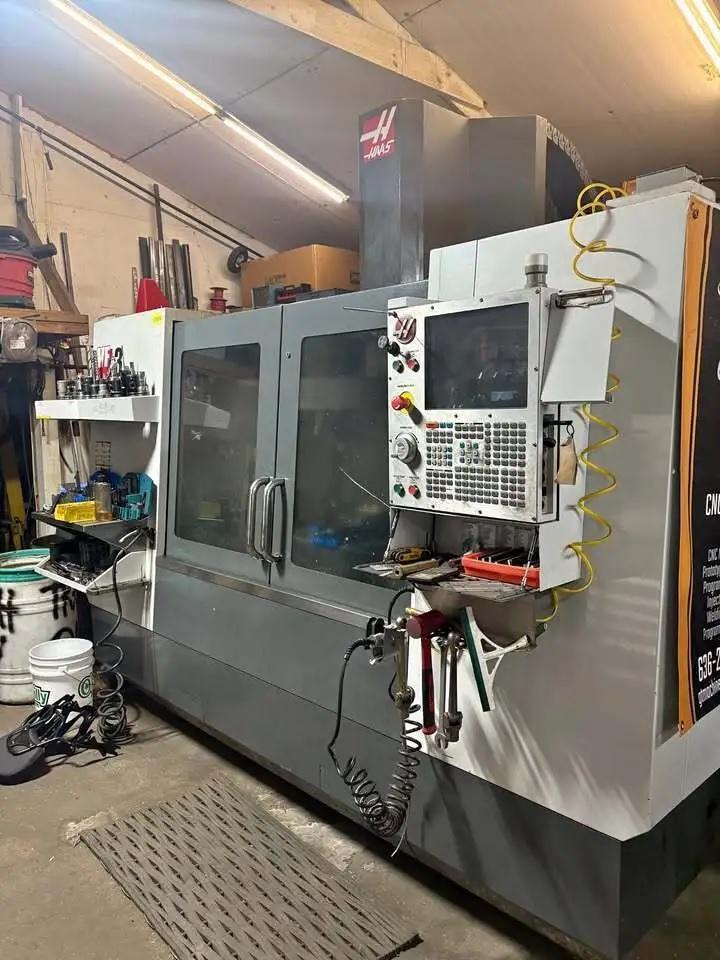

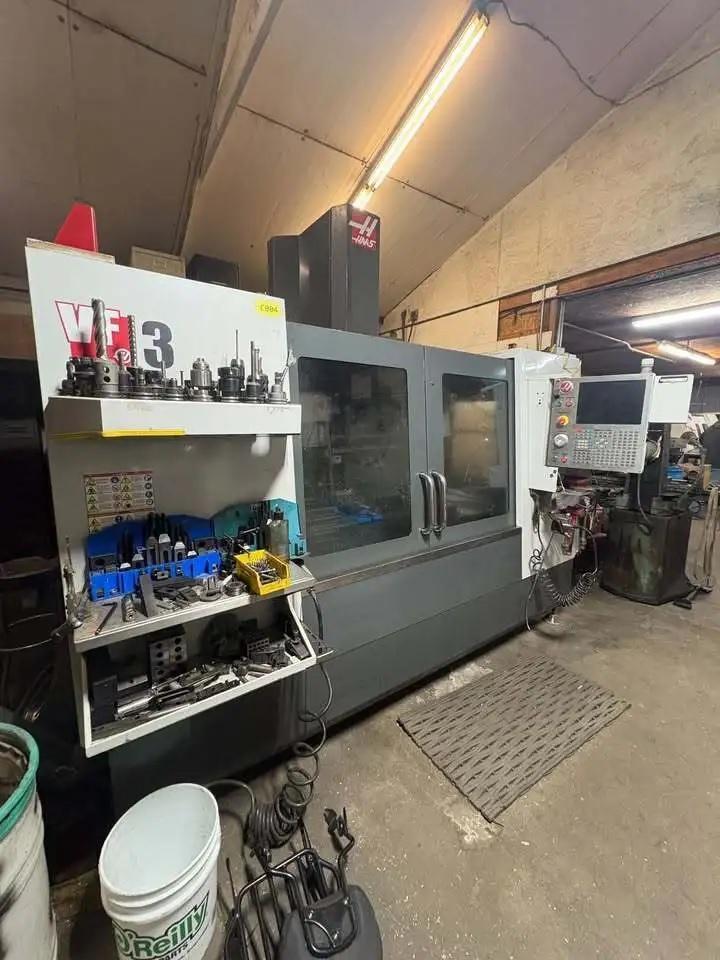

HAAS VF-3 CNC VERTICAL MACHINING CENTER
Year
2014
Stock #
30398
Condition
Not specified
Keep Scrolling To Learn More
Specifications
Equipped With
HAAS VF-3 CNC VERTICAL MACHINING CENTER
New 2014
Equipped With:
|
|
Probe
60hp convertor
Misc. Tooling
* Approx. 10k hours
X Axis Travel: 40"
Y Axis Travel: 20"
Z Axis Travel: 25"
Rapid Rate X Axis: 1,000 IPM
Rapid Rate Y Axis: 1,000 IPM
Rapid Rate Z Axis: 1,000 IPM
Table Size: 48X20
Max Table Load: 3,500 LBS
Spindle Motor: 30 HP
Spindle Speed: 8,000 RPM
Spindle Taper: 40
Tool Changer: 20 ATC
Max Torque: 90 ft-lbf
Max Cutting: 650 ipm
Max Thrust X: 2550 lbf
Max Thrust Y: 2550 lbf
Max Thrust Z: 4200 lbf
Max Tool Diameter: 3.5"
Max Tool Weight: 12 lbs
Tool-to-Tool: 4.2 s
Chip-to-Chip: 4.5 s
Dimensions:
Weight: 11,720 LBS
Attachments
There are no files attached to this listing currently. If you Have any further questions regarding this listing, please contact us for more information.
