Equipped With

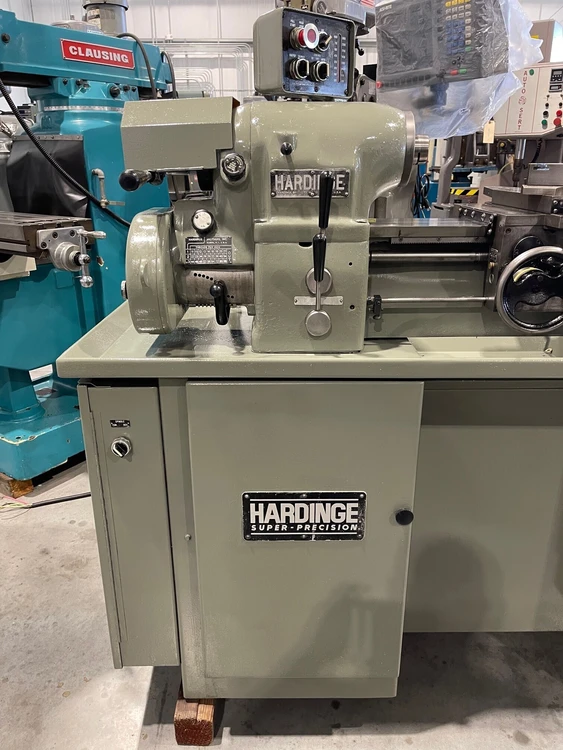

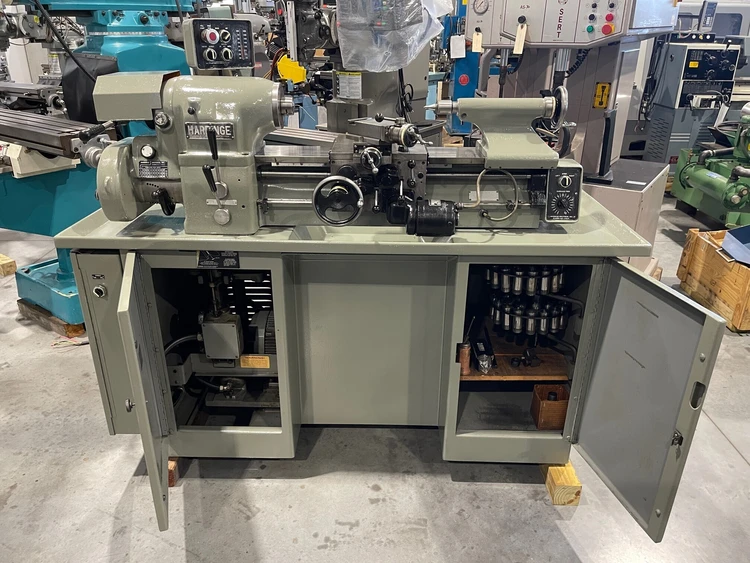

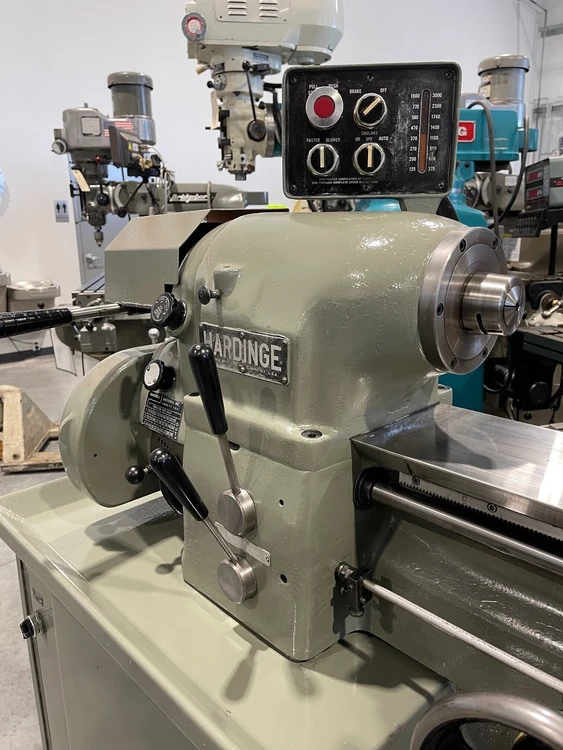

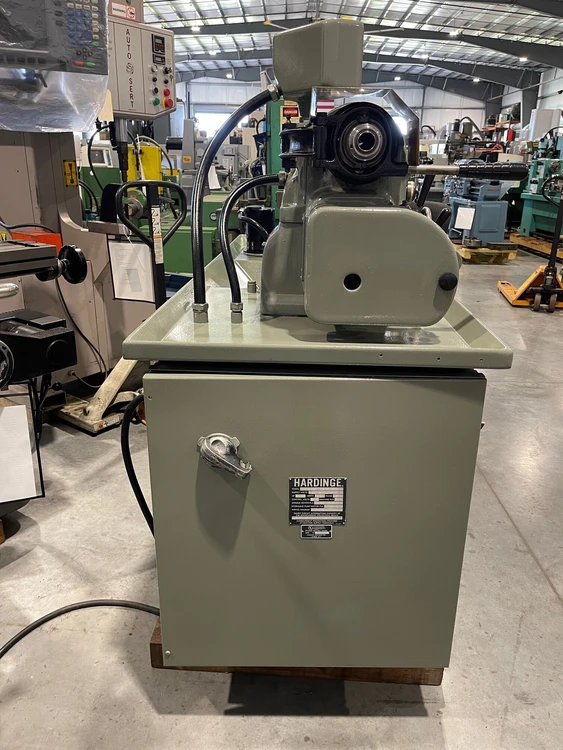

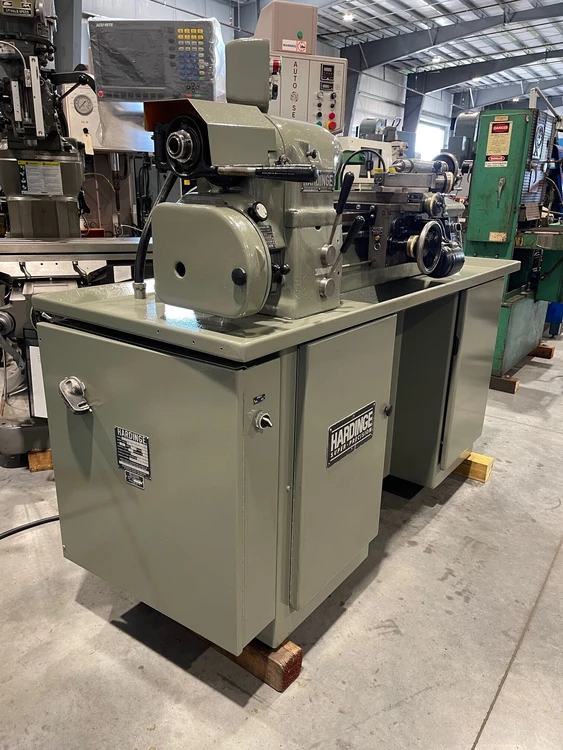

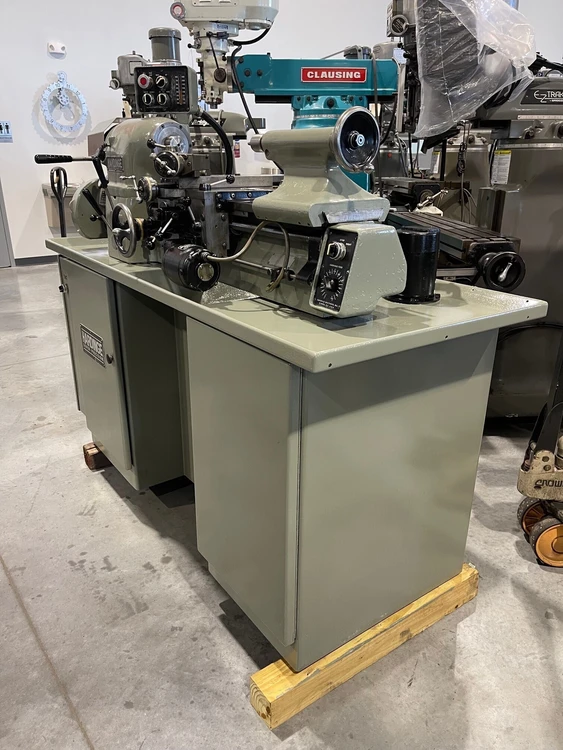

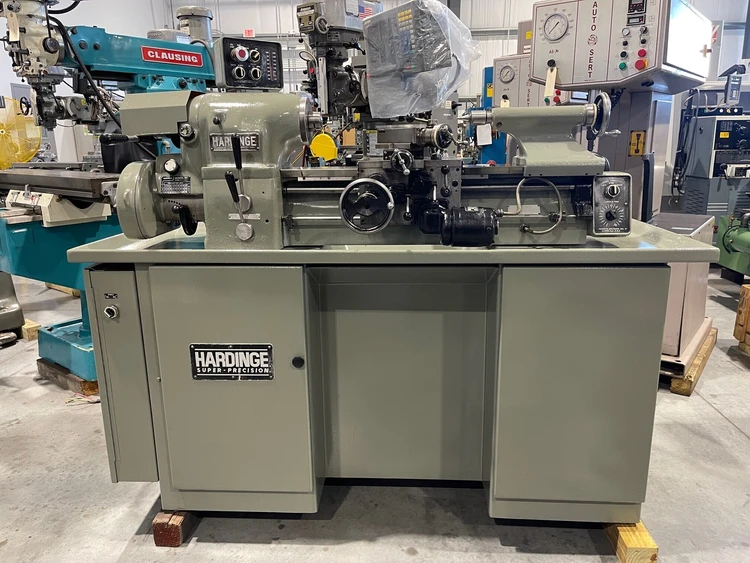

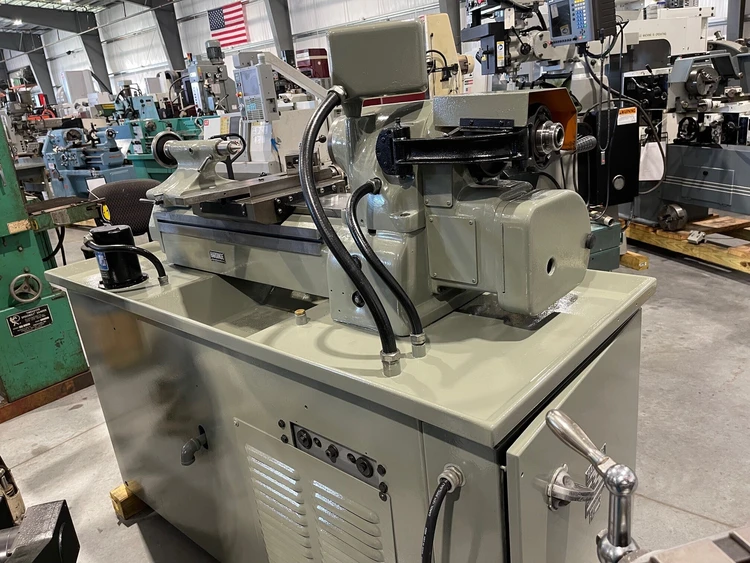

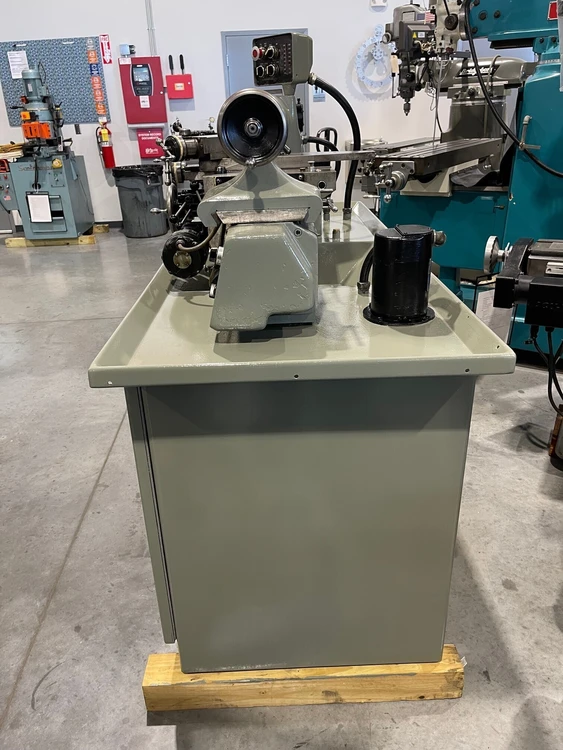

HARDINGE HLV-H Precision Tool Room Lathe

New 1982

SPECIFICATIONS:
Spindle construction- HARDINGE ball bearing
Spindle nose- Hardinge tapered
Spindle capacity with round type 5C collets- 1-1/16"
Spindle capacity with step chucks- 1-1/16" – 6”
Spindle capacity with jaw chucks- 5”
Spindle capacity with expanding collets- 3”
Variable spindle speeds- 125-3,000 R.P.M.
Hole through spindle- 1-1/4”
Swing over bed- 11”
Swing over carriage- 9”
Swing over cross slide- 6”
Distance between centers- 18”

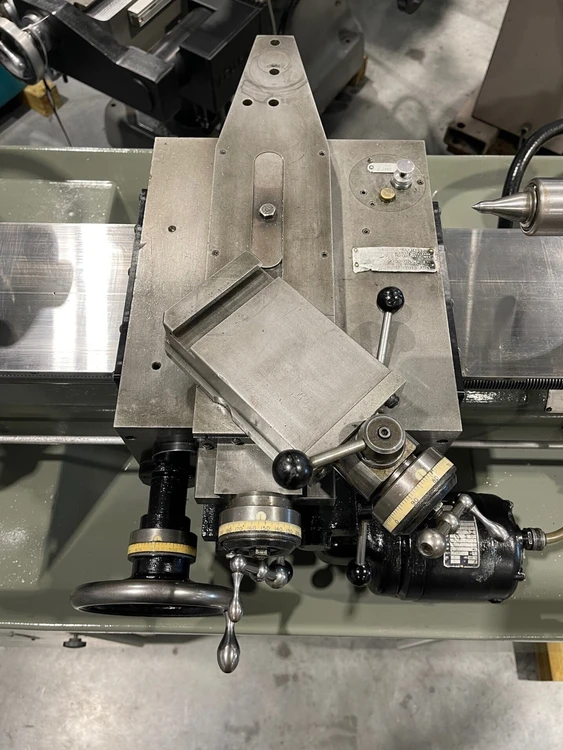

Compound slide travel- 3”

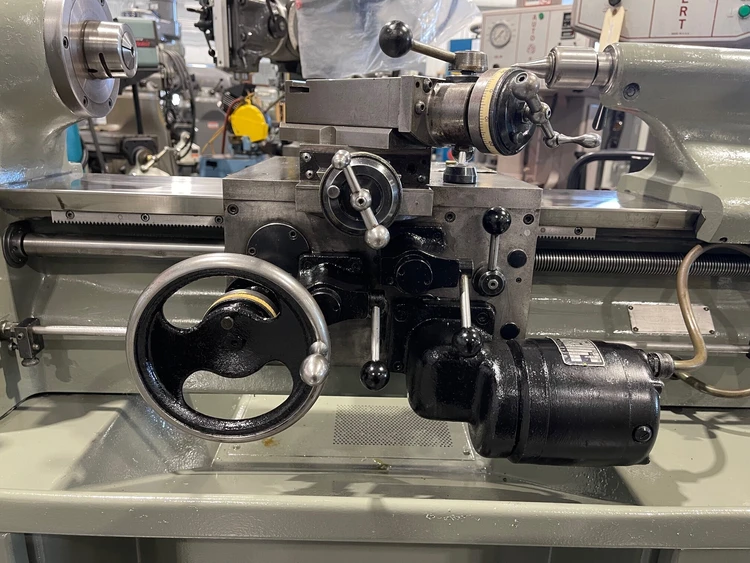

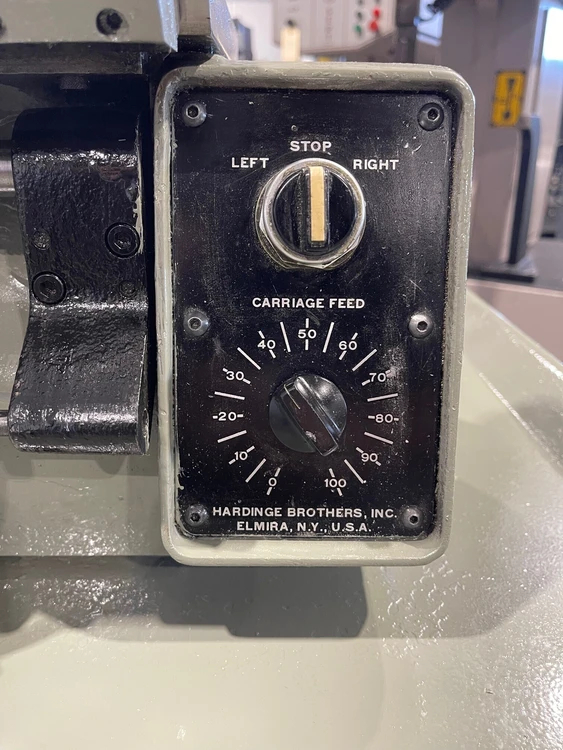

Carriage power feed range- 5/16-7 I.P.M.

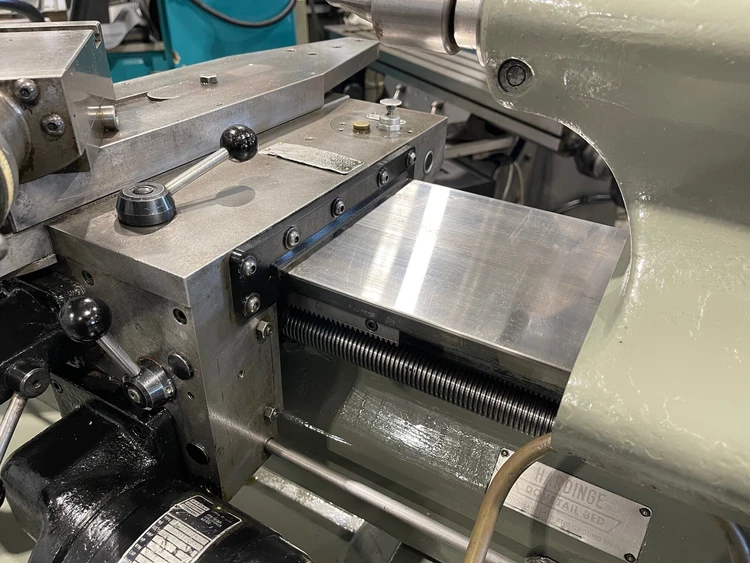

Cross slide power feed range- 3/16-4 I.P.M.
Tailstock spindle diameter- 1-3/8"
Tailstock spindle taper- #2 MT
Range of threads in gear box (27)- 11-108 T.P.I.

EQUIPPED WITH:
Ball bearing quick acting 5C collet closer
Heavy duty full bearing tailstock

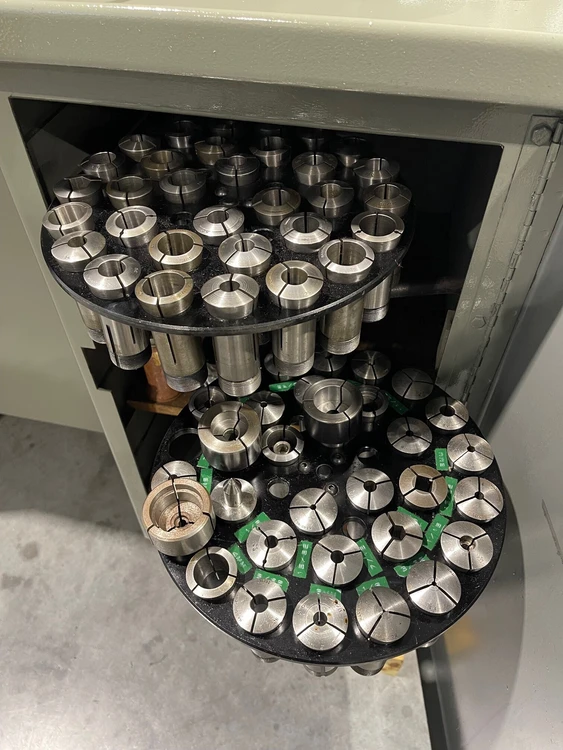

Assorted 5-C Collets
Self-contained coolant system & 1/6 H.P. Gusher Coolant pump
(2) Adjustable longitudinal carriage stops
.5 - 1 H.P two-speed main drive motor and electrical controls
Machine is wired for 230 Volt / 3 Phase / 60 H.Z.
Machine weight- 1700 Lbs.
Machine dimensions- 70" L-R x 30" F-B x 57" H
