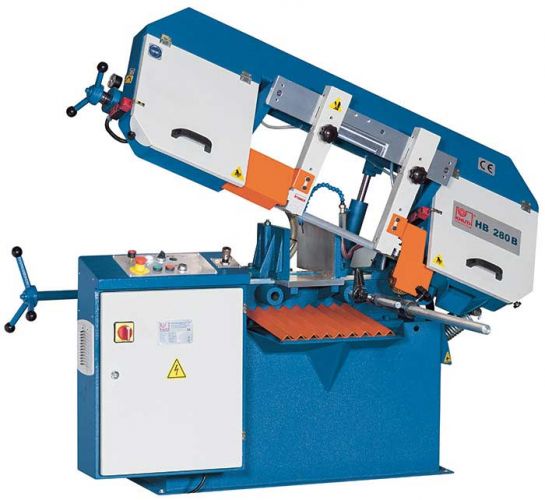

KNUTH MODEL HB B/BS HORIZONTAL BAND SAW
Year
Not provided
Stock #
16305
Condition
New
Keep Scrolling To Learn More
Specifications
Equipped With
| HB 280 B | HB 320 BS | |
|---|---|---|
| Cutting Capacities | ||
| Cutting capacity 90¡ round | 11 in | 13 in |
| Cutting capacity 90¡ - square | 11 in | 13 in |
| Cutting capacity 90¡ - flat | 14x8 in | 24x13 in |
| Cutting capacity 45¡ - round | 9 in | 13 in |
| Cutting capacity 45¡ - square | 8 in | 13 in |
| Cutting capacity 45¡ - flat | 9x7 in | 14x13 in |
| Cutting speed infinitely variable | 65 - 327 fpm | |
| Cutting capacity 30¡ - round | 10 in | |
| Cutting capacity 30¡ - square | 9 in | |
| Cutting capacity 30¡ - flat | 11 x 8 in | |
| Drive Capacity | ||
| Motor rating main drive | 2 Hp | 3 Hp |
| Motor rating coolant pump | 0.2 Hp | |
| Measures and Weights | ||
| Blade dimensions | 133.86x1.06x0.04 in | 163.78x1.34x0.04 in |
| Overall dimensions (length x width x height) | 71x34x40 in | 83x48x53 in |
| Weight | 1,166 lbs | 2,200 lbs |
- Infinitely variable hydraulic saw advance ensures optimum cutting results and minimized tool wear
- Automatic shut-off upon completion of saw process
- Band break sensor activates automatic shut-off upon band break
- Helical gears, designed for continuous operation with above average life time and low maintenance
- Infinitely variable cutting speed from 65 to 330 feet/min
- Coolant system
- Rigid guide arms
HB 320 BS highlights
- Saw frame swivels allowing universal angle setting - no need to rotate the work piece!
- Including feed roller table, 47" long
- automatic lifting of the bandsaw with switching device for variable workpiece sizes
- part clamping
- coolant system
- linear stop
- feed roller table 47"
- roller table
- operator manual
