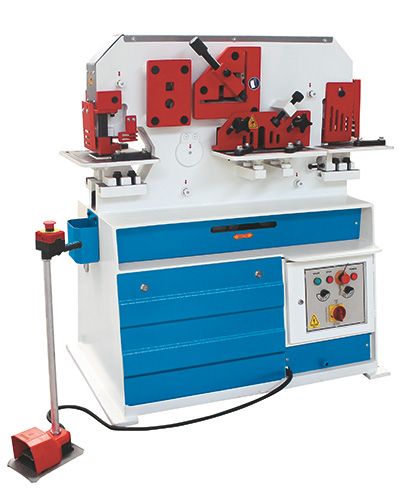

KNUTH "HPS H" IRONWORKER
Year
Not provided
Stock #
16195
Condition
New
Keep Scrolling To Learn More
Specifications
Equipped With
| HPS 45 H | HPS 60 H | HPS 65 H | HPS 85 H | HPS 115 H | HPS 175 H | |
|---|---|---|---|---|---|---|
| Working Area | ||||||
| Number of hydraulic cylinders | 1 positions | 1 positions | 2 positions | 2 positions | 2 positions | 2 positions |
| Punch press | ||||||
| Pressure force | 49.5 t | 66 t | 71.5 t | 93.5 t | 126.5 t | 192.5 t |
| Punch capacity (max.) | 0.87x0.59 in | 1.1x0.59 in | 1.02x0.79 in | 1.3x0.79 in | 1.34x1.02 in | 1.57x1.26 in |
| Diameter x thickness | 1.5x0.3 in | 1.5x0.4 in | 2.2x0.4 in | 2.2x0.5 in | 2.2x0.6 in | 2.2x0.9 in |
| Throat | 7 in | 9 in | 12 in | 14 in | 16 in | 25 in |
| Stroke | 1.4 in | 2 in | 2.2 in | 3.1 in | 3.1 in | 3.1 in |
| Stroke number (at 20 mm stroke) | 20 | 25 | 25 | 25 | 25 | 22 |
| Working height | 37 in | 37 in | 40 in | 42 in | 42 in | 44 in |
| Steel cutter | ||||||
| Cutting capacity flat (max. width) | 11.8x0.5 in | 11.8x0.6 in | 14.8x0.6 in | 18.9x0.6 in | 23.6x0.6 in | 23.6x0.8 in |
| Cutting capacity flat (max. thickness) | 8x1 in | 8x1 in | 12x1 in | 15x1 in | 15x1 in | 15x1 in |
| Knife length | 13 in | 13 in | 15 in | 19 in | 24 in | 24 in |
| Cutting capacity round | 1 in | 2 in | 2 in | 2 in | 2 in | 3 in |
| Cutting capacity square | 1 in | 1 in | 2 in | 2 in | 2 in | 2 in |
| Steel cutter working height | 37 in | 37 in | 35 in | 37 in | 36 in | 36 in |
| Profile cutter | ||||||
| Cutting capacity 90¡ | 3.9x3.9x0.4 in | 4.7x4.7x0.5 in | 5.1x5.1x0.5 in | 5.9x5.9x0.6 in | 6.3x6.3x0.6 in | 7.9x7.9x0.8 in |
| Cutting capacity 45¡ | 2.4x0.2 in | 2.8x0.3 in | 2.8x0.3 in | 3.1x0.3 in | 3.1x0.3 in | 3.1x0.3 in |
| Profile cutter working height | 44.68 in | 44.49 in | 44.49 in | 46.85 in | 46.85 in | 45.67 in |
| Notcher | ||||||
| Plate thickness (max.) | 0.31 in | 0.39 in | 0.39 in | 0.51 in | 0.51 in | 0.63 in |
| Width | 1 in | 2 in | 2 in | 2 in | 2 in | 3 in |
| Depth | 4 in | |||||
| Drive Capacity | ||||||
| Motor rating hydraulic pump | 5.4 Hp | 5.4 Hp | 7.4 Hp | 10.1 Hp | 14.8 Hp | 14.8 Hp |
| Measures and Weights | ||||||
| Overall dimensions (length x width x height) | 53x31x58 in | 58x31x63 in | 67x31x70 in | 74x31x75 in | 81x31x80 in | 111x43x88 in |
| Weight | 2,640 lbs | 3,080 lbs | 3,740 lbs | 4,950 lbs | 6,930 lbs | 12,650 lbs |
Flat Steel Cutters
- For strip steel, flat steel, wide flat steel
- Table with angular and linear stops
- Adjustable hold-down
- Lower knife provides 4 cutting edges

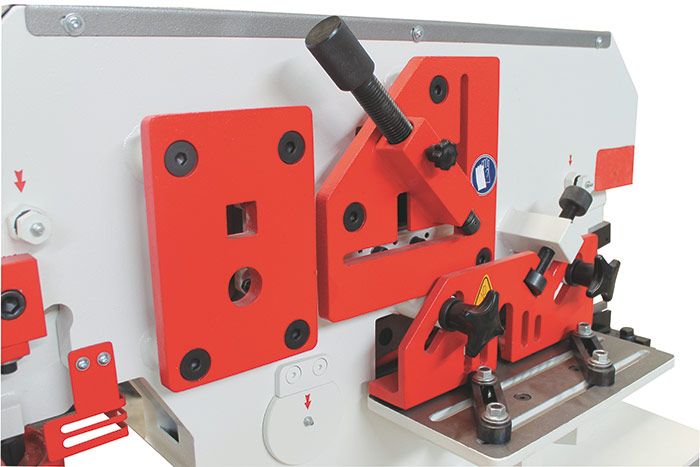

Angular Profile Steel Cutters
- For angle steel sections
- Cut angle 90¡ and 45¡
- Adjustable material guide plate
Rod Steel Station
- For round and square steel
- Robust material guide plate
Back Gauge
- Including swivel boom
- For use on Flat Steel, Angular Steel and Rod Steel Stations
Hole Punch Station
- For punching round holes and slots in sheet metals, flat steel and U-section steel
- Table with adjustable angular stops
- Infinitely variable stroke adjustment
- Premium Kingsland tools
- Hydraulic overload protection
Notching Station
- Rigid support table with adjustable stops
- Easy replaceable punch holder
- stamps and dies
- angle cutting blade
- flat bar cutting blade
- notching blade
- solid bar cutting blade
- Elecric backauge with automatic cutting (39 in)
- foot pedal with emergency stop button
- hook spanner wrench
- work lamp
