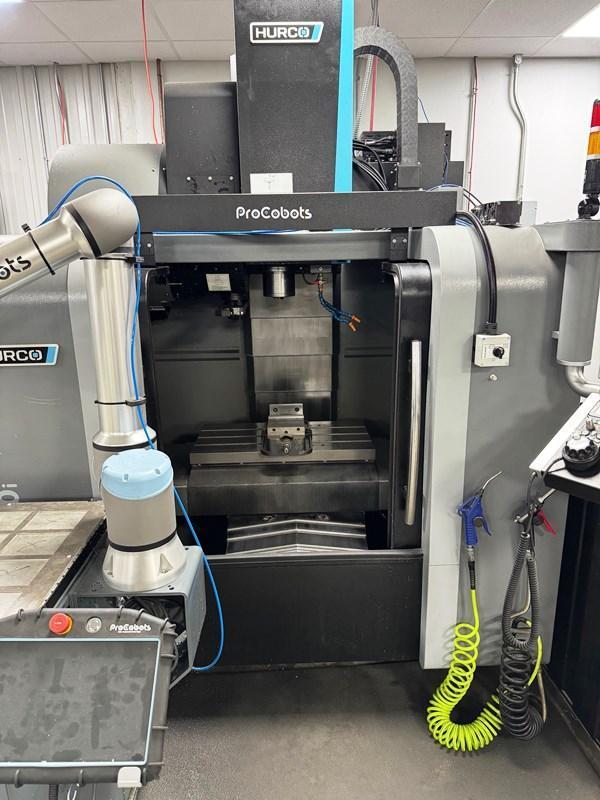

HURCO VM10i 3-AXIS CNC VERTICAL MACHINING CENTER WITH CABOT PICK AND PLACE ROBOT

Manufacturer

HURCO

Model

VM10i

Year

2019

Stock #

20003

Condition

Excellent

Request A Quote

Keep Scrolling To Learn More

Specifications

Equipped With

HURCO VM10i 3-AXIS CNC VERTICAL MACHINING CENTER WITH CABOT PICK AND PLACE ROBOT

New 2019

Only 252 Hours


EQUIPPED WITH:

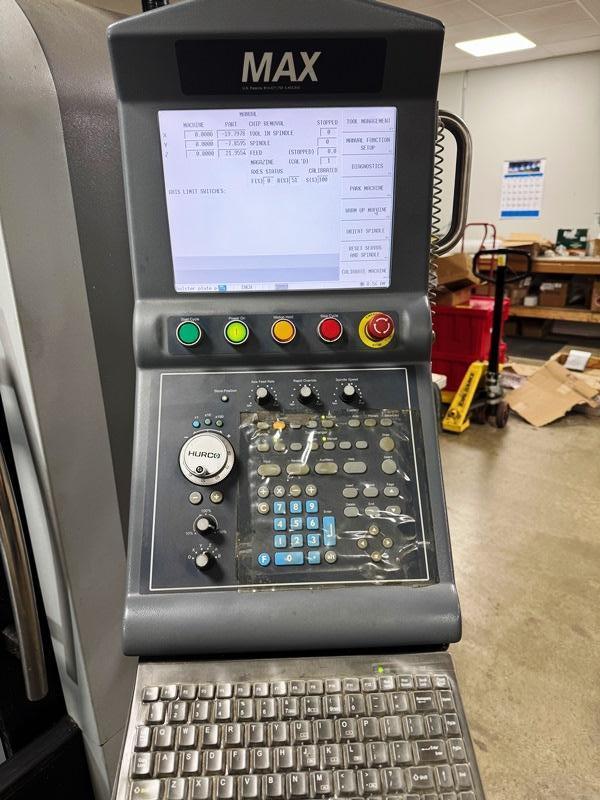

Hurco WinMax CNC Controls
Chip Conveyor
Coolant

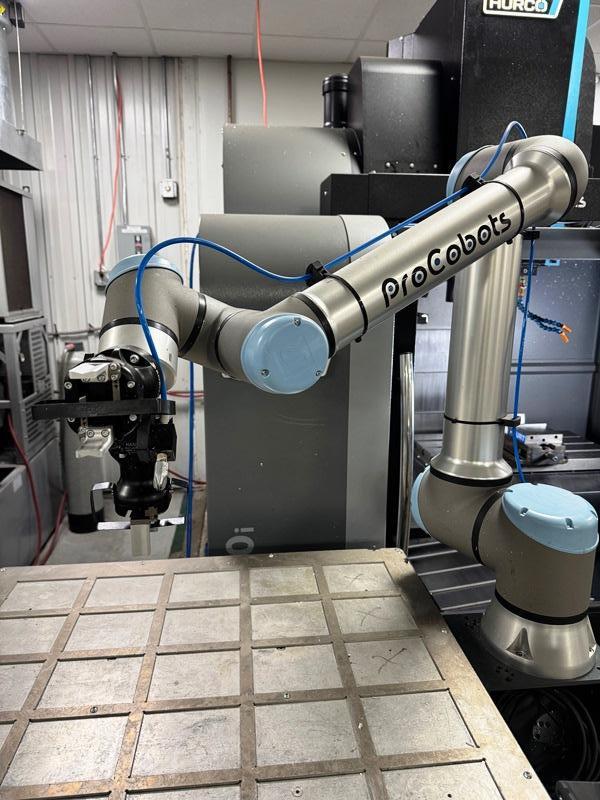

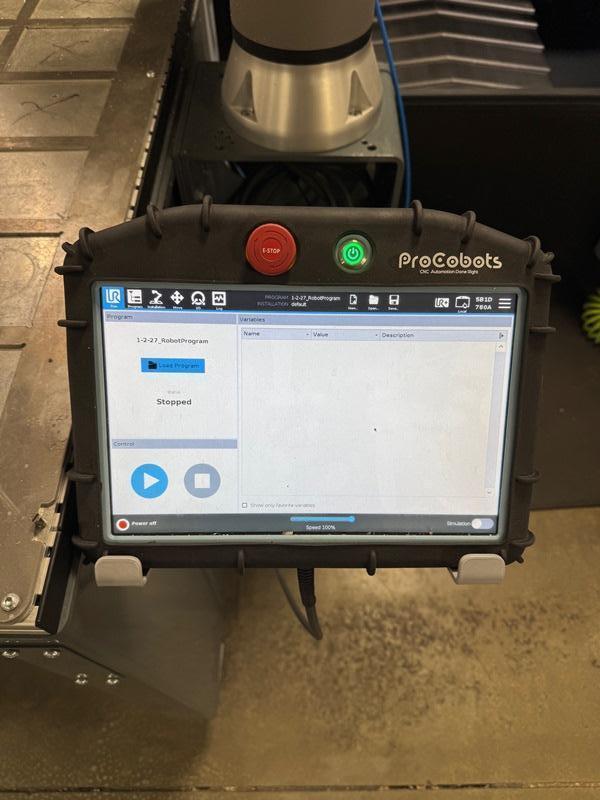

Universal Robots UR10e Collaborative Robot Arm
New 2023
The UR10e is a medium-sized e-series cobot from Universal Robots combining a 12.5 kg payload with 1300mm reach. It provides sufficient payload and reach capabilities to automate regular tasks such as machine tending, palletizing, pick and place, dispensing and welding, while ensuring a safe collaboration between humans and machines.

Note: Robot can be sold separately

Number of Axes                                      6

Reach                                                      1300 mm
Repeatability                                           0.05 mm
Max. Payload                                           12.5 Kg
Robot Weight                                          33.5 Kg
Degrees of Freedom                                6
Range of Movement                                360 Degrees in all Axes

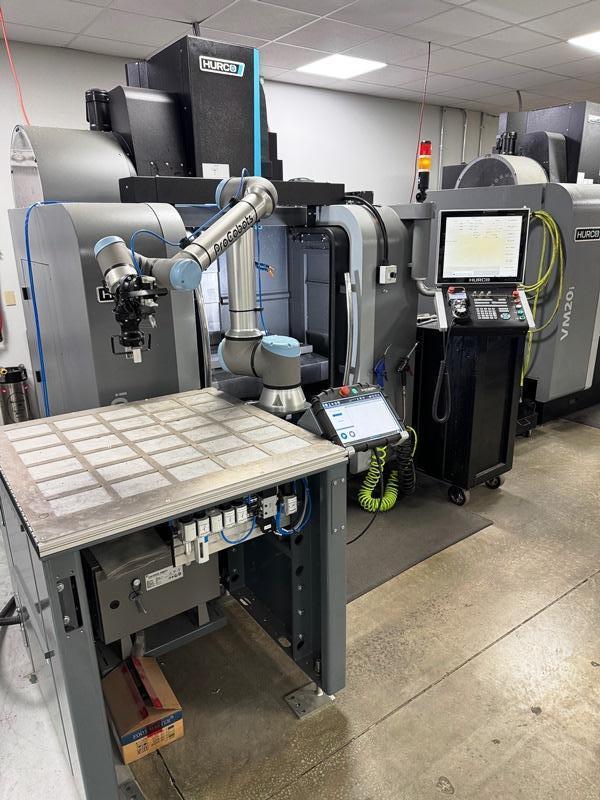

Complete with 36" Square Pick & Place Table

SPEICIFICATIONS:
Table Size                                       30" x 16"
Travels
      X-Axis                                       26.02"
      Y-Axis                                       16.02"
      Z-Axis                                        20"
T-Slot Size                                       3" x 0.71"
Max. Weight on Table                     3,500 Lbs.
Min. Distance Spindle to Table       4"
Max. Distance Spindle to Table       24"
Max. Spindle Speed                        12,000 RPM
Spindle Taper                                   CAT 40
Number of Tools                              24 ATC
Max. Tool Diameter                          3.1"
Max. Tool Length                             9.8"
Max. Tool Weight                            15.4 Lbs.
Feed Rates XYZ                               1,102 IPM
Max. Programmable Feedrate         1,102 IPM
Approximate Dimensions                128.5" x 133.2" x 101" H
Approximate Weight                       7,121 Lbs.
