HURCO VM20i 3-AXIS CNC VERTICAL MACHINING CENTER

Manufacturer

HURCO

Model

VM20i

Year

2015

Stock #

20002

Condition

Excellent

Request A Quote

Keep Scrolling To Learn More

Specifications

Equipped With

HURCO VM20i 3-AXIS CNC VERTICAL MACHINING CENTER

New 2015

Onlly 9,737 Hours

Motor Driven with 20 HP, 3-Phase, 60 Cycle, AC Spindle Motor

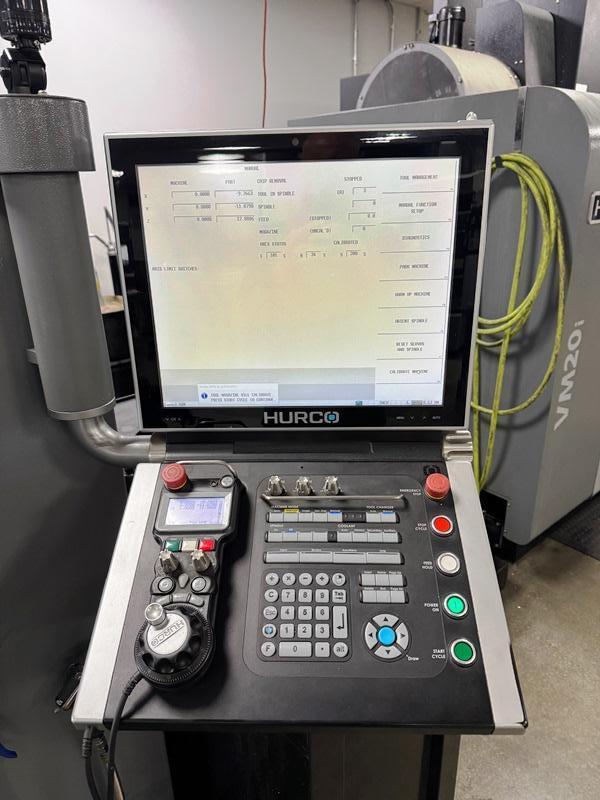

EQUIPPED WITH: Hurco Control, Winmax Classic Software, UltiPocket w/ Helical Ramp Entry, Enhanced DXF Transfer, Rigid Tapping, Work Light, Chip Conveyor, Thermal Stabilization Package,

SPEICIFICATIONS:
Table Size                                         20" x 46"
Travels
     X-Axis                                          40"
     Y-Axis                                          20"
     Z-Axis                                          20"
Max. Weight on Table                       3,970 Lbs.
Spindle to Nose on Table                  4" - 24"
Spindle Speed                                   12,000 RPM
Number of Tools                                24 ATC
Max. Tool Diameter                            3.1"
Max. Tool Length                                9.8"
Max. Tool Weight                                12.4 Lbs.
Rapid Traverse Rate                             1,102 IPM
Approximate Dimensions                    143" x 106" x 102"
Approximate Weight                          10,000 Lbs.
