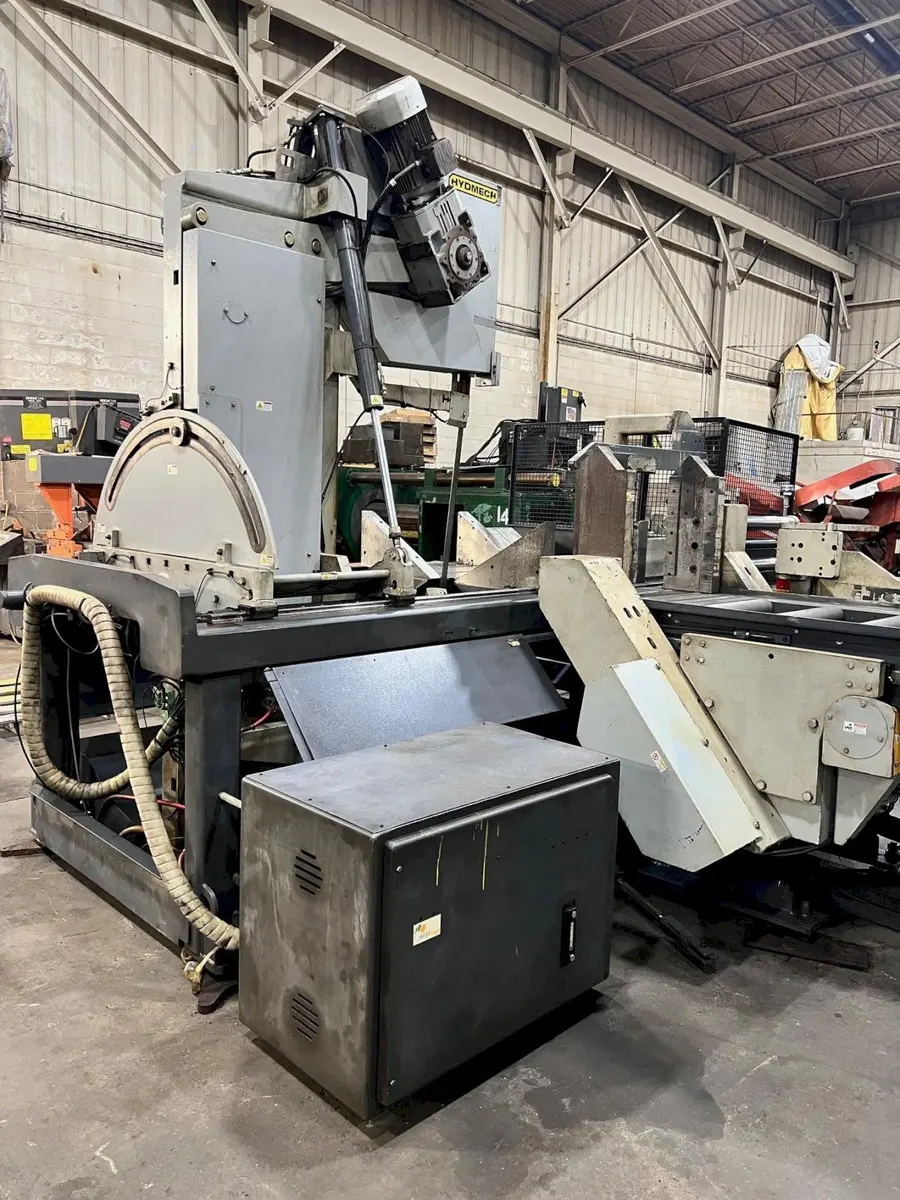

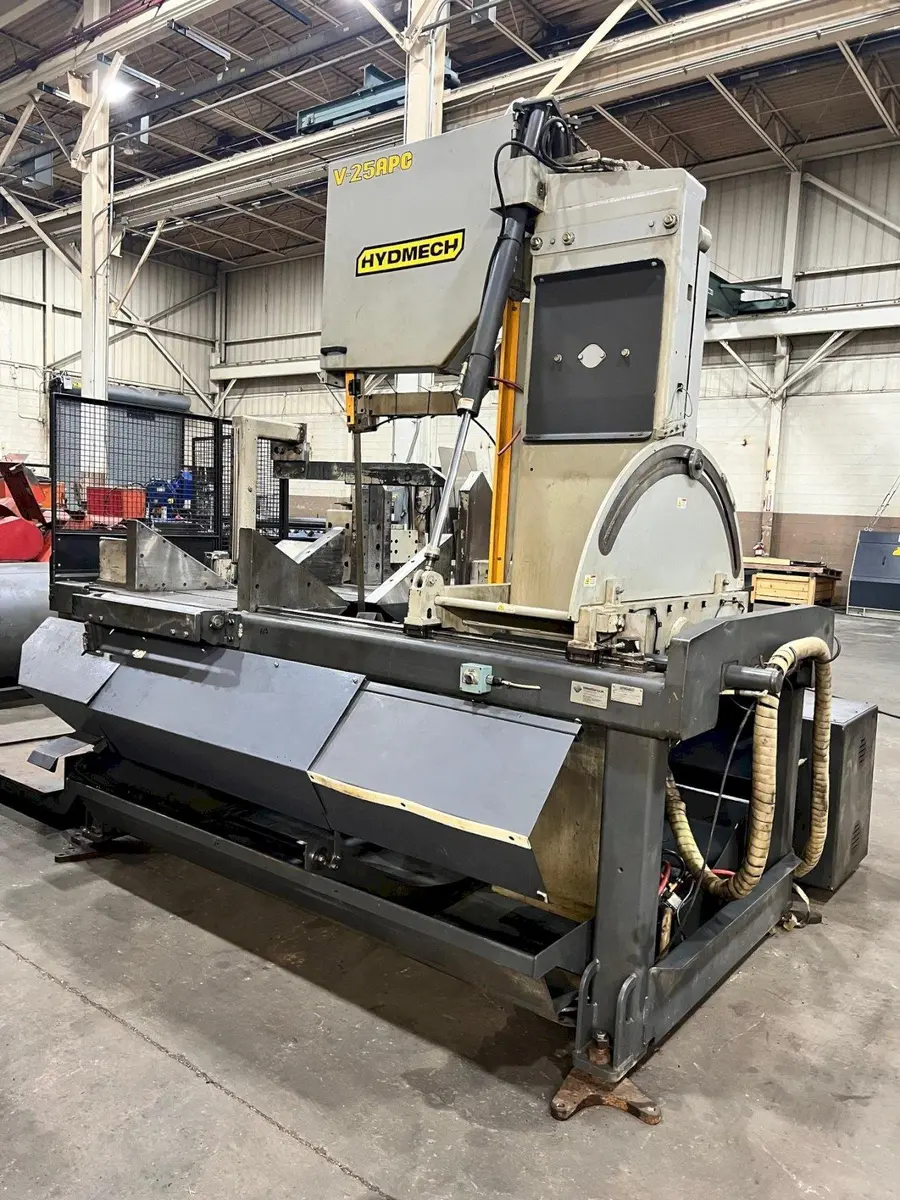

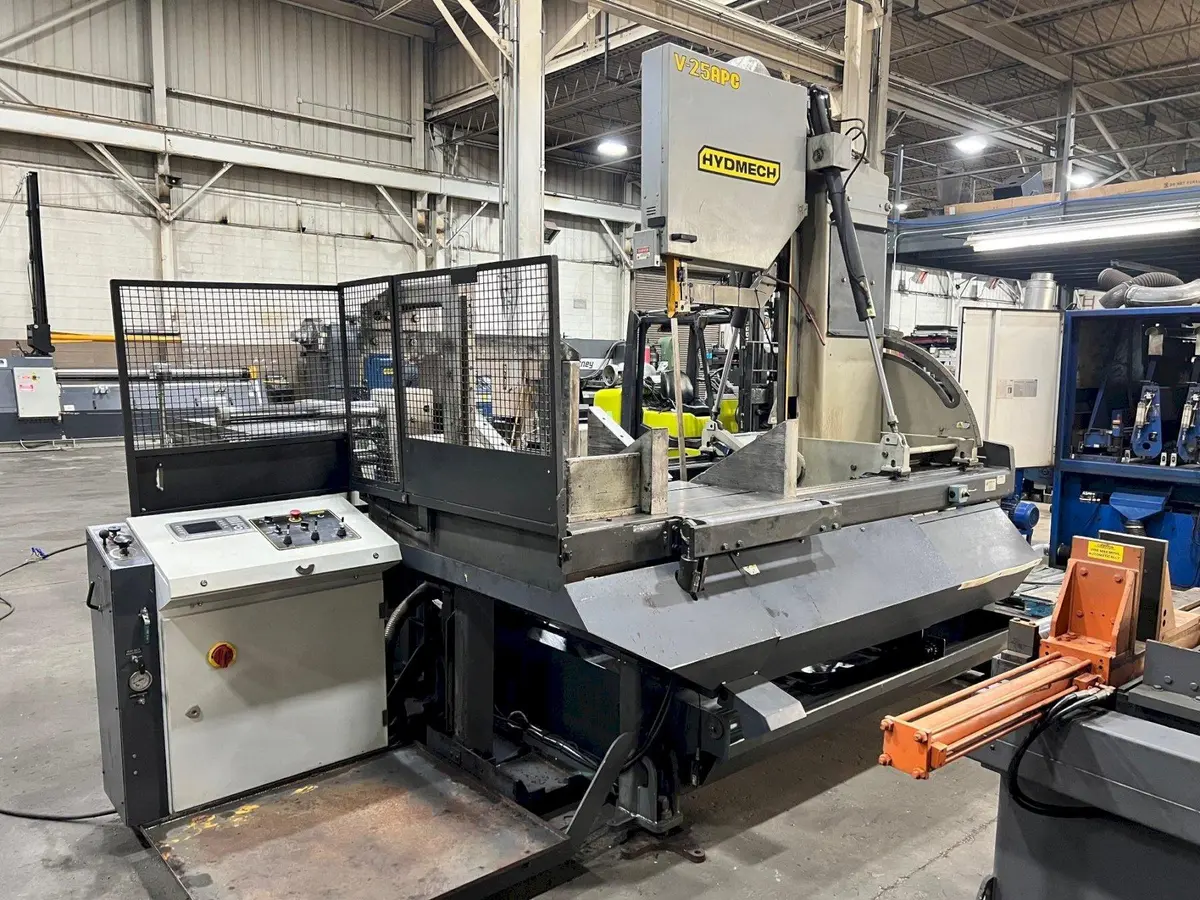

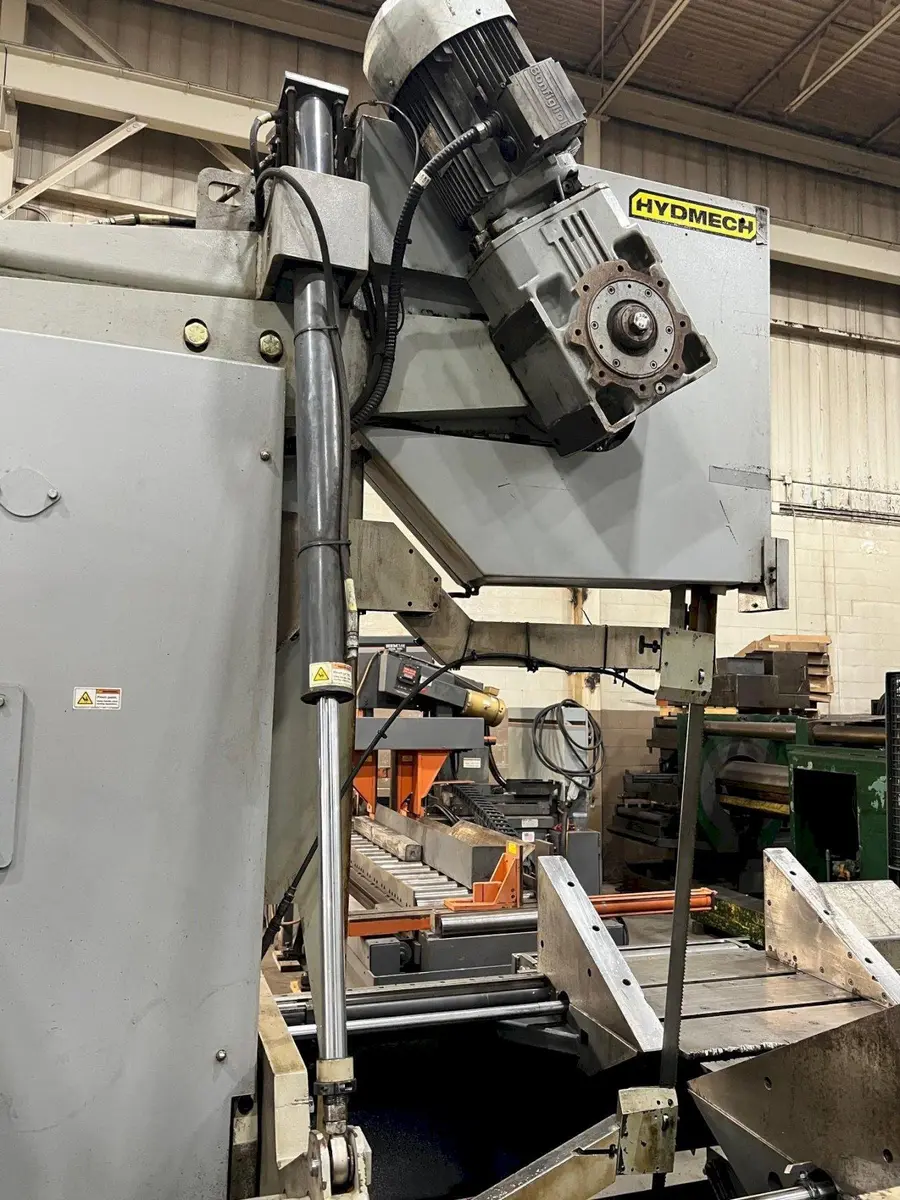

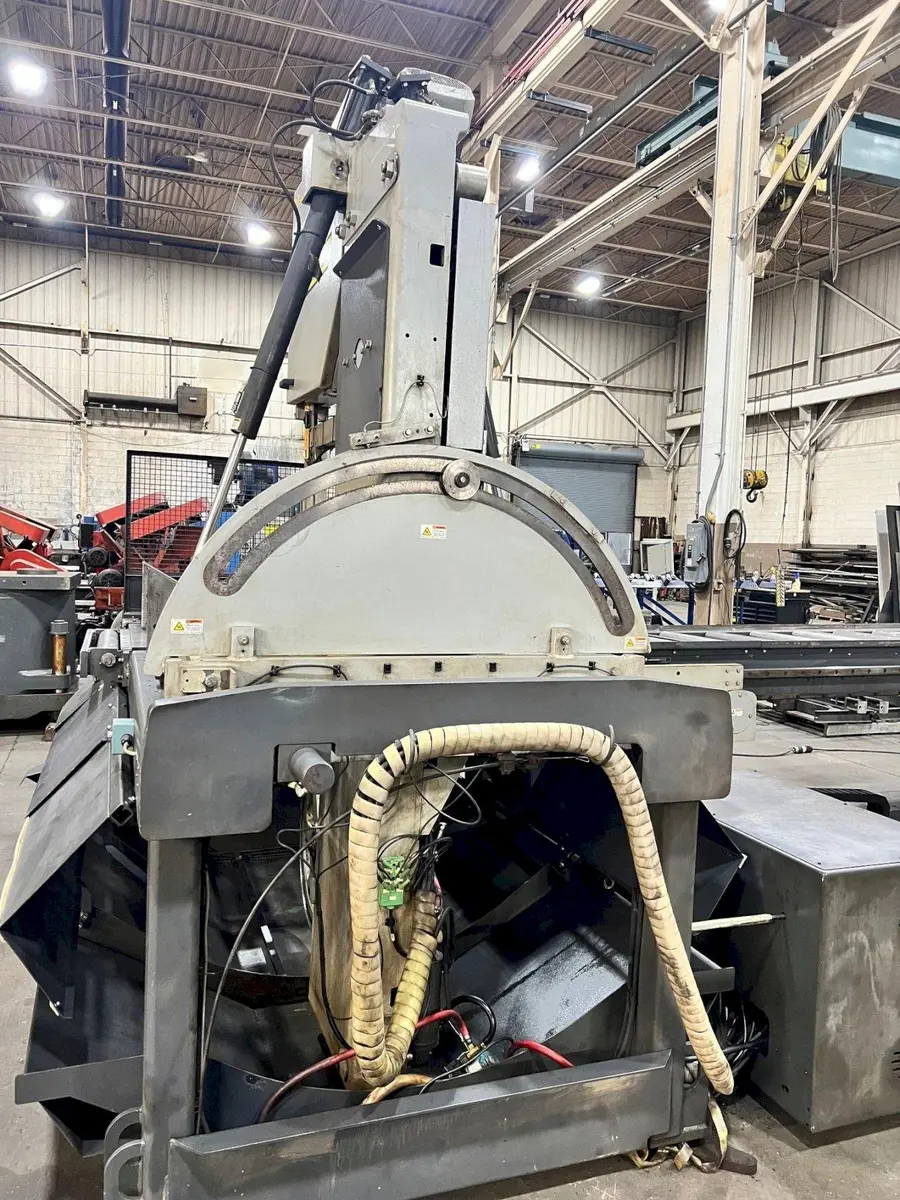

HYD-MECH 30" X 25" FULLY AUTOMATIC VERTICAL TILT FRAME BANDSAW MODEL V-25APC-120 WITH 62' OF POWERED CONVEYOR,

New 2014

This machine is being offered thoroughly reconditioned and checked out.

SPEICIFICATIONS:

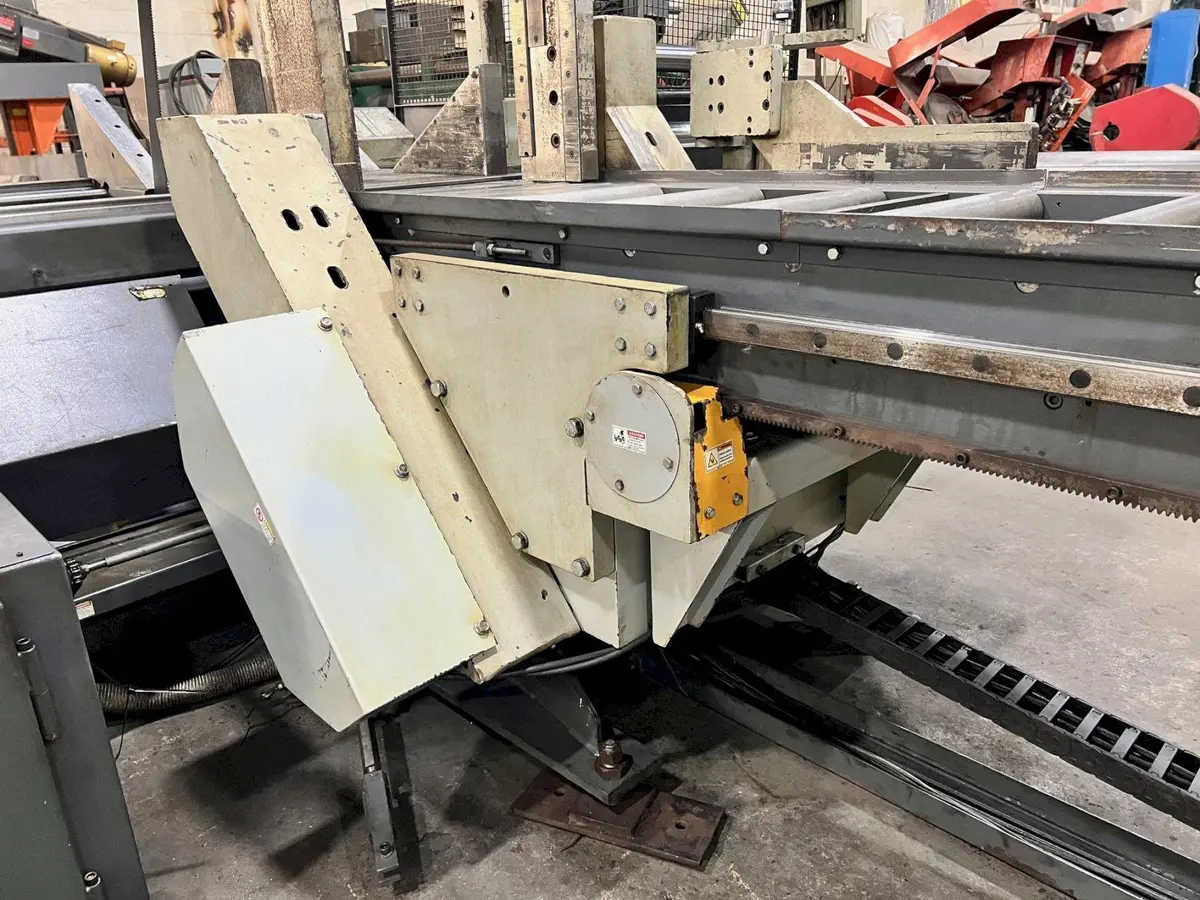

Optional 120" automatic shuttle feed with automatic kerf compensation, rack and pinion servo drive
Capacity @ 90 degrees: 30" x 25" (20" x 25" with bundling clamps)
Capacity @ 45 degrees: 21" x 25" (18.5" x 25" with bundling clamps)
Capacity @ 60 degrees right: 14.5" x 25" (8.5" x 25" with bundling clamps)
Capacity @ 60 degrees left: 13" x 25" (8.5" x 25" with bundling clamps)
Blade size: 1-1/2" x 21' x .050"
Blade motor: 10 H.P.
Blade speed: 75 - 350 FPM (infinitely variable)
Blade guides: Carbide
Coolant type: Flood
Coolant tank capacity: 38 gallons
Hydraulic tank capacity: 7 gallons
Table height: 44"
Voltage: 480 volt 3 phase
Machine weight: 15,000 Lbs.
Shuttle weight: 6,500 Lbs.

EQUIPPED WITH:

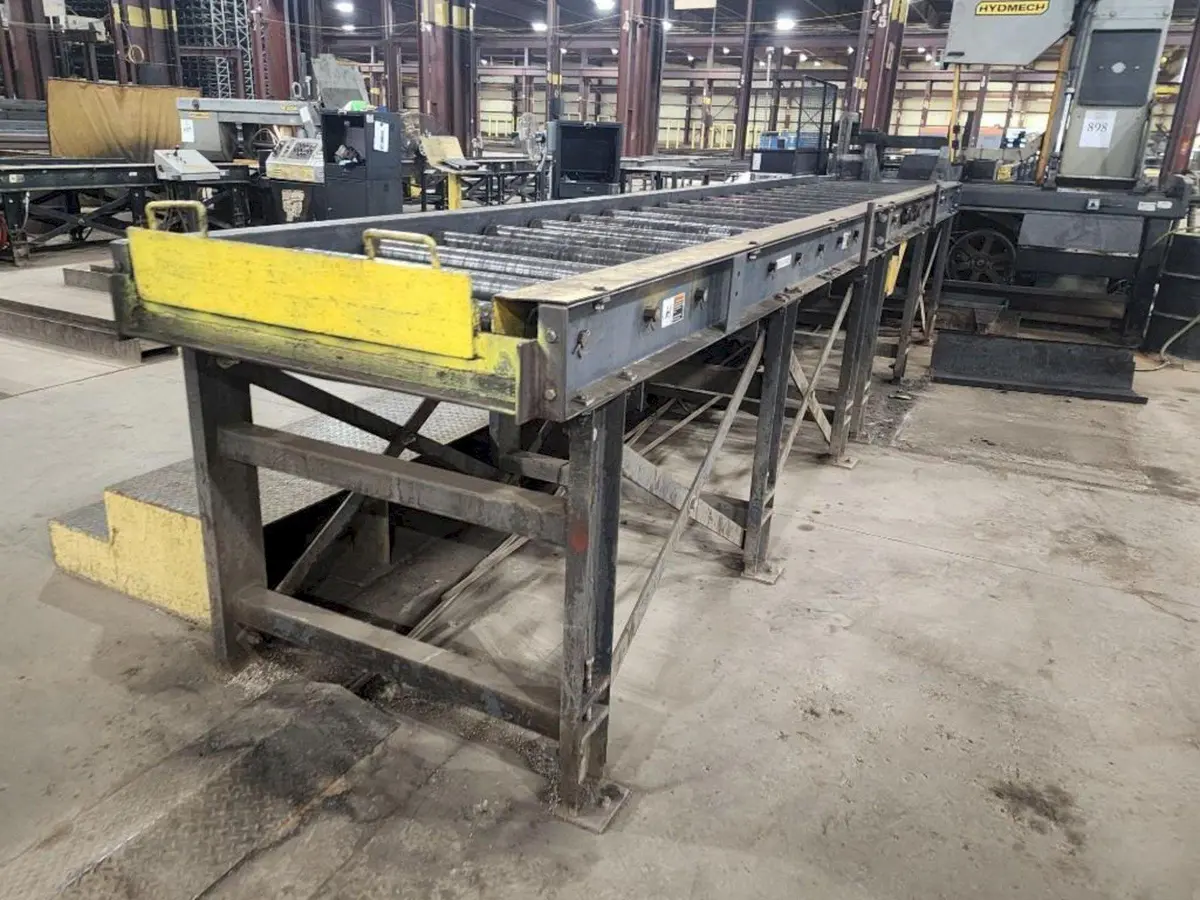

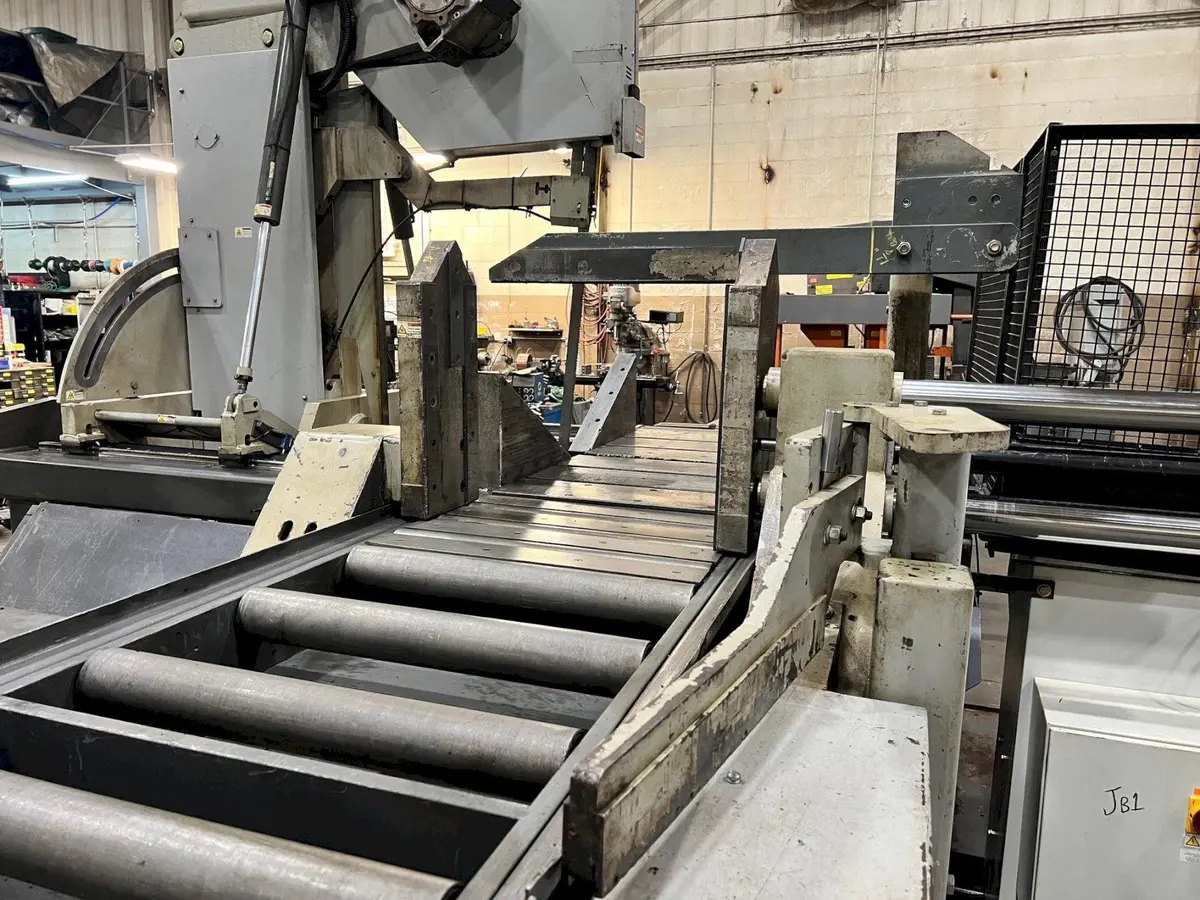

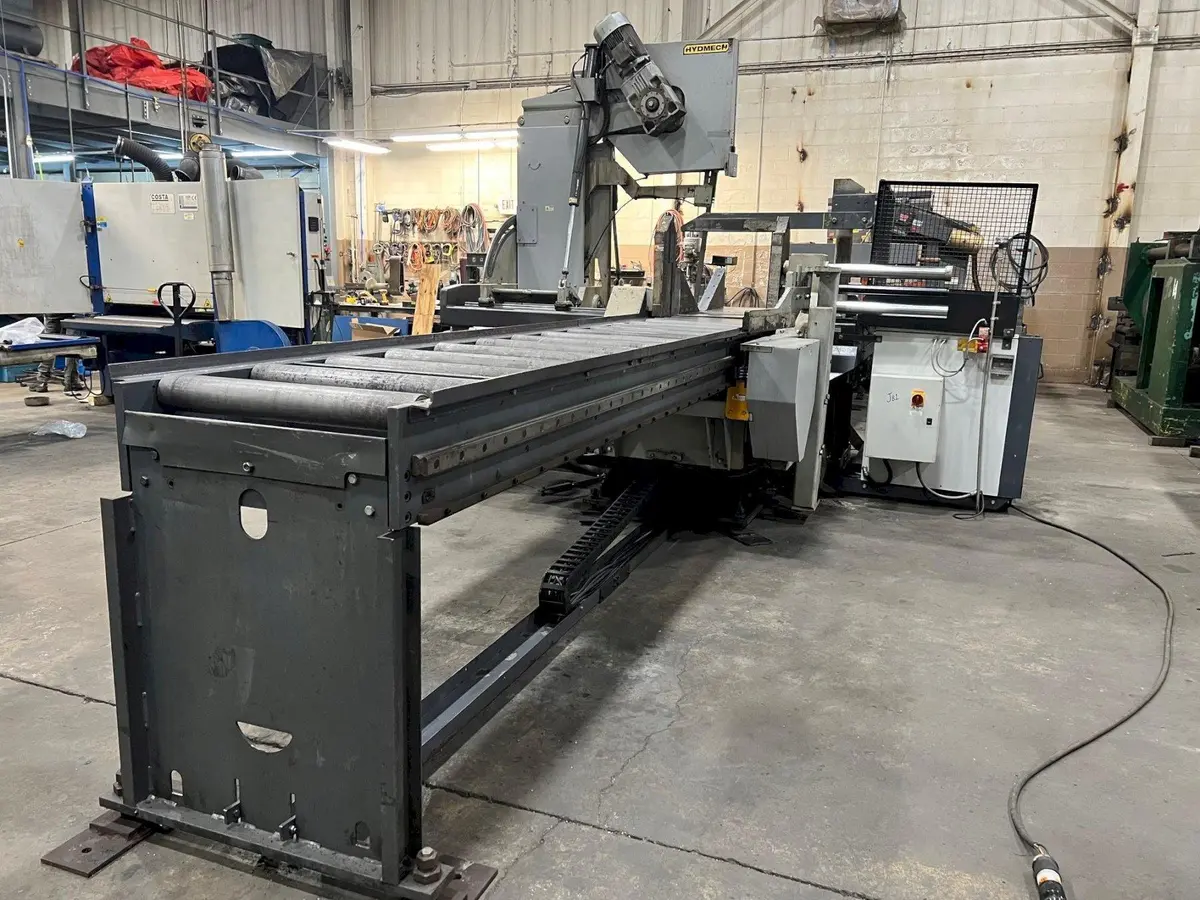

30" wide x 62' of powered heavy duty roller conveyor
Optional hydraulic overhead bundling clamps
Automatic programmable go-to angle from 60 degrees left and right
6 degree canted head
Hydraulic guide arm
Hydraulic head tilt

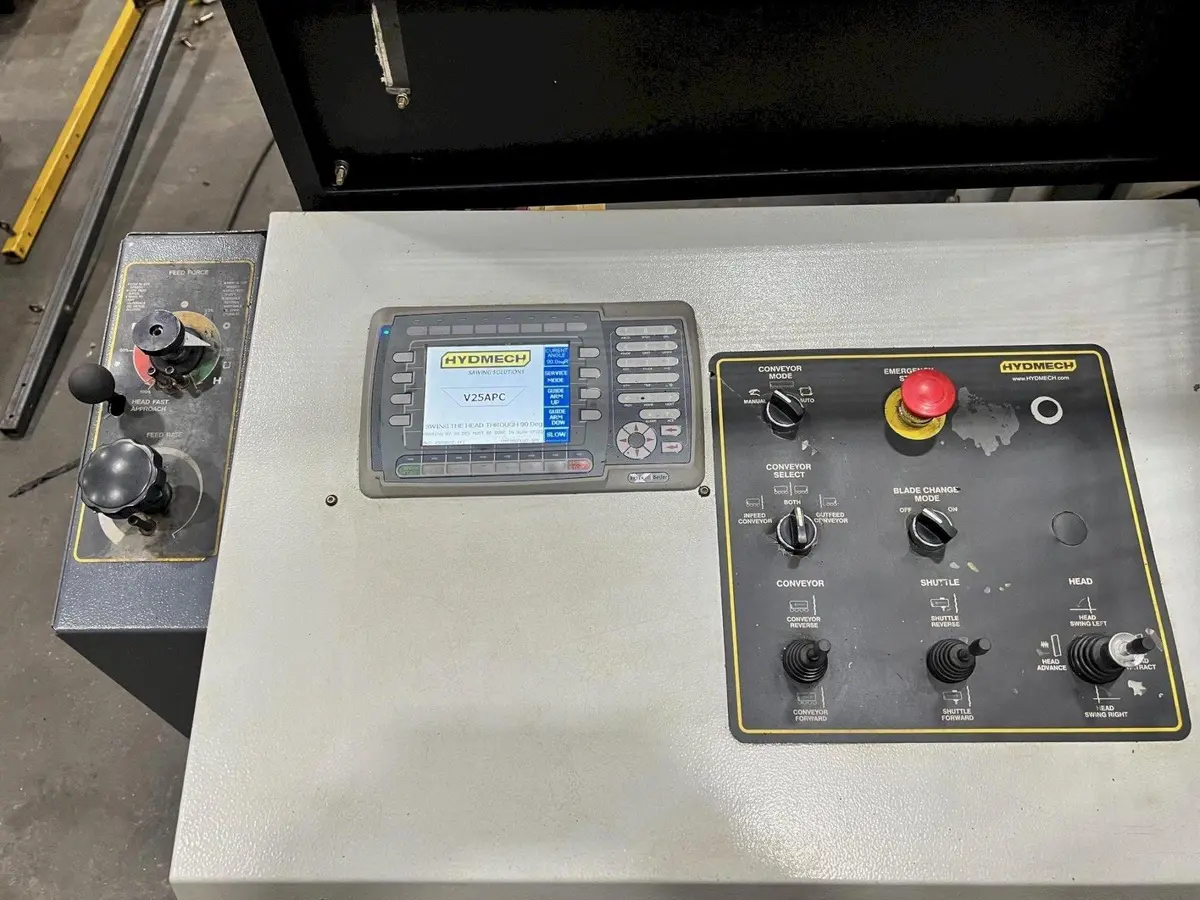

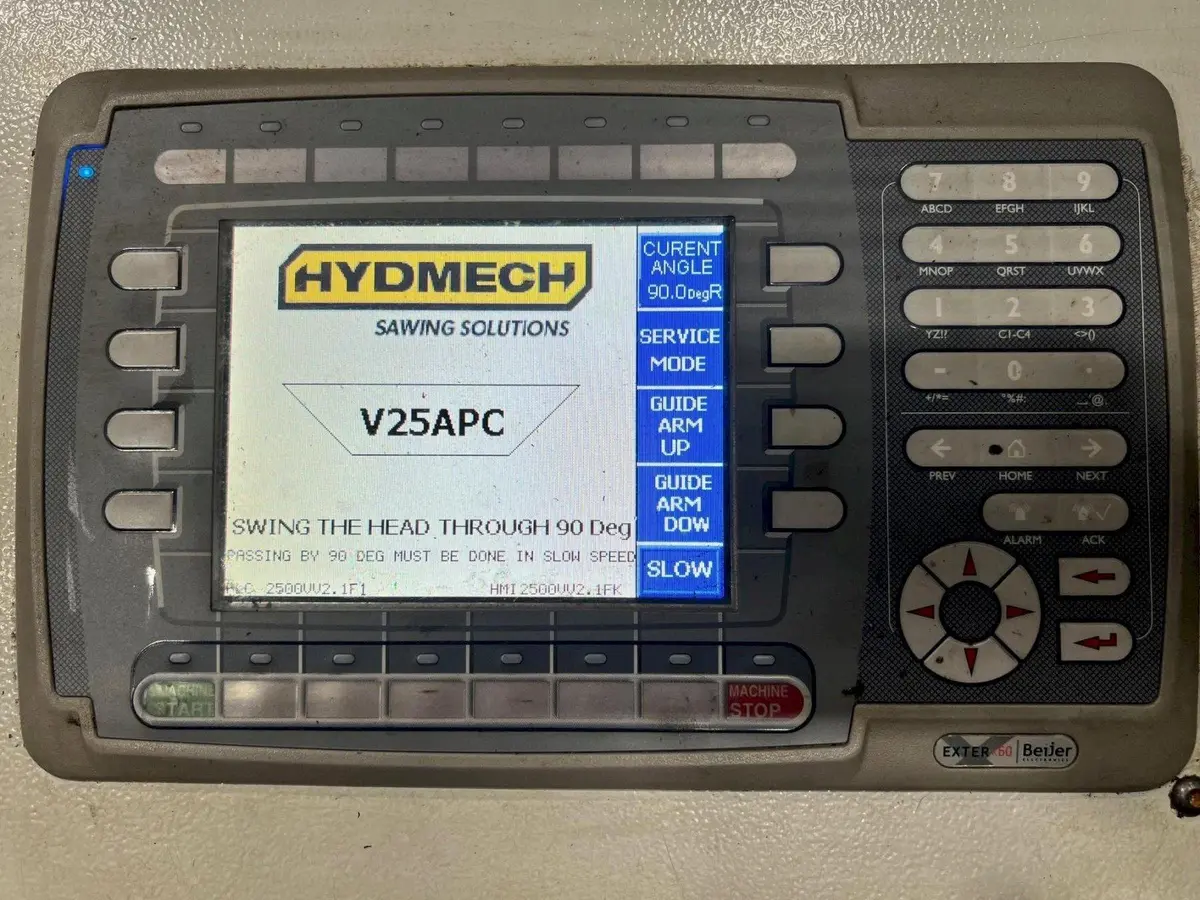

Mitsubishi PLC control

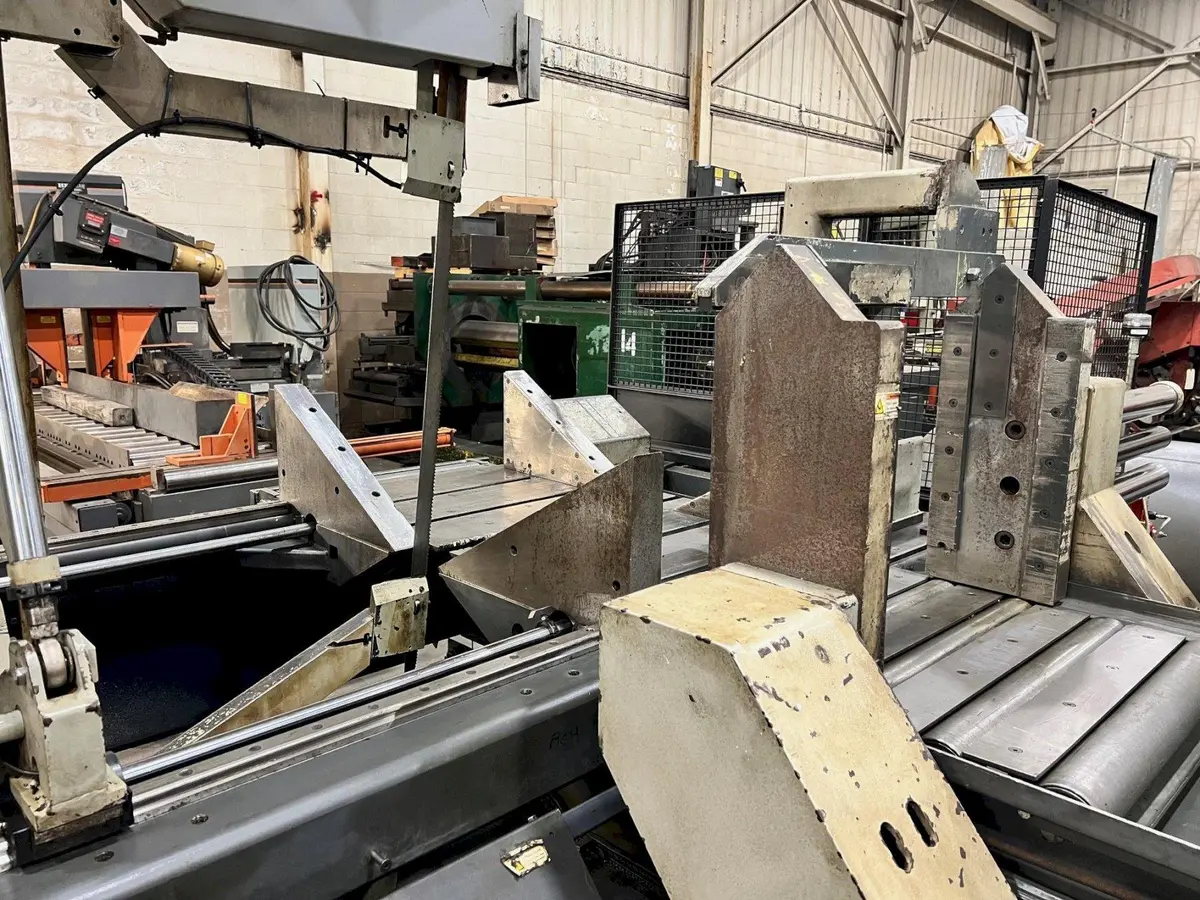

Two full stroking hydraulic vises
True direct blade drive with variable frequency drive
Blade chamber separates material from cut part
Hydraulic chip conveyor
Powered blade chip brush
Out of stock switch
Blade break switch
Pop-up feed roller
Hydraulic blade tension
Laser light
Variable vise pressure
Chip buckets
