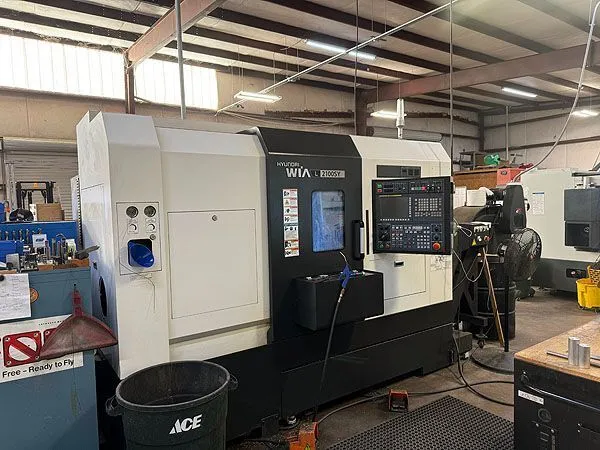

HYUNDAI WIA MODEL L2100SY – CNC TURNING CENTER W/SUB SPINDLE

New: 2018

Specifications:

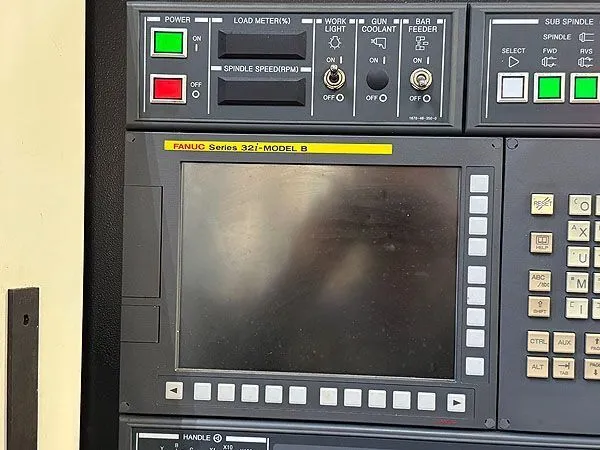

Control:  Fanuc 32i-Model B
Main Spindle Speed:  4,000 RPM (built-in spindle)
Main Spindle Power:  20 HP
Main Spindle Torque:  187.5 ft-lb
Bar Capacity (Main):  2.6 in (65 mm)
Max Turning Diameter:  13.2 in
Max Turning Length:  17.9 in

Sub Spindle Speed:  6,000 RPM (built-in spindle)
Sub Spindle Power:  10 HP
Sub Spindle Bar Capacity:  1.4 in

Live Tool Speed:  5,000 RPM
Live Tool Power:  7.4 HP (5 min) / 26 ft-lb torque

Axis Travels:  X-axis 8.3 in, Y-axis 3.9 in, Z-axis 22.8 in, ZB-axis 19.7 in
Axis Rapids:  X/Y 18/12 m/min, Z/ZB 24 m/min
Guideways:  Box type
Ball Screws:  X/Y 1.1 in, Z/ZB 1.57 in, double pre-tensioned design

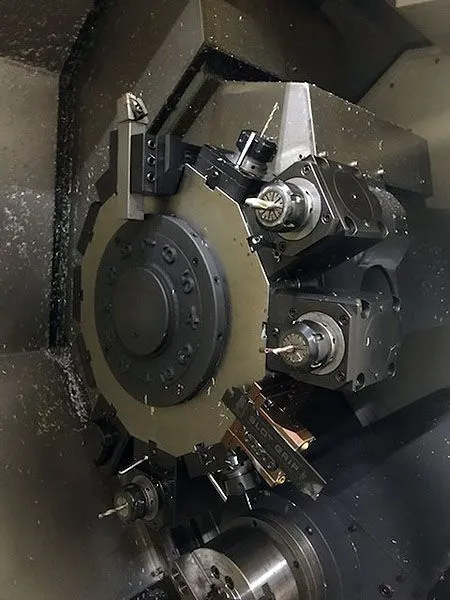

Turret:  BMT-65, 12-station
Tool Size:  Square 1 in / Round 2 in (25 mm / 50 mm)
Tool Setter:  Automatic
Coolant Pressure:  87 PSI (290 PSI optional)

Machine Dimensions (approx.):  10 ft × 6 ft (without chip conveyor)

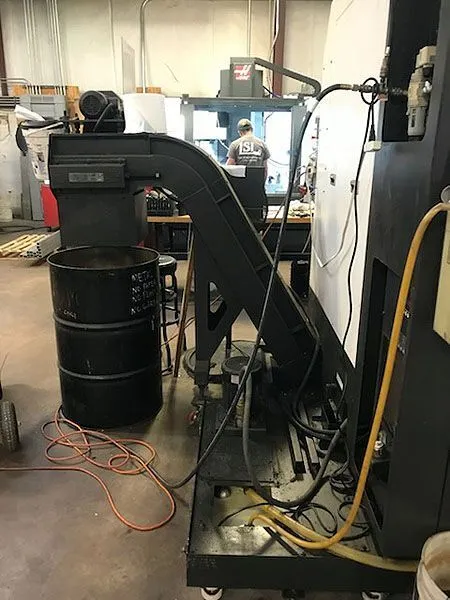

Chip Conveyor Length (approx.):  4 ft 5 in
Chip Conveyor Discharge Height:  47 in

Equipped with:
Chip Conveyor

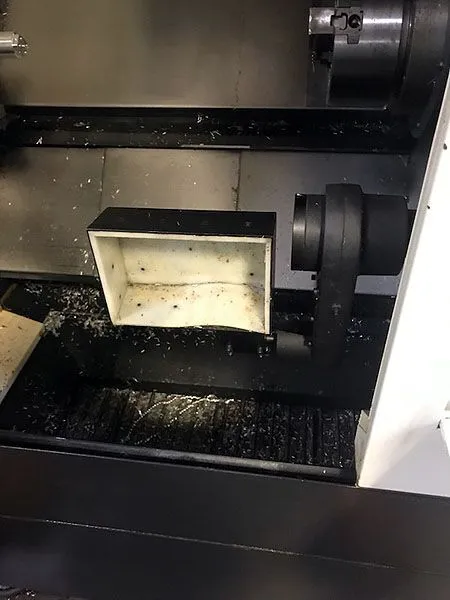

Parts Catcher

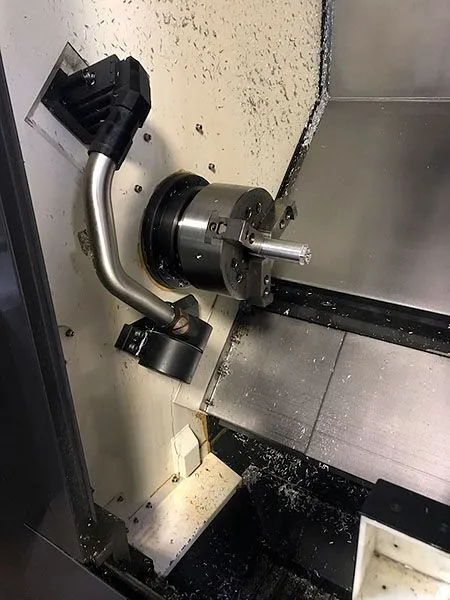

8" 3-Jaw Chuck
6" 3-Jaw Chuck (Sub Spindle)
Tool Setter

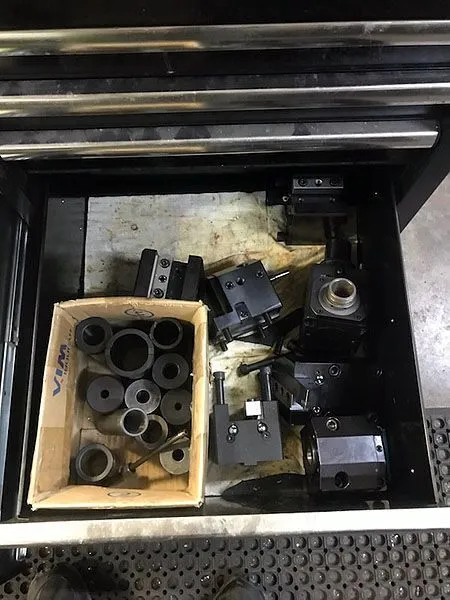

Approx. 6 Live Toolholders
Assorted Toolholders in Turret (Drills & Inserts not included)
Fanuc 32i Model B Control

Condition:  Approx. 3,000 cutting hours with only 1½ years of active use in seven years. Currently in a plant under power near Georgia.
